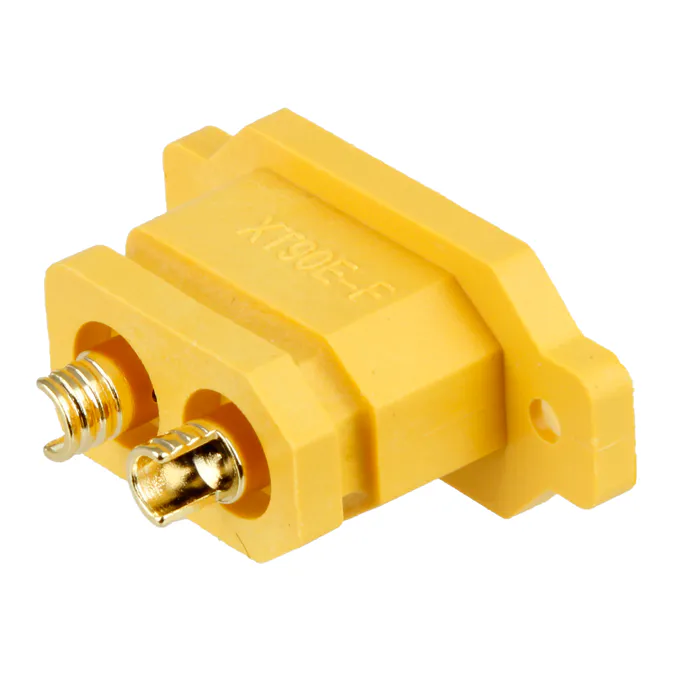

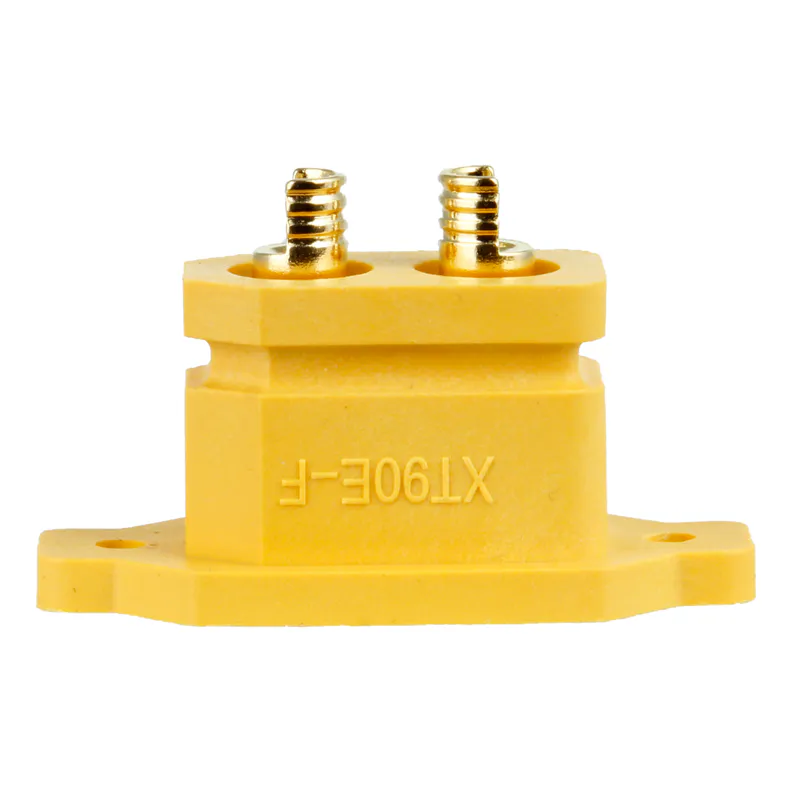

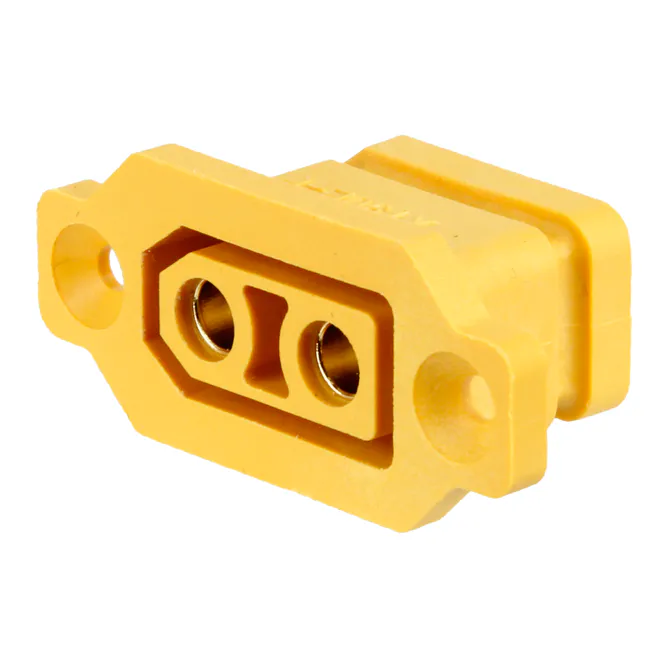

Amass XT90E Panel-Mount Connector, Male / Female

The Amass XT90E is the panel-mount version of the XT90 connector, built to be fixed to a frame plate, enclosure, charger, power distribution board or battery box rather than hanging on a wire. It gives heavy-lift drones, ground equipment and energy-storage builds a solid, fixed XT90-pattern power port. Choose the male or the female version.

Key features

• Panel mounting holds the connector rigidly, so repeated plugging does not strain the solder joints or wires
• Rated 45 A at a temperature rise under 85 °C, and up to 600 V DC on the male XT90E-M
• Gold-plated brass contacts in a UL94 V-0 nylon body, with contact resistance of 1.0 mΩ max
• IP40 protection and a -20 °C to 120 °C operating range
• Takes 8, 10 or 12 AWG cable on the solder side

Specifications

• Connector: Amass XT90E-M (male) or XT90E-F (female)
• Mounting: panel / surface mount
• Rated current: 45 A max (temperature rise under 85 °C)
• Rated voltage: 600 V DC (XT90E-M)
• Contact resistance: 1.0 mΩ max
• Insulation resistance: 2000 MΩ min
• Mating cycles: 100
• Protection: IP40
• Operating temperature: -20 °C to 120 °C
• Recommended cable: 8, 10 or 12 AWG

Measure the connector body and mark the cut-out before drilling your frame or enclosure, and pair it with an XT90 lead of the opposite gender.
