Amass XT60H-F Female Connector with 12AWG Silicone Wire
SKU AMASS-XT60H-F-12AWG-WIRE
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

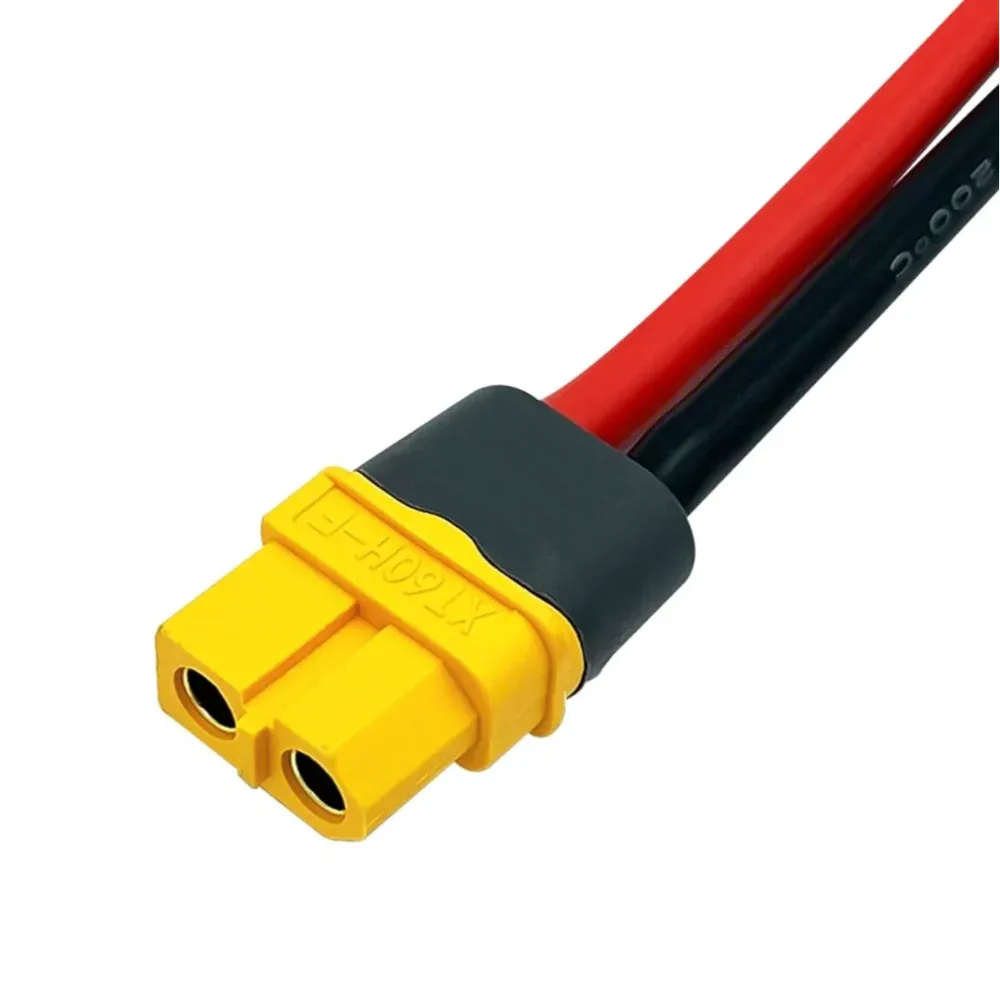

A genuine Amass XT60H female connector supplied pre-wired with red and black 12AWG high-temperature silicone leads. It is the quick way to fit an XT60 plug to a LiPo pack, charge lead, ESC lead or power harness without soldering the connector itself, and suits 5-inch FPV quads, fixed-wing models and any XT60-equipped system.
Key features
- Ready-made lead: 17.2 cm of 12AWG silicone wire, rated to 200 °C, already soldered to the XT60H-F
- Clear polarity: red is positive, black is negative
- Gold-plated brass contacts in a high-temperature nylon housing for a low-resistance, vibration-resistant connection
- Amass rating: 35 A with 12AWG wire at a temperature rise under 85 °C, and 500 V DC
Specifications
- Connector: Amass XT60H-F (female)
- Rated current: 35 A max with 12AWG (temperature rise under 85 °C)
- Rated voltage: 500 V DC
- Contact resistance: 1.2 mΩ max
- Mating cycles: 100
- Operating temperature: -20 °C to 120 °C
- Protection: IP40
- Wire: 12AWG silicone, red and black, 17.2 cm, rated to 200 °C
- Contacts: gold-plated brass
- Housing: high-temperature nylon, UL94 V-0
The female XT60 normally sits on the battery and mates with a male XT60 on the ESC or power distribution lead. Trim the free ends to length and insulate each joint with heat-shrink before connecting it to a pack.
| Battery Connector | XT-60 |
|---|---|
| Made in India | No |
| Brand | Amass |
| Connector Gender | Female |
| Wire Gauge | 12AWG |
