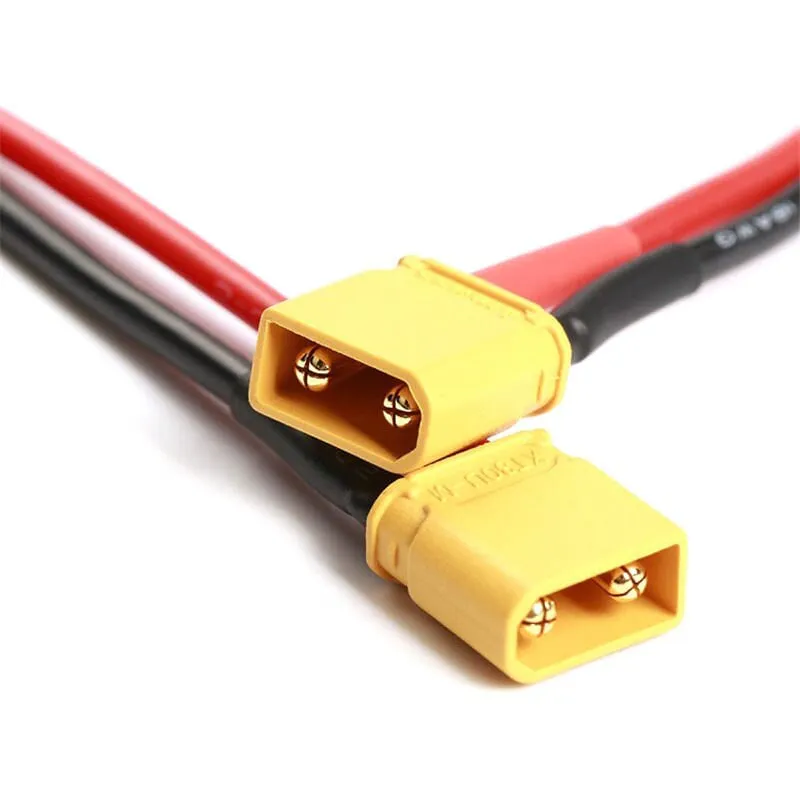

Amass XT30U Plug – 10cm 18AWG Silicone Cable

This pre-wired Amass XT30U pigtail provides a ready-to-use power lead for 2S to 4S micro drones, toothpicks, and cinewhoops. Factory-soldered to 10cm of high-flexibility 18AWG silicone wire, it removes the hassle of soldering bare connector cups while ensuring a secure, low-resistance power joint.

Key features

• Genuine Amass XT30U connector with gold-plated 2mm bullet contacts.
• Pre-soldered to 100mm of 18AWG stranded silicone wire for easy routing in tight micro frames.
• XT30U housing is lighter and more compact than the standard XT30, while remaining fully backwards compatible.
• Handles up to 30A burst current, scaling perfectly to lightweight micro FPV builds.

Specifications

• Connector: Amass XT30U (Male or Female)
• Wire gauge: 18AWG
• Wire length: 10cm (100mm)
• Insulation: High-temperature silicone
• Current rating: 15A continuous, 30A burst
• Contact material: Gold-plated brass

When selecting your variant, note the standard RC wiring convention: the male plug (featuring exposed pins inside the housing) mounts to the drone's flight controller or ESC, while the female plug (with recessed sockets) is used on batteries and charging leads to prevent short circuits.
