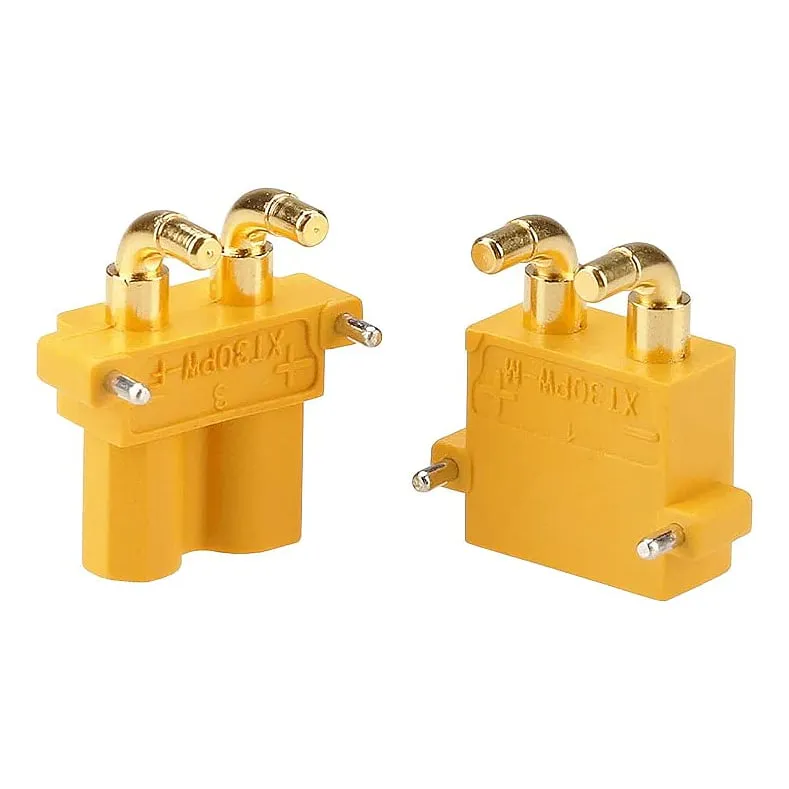

Amass XT30PW Female Bullet Connector

The Amass XT30PW female connector is engineered for direct right-angle PCB mounting, providing a low-profile and secure power interface. Featuring standard 2mm bullet contacts enclosed in a heat-resistant nylon shell, this female variant is commonly utilised on parallel charging boards, custom power splitters, and docking stations where batteries need to be plugged in flat against a circuit board.

Key features

• Right-angle PCB mount (horizontal) design for flat board integrations.
• Handles 15A continuous and 30A burst current.
• Genuine Amass quality with temperature-resistant nylon (UL94 V0) construction.
• Gold-plated 2mm contacts minimise electrical resistance.

Specifications

• Connector type: XT30PW Female
• Mounting style: Right-angle PCB mount
• Continuous current: 15A
• Peak current: 30A
• Voltage rating: 500V DC
• Contact resistance: 1.2mΩ
• Contact material: Gold-plated brass
• Housing material: Nylon (PA)

Note: Following the standard XT series convention, the female connector houses the metallic sockets and is typically found on the battery or power-source side of a connection.
