Alex 2812 900KV Brushless Motor for Long-Range FPV
₹2,699Incl. GST
SKU ALEX-2812-900KV
Stator Size: 2812Pack Size: 1KV: 900 KVShaft: 4mm
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

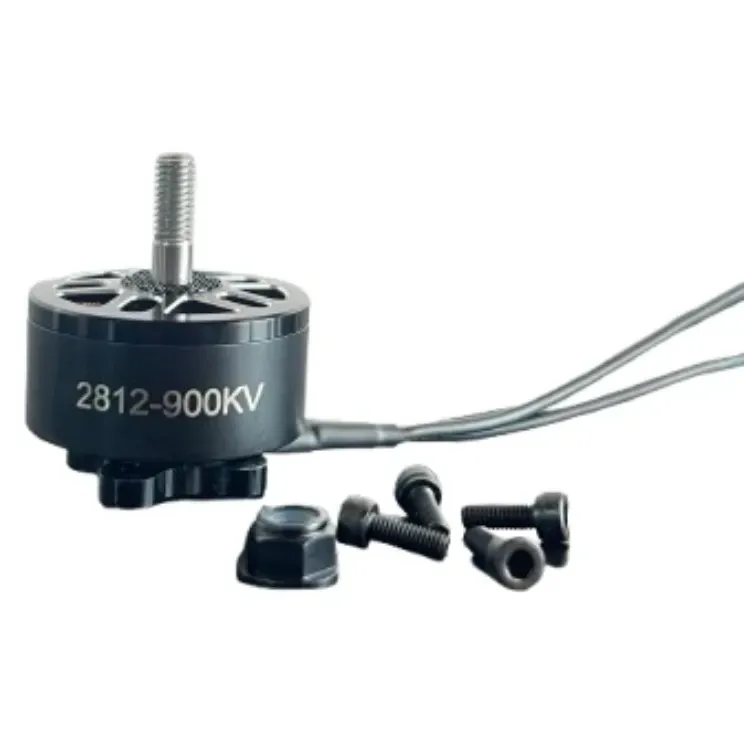

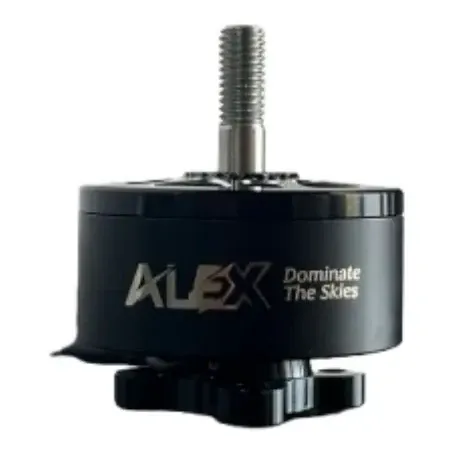

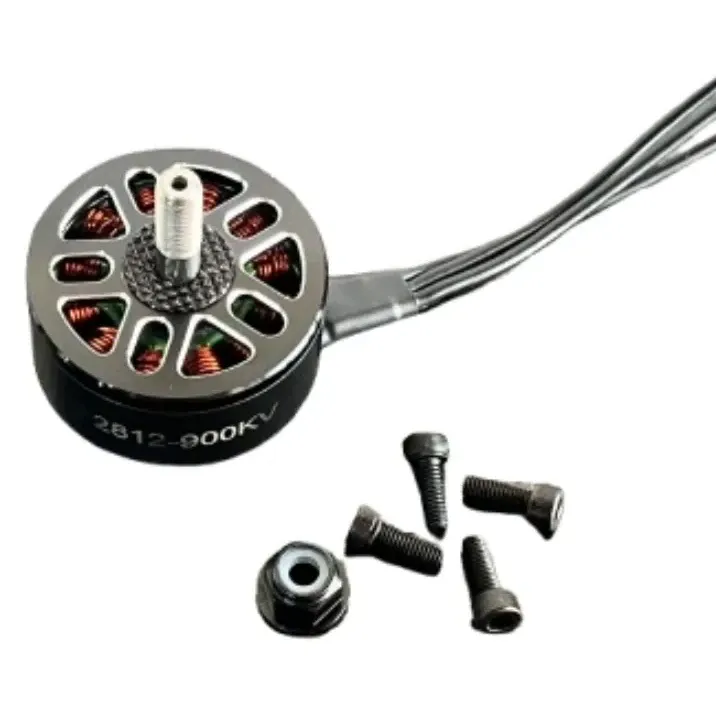

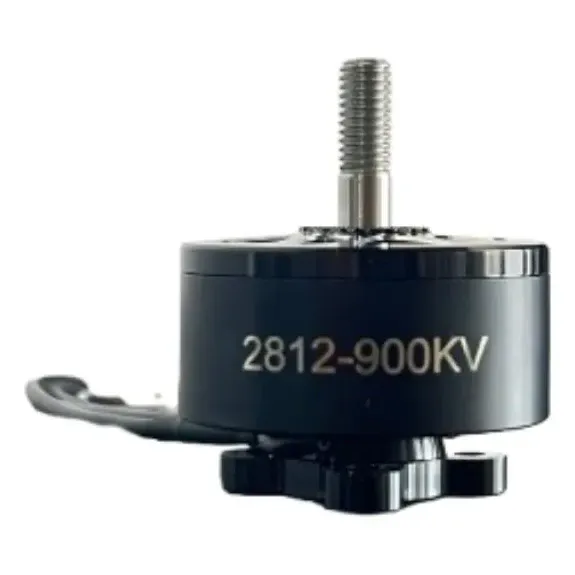

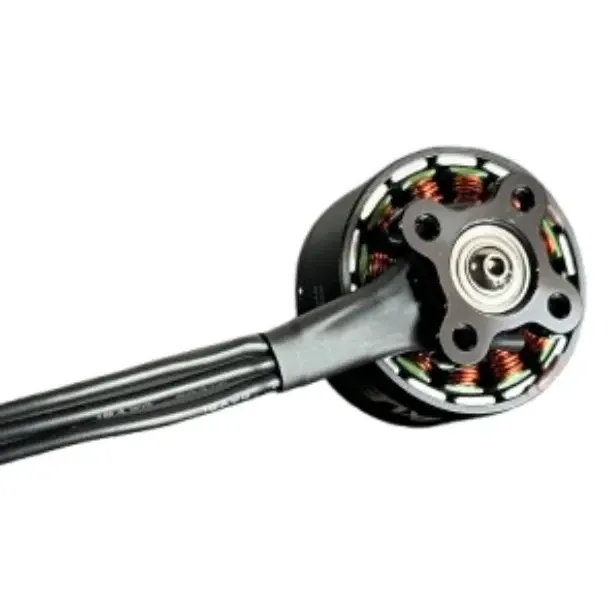

The Alex 2812 900KV is a brushless outrunner for 9-inch long-range FPV quads, rated for 2S to 6S and tested on an HQ 9 × 5 inch propeller. Made in India, it runs a 12N14P stator on a 4 mm shaft and weighs 77 g.
Key features
- Lower 900KV winding sized for 9-inch props rather than 7-inch
- Up to 958 W on 6S, with a 41 A peak current
- 68 mΩ internal resistance and 1 A idle current at 10 V
- Low-resistance precision bearings in a crash-resistant build
- 18 AWG motor leads, 250 mm long
Specifications
- Stator: 2812
- KV: 900KV
- Configuration: 12N14P
- Input voltage: 2–6S LiPo
- Max power (6S): 958 W
- Peak current (6S): 41 A
- Idle current (10 V): 1 A
- Internal resistance: 68 mΩ
- Shaft: 4 mm
- Leads: 18 AWG, 250 mm
- Test propeller: HQ 9 × 5 inch
- Weight: 77 g
Sold as a single motor, so order four for a quad. Choose an ESC rated at 45 A or more per motor to clear the 41 A peak on 6S.
| Stator Size | 2812 |
|---|---|
| Stator Diameter | 28mm |
| Stator Height | 12mm |
| Pack Size | 1 |
| KV | 900 KV |
| Shaft | 4mm |
| Input Voltage | 2–6S |
| Weight | 77 g |
| Brand | Alex |
| Made in India | Yes |
