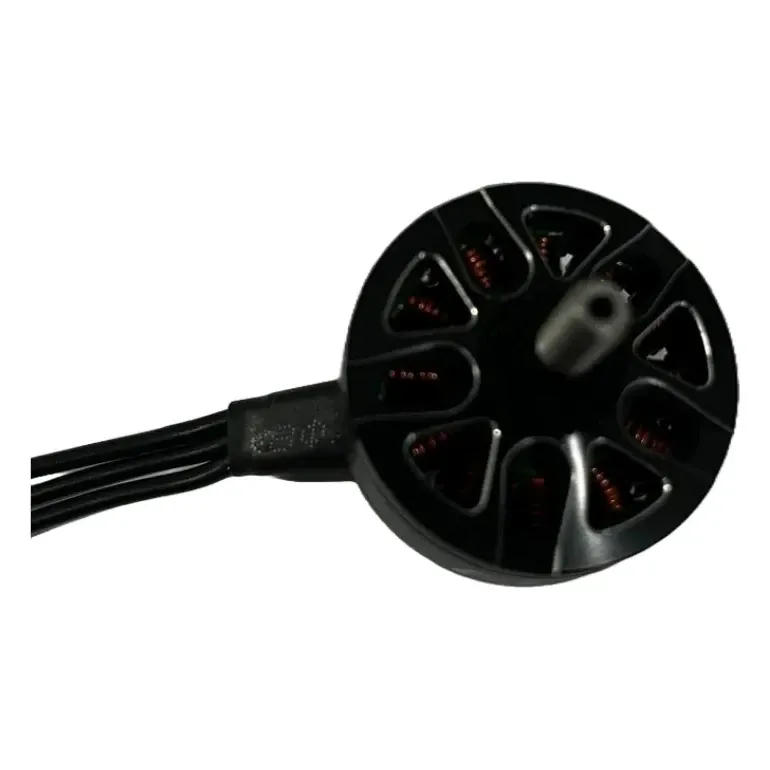

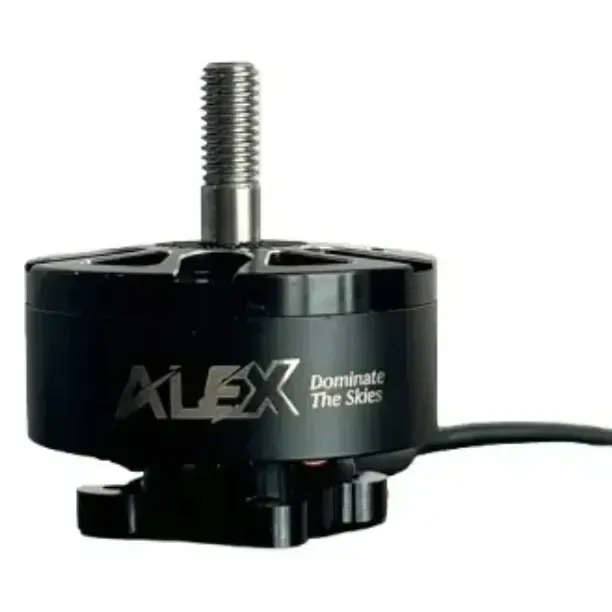

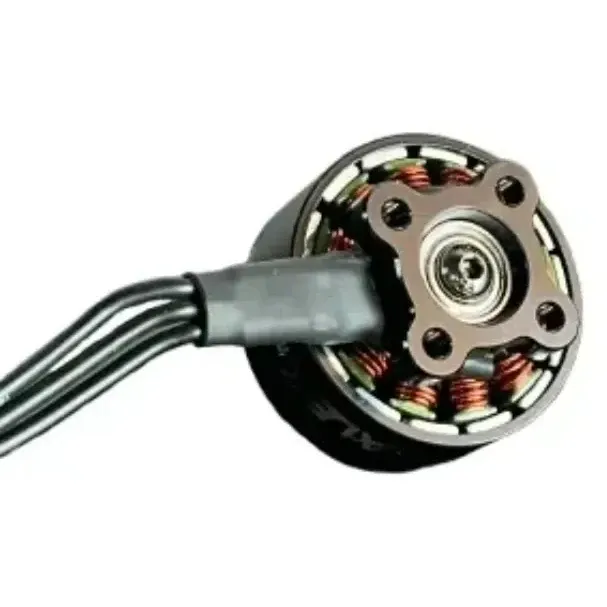

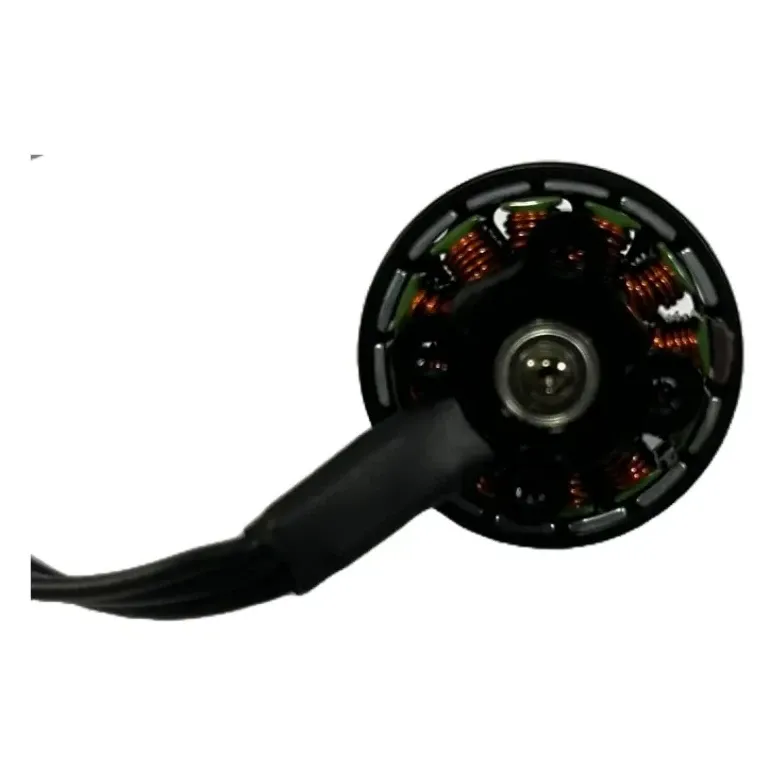

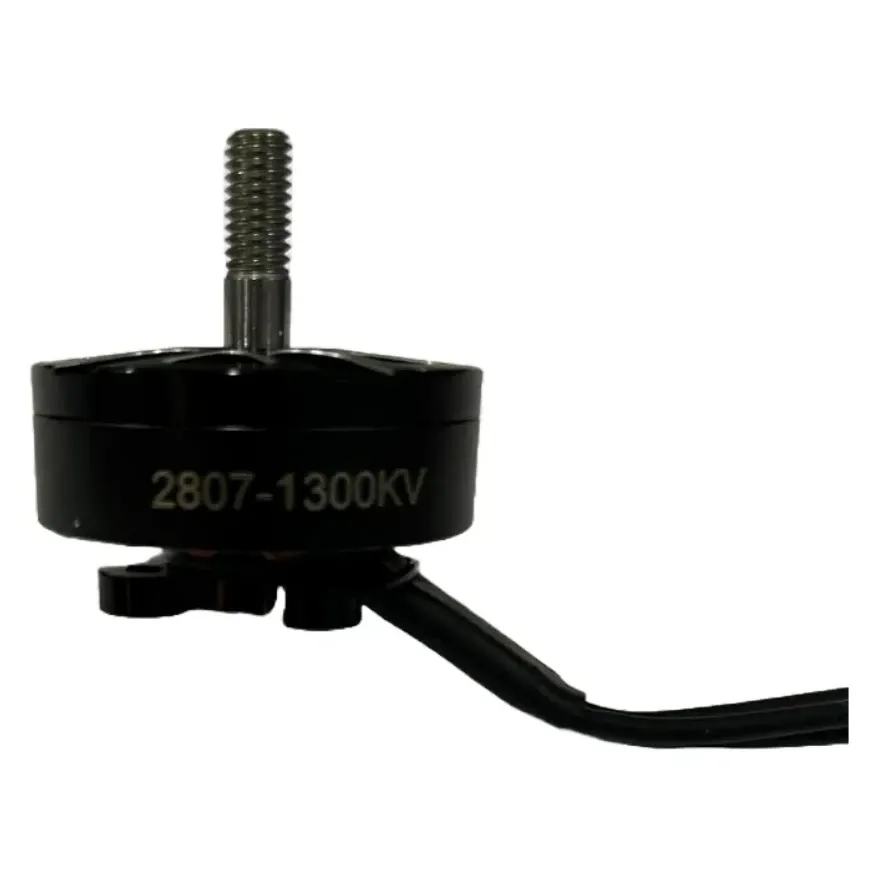

Alex 2807 1300KV Brushless Motor for Long-Range FPV

The Alex 2807 1300KV is a brushless outrunner for 6–7 inch long-range FPV quads, rated for 2S to 6S packs. Made in India, it combines a 12N14P stator with a 4 mm shaft at 53 g per motor.

Key features

• Matched to 6–7 inch propellers, the standard long-range 7-inch class
• Up to 715 W on 6S, with a 34 A peak current
• 60 mΩ internal resistance and 1 A idle current at 10 V
• Low-resistance precision bearings in a crash-resistant build
• 18 AWG motor leads, 200 mm long

Specifications

• Stator: 2807
• KV: 1300KV
• Configuration: 12N14P
• Input voltage: 2–6S LiPo
• Max power (6S): 715 W
• Peak current (6S): 34 A
• Idle current (10 V): 1 A
• Internal resistance: 60 mΩ
• Shaft: 4 mm
• Leads: 18 AWG, 200 mm
• Recommended props: 6–7 inch
• Weight: 53 g

Sold as a single motor, so order four for a quad. Pick an ESC rated at 35 A or more per motor to cover the 34 A peak, and run 6S to reach the full 715 W figure.
