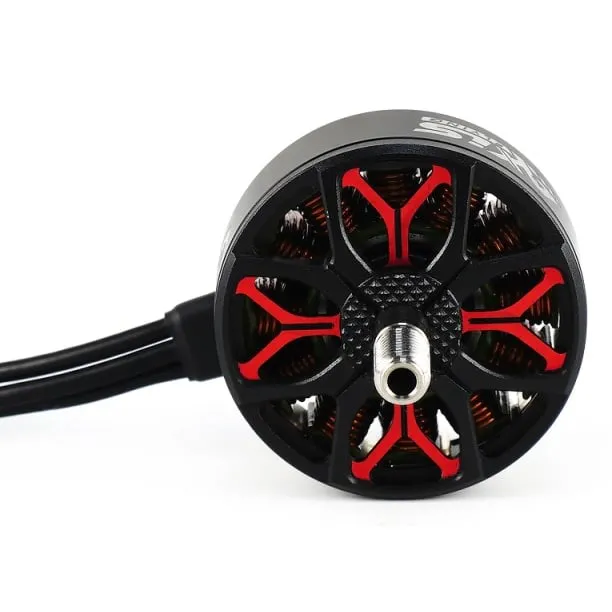

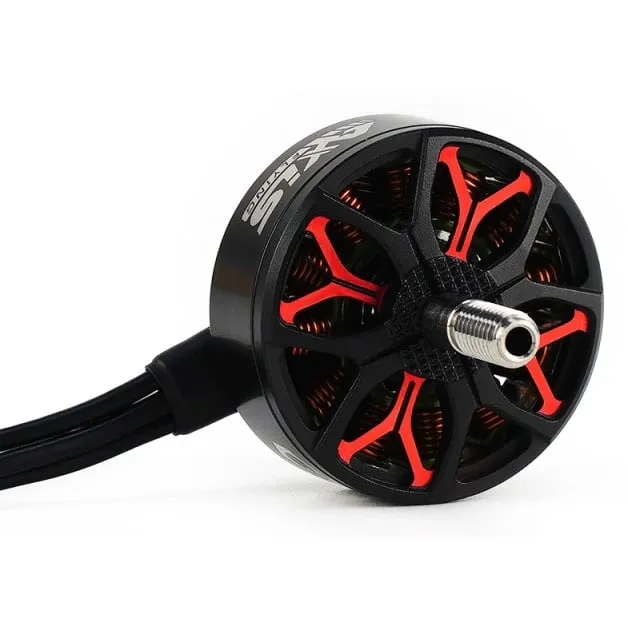

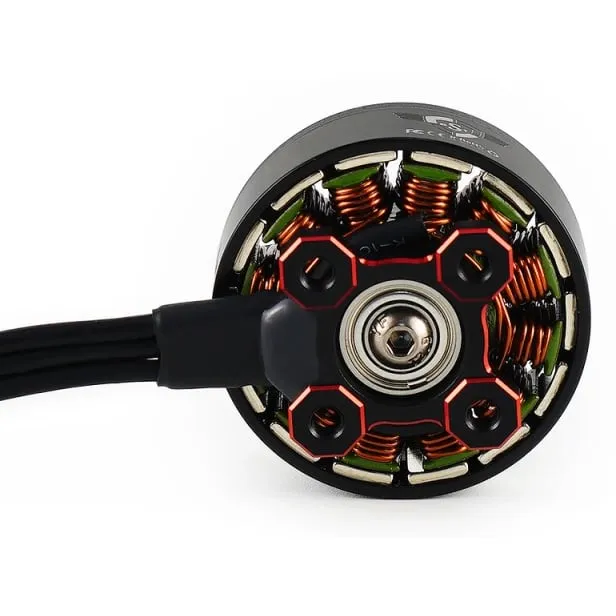

Axisflying C287 2807.5 Motor
SKU AXIS-C287-28075-1750KV
KV: 1750KV
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Axisflying C287 2807.5 is a cinematic-series brushless motor, offered in 1350KV and 1750KV, built for 7-inch long-range and cinelifter builds running 6S power. It is tuned for the higher thrust and efficiency a cinelifter X8 or long-range 7-inch quad needs.
Key features
- 12N14P winding with N52H arc magnets for high torque at cruise throttle.
- Weighs 47g excluding its cable, with an 18AWG 260mm lead for lower resistance.
- Rated for over 2.8kg of thrust and around 63A current draw.
- M5 shaft and mounting-hole pattern suit standard 7-inch frame arms.
Specifications
- Stator size: 2807.5 (28 x 7.5 mm)
- KV: 1350KV / 1750KV
- Input voltage: 6S
- Shaft: 5mm
- Weight: 47g (excl. cable)
- Mounting holes: 4 x M3, 19mm pattern
- Recommended prop: 7-inch
Use four matched motors for a long-range or cinelifter X8 build, with propellers and an ESC rated for the motor's current draw. Because the mounting pattern is wider than typical 5-inch motors, always check frame arm compatibility before ordering replacements.
| Stator Size | 2807.5 |
|---|---|
| Stator Diameter | 28mm |
| Stator Height | 7.5mm |
| KV | 1750 KV, 1350 KV |
| Prop Mount | M5 |
| Shaft | 5mm |
| Motor Mount | 19x19mm |
| Input Voltage | 6S |
| Weight | 47 g |
| Brand | Axisflying |
| Made in India | No |
