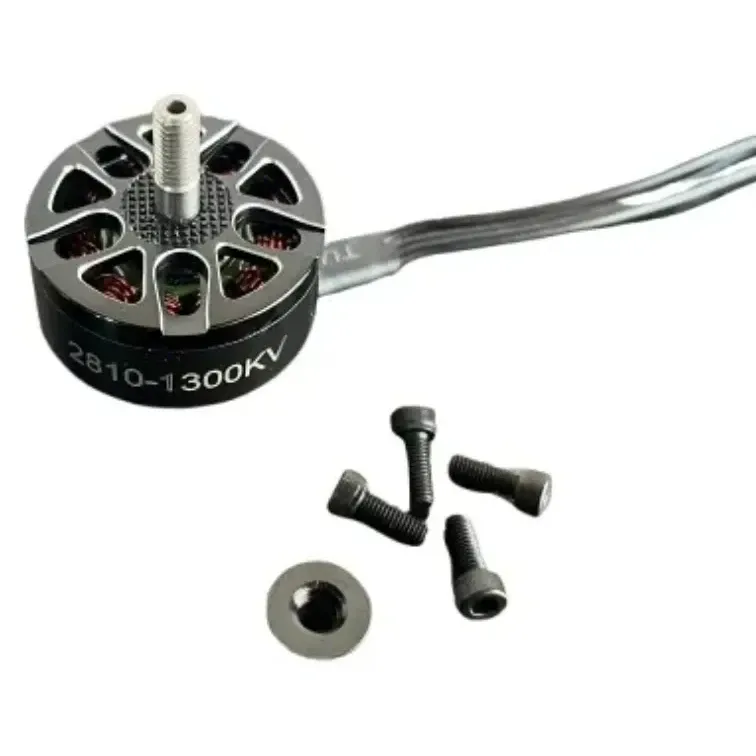

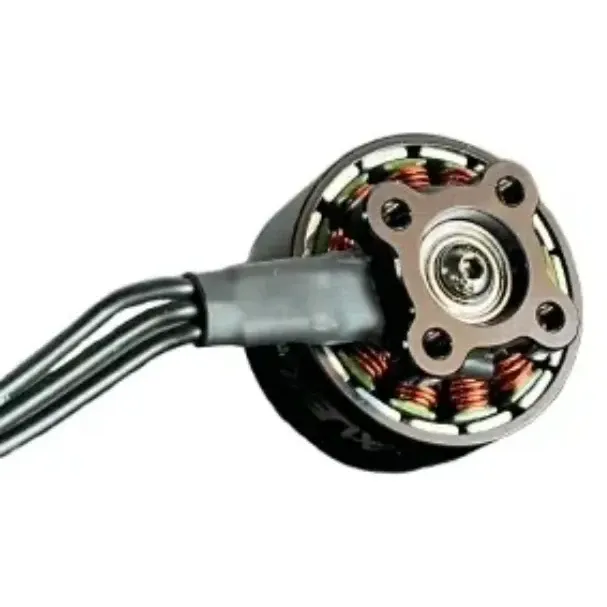

Alex 2810 1300KV Brushless Motor for Long-Range FPV

The Alex 2810 1300KV is a brushless outrunner for long-range FPV builds that want more stator than a 2806 or 2807 motor offers. Made in India, it uses a 28 × 10 mm stator in a 12N14P layout with N52H magnets and weighs 64 g.

Key features

• Rated up to 1351 W at a 57 A maximum current
• N52H magnets, a high-temperature neodymium grade
• Low-resistance precision bearings in a crash-resistant build
• 18 AWG motor leads, 250 mm long
• Compact 33.5 × 35 mm motor body

Specifications

• Stator: 2810 (28 × 10 mm)
• KV: 1300KV
• Configuration: 12N14P
• Magnets: N52H
• Max power: 1351 W
• Max current: 57 A
• Leads: 18 AWG, 250 mm
• Motor dimensions: 33.5 × 35 mm
• Weight: 64 g

Sold as a single motor, so order four for a quad. The 1351 W / 57 A rating works out to about 23.7 V, a 6S pack under load, so plan the build around 6S with an ESC that can deliver 57 A per motor at full throttle.
