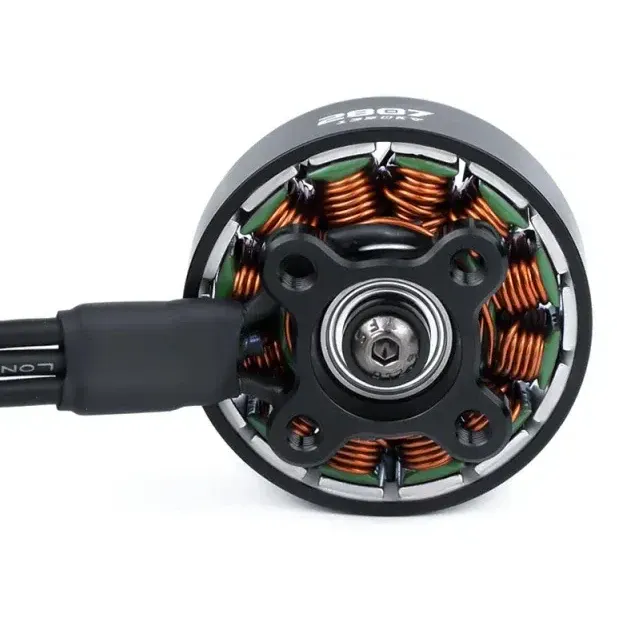

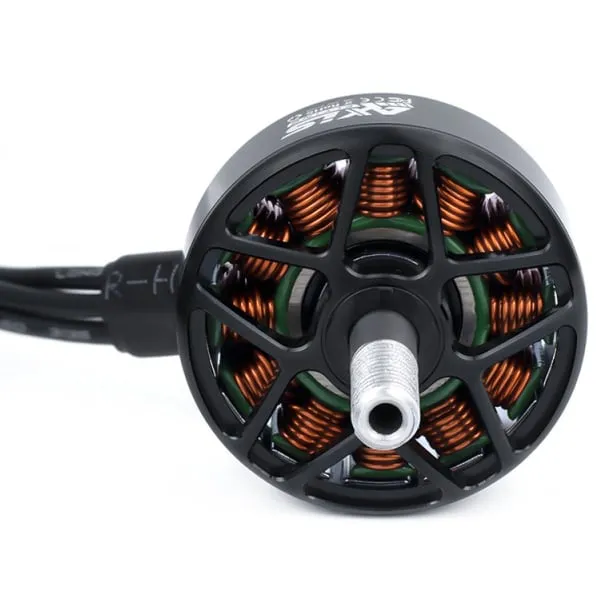

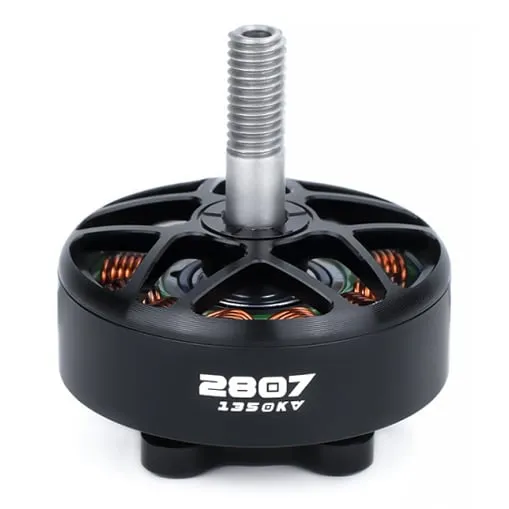

Axisflying AZ2807 1350KV Motor
₹2,399Incl. GST
SKU AXISFLYING-AZ2807-1350KV
Stator Size: 2807KV: 1350 KVShaft: 5mmInput Voltage: 4–6S
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Axisflying AZ2807 1350KV is a brushless motor for 6–7 inch FPV drones, tuned for long-range and endurance flying on 4–6S LiPo power rather than outright racing punch.
Key features
- 12N14P stator/magnet configuration with 58.0mΩ internal resistance for efficient running
- Compact Ø33 x 20.1mm bell size keeps weight down on long-range and cinelifter frames
- 5mm shaft fits standard prop adaptors used on 6–7 inch propellers
- 260mm, 18AWG silicone motor wires give flexibility when routing through the frame
- 1350KV winding suits larger, lower-pitch propellers for efficient cruising rather than sharp acceleration
- Sold individually; four motors matched by KV give even thrust across a long-range quad
Specifications
- Stator Size: 2807
- KV: 1350KV
- Input voltage: 4–6S
- Configuration: 12N14P
- Internal resistance: 58.0mΩ
- Shaft: 5mm
Match all four motors by KV and check ESC current headroom before flying, and confirm frame arm clearance for a 6–7 inch propeller before ordering.
| Stator Size | 2807 |
|---|---|
| Stator Diameter | 28mm |
| Stator Height | 7mm |
| KV | 1350 KV |
| Shaft | 5mm |
| Input Voltage | 4–6S |
| Brand | Axisflying |
| Made in India | No |
