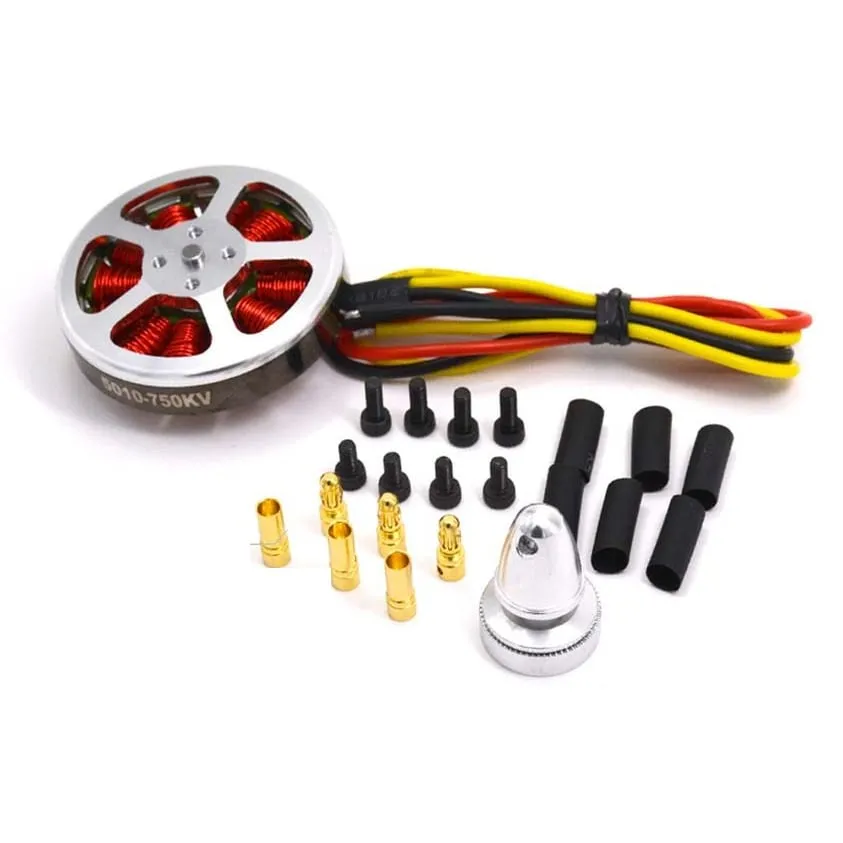

5010 750KV High-Torque Brushless Motor

The 5010 750KV brushless motor is a heavy-lift outrunner for industrial and payload-carrying multirotor builds, sized for large propellers on higher-voltage packs.

Key features

• Rated for up to roughly 1500g of thrust on a 4S pack with a matched propeller.
• Self-cooling design with four fan-style intake holes and a winding temperature rating up to 140°C.
• NdFeB magnets and lubricated ball bearings support sustained high-torque operation under load.
• Rear motor-mount holes are drilled at both 16mm and 19mm spacing to fit different mounting plates.
• Pairs with 14 to 16 inch propellers through a 20-40A ESC on a matched power system.
• High-temperature winding wire and epoxy-coated stator plates guard against shorting under sustained load.

Specifications

• Stator size: 5010
• KV: 750KV
• Mount hole spacing: 16mm / 19mm
• Max winding temperature: 140°C
• Input voltage: 2-6S LiPo
• Shaft: 4 mm
• Weight: 112 g
• Recommended ESC: 20-40 A
• Recommended propeller: 14-16 inch
• Lead length: 35 cm
• In the box: motor, 3 pairs of bullet connectors with heat-shrink, propeller mount with hardware

Confirm the frame's motor-mount spacing and shaft size, and match the remaining motors, ESCs and propellers to the aircraft's total weight and payload target.
