4-12S 400A Power Distribution Board with Current Sensor
SKU PDB-400A-4-12S
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

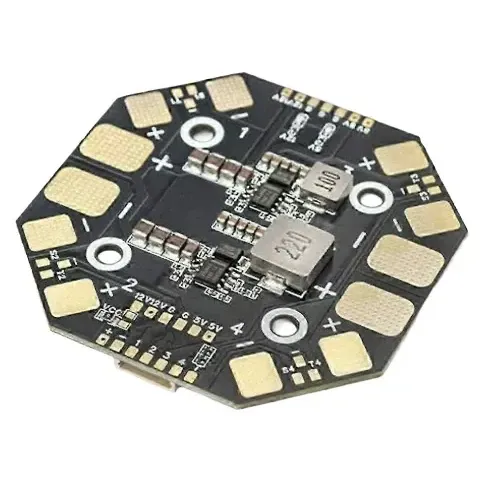

A high-current power distribution board for heavy-lift multirotors, large fixed-wing aircraft and other builds running 4S to 12S LiPo. It splits battery power to the ESCs and on-board electronics, carries a current sensor for the flight controller and mounts on the standard 30.5 × 30.5 mm stack pattern.
Key features
- Rated for 4–12S LiPo (14.8–44.4 V nominal)
- Up to 400A continuous current through the board
- On-board current sensor for current and mAh-consumed readings on the flight controller
- 30.5 × 30.5 mm mounting holes fit standard stacks and frames
- Board colour and printed markings can differ between production batches
Specifications
- Input: 4–12S LiPo (14.8–44.4 V nominal)
- Continuous current: 400 A
- Current sensor: Yes, on board
- Mounting: 30.5 × 30.5 mm
Before the first flight, calibrate the current-sensor scale in your flight controller against a known load so consumption readings are accurate. At these currents the battery leads, solder joints and main connector become the limit — size the wiring and plug for what your motors actually draw.
| Input Voltage | 4–12S |
|---|---|
| Made in India | No |
| Brand | Generic |
| Mounting Size | 30.5x30.5 |
| Continuous Current | 400 A |
