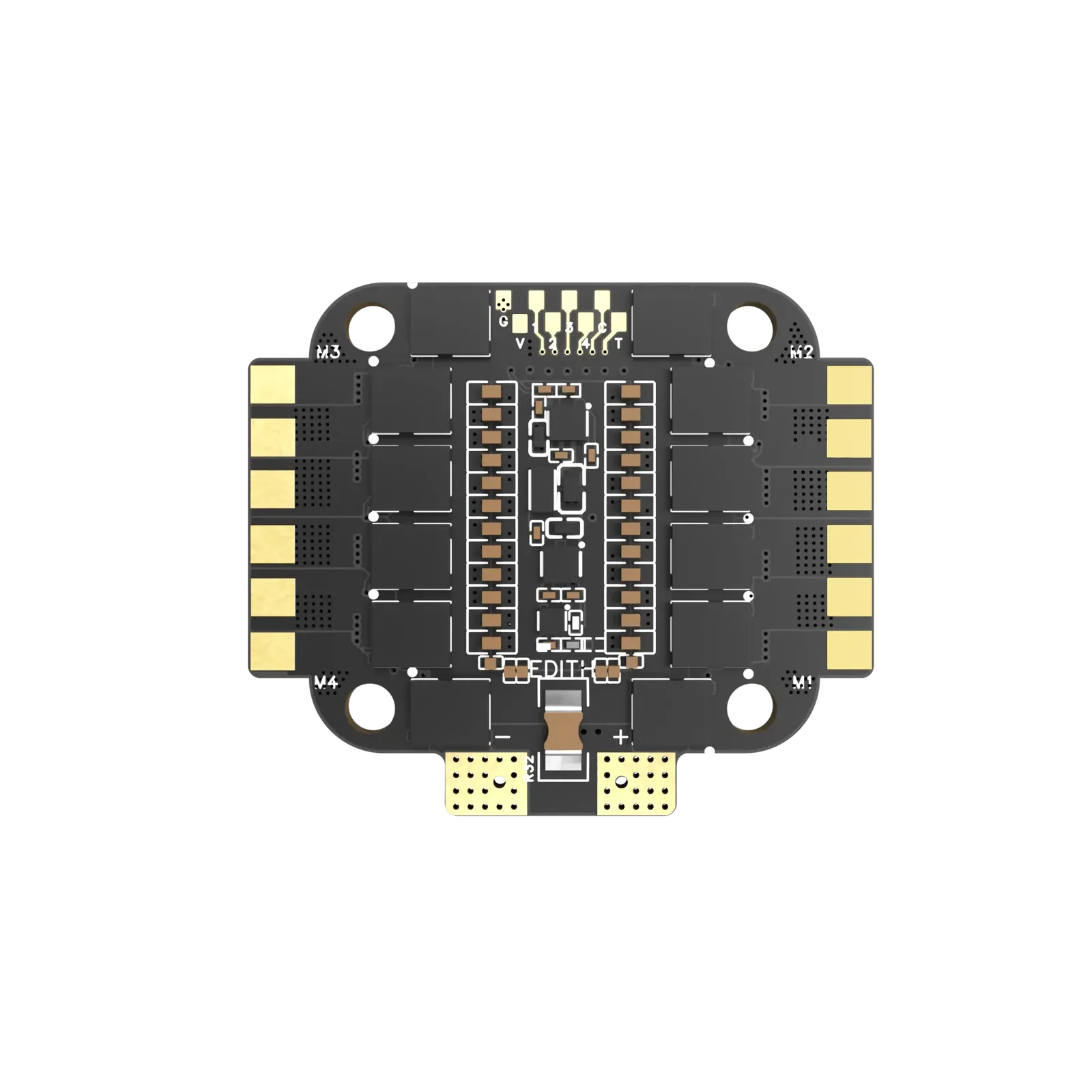

EDITHFPV Ironflame 45A 3-8S 4-in-1 ESC (8-Bit)

The Ironflame is a 45A 4-in-1 ESC from Indian brand EDITHFPV, built around the 8-bit EFM8BB2 MCU and a 6288Q gate driver. Its 3S to 8S input range covers 5-inch freestyle quads through high-voltage long-range and UAV builds that run 7S or 8S packs.

Key features

• 45 A continuous and 50 A burst per channel.
• Accepts 3S to 8S LiPo, 11.1 V up to 33.6 V at full charge.
• Ships with BLHeli_S firmware (JH70 target).
• Low-ESR input capacitor, premium MOSFETs and an integrated heatsink for thermal headroom under sustained load.
• Oversized motor pads take thick motor wires on high-current builds.
• Both XT60 and XT90 power connectors are included, so you can match the lead to your pack.

Specifications

• MCU: EFM8BB2, 8-bit
• Gate driver: 6288Q
• Current per channel: 45 A continuous, 50 A burst
• Input voltage: 3-8S LiPo (11.1-33.6 V)
• Firmware: BLHeli_S JH70
• Power connectors: XT60 and XT90 included

Before ordering, confirm the board's hole spacing matches your flight controller, and check that the FC and any peripherals powered from battery voltage are rated for your pack: an 8S pack reaches 33.6 V at full charge, beyond many 6S-rated flight controllers.
