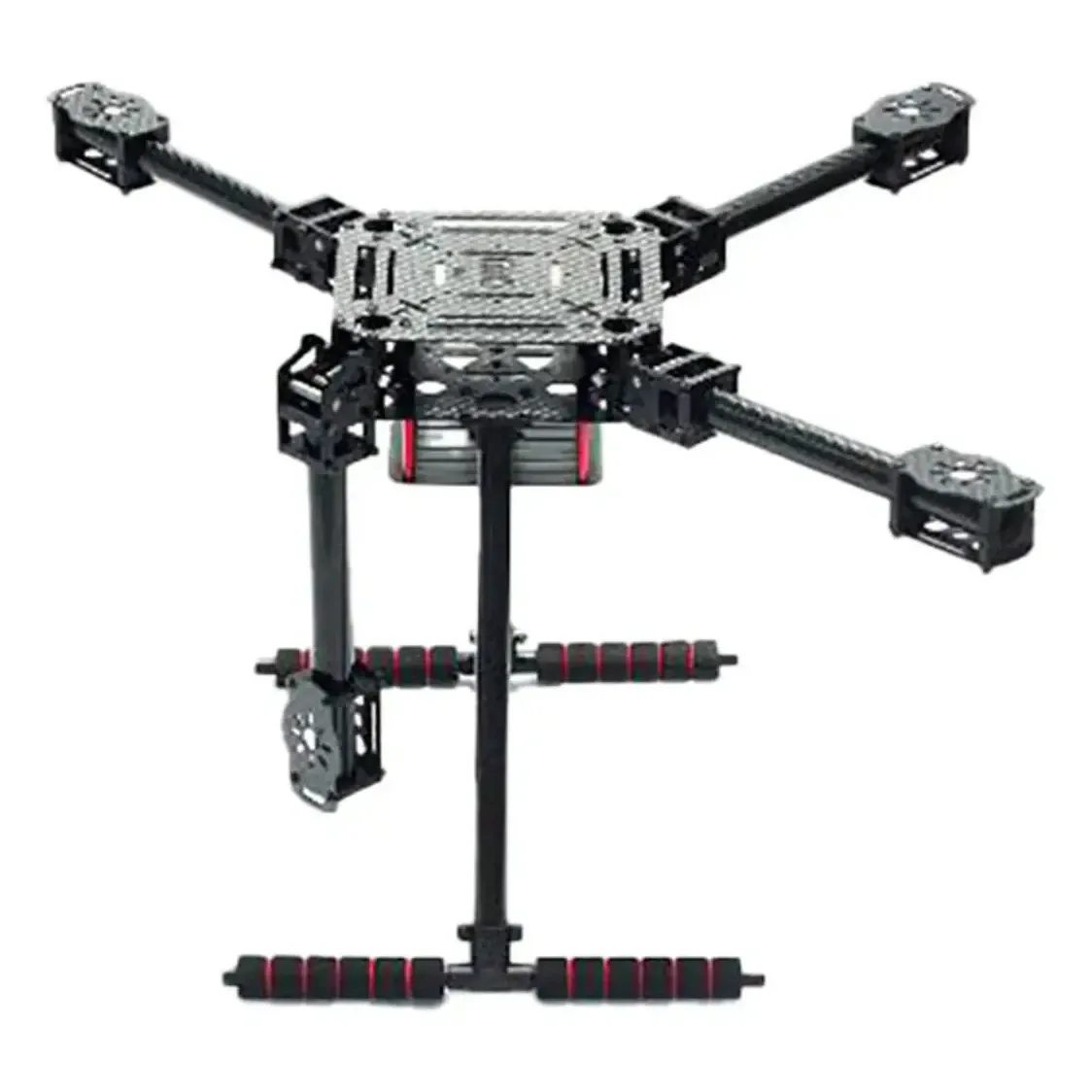

ZD680 680mm Carbon Fiber Folding Quadcopter Frame with Landing Gear
SKU GEN-ZD680-CF-RTS
Brand: ReadyToSky
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The ZD680 is a 680mm-wheelbase folding quadcopter frame in 3K full carbon fibre, built for aerial photography, mapping and payload platforms on 15-inch props. The arms fold for transport and a carbon fibre landing skid is included.
Key features
3K full carbon fibre plates with a 3mm bottom plate for extra stiffness

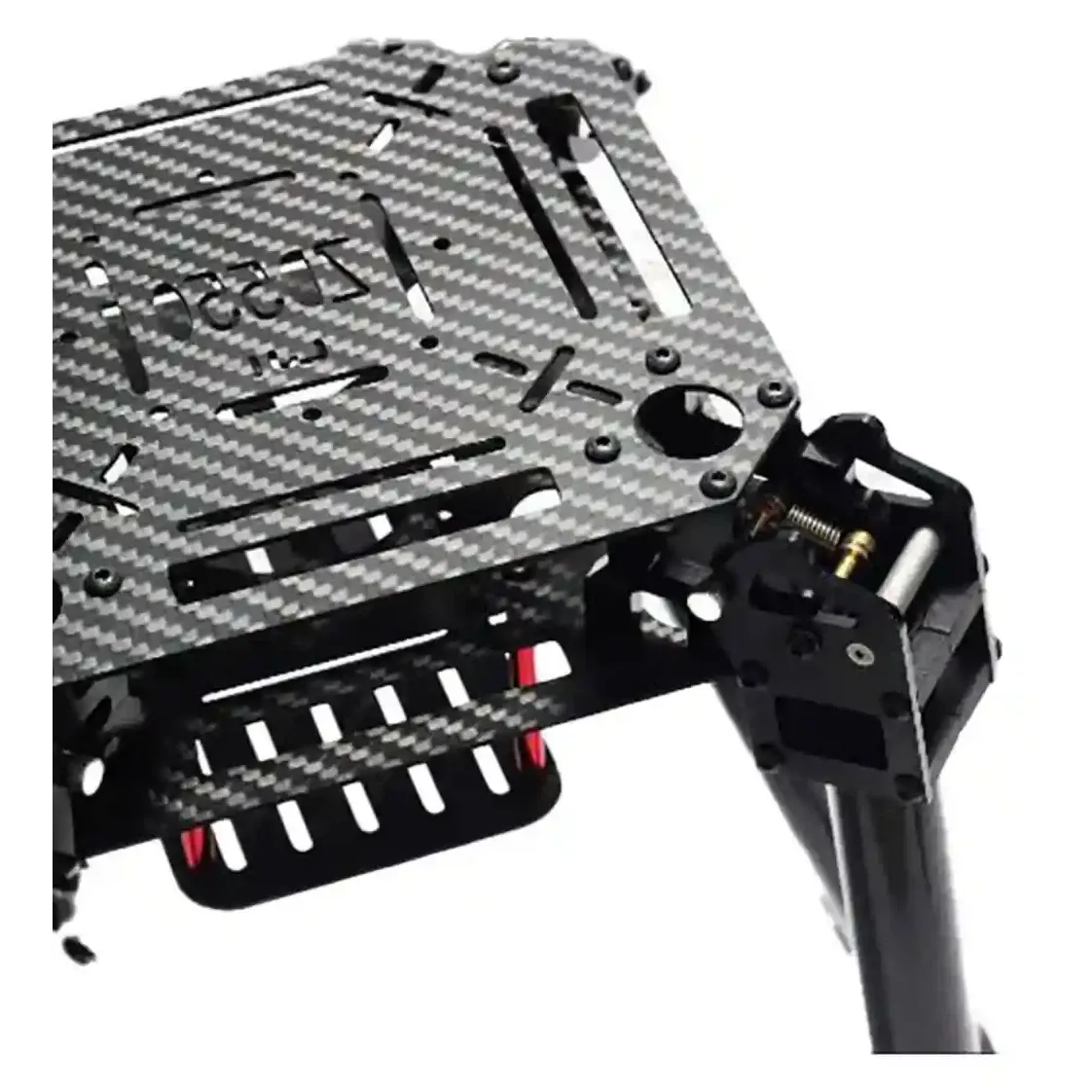

Folding arms reduce the footprint for carrying between sites
Carbon fibre landing skid for steady landings on uneven ground
Sized for 3508 or 5010-class motors on 15-inch CW/CCW props
Laid out for APM and Pixhawk flight controllers running open-source firmware

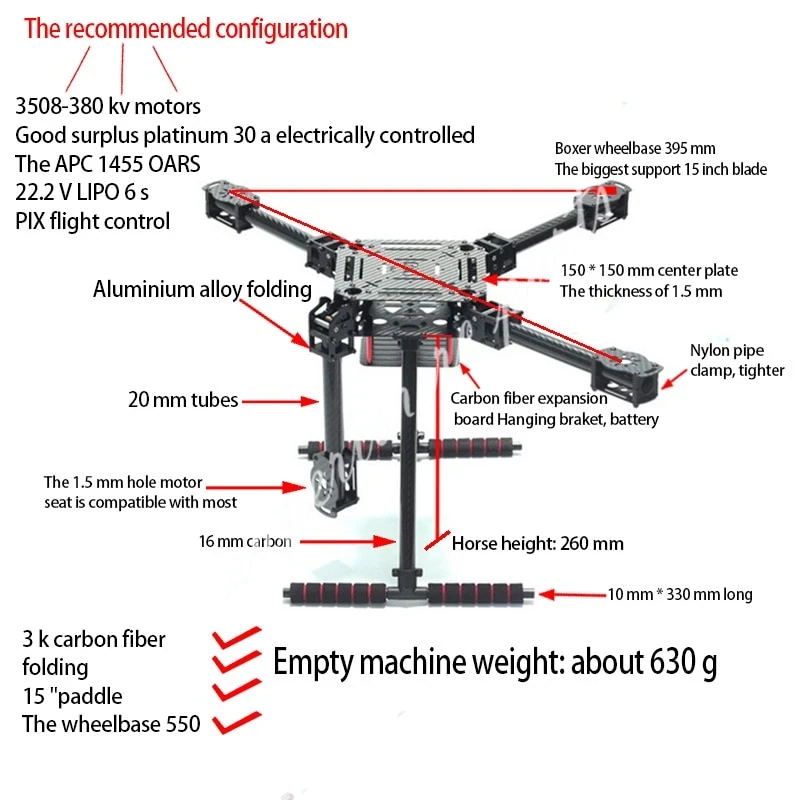

Specifications
Wheelbase: 680 mm (diagonal)
Material: 3K full carbon fibre
Bottom plate: 3 mm
Prop size: 15 inch
Recommended motors: 3508 or 5010 class
Recommended ESC: 30 A (2–6S) or 40 A (2–4S)
Battery: 4–6S LiPo
Flight controller: APM / Pixhawk compatible
Motors, ESCs, props, flight controller and battery are not included. Pick ESCs rated for the full voltage of your pack: a 6S build needs the 2–6S option.
| Prop Size | 15" |
|---|---|
| Brand | Generic, ReadyToSky |
| Made in India | No |
| Wheelbase | 680 mm |
