Holybro X650 Frame Kit

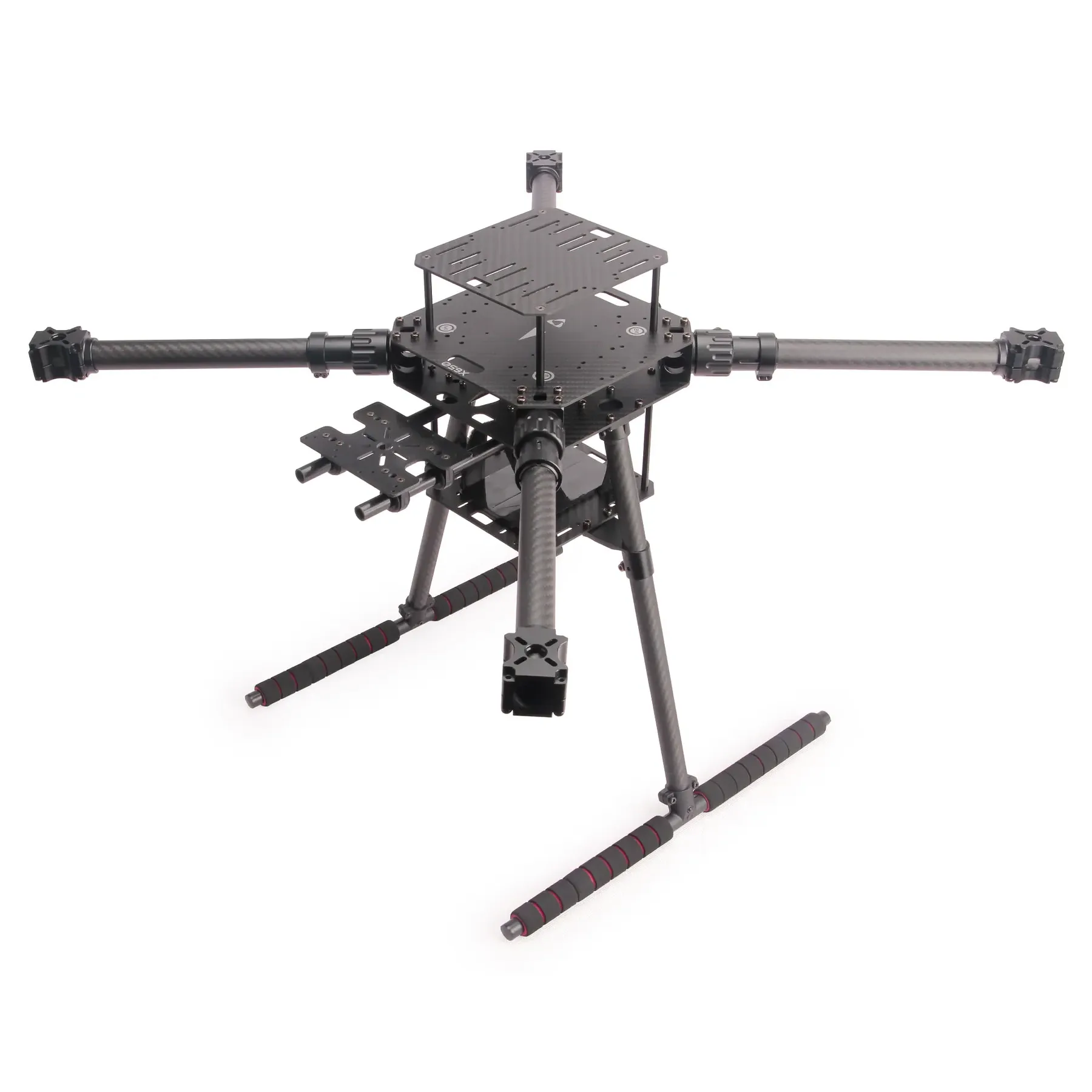

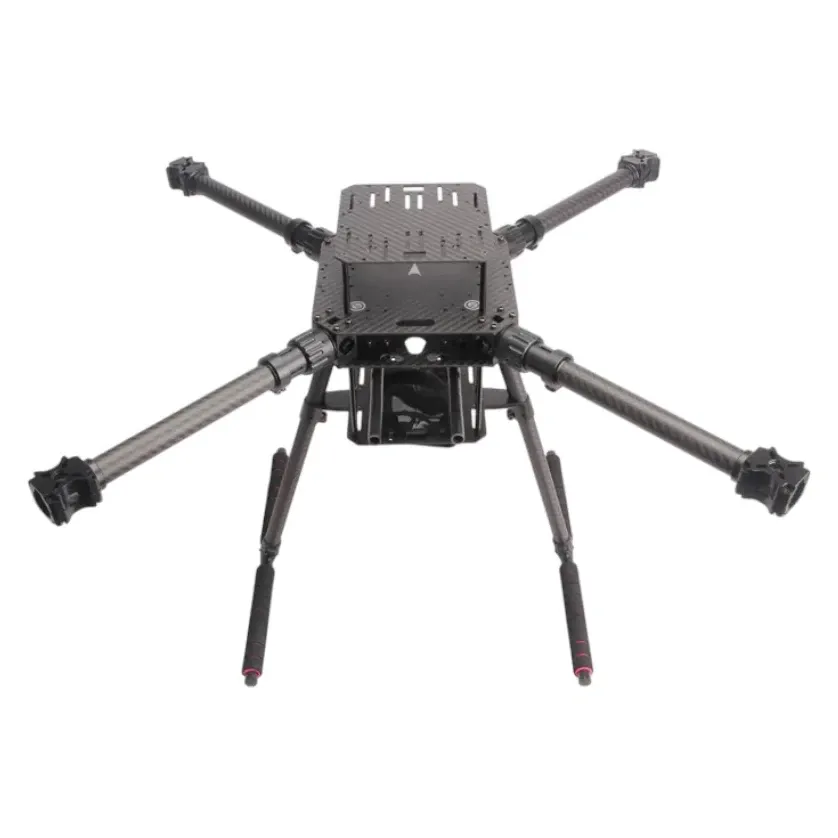

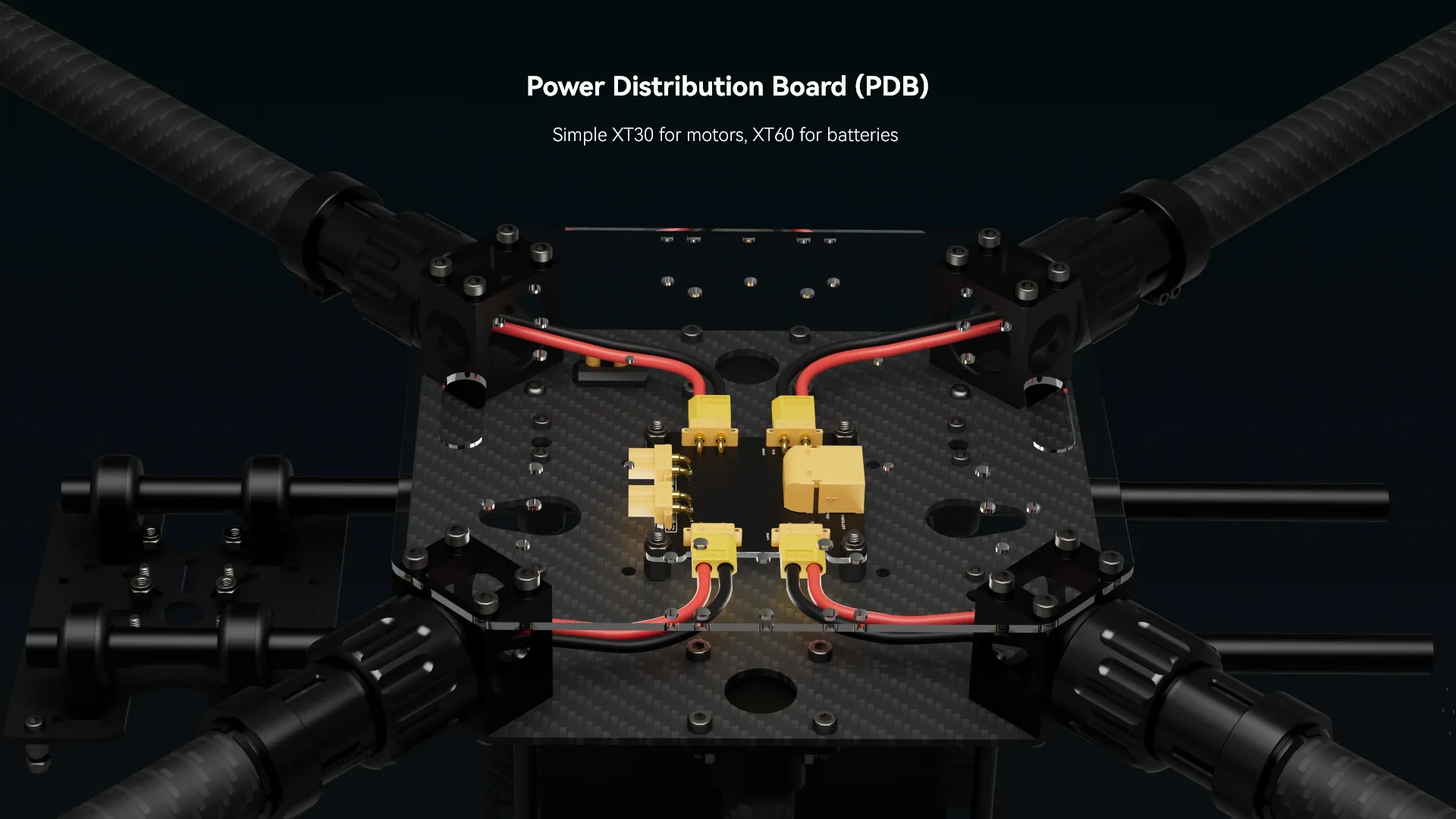

The Holybro X650 Frame Kit is a 650 mm carbon fibre quadcopter frame for heavy-payload development, mapping, inspection and research builds. This is the frame only: motors, ESCs, propellers, power distribution and flight electronics are not included, so you can fit the power system and autopilot of your choice.

Key features

• Full carbon fibre top and bottom plates, 160 x 160 mm and 2 mm thick

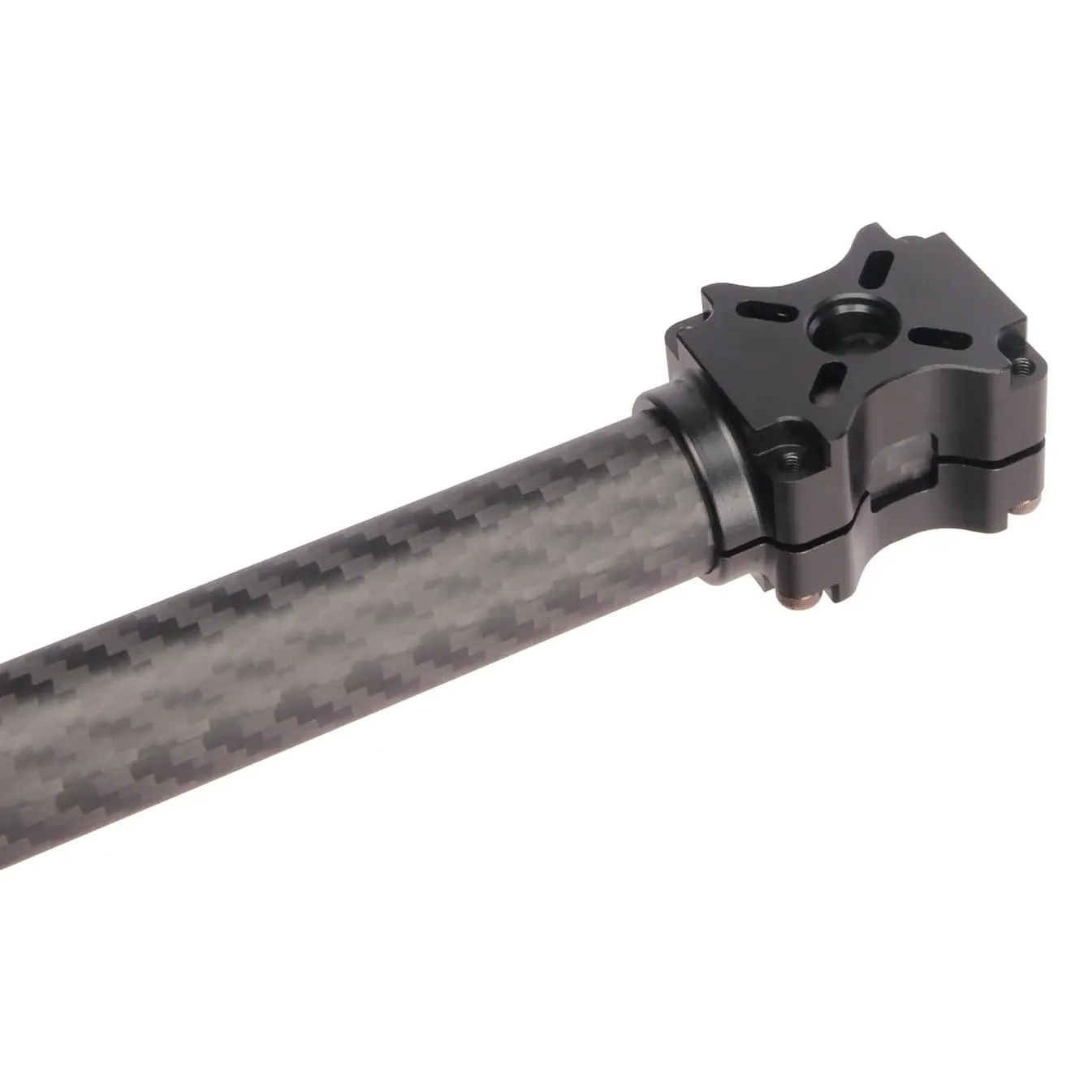

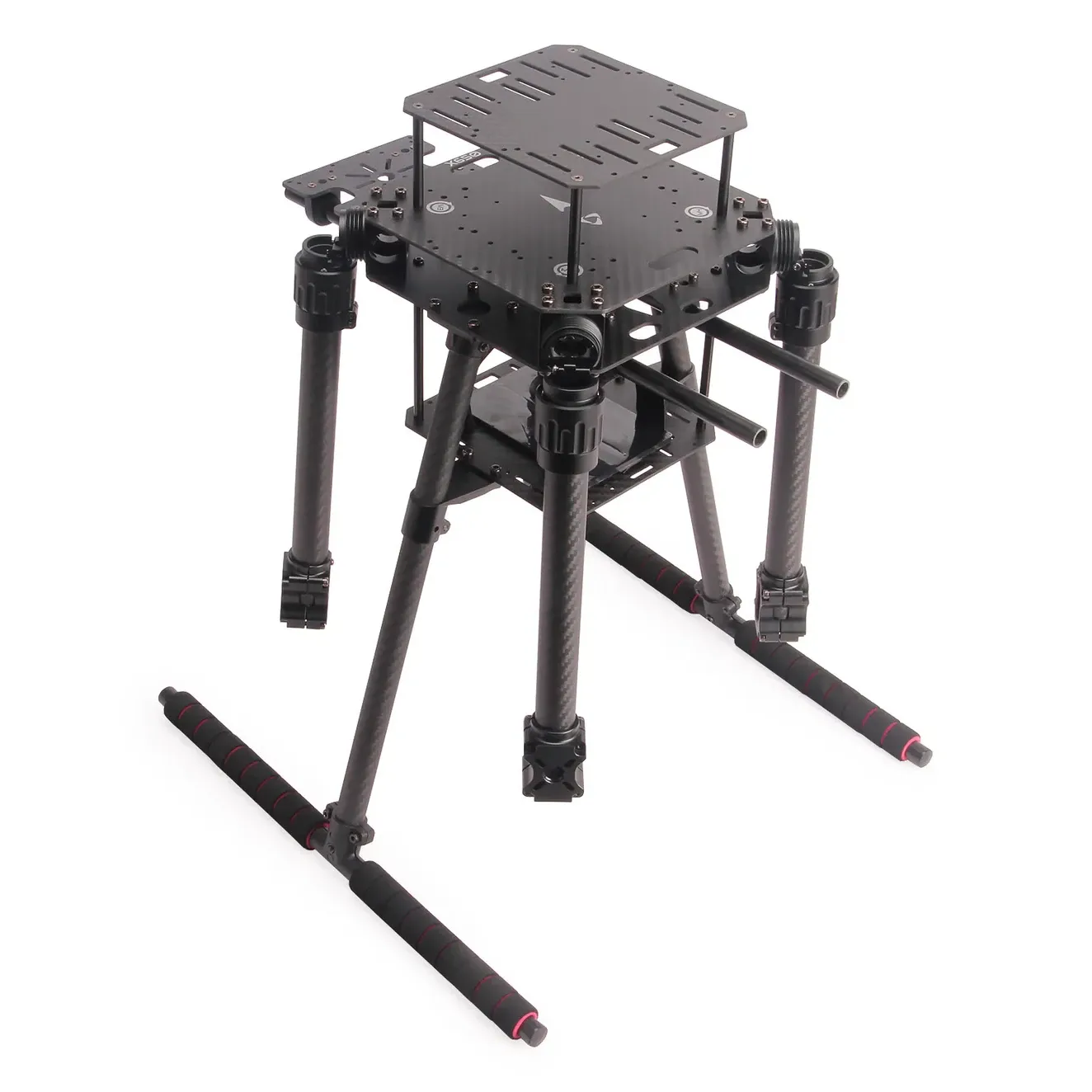

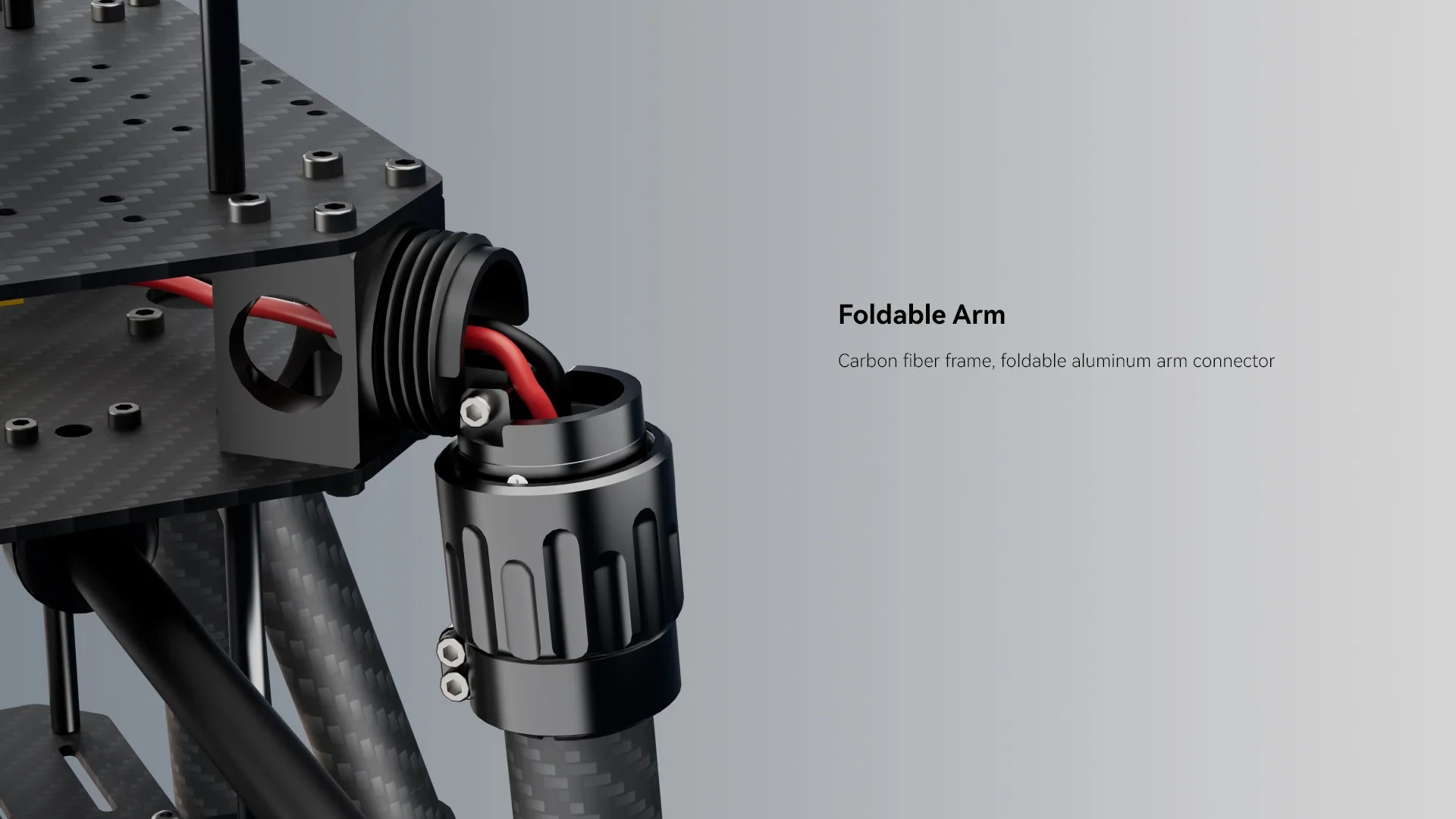

• 20 mm carbon fibre tube arms on aluminium folding arm mounts for compact transport

• Motor mounts take 16 mm to 25 mm bolt patterns

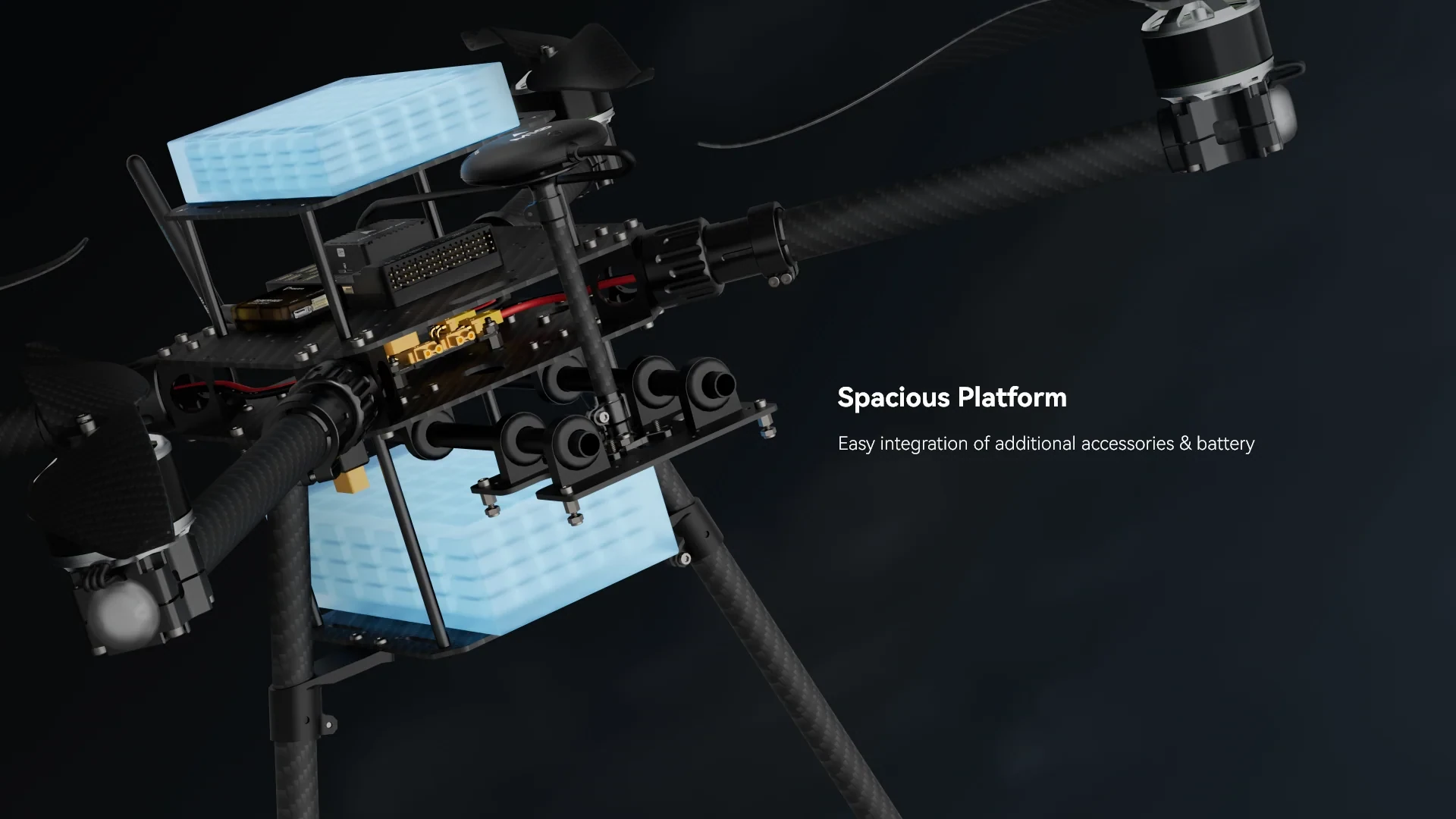

• Platform board drilled for GPS and companion computers such as Raspberry Pi 4 and Jetson Nano

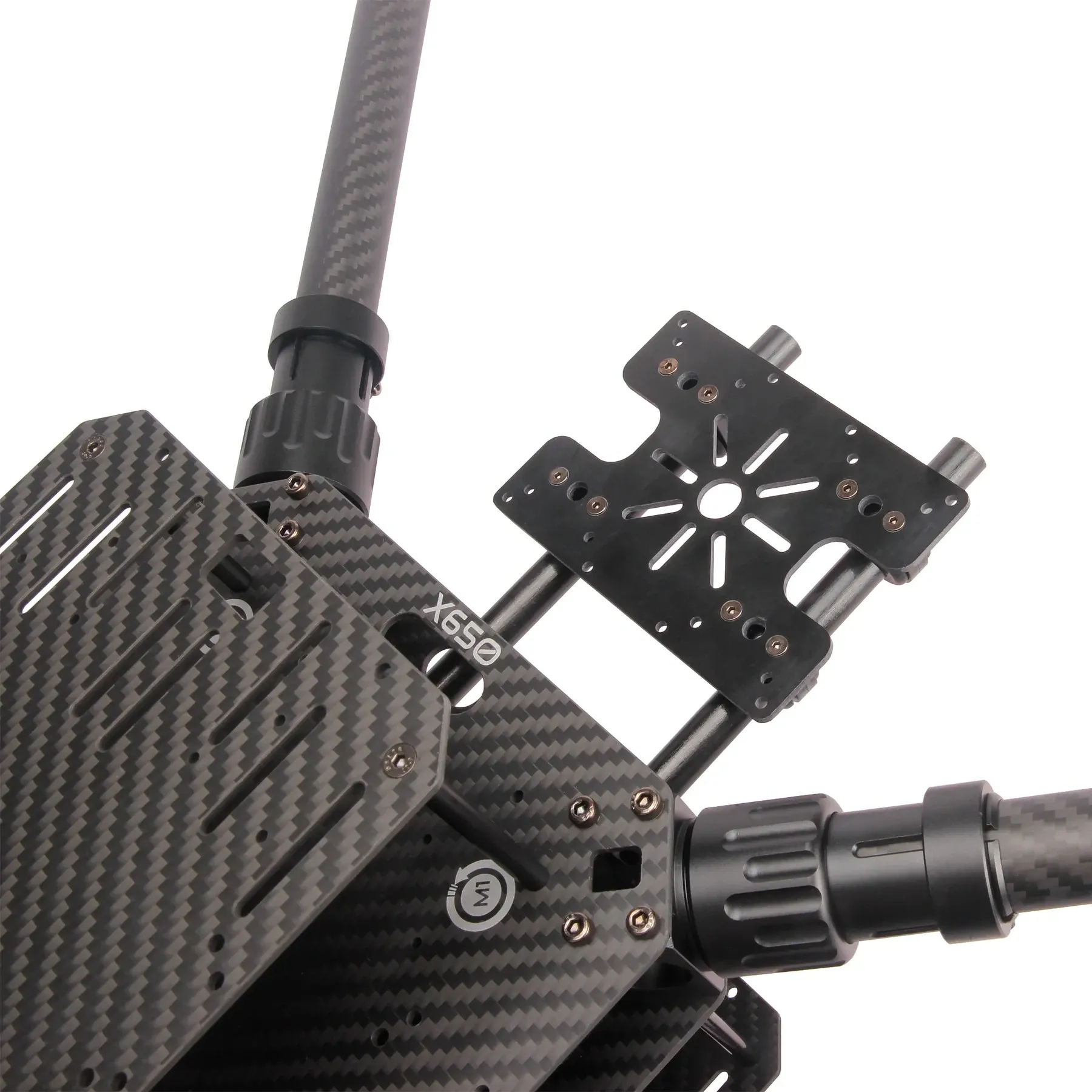

• Dual 10 mm rails, 320 mm long, for gimbals, cameras and other payloads

• Landing gear in 16 mm and 10 mm carbon tubes with strengthened tee connectors

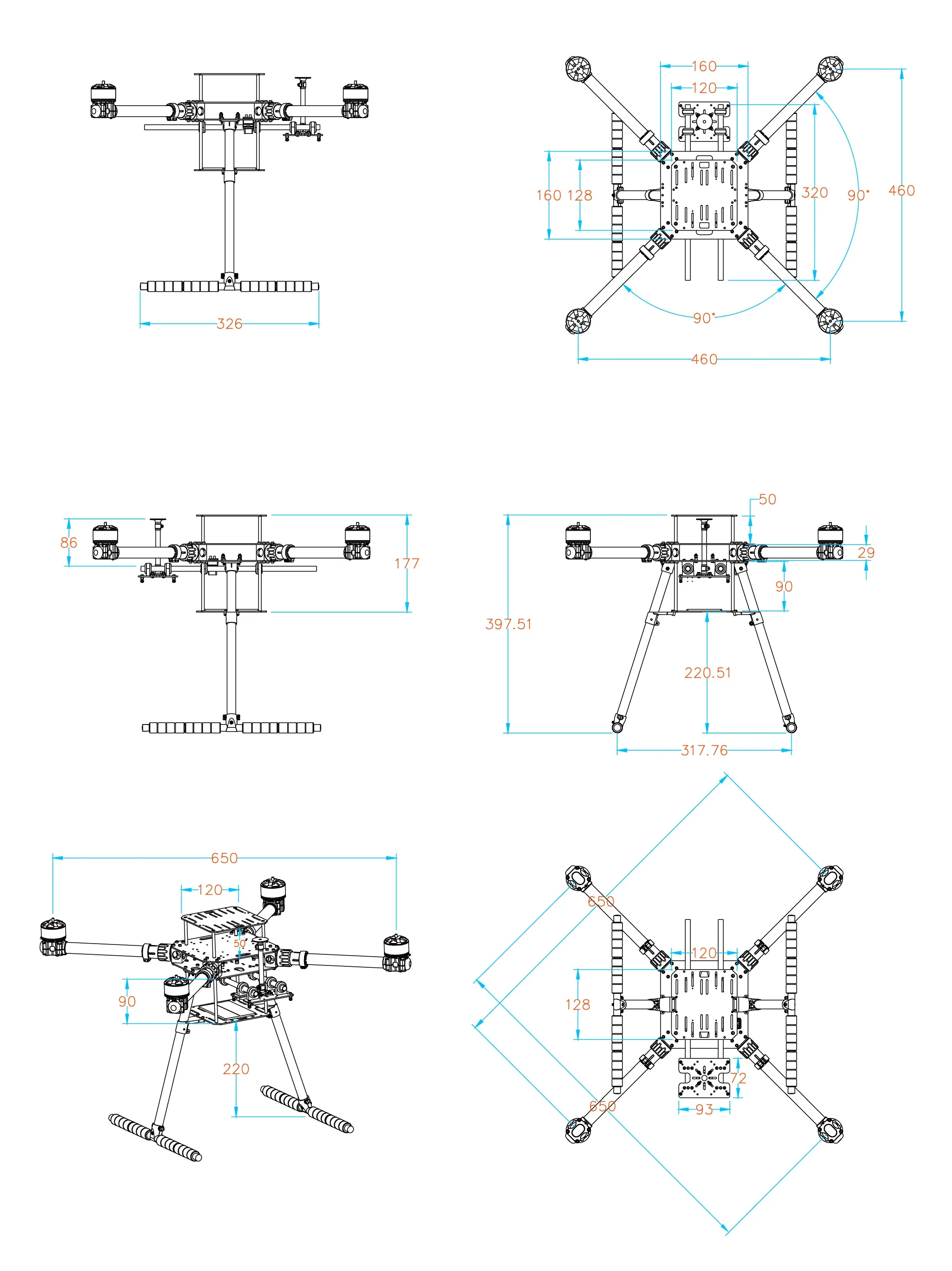

Specifications

• Wheelbase: 650 mm

• Body plates: 160 x 160 mm, 2 mm carbon fibre

• Upper / battery plate: 120 x 128 mm carbon fibre

• Arms: 20 mm carbon fibre tubes, aluminium folding mounts

• Motor mount pattern: 16-25 mm

• Rails: 2 x 10 mm diameter, 320 mm long

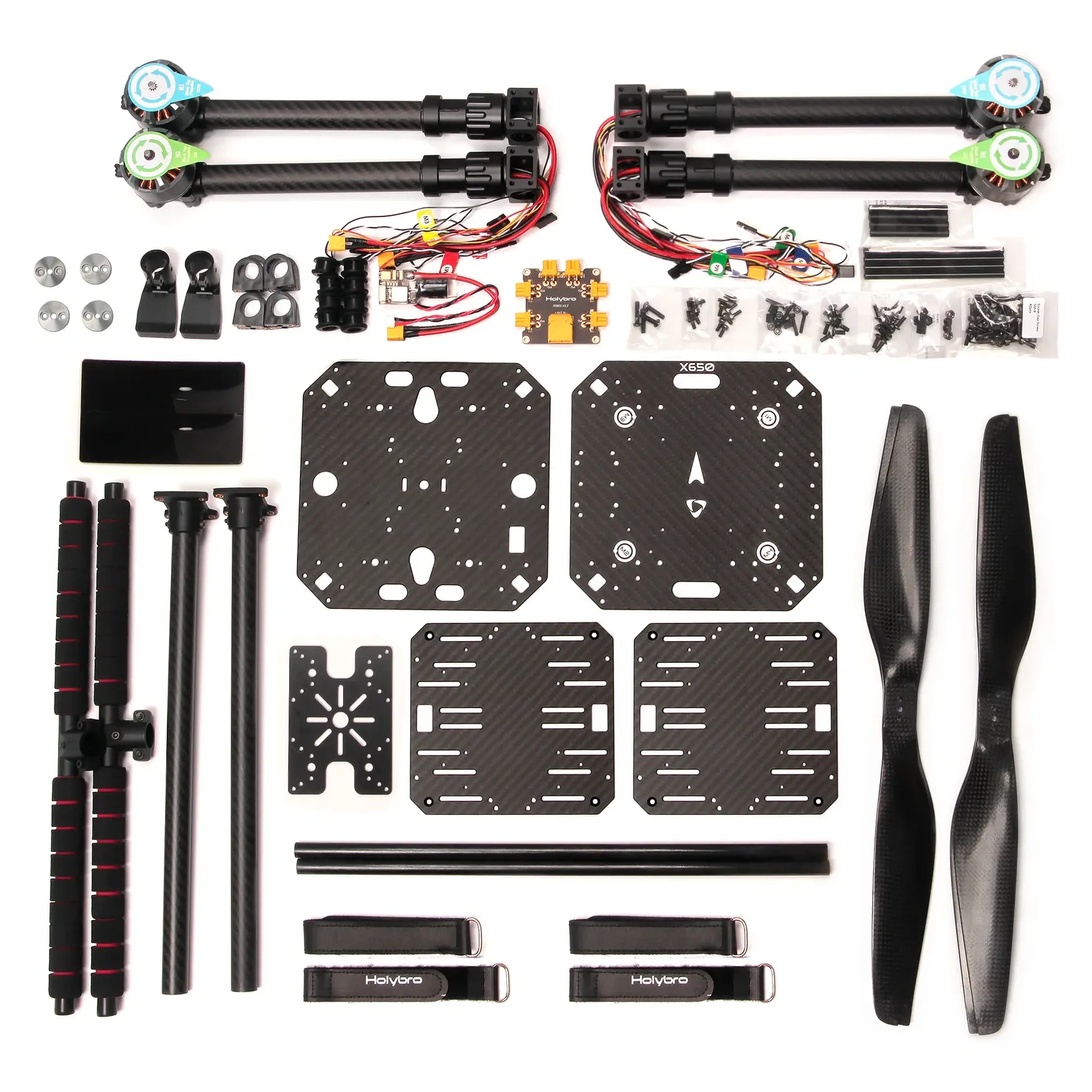

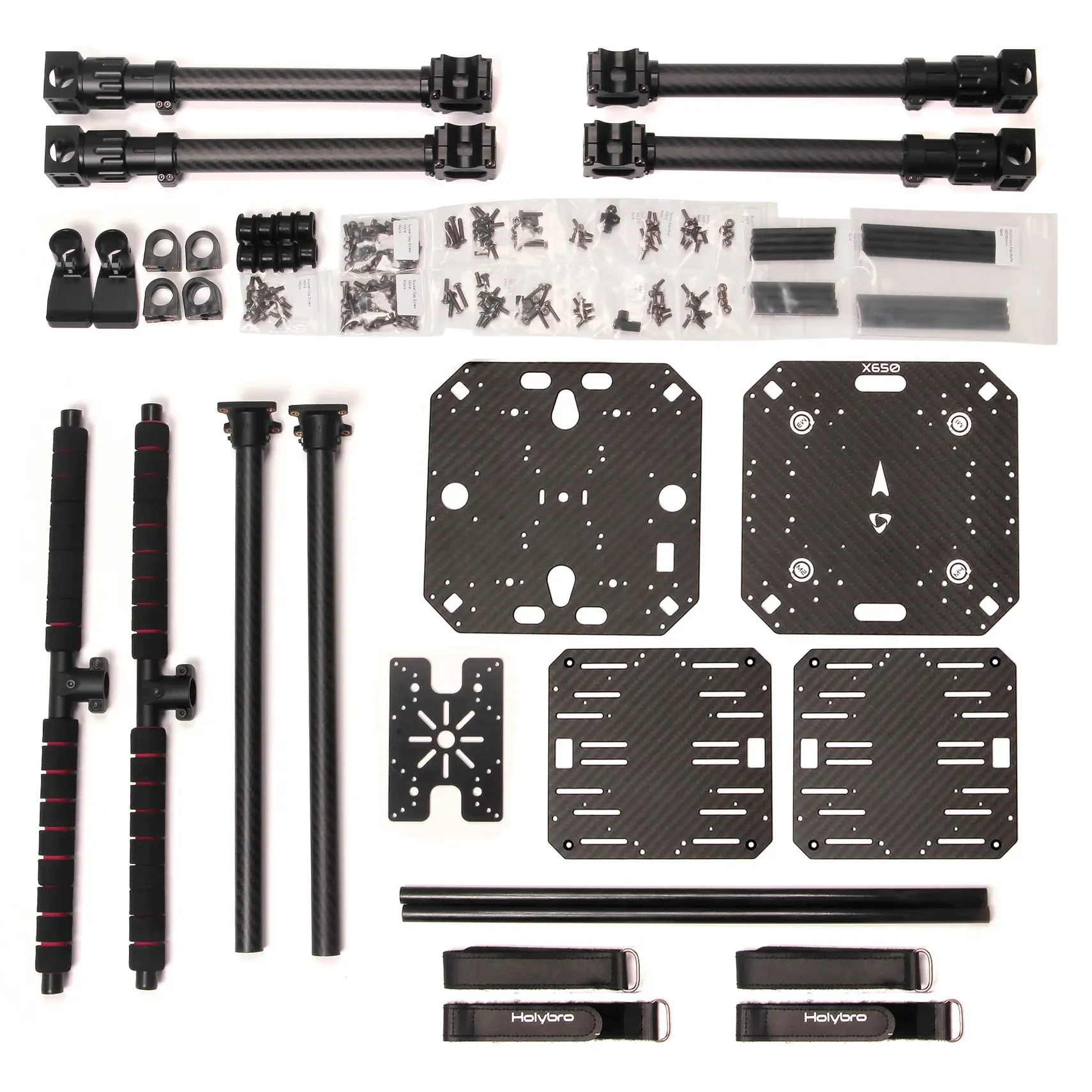

• Included: Frame parts, two battery pads and straps, hand tools

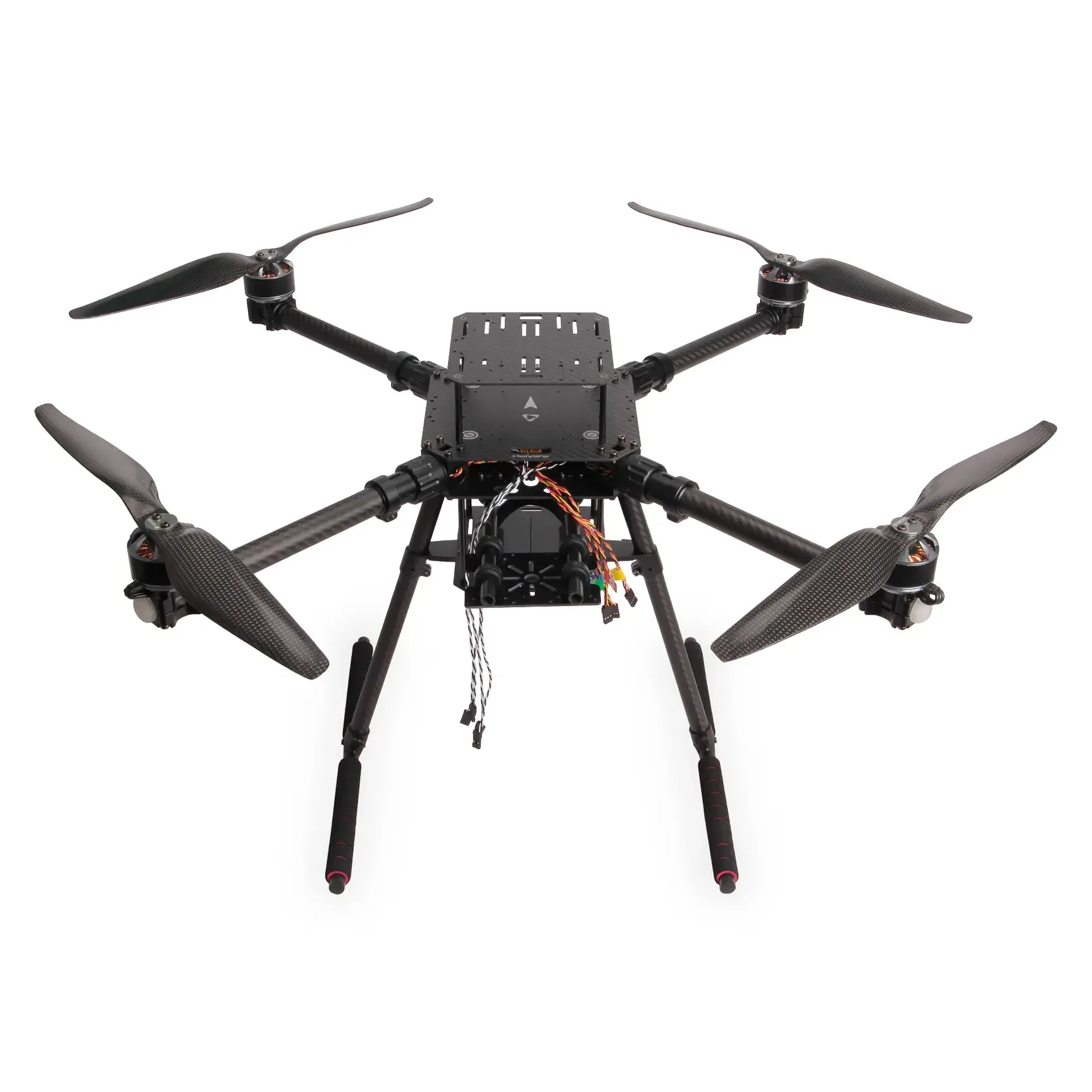

Holybro's own X650 development kit flies this frame on T-Motor MN4014 330KV motors, Tekko32 F4 45A ESCs and 15-inch props with a 6S 5000-12000 mAh pack; that complete build hovers for about 30 minutes on 10000 mAh and is rated to a 6.3 kg takeoff weight at 70% throttle. Use it as a baseline when sizing your own power system.
