EFT X6120 Multifunction Surveillance Hexacopter Drone Frame

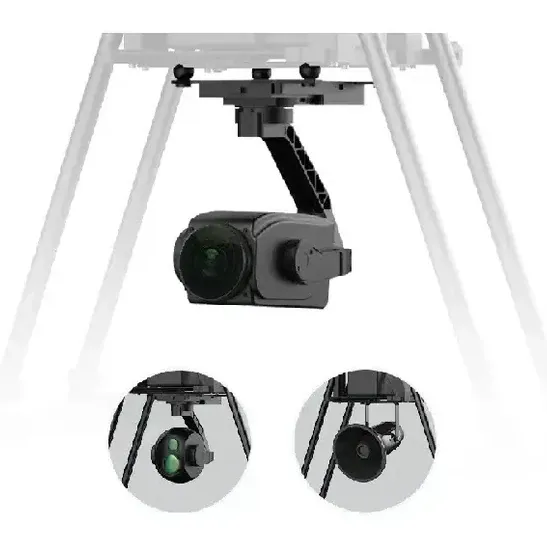

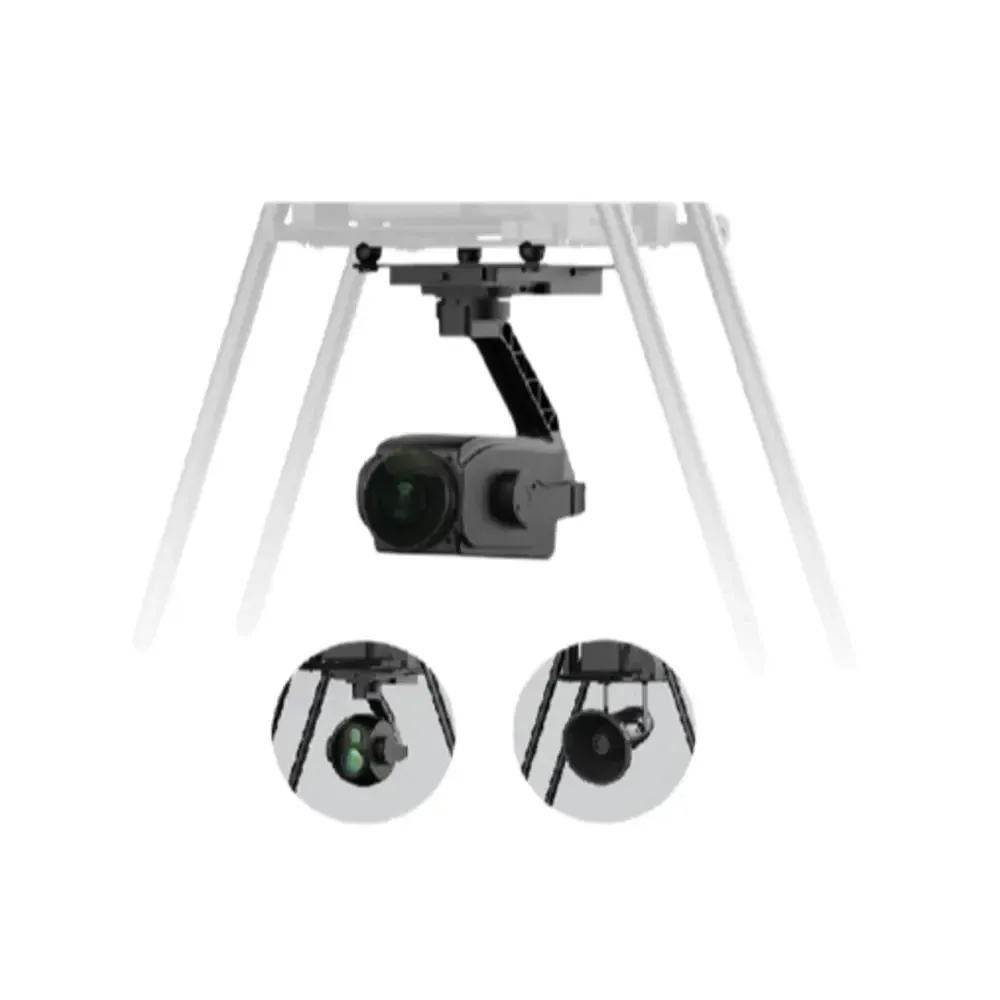

The EFT X6120 is a six-arm, 1290 mm wheelbase airframe for heavy surveillance, mapping and payload work on 12S power. A scalable mounting platform takes PTZ cameras, pods, loudspeakers or drop devices, with 4-6 kg of useful load inside an 18 kg maximum take-off weight.

Key features

• Modular fuselage moulded from nylon and carbon fibre, with integrated power and distribution boards, built-in GPS provision and an expandable interface for extra modules
• 30 mm carbon fibre tube arms detach individually at designed break points, cutting repair cost after a crash

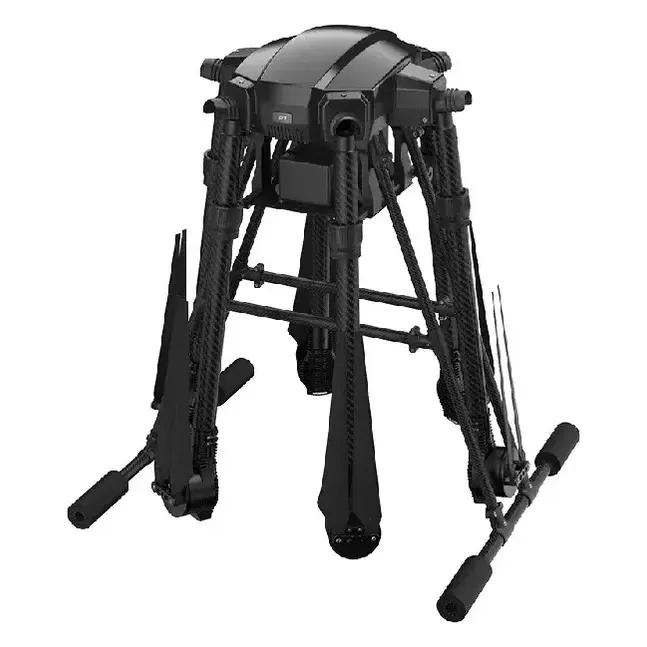

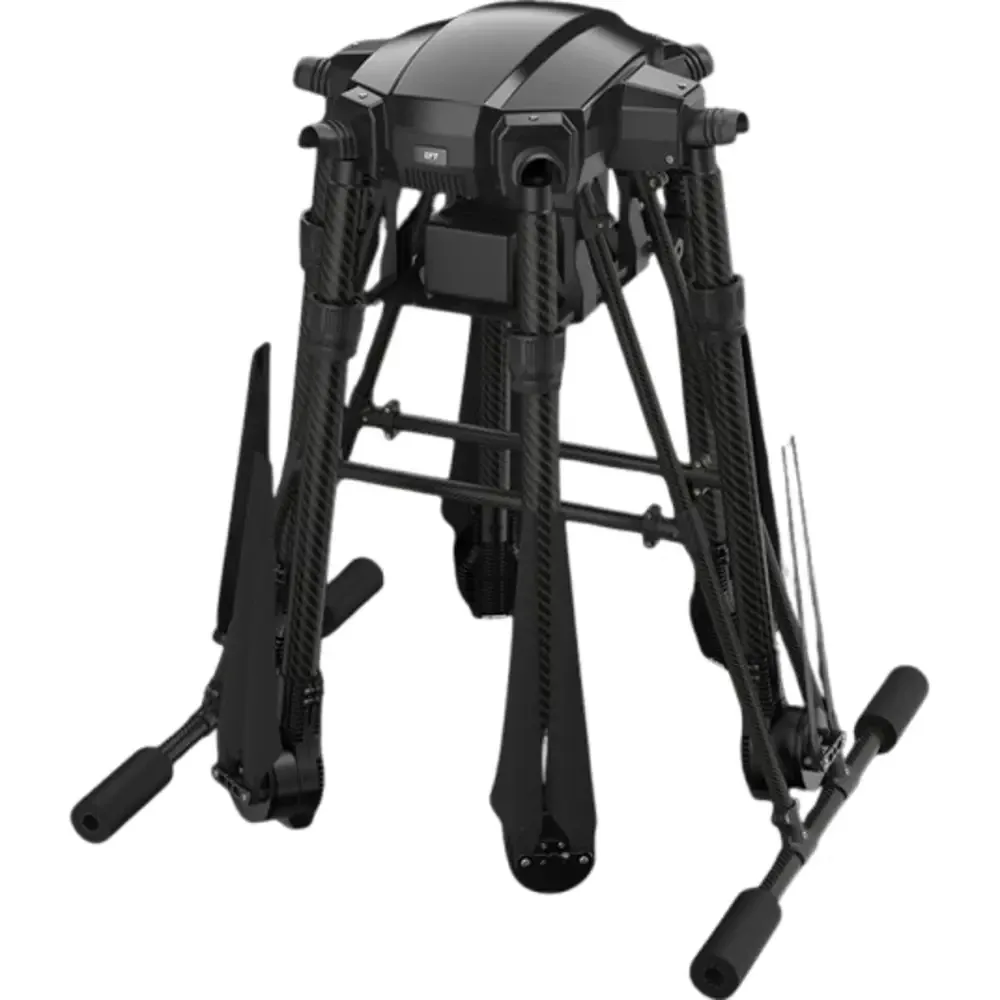

• Umbrella-style folding for compact storage and transport
• Quick-release battery track with a spring-loaded positioning knob for tool-free swaps
• IP65 waterproof body for flights in rain

Specifications

• Configuration: Hexacopter, 6 arms
• Wheelbase: 1290 mm
• Arm tubes: 30 mm carbon fibre
• Frame weight: 3.18 kg
• Empty weight: 7.5 kg
• Max take-off weight: 18 kg
• Payload: 4-6 kg
• Recommended motors: X6 Plus, or 6015 / 6215 class
• Recommended ESCs: 60A
• Recommended propellers: 22-24 inch
• Recommended battery: 12S, 16000-22000mAh
• Flight time, no payload: about 40 min (12S 16000mAh), about 50 min (12S 22000mAh)
• Flight time, 5 kg payload: about 20 min (12S 16000mAh), about 30 min (12S 22000mAh)
• Ingress protection: IP65

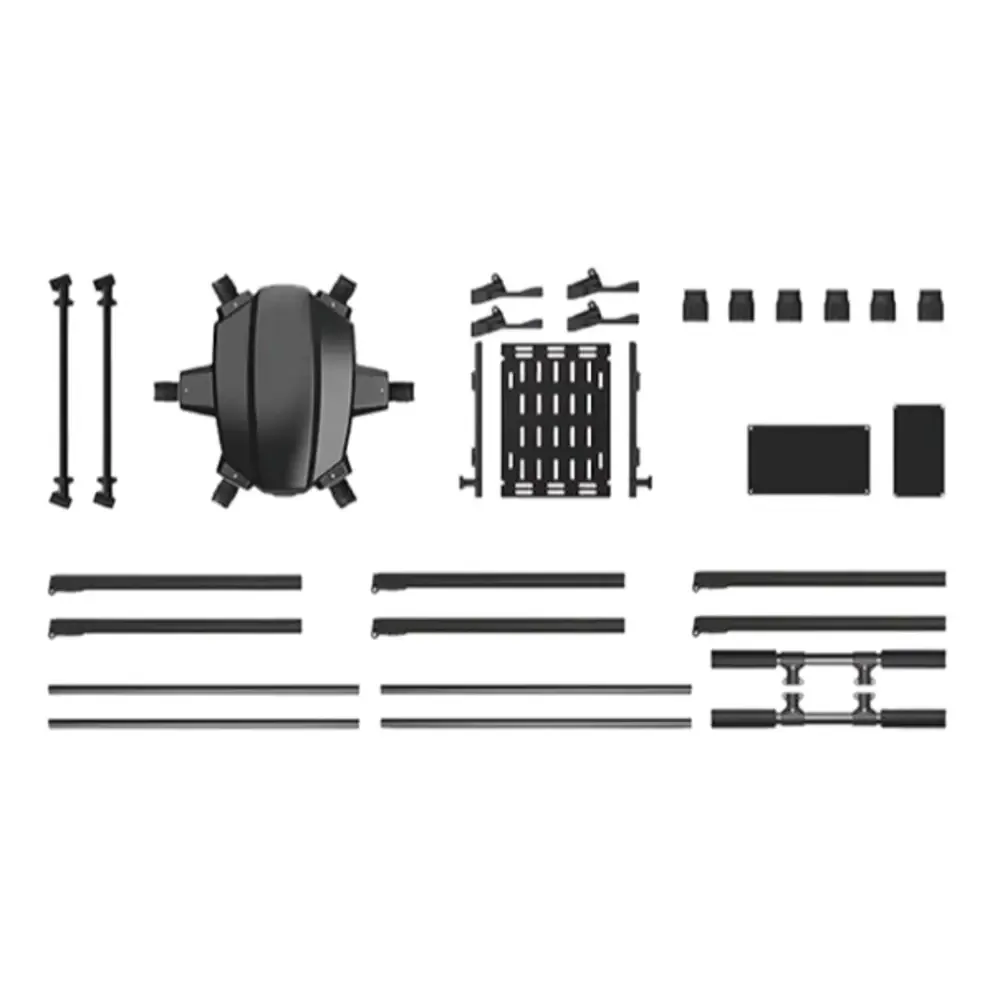

The frame comes with its arms; motors, ESCs, propellers, flight controller and batteries are bought separately. Choose the X6120 over the smaller EFT X6100 when the mission needs 12S endurance or more than 5 kg of payload headroom.
