ZD850 850mm Carbon Fibre Folding Hexacopter Frame

The ZD850 is an 850mm full carbon fibre hexacopter frame engineered for heavy-lift applications, aerial photography, and custom industrial builds. Featuring a sturdy 20mm tubular arm design and a downward-folding umbrella mechanism, it provides exceptional rigidity in the air whilst remaining highly manageable to transport. It is an excellent foundation for builders working with Pixhawk, Cube, or ArduPilot-based platforms who require a stable six-rotor airframe with generous mounting space.

Key features

• Full 3K carbon fibre construction across arms and centre plates for a superior strength-to-weight ratio

• Umbrella-style downward folding arms allow for convenient transit and storage

• Spacious twin-plate centre layout provides ample room for large flight controllers, ESCs, GPS modules, and heavy payloads

• Thick 20mm carbon fibre arm tubes significantly reduce vibrations reaching the gyro and camera gimbal

• Supports multi-rotor power systems utilising up to 15-inch propellers

Specifications

• Wheelbase: 850 mm

• Material: 3K Carbon fibre and CNC aluminium alloy

• Arm diameter: 20 mm

• Frame weight: ~1210 g

• Maximum propeller size: 15 inches

• Folding mechanism: Downward umbrella

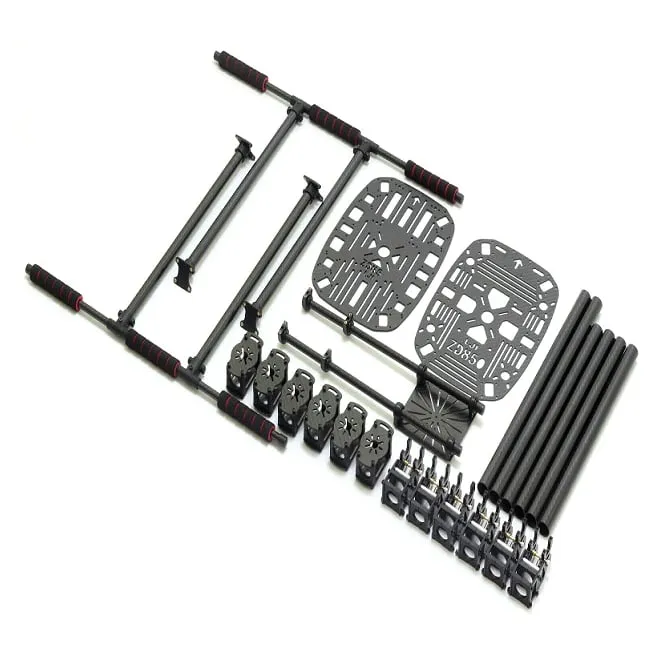

• In the box: 6 carbon fibre arm tubes, 6 motor mounts, 6 folding joints, 2 centre plates, 4 landing gear legs, camera stand, fitting hardware

For optimal stability and efficiency, pair this frame with high-torque heavy-lift motors (such as 4114 or 5010 stator sizes), a high-capacity 6S LiPo battery pack, and 15-inch carbon fibre propellers to maximise your payload capacity and flight endurance.
