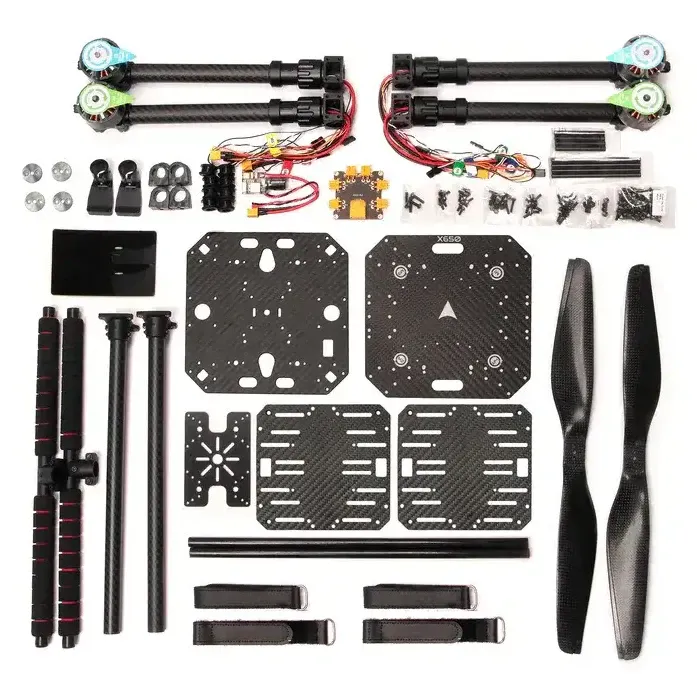

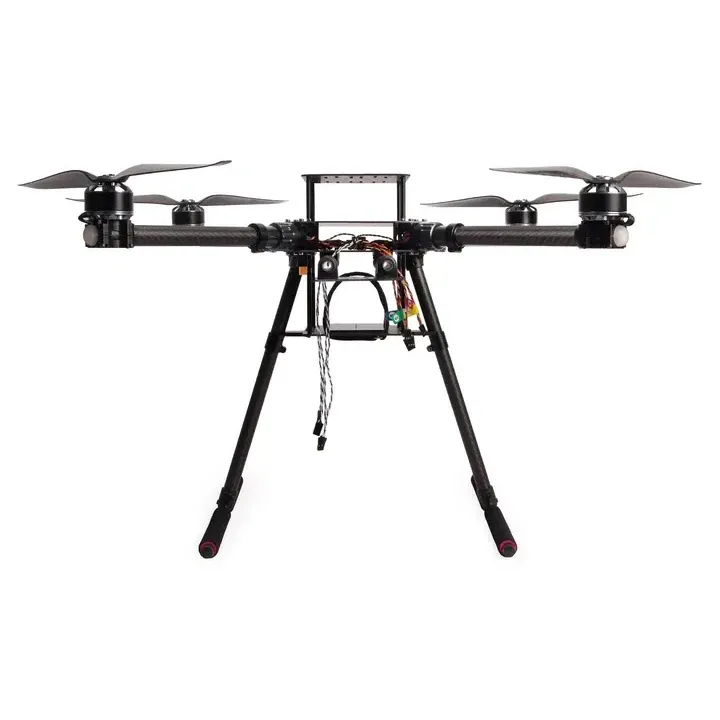

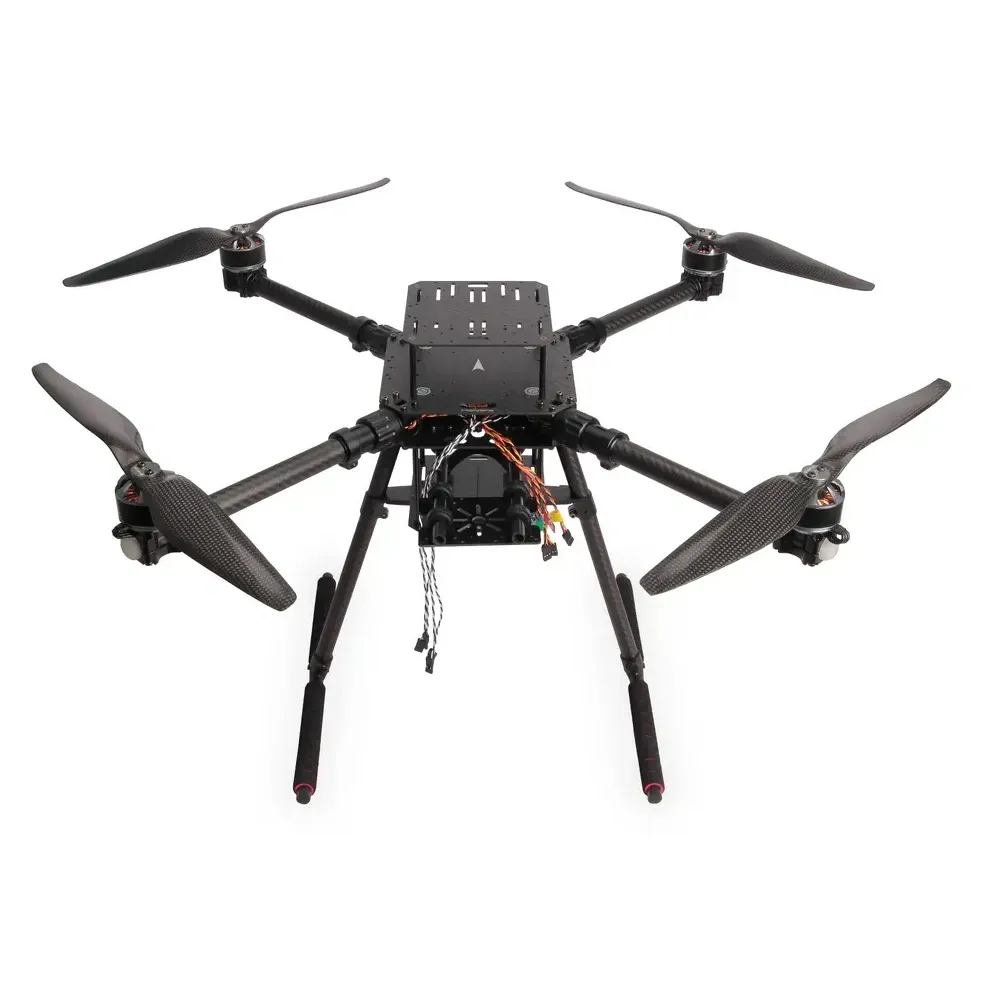

Holybro X650 ARF Quadcopter Kit (650mm, Pre-Installed Motors & ESCs)

The Holybro X650 ARF (almost ready to fly) kit is a 650 mm carbon-fibre quadcopter with the propulsion already fitted, built for drone labs, UAV development, education, payload integration and field testing. Add your own autopilot, receiver and 6S battery to complete it.

Key features

• Pre-installed T-Motor MN4014 330KV motors and Tekko32 F4 45 A ESCs with XT30 plugs for solder-free assembly
• 15 x 5.5-inch carbon-fibre propellers included
• Carbon-fibre top and bottom plates with 20 mm carbon tube arms on foldable aluminium mounts for transport and storage
• Power distribution board with XT60 and XT30 outputs, plus WS2812 NeoPixel LEDs for orientation and status
• Platform board drilled for GPS, Raspberry Pi 4 and Jetson Nano, a spacious upper plate for batteries or payloads, and motor mounts that accept 16–25 mm patterns

Specifications

• Wheelbase: 650 mm
• Plates: carbon fibre, 160 x 160 mm, 2 mm thick
• Arms: 20 mm carbon tube, foldable aluminium joints
• Motors: 4 x T-Motor MN4014 330KV
• ESCs: 4 x Tekko32 F4 45 A
• Propellers: 15 x 5.5 in carbon fibre
• Recommended battery: 6S LiPo, 5000–12000 mAh, XT60
• Weight: approx. 2000 g without battery
• Max take-off weight: 6.3 kg at 70% throttle
• Hover time: approx. 30 min on a 6S 10000 mAh pack, no payload

With the airframe at about 2 kg, the 6.3 kg take-off rating leaves roughly 4.3 kg for battery and payload combined, so size the pack against what you plan to carry.
