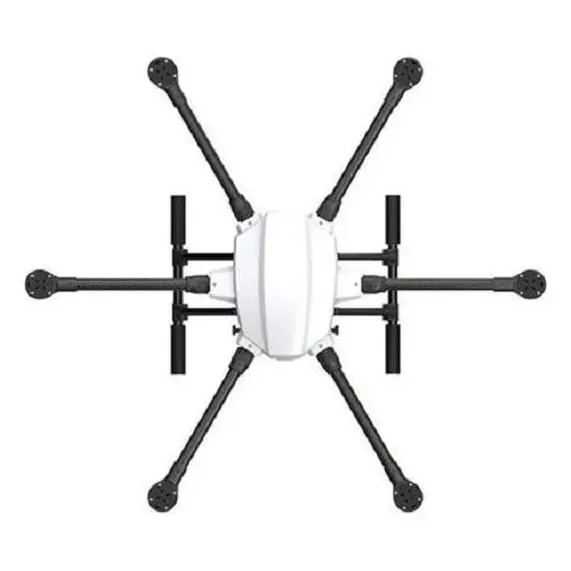

EFT X6100 Multifunction Surveillance Hexacopter Drone Frame

The EFT X6100 is a folding six-arm airframe for surveillance, inspection and light-payload missions, built on a 1000 mm wheelbase for 17 to 18-inch propellers and 6S power. It carries 3-5 kg of payload within a 12 kg maximum take-off weight, enough for camera pods, sensors and similar mission equipment.

Key features

• IP65 waterproof and dustproof body for flying in rain and dusty conditions

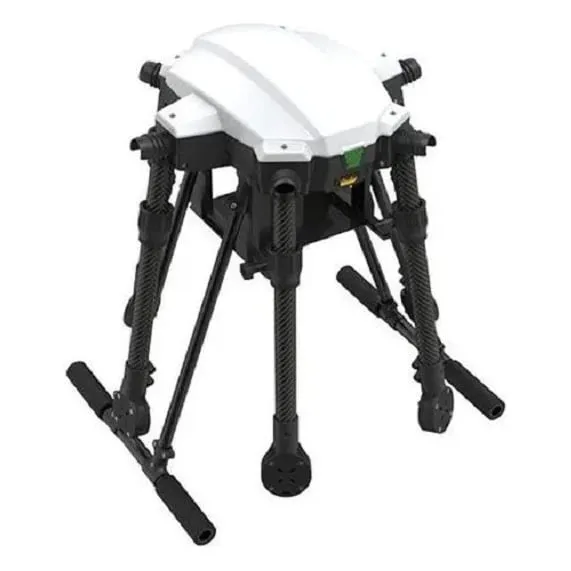

• Umbrella-style folding takes it from 1447 x 1447 mm down to 541 x 478 mm for transport
• Each arm detaches separately at designed break points, so a damaged arm is replaced on its own rather than with the fuselage
• Tool-free battery changes on a quick-release track with a spring-loaded positioning knob
• Modular, one-piece moulded fuselage keeps assembly simple
• Hovers for about 27 minutes with 5008 motors, a 6S 16000mAh pack and 17/18-inch props at 6.85 kg take-off weight

Specifications

• Configuration: Hexacopter, 6 arms
• Wheelbase: 1000 mm
• Arm length: 325 mm
• Frame weight: 2.75 kg
• Unfolded size: 1447 x 1447 x 569 mm
• Folded size: 541 x 478 x 525 mm
• Max take-off weight: 12 kg
• Payload: 3-5 kg
• Recommended motors: 4216 or 5008 class
• Recommended ESCs: 40A
• Recommended propellers: 17-18 inch
• Recommended battery: 6S, 16000-22000mAh
• Ingress protection: IP65

This is the airframe; motors, ESCs, propellers, flight controller, GPS and batteries are bought separately. For 12S power or more payload headroom, the larger EFT X6120 (1290 mm wheelbase, 4-6 kg payload) is the next step up.
