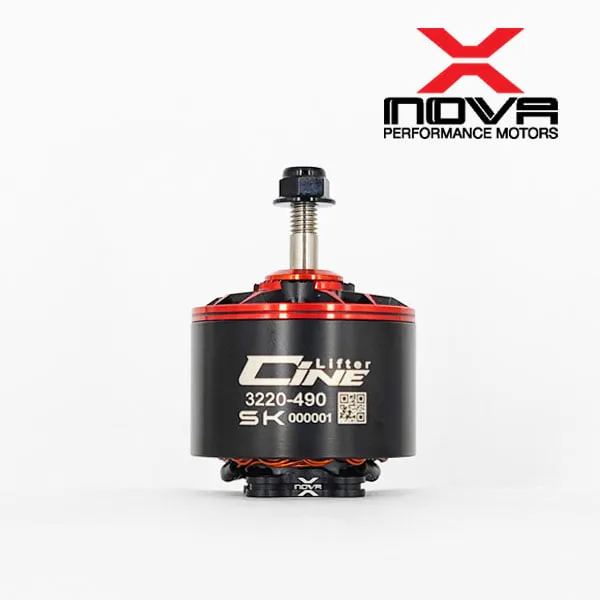

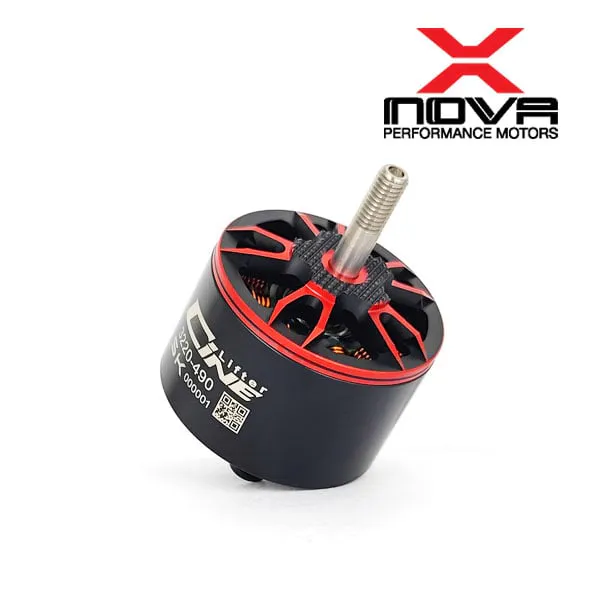

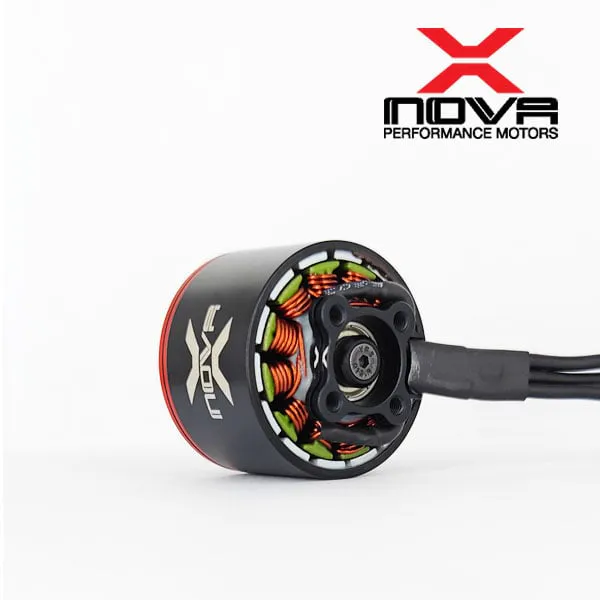

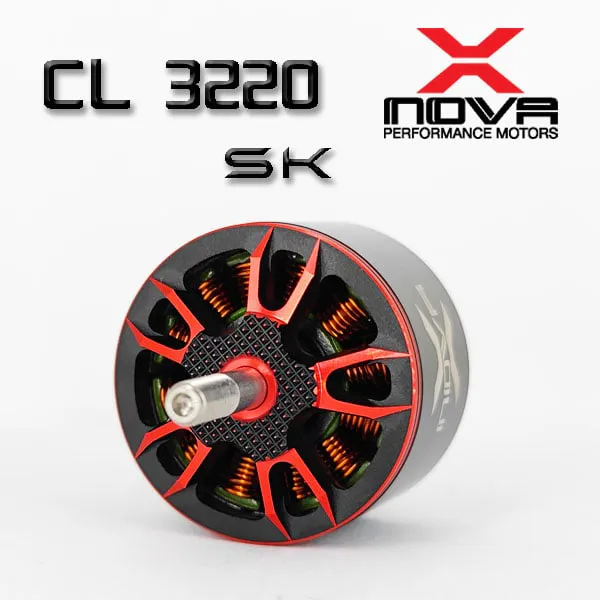

XNOVA Cinelifter SK 3220 490KV Motor

The XNOVA Cinelifter SK 3220 490KV is a brushless motor for heavy-lift cinelifter builds and other long-range frames that need a low-KV, large-stator motor for bigger propellers. It is aimed at pilots building around 10-inch-plus props and needing extra clearance and torque rather than top-end RPM.

Key features

• 3220 stator size gives the motor a 32 mm diameter and 20 mm height, so it sits in the larger cinelifter class rather than standard 5-inch motors.

• 490KV is suited to higher-voltage, low-RPM setups where smooth throttle response and efficient prop loading matter more than aggressive spool-up.

• Designed for heavy-lift and cinelifter builds, making it a better fit for camera-carrying or payload-focused airframes than light freestyle frames.

• SK series construction from XNOVA is intended for large-prop applications with the clearance those builds need.

• Best matched to 10-inch and larger propellers, based on the motor's intended use in cinelifter platforms.

Specifications

• Brand: XNOVA

• Motor type: Brushless

• Stator Size: 3220

• Stator dimensions: 32 mm x 20 mm

• KV: 490 KV

• Weight: 155 g

• No-load current: 1.1 A @ 10 V

• Resistance: 72 mOhm

• Recommended setup: 12S with 10-inch propellers

Choose this motor if your build is already committed to a large-prop, heavy-lift layout; it is not a drop-in replacement for common 5-inch freestyle motors.
