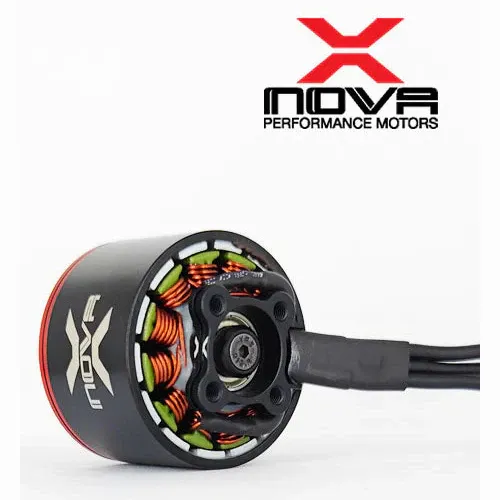

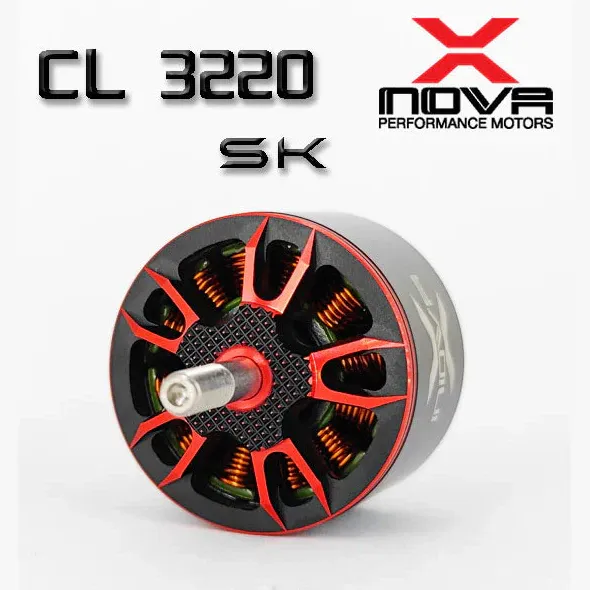

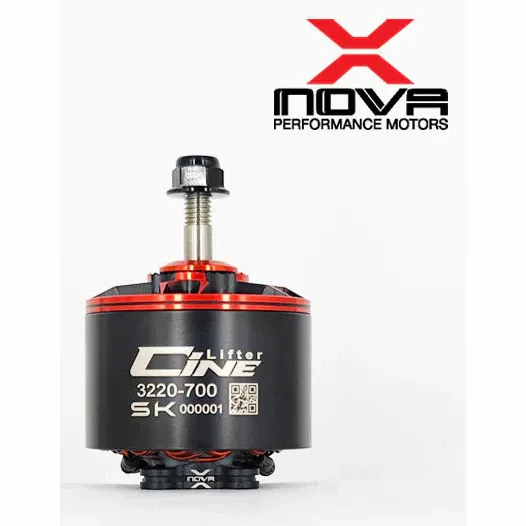

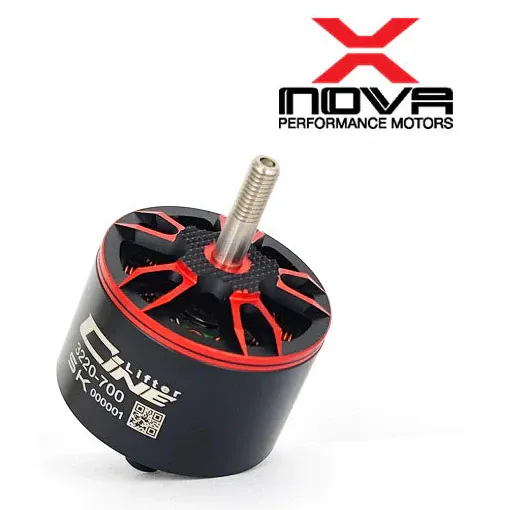

XNOVA Cinelifter 3220 700KV Motor

The XNOVA Cinelifter 3220 700KV motor is built for heavy-lift FPV platforms, X-Class drones, and coaxial X8 rigs carrying professional cinema payloads. Housing a massive 3220 stator, it delivers the extreme low-end torque required to spin large 9-inch to 11-inch propellers and stabilise heavy camera gear like RED or ARRI systems during dynamic flights.

Key features

• N52H curved magnets maintain thermal stability and consistent efficiency under sustained high-throttle loads.

• 12N14P electromagnetic configuration paired with Japanese NSK bearings eliminates micro-vibrations to prevent jello in cinematic footage.

• Machined 5mm steel prop shaft handles intense rotational inertia and torque spikes without shearing.

• Engineered specifically for heavy AUW cinelifters running high-voltage 6S to 8S LiPo power.

Specifications

• Stator Size: 3220

• KV Rating: 700

• Configuration: 12N14P

• Propeller Shaft: 5 mm

• Supported Voltage: 6-8S LiPo

• Recommended Propeller: 9 to 11 inches

For optimal performance and safe thermal overhead, pair this motor with a high-current 60A to 80A+ ESC, especially when flying heavy 8-inch to 11-inch coaxial X8 configurations.
