BrainFPV Radix Li 20×20 Wing Power Board
₹2,099Incl. GST
SKU BRAIN-RADIX-LI-PWR-2020
Input Voltage: 3–5SMade in India: NoBrand: BrainFPVWeight: 5 g
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

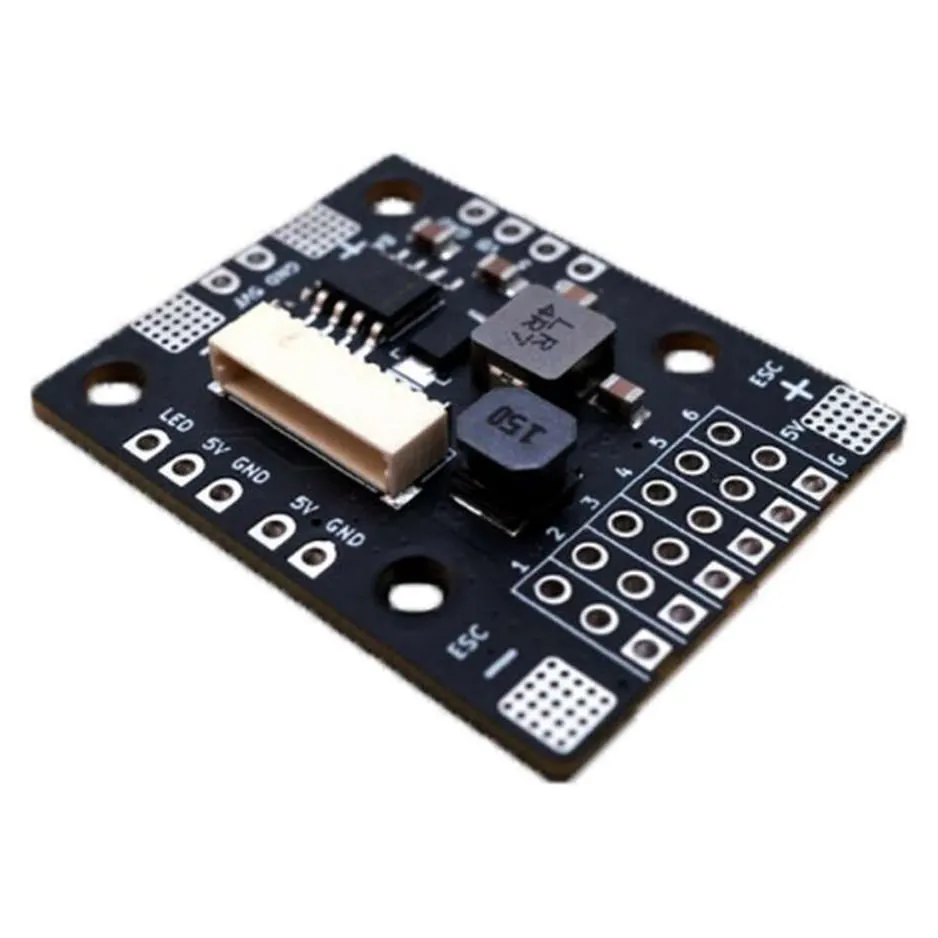

The BrainFPV Radix Li Wing Power Board is a dedicated power distribution and BEC module for small fixed-wing FPV aircraft, designed to pair directly with the BrainFPV Radix Li flight controller.
Key features
- Handles up to 40A continuous (60A burst) from a 3S–5S LiPo, with current sensing to 65A for OSD power tracking.
- Integrated 5V 3A BEC powers the flight controller and, via a jumper, small servos; a separate 5V 1A filtered rail feeds clean video power.
- Outputs for 1 ESC and up to 5 servos on pre-wired headers, plus a port for programmable RGB LEDs.

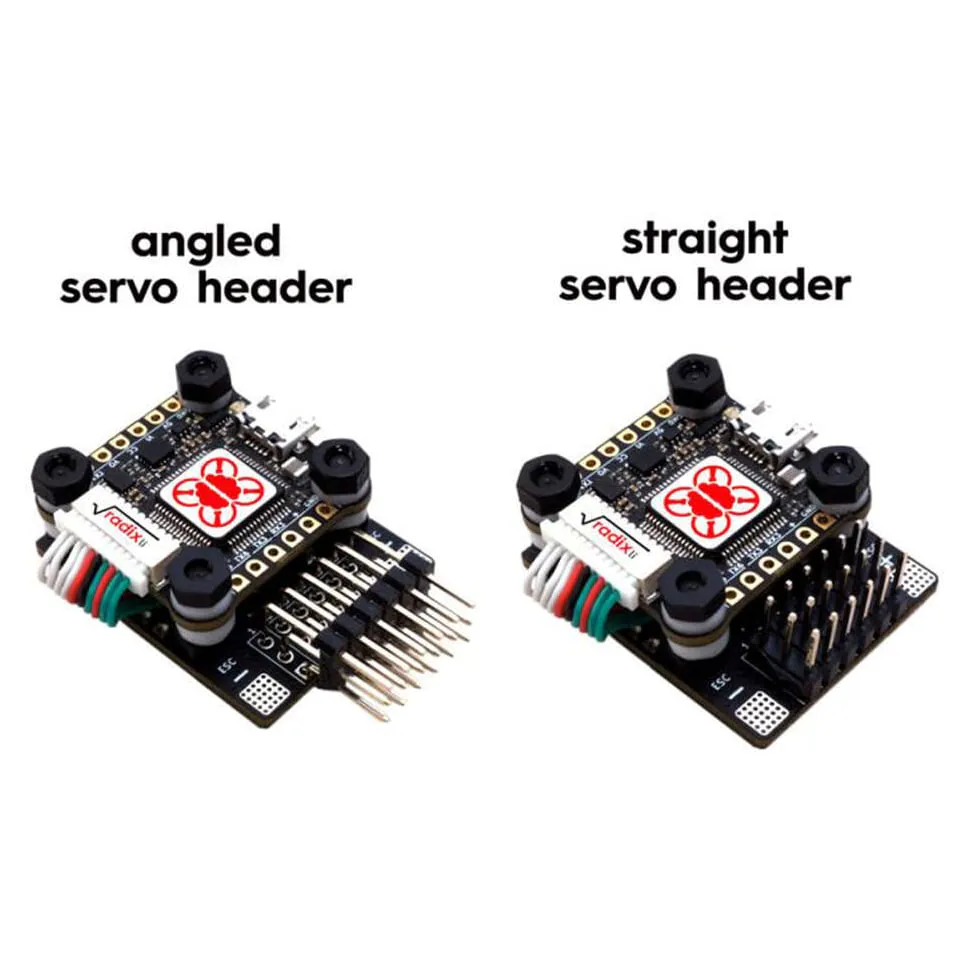

- Mount stacks just 5.5mm below the Radix Li flight controller, and the compact 26.5 x 34mm board suits tight wing bays.
Specifications
- Battery voltage: 3S–5S (8–22V)
- Max current: 40A continuous / 60A burst
- BEC output: 5V, 3A
- Mounting pattern: 20x20mm
- Dimensions: 26.5 x 34mm
- Weight: 5g

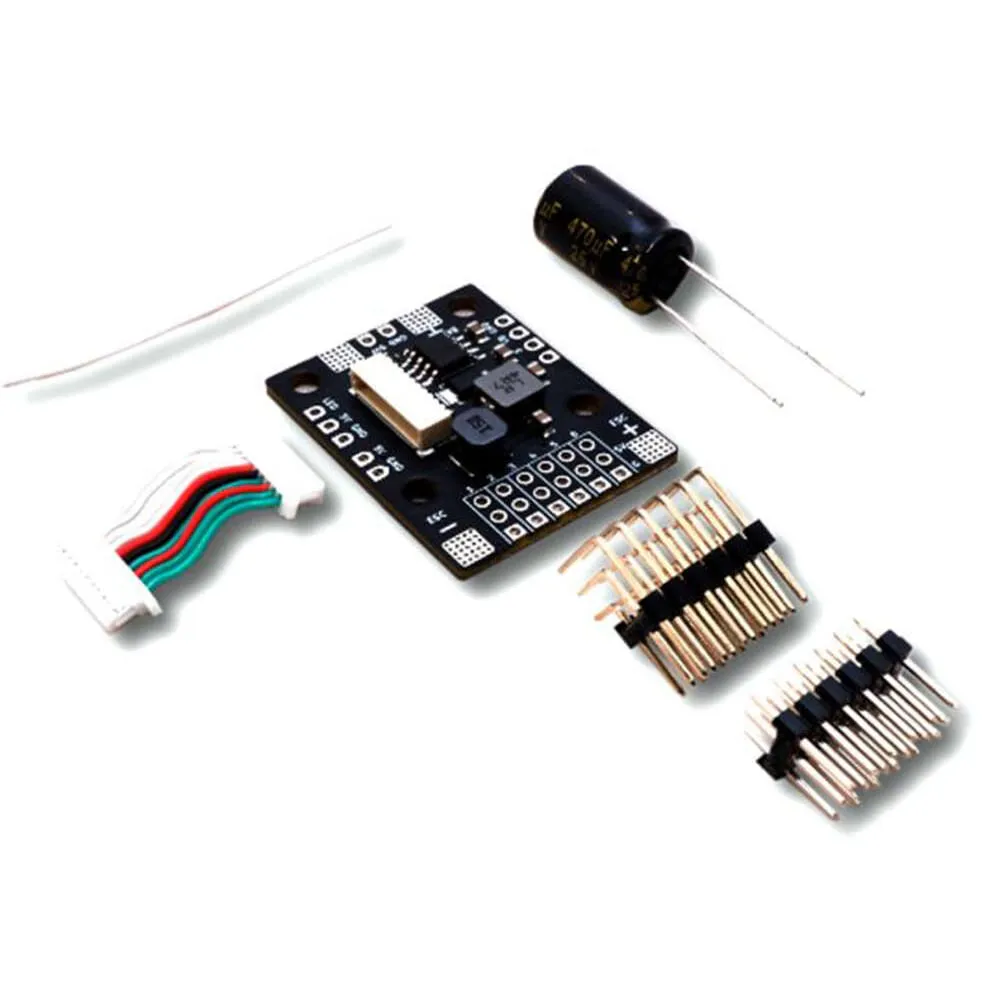

Ships with the 10-pin link cable to the Radix Li flight controller, straight and angled servo headers, a 25V/470µF capacitor and jumper wire for outputs 5 and 6.
| Input Voltage | 3–5S |
|---|---|
| Made in India | No |
| Brand | BrainFPV |
| Weight | 5 g |
| Mounting Size | 20x20 |
| Output Voltage | 5V |
| Output Current | 3 A |
| Current Sensing | 65 A |
| Continuous Current | 40 A |
