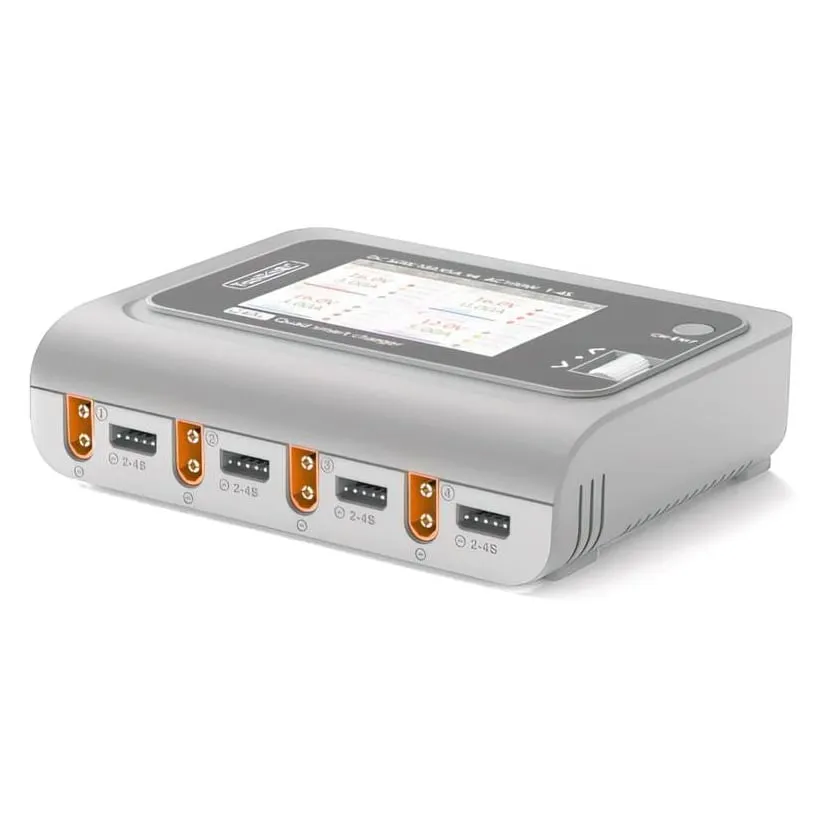

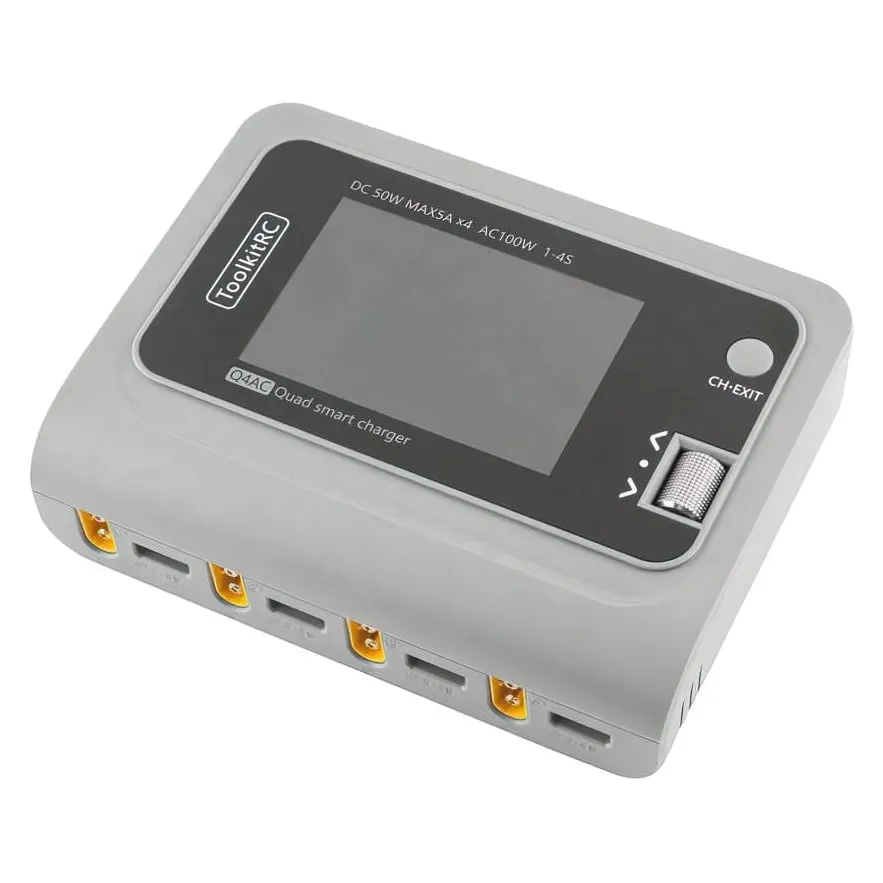

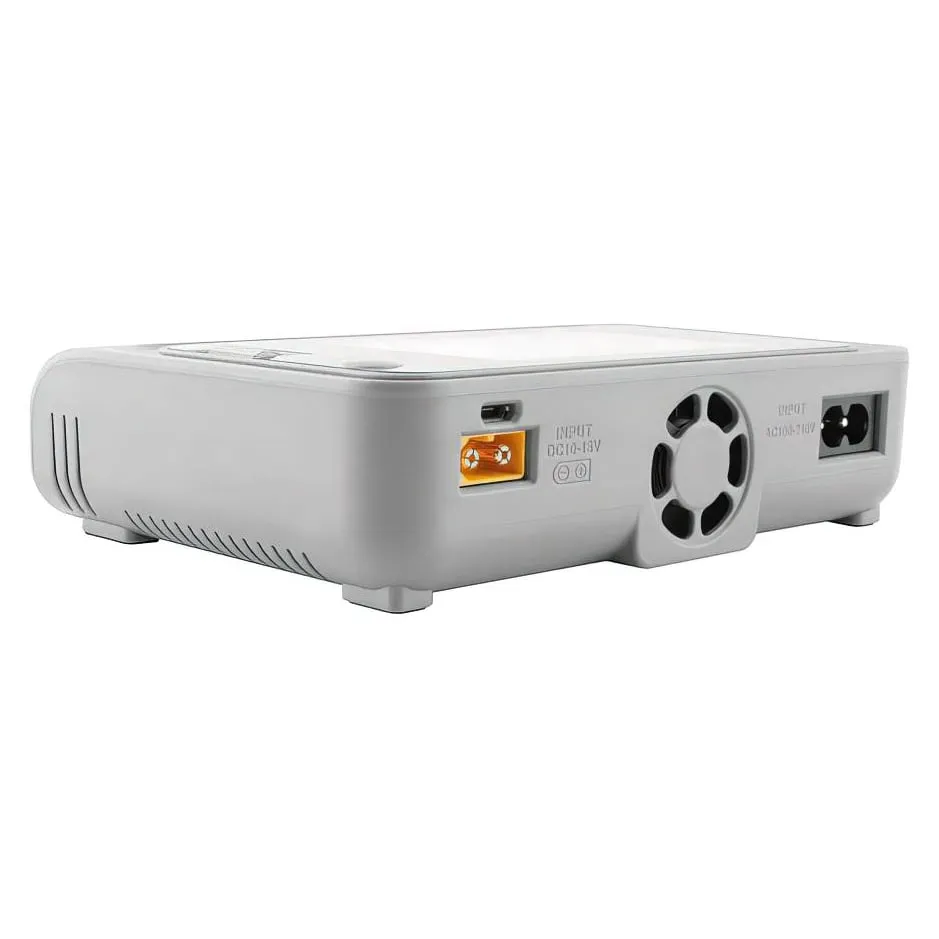

ToolkitRC Q4AC 1-4S AC 100W / DC 200W Quad Smart Charger

The ToolkitRC Q4AC is a four-channel smart charger tailored for FPV whoop, toothpick, and micro quad pilots running 1-4S batteries. It operates directly from mains AC power at your workbench and accepts DC voltage from larger LiPo packs for rapid charging out in the field.

Key features

• Four independent channels for simultaneous charging without the risks of using a parallel board.

• Delivers up to 100 W total output on AC mains power, and pushes a combined 200 W (up to 50 W per channel) on a DC supply.

• Maximum charge current of 5.0 A per port ensures fast turnaround times for smaller capacity packs.

• Bright 3.5-inch IPS colour screen displays individual cell voltages, internal resistance, and channel status at a glance.

Specifications

• Input voltage: AC 100-240 V, DC 10-18 V

• Max charge power: 100 W (AC total), 200 W (DC total / max 50 W per channel)

• Charge current: 0.1-5.0 A per channel

• Balance current: 240 mA (2-4S)

• Balance accuracy: < 0.005 V

• Supported cell count: 1-4S LiPo, LiHV, LiFe, Lion / 1-10S NiMh / 1-8S Pb

• Output connectors: 4x XT60

• Display: 3.5-inch IPS LCD (480x320)

• Dimensions: 150 x 112 x 36.5 mm

• Weight: 460 g

• In the box: charger, AC cable, USB-C cable, screen protector

Equipped with standard XT60 output ports, this charger handles most modern packs natively but will require appropriate adapter cables if your micro drone fleet relies primarily on XT30, BT2.0, or PH2.0 connectors.
