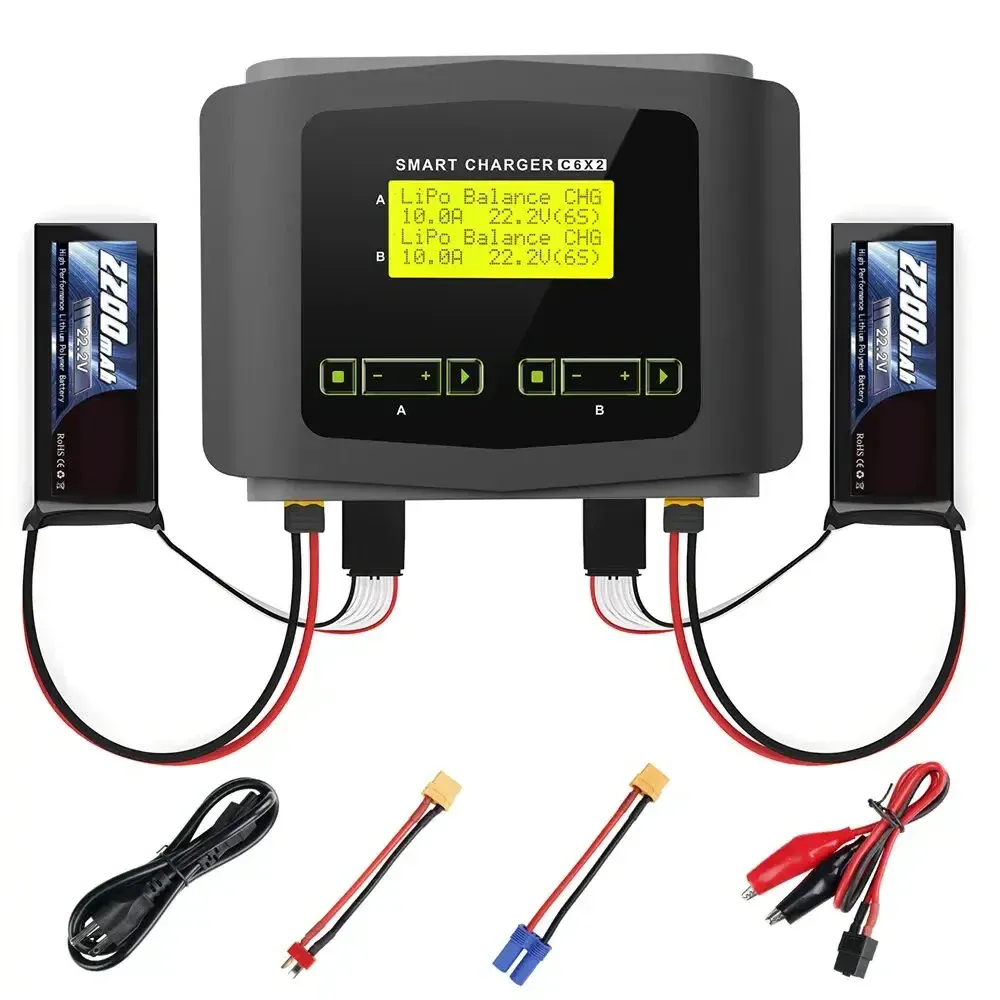

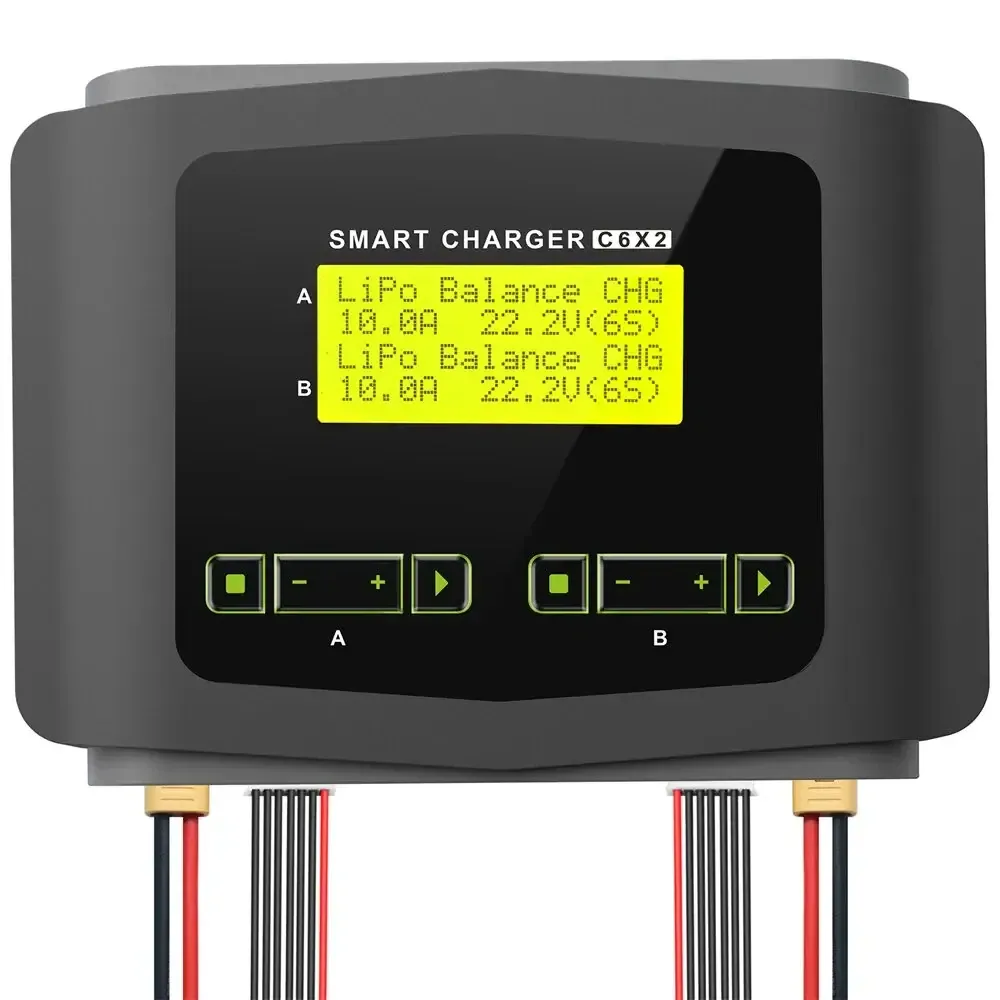

HTRC C6X2 AC 150W / DC 240W 10A Dual-Channel 1-6S Charger

The HTRC C6X2 is a dual-channel balance charger and discharger that runs from mains or a DC supply and charges two packs at once, each channel with its own settings. It handles 1–6S lithium packs (LiPo, LiHV, Li-ion and LiFe) as well as NiMH, NiCd and lead-acid batteries, so one unit covers drone flight packs and transmitter batteries.

Key features

• Two independent channels: charge two different chemistries or two identical packs side by side
• AC mode shares 150 W across both channels; DC mode gives 120 W per channel
• Discharge at up to 2 A per channel
• Built-in cell balancing for LiPo and Li-ion packs
• LCD shows voltage, current, capacity and elapsed time for each channel
• Overcharge, overcurrent, reverse-polarity, short-circuit and temperature protection

Specifications

• Input: AC 100–240 V / DC 11–18 V
• Charge power: AC 150 W total (CH1 + CH2); DC 120 W x 2
• Discharge power: 10 W x 2
• Charge current: 0.1–10 A x 2
• Discharge current: 0.1–2 A x 2
• LiPo/LiHV/Li-ion/LiFe: 1–6 cells x 2
• NiMH/NiCd: 1–15 cells x 2
• Lead-acid: 2–20 V x 2

On mains, two full-size 6S packs (25.2 V when full) share 150 W, which works out to about 3 A each. On a DC supply each channel gets 120 W, about 4.7 A into a 6S pack and close to the full 10 A on 3S; use a DC source comfortably above 240 W to get that output.
