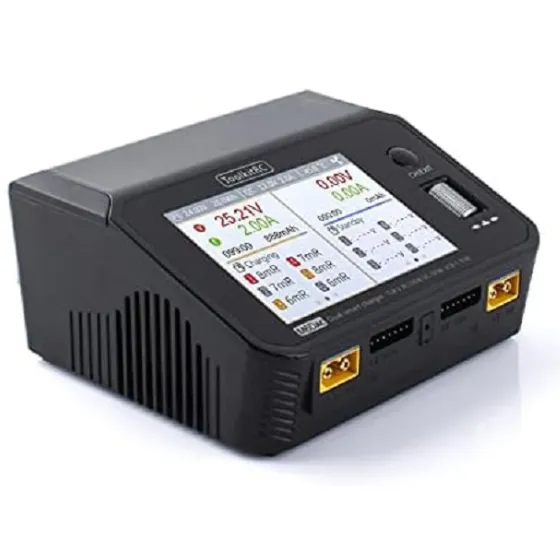

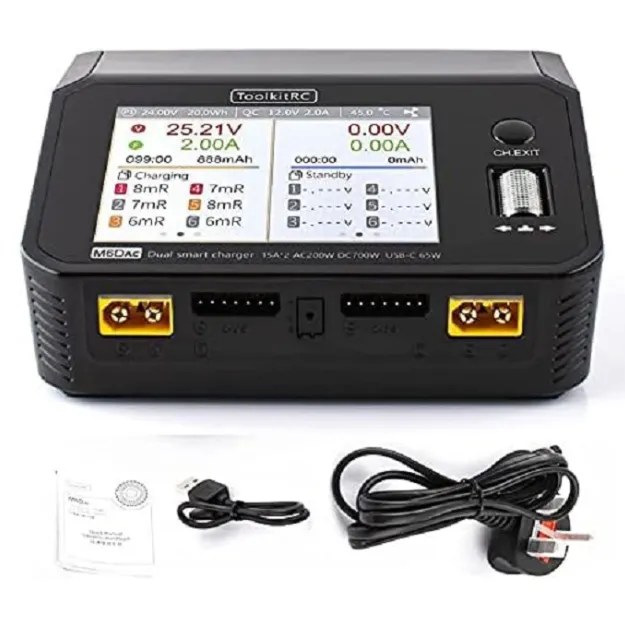

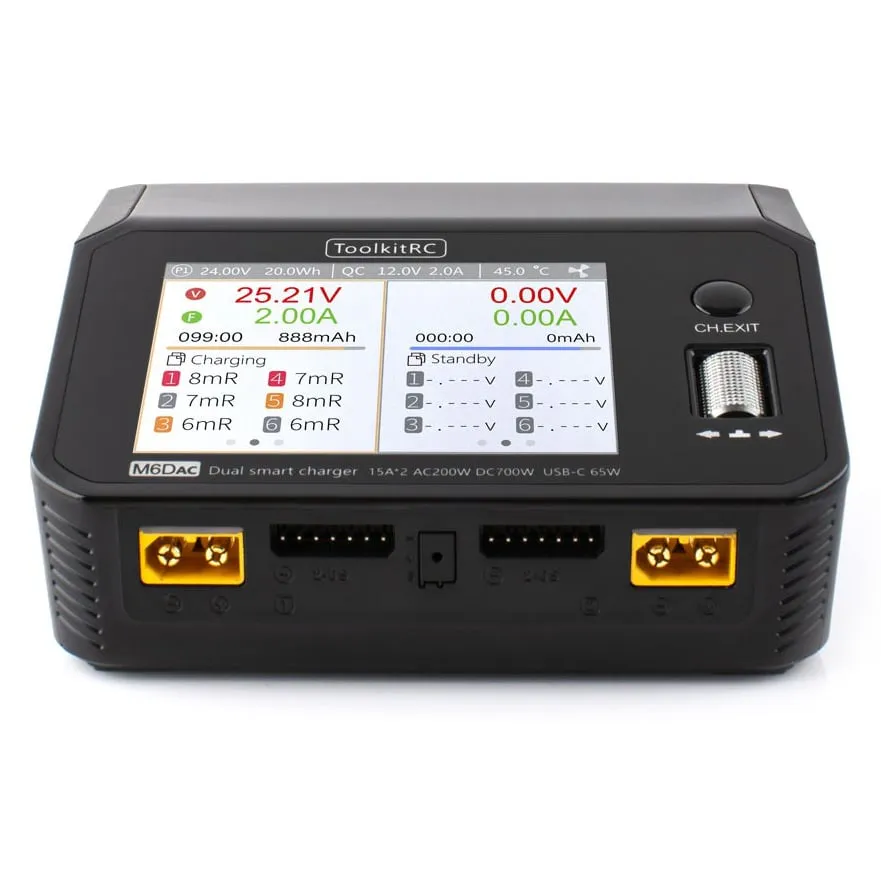

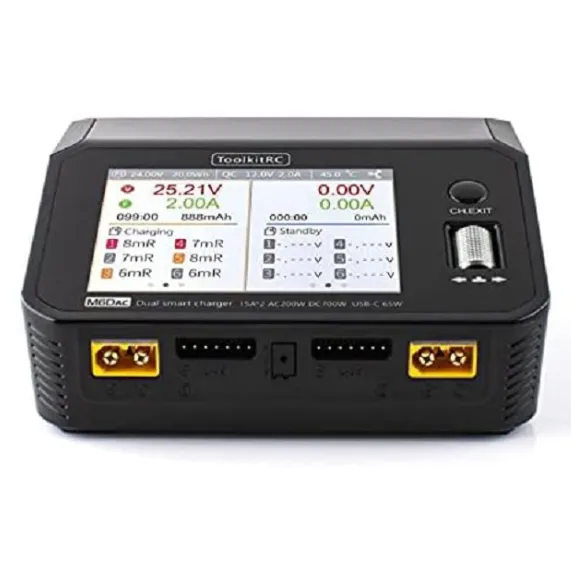

ToolkitRC M6DAC 200W AC/DC Dual-Channel Smart Charger

The ToolkitRC M6DAC is a dual-channel charger with a 200W mains supply built in, so it runs from a wall socket with no external adapter, and switches to a DC source when you need far more power. It suits FPV pilots charging two 4S-6S packs at once at home and at the field.

Key features

• AC/DC dual input: 100-240V mains or 7-28V DC (use one source at a time)

• On DC, two channels at 350W and 15A each, or 700W at 25A in synchronous mode; on AC, charging is capped by the 200W internal supply

• Charges LiPo, LiHV, LiFe and Li-ion 1-6S, NiMH 1-16S and lead-acid 1-10S

• 1A balance current and internal resistance measurement per cell

• 65W USB-C fast-charge output (PD, QC, AFC and others) for phones and goggles

• 3.5-inch IPS display with a metal dial rated for over 100,000 clicks

Specifications

• DC input: 7-28V, 30A max

• AC input: 100-240V, 2.5A max

• Charge power (DC): 350W x 2 at 0.1-15A, or 700W at 0.1-25A synced

• Charge power (AC): 200W total

• Balance current: 1000mA, 2-6S

• Internal resistance: 1-100 mOhm, 1-6S

• USB-C output: 65W max

• Display: 3.5-inch IPS, 480 x 320

• Size: 127 x 106 x 57 mm

• Weight: 520 g
