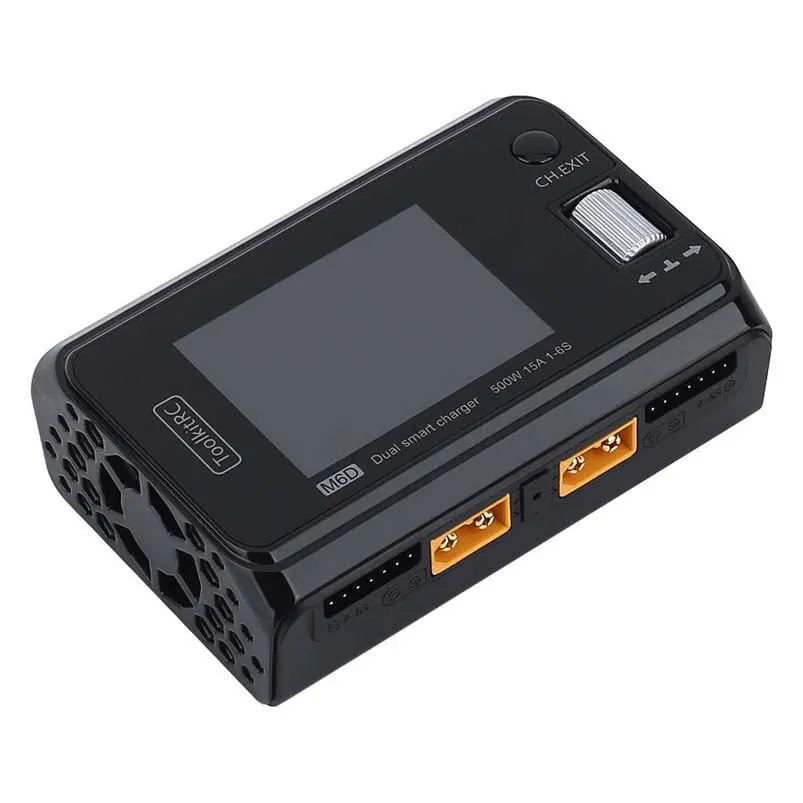

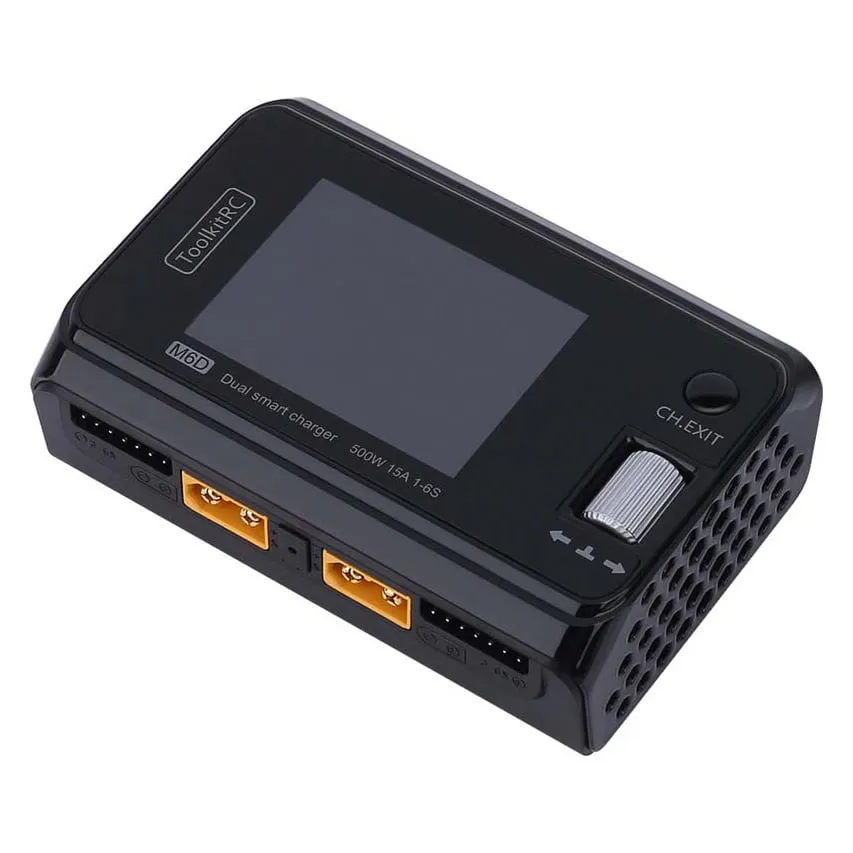

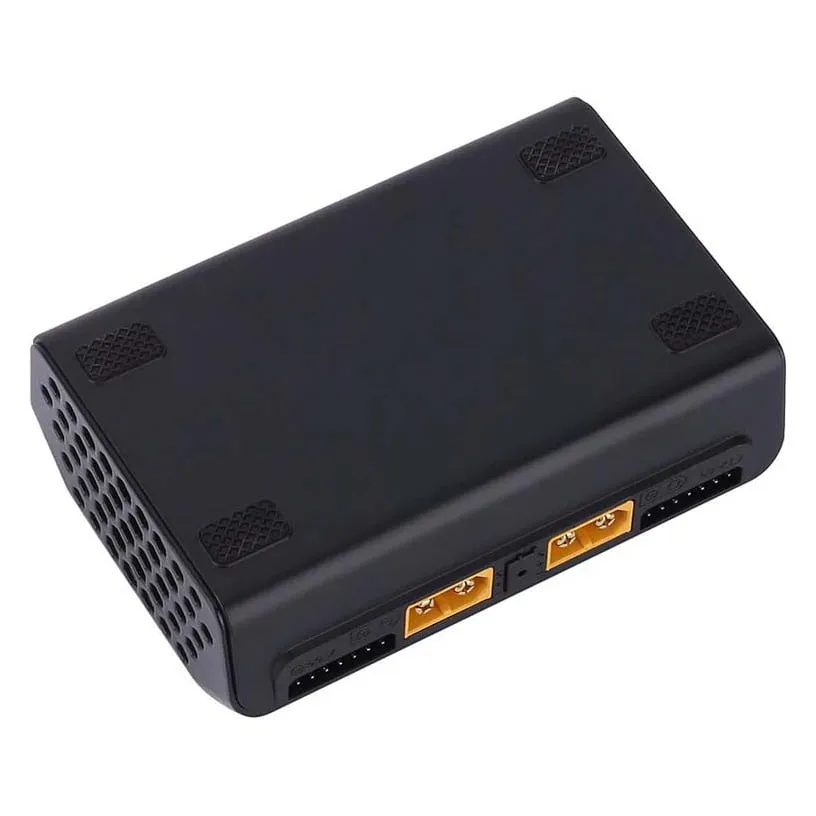

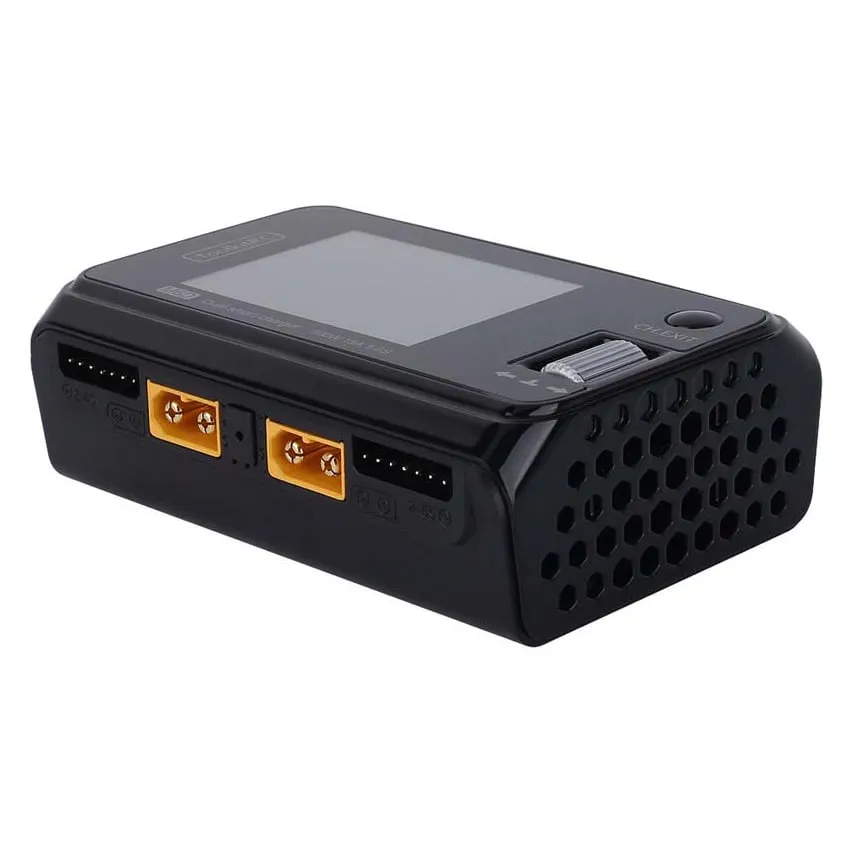

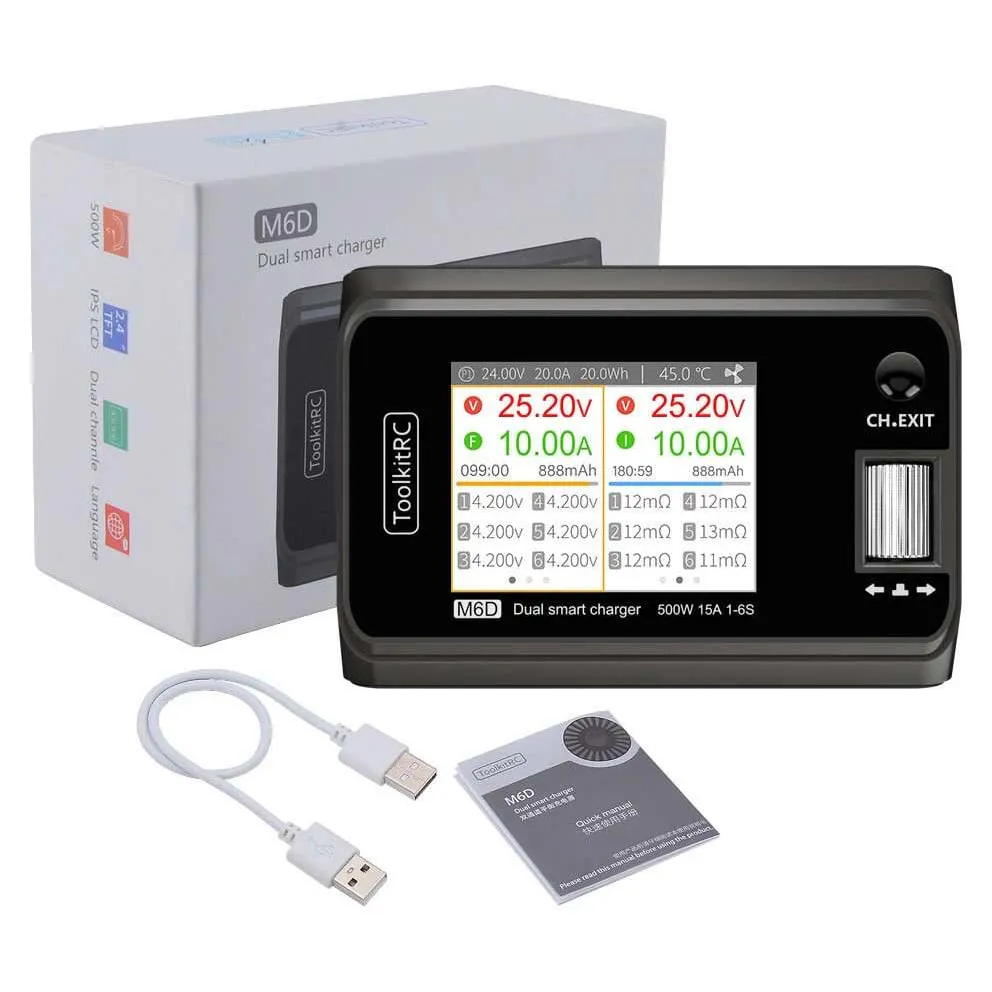

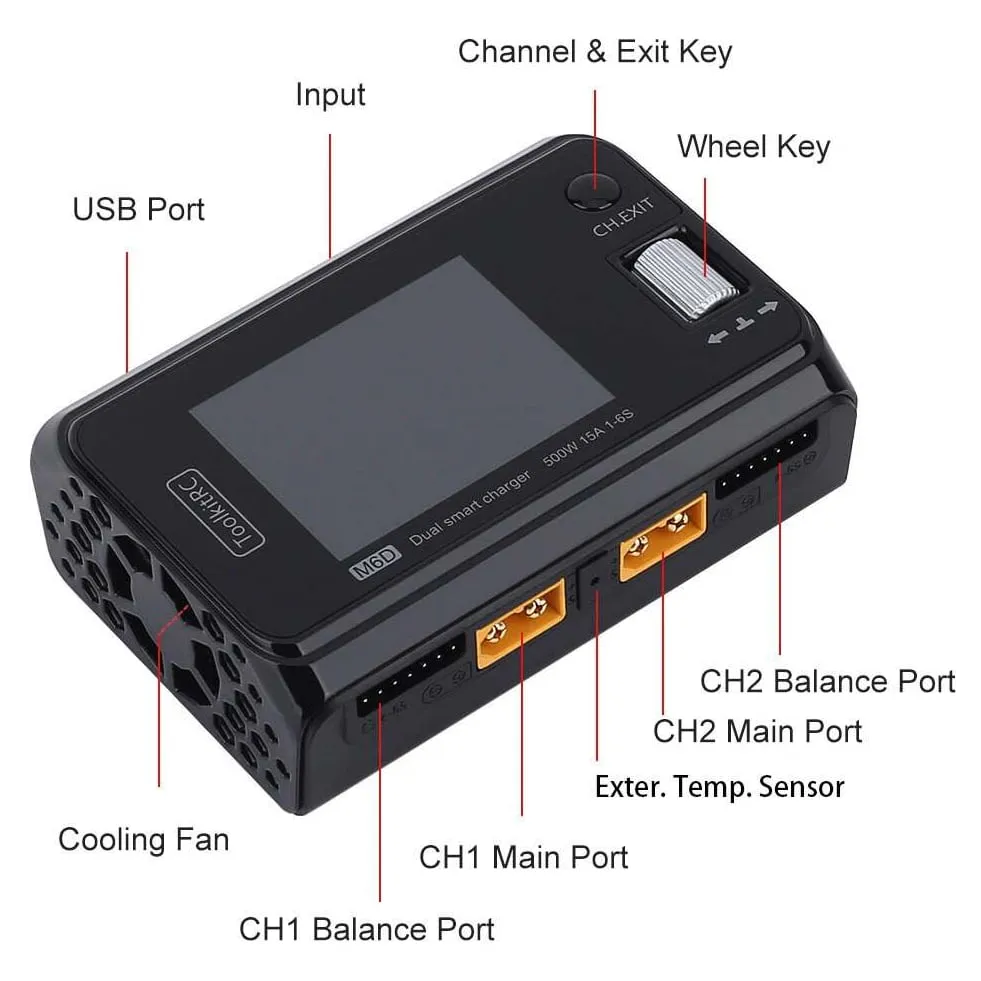

ToolkitRC M6D 500W 15A DC Dual-Channel Smart Charger/Discharger

The ToolkitRC M6D is a highly compact dual-channel DC smart charger tailored for FPV pilots charging multiple packs on the bench or in the field. Capable of outputting up to 500W in synchronous mode, it offers plenty of power for parallel charging large 6S packs, while remaining small enough to slip neatly into a backpack alongside your field batteries.

Key features

• Dual-mode charging: Operates as two independent 250W/15A channels (asynchronous) or combines output into a single 500W/25A channel (synchronous) for large-capacity packs.

• Wide DC input: Accepts 7-28V (up to 30A) via an XT60 input, making it easy to power from large field LiPos, car batteries, or dedicated bench power supplies.

• Broad compatibility: Supports standard FPV and hobby chemistries including LiPo, LiHV, LiFe, Li-ion, NiMH, and Pb.

• Integrated USB port: Delivers 5V at 2.1A for charging mobile devices and action cameras, and doubles as a data port for firmware updates.

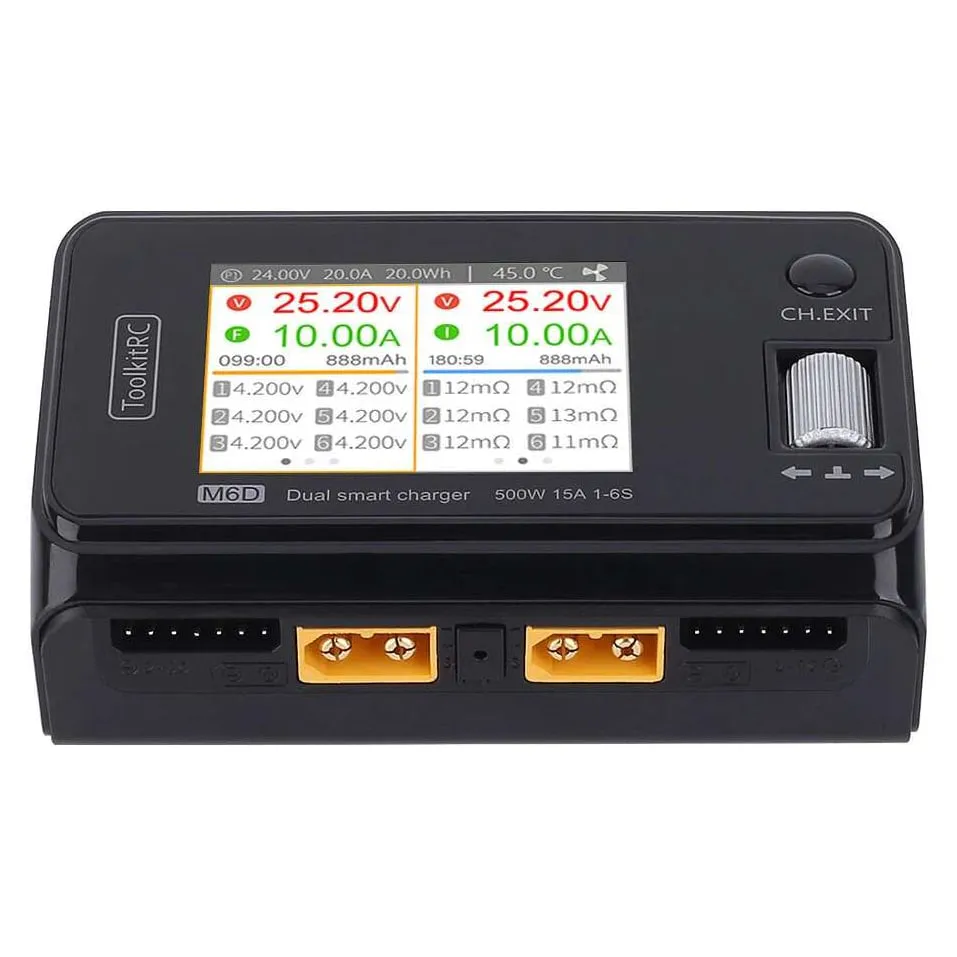

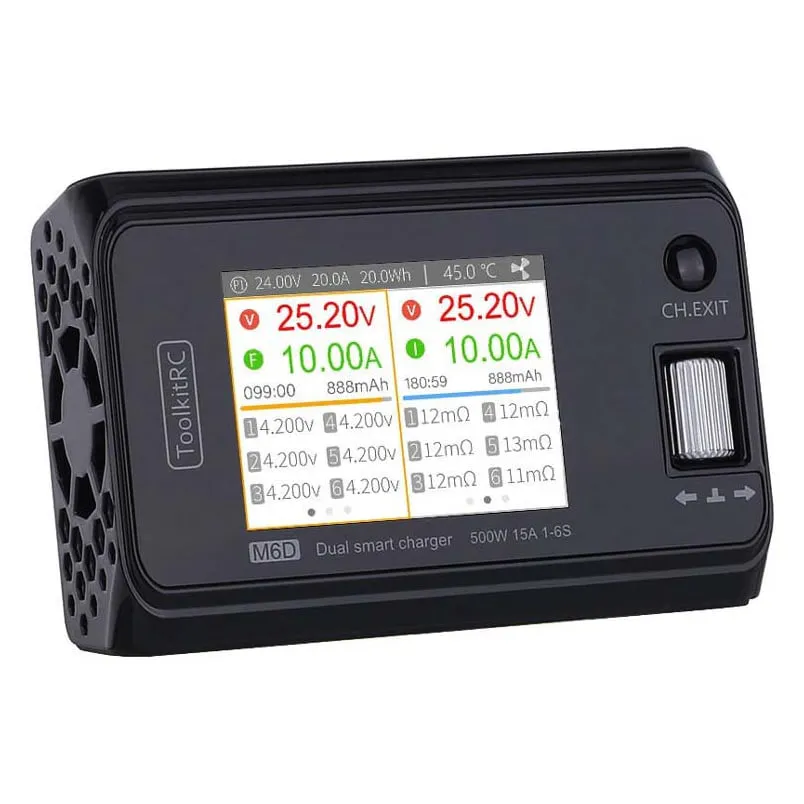

• Clear telemetry: Features a bright 2.4-inch colour IPS display with a simple scroll-wheel interface for monitoring individual cell voltages and internal resistance.

Specifications

• Input Voltage: DC 7-28V (Max 30A)

• Supported Chemistries: LiPo, LiHV, LiFe, Li-ion (1-6S), NiMH (1-16S), Pb (1-10S)

• Asynchronous Charge Power: 2 x 250W / 15A

• Synchronous Charge Power: 1 x 500W / 25A

• Balance Current: 800mA (2-6S)

• Internal Discharge Power: 2 x 12W / 3A

• Recycle Discharge Power: 2 x 250W / 15A

• Display: 2.4-inch IPS LCD (320x240 resolution)

• Dimensions: 98 x 68 x 35 mm

• Weight: 220 g

Note: This is a DC-only charger. To operate it, you will need a separate AC-to-DC power supply or a high-capacity field battery equipped with an XT60 connector.
