ToolkitRC M8D 1-8S 1600W 50A Touchscreen Charger

The ToolkitRC M8D is a dual-channel DC charger for pilots running big packs: 6S to 8S cinelifter, X-Class and heavy-lift batteries, or several freestyle packs at once. It needs a DC source such as a high-power supply or a field battery, and rewards it with up to 1600W of charging.

Key features

• Two independent channels at up to 800W and 30A each, or both combined in sync mode for 1600W at 50A

• Charges LiPo, LiHV, LiFe, Li-ion and LTO from 1S to 8S, plus NiMH up to 20S and lead-acid up to 15S

• 2A balance current keeps large packs in line quickly

• 800W recycle-mode discharge for capacity checks and storage on big packs

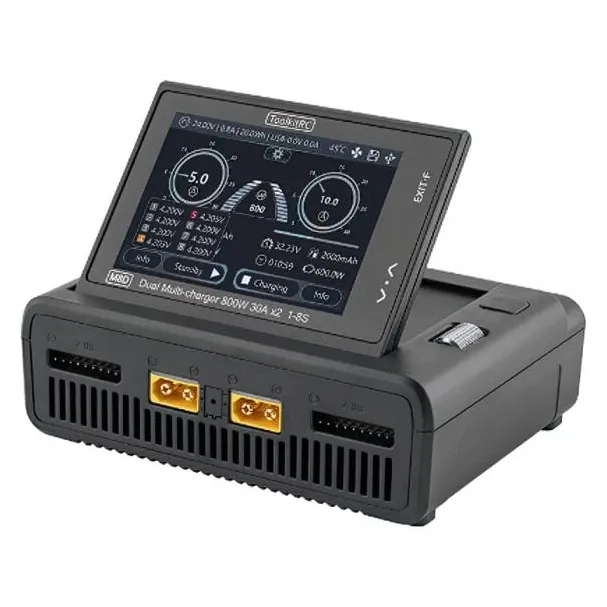

• 3.5-inch capacitive IPS touchscreen at 480 x 320

• USB-C port with 65W fast charging (PD, QC, PPS and more) for phones and goggles

Specifications

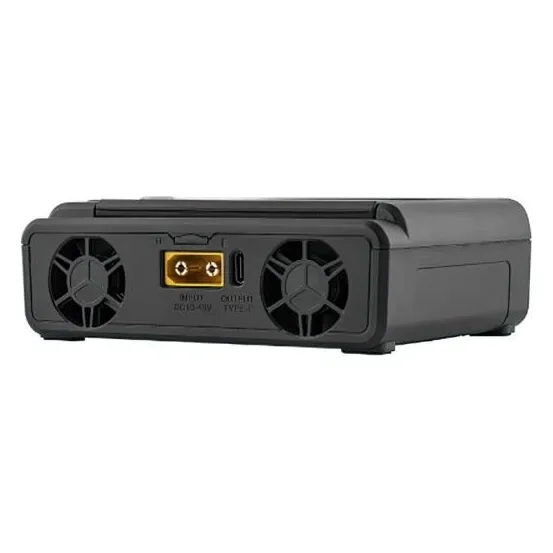

• Input: DC 10-49V, 60A max

• Charge power: 800W x 2 (30A per channel), 1600W synced (50A)

• Discharge power: 800W, 30A max (recycle mode)

• Balance current: 2000mA

• Battery types: LiPo, LiHV, LiFe, Li-ion, LTO 1-8S; NiMH 1-20S; Pb 1-15S

• USB-C: 5-20V, 65W

• Display: 3.5-inch IPS, capacitive touch

• Size: 130 x 97 x 42 mm

• Weight: 450 g

Full output needs a supply that can deliver it; a 48V high-current supply or a large parallel battery lets the M8D reach its rated power.
