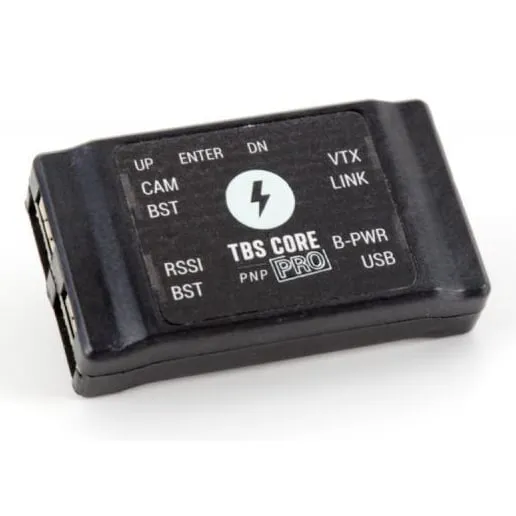

TBS Core PNP Pro OSD & Power Board

The TBS Core PNP Pro is an all-in-one OSD, filtered power supply and GPS-ready unit for analogue FPV fixed-wing aircraft and multirotors, built to run a camera, VTX and flight telemetry without a full flight-controller stack.

Key features

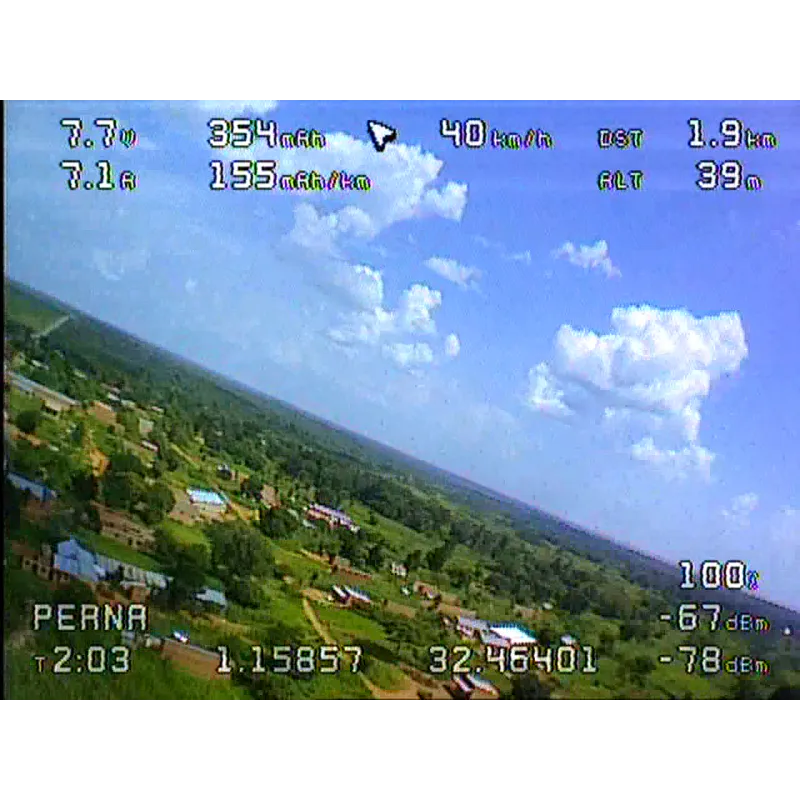

• Built-in OSD overlays battery voltage, current draw, signal strength, callsign and a timer on the video feed, adding GPS-fed distance, speed and heading when the compass module is fitted.
• Digital current sensor (100A, XT60) tracks consumption with high accuracy.
• Dual filtered regulators deliver a constant 5V @ 2A and 12V @ 600mA, individually rather than combined, to power the camera and VTX from clean, shielded rails.
• A second 2S input can power the FPV system and airplane servos independently if the main battery or ESC fails, for a controlled descent.

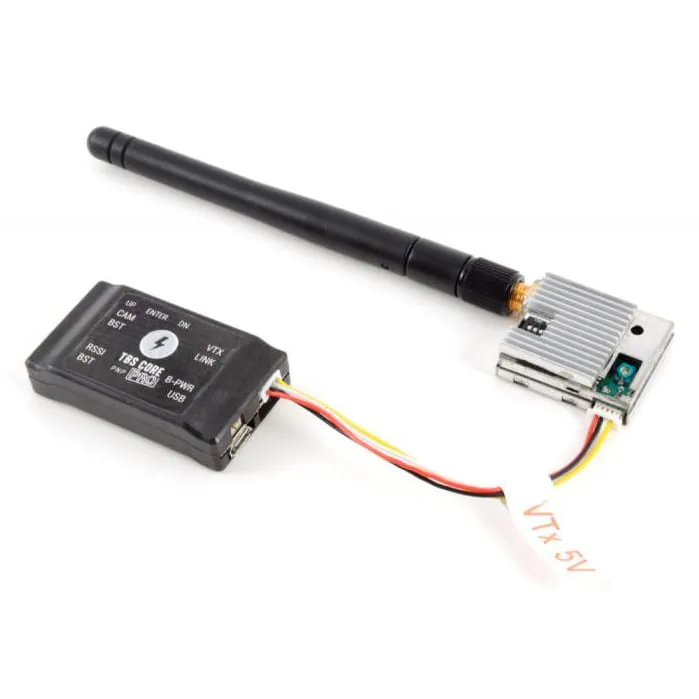

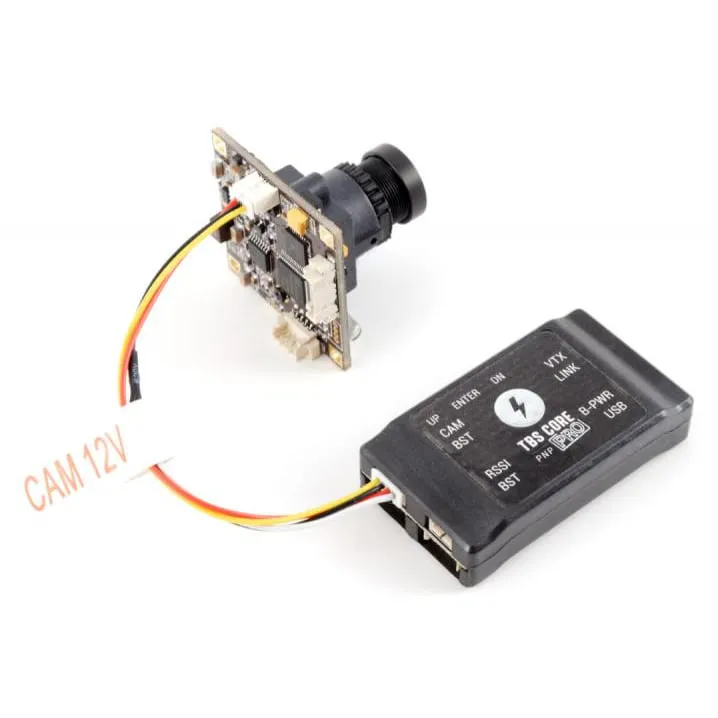

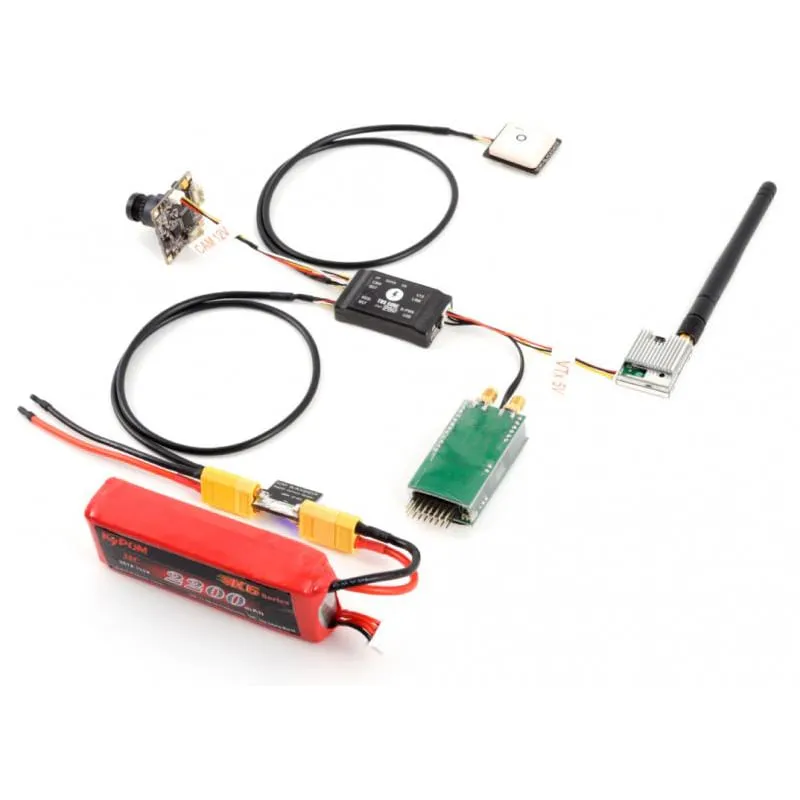

• Ships with the current sensor, camera and VTX pigtails and a full set of BlackSheep Telemetry (BST) cables, and is configurable via TBS Agent software.

Specifications

• Input voltage: 2–6S LiPo (plus a 2S backup input)
• Regulated outputs: 5V @ 2A, 12V @ 600mA
• Current sensor: 100A, XT60
• Dimensions: 27 x 47 x 12mm
• Weight: 15.6g

Add the optional TBS Core Pro GPS/compass module for on-screen distance, speed and heading data.
