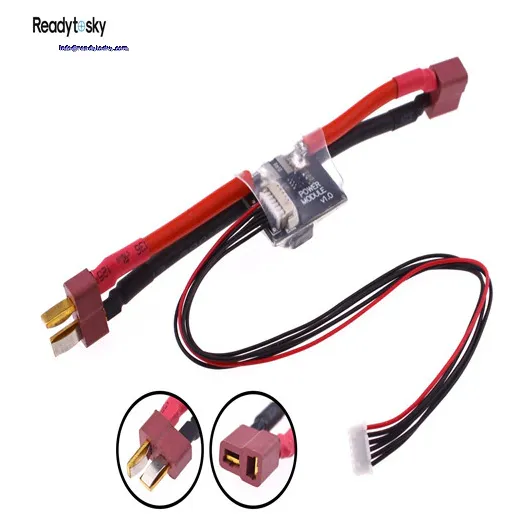

ReadyToSky 90A Power Module with T-Plug Connectors (Standard Version)

The ReadyToSky Power Module supplies a flight controller with regulated 5.3 V from the main LiPo and reports battery voltage and current draw over a single 6-pin cable, for APM and Pixhawk-type flight controllers with a 6-pin power port. This Standard Version comes assembled with T-plug (Deans) connectors and wrapped in heat-shrink.

Key features

• Accepts up to a 6S LiPo battery
• Measures current up to 90 A for consumption tracking and low-battery failsafes
• Voltage and current signals scaled for a 5 V ADC input
• Switching regulator delivers 5.3 V at up to 3 A to the flight controller
• Ready to install, with connectors fitted and the board shrink-wrapped

Specifications

• Max input: 6S LiPo
• Max current sensing: 90 A
• Regulator output: 5.3 V, 3 A max
• Measurement scaling: 5 V ADC
• Battery connectors: T-plug (Deans)
• FC cable: 6-pin

After fitting, set the battery monitor to an analog power module in Mission Planner or QGroundControl and calibrate voltage and current against a multimeter. Packs with XT60 leads need an adapter or a connector swap.
