T-Motor Velox V2307 V2 4-6S Motor

The T-Motor Velox V2307 V2 1950KV is a 5-inch racing and freestyle FPV motor with a titanium-alloy shaft and unibell design, built for a lighter, smoother feel than the earlier Velox.

Key features

• 12N14P stator winding with an N52 arc magnet for strong, efficient thrust.

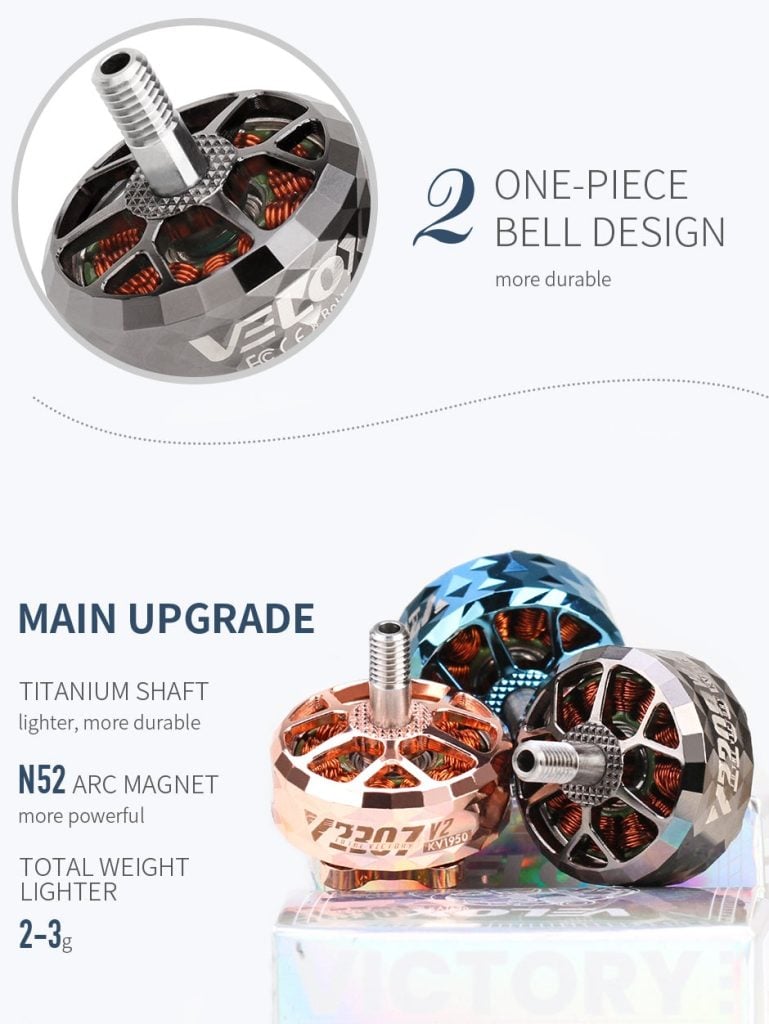

• Unibell, all-inclusive upper-cover design reduces overall weight versus the original Velox.

• Titanium-alloy motor shaft for durability at a lower weight.

• Rated for 4S-6S LiPo power on 5-inch propellers.

• Matches well with T-Motor's F7-based flight controllers and F55A Pro II 4-in-1 ESCs.

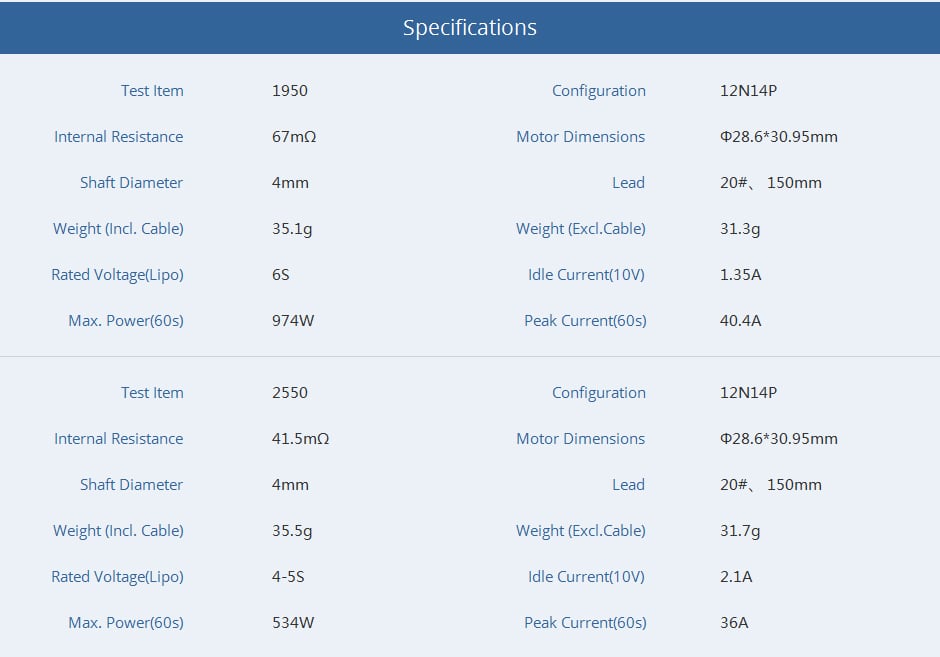

Specifications

• Stator: 2307, 12N14P

• KV: 1950KV / 2550KV

• Weight: 35.1g (including motor lead)

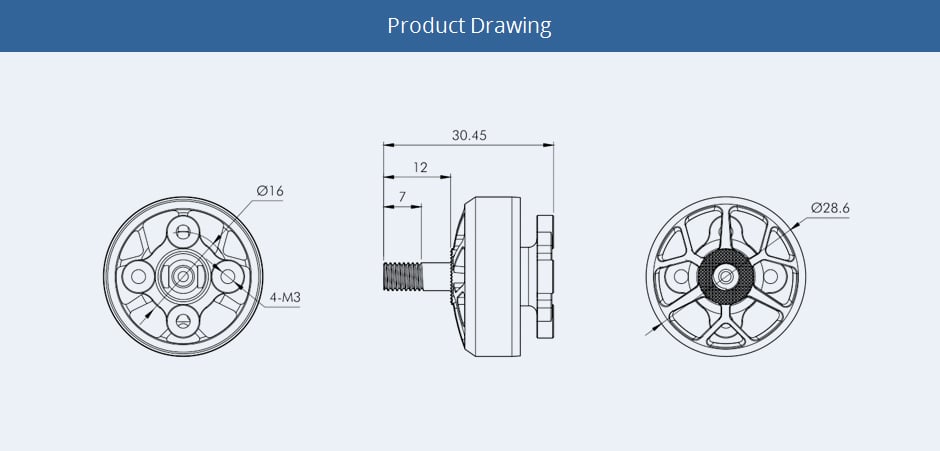

• Motor dimensions: Ø28.6 x 30.95mm

• Recommended battery: 6S (1950KV), 4-5S (2550KV)

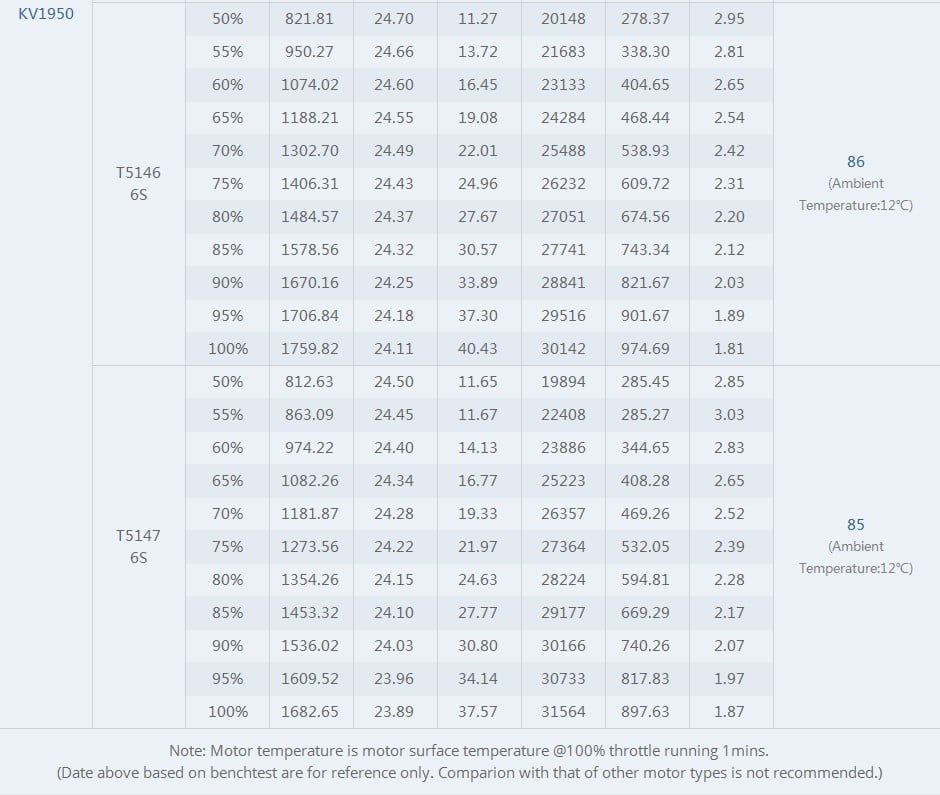

• Max power: 974W (1950KV), 534W (2550KV)

Fit four matched motors per build and pair with a 5-inch propeller and an ESC rated for your chosen 4-6S battery. The V2307 V2 line also spans 2306.5, 2207.5 and 2208 stator sizes for pilots who want a different feel.
