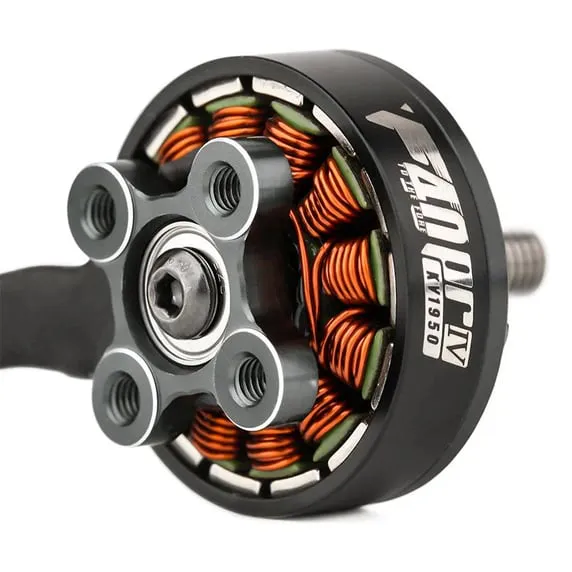

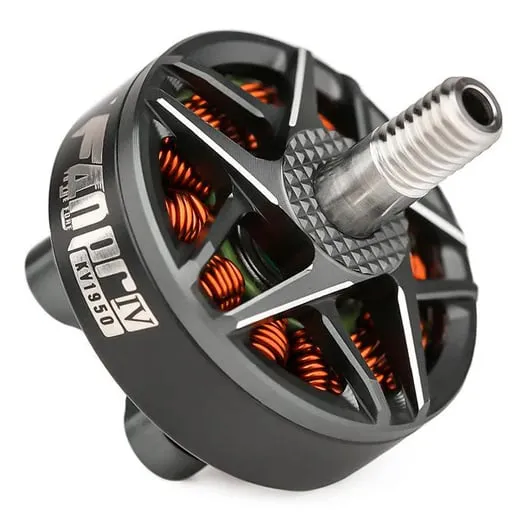

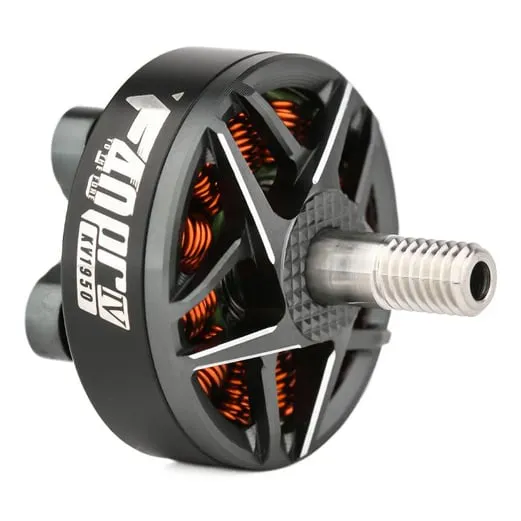

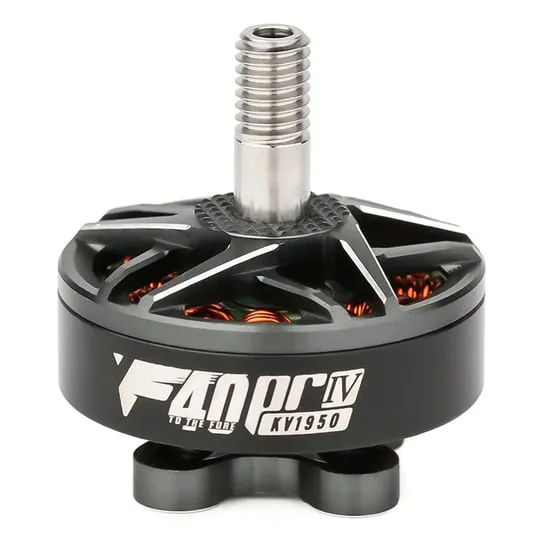

T-Motor F40 PRO IV 1950KV 4-6S Motor
SKU TMOTOR-F40PRO-IV-1950KV-BLU
Color: Blue
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The T-Motor F40 PRO IV 1950KV is a brushless motor for 5-inch FPV racing and freestyle builds running 4-6S LiPo power. It pairs a 12N14P winding with a compact bell to deliver strong, linear thrust.
Key features
12N14P configuration for smooth, high-torque delivery across the throttle range.
Weighs 30.8g including cable, keeping the build light without sacrificing power.
Rated for up to 42A peak current and over 1000W on 6S power.
Compact bell diameter suits standard 5-inch racing and freestyle frames.
Specifications
Stator size: 2306.5
KV: 1950KV
Input voltage: 4-6S
Weight: 30.8g (with cable)
Peak current: 42A
Fit a compatible 16x16mm mount and 5mm-shaft propeller, and pick an ESC rated above the motor's 42A peak draw. The 4-6S rating means the same motor can be run across most common 5-inch racing battery choices without a KV change.
| Stator Size | 2306.5 |
|---|---|
| Stator Diameter | 23mm |
| Stator Height | 6.5mm |
| KV | 1950 KV |
| Prop Mount | M5 |
| Shaft | 5mm |
| Motor Mount | 16x16mm |
| Input Voltage | 4–6S |
| Weight | 30.8 g |
| Brand | T-Motor |
| Made in India | No |
