T-Motor V70A ESC & F7 FC SE 4-in-1 Freestyle Stack (6-8S)
₹14,099Incl. GST
SKU TM-V70A-F7SE-4IN1-STACK
Mounting Size: 30.5x30.5FC Processor: F722Gyro: ICM42688PESC Current: 70 A
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

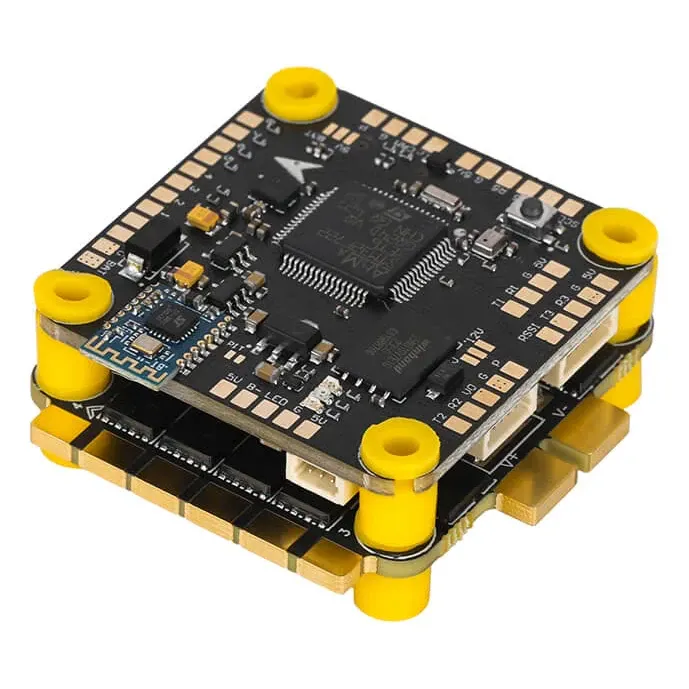

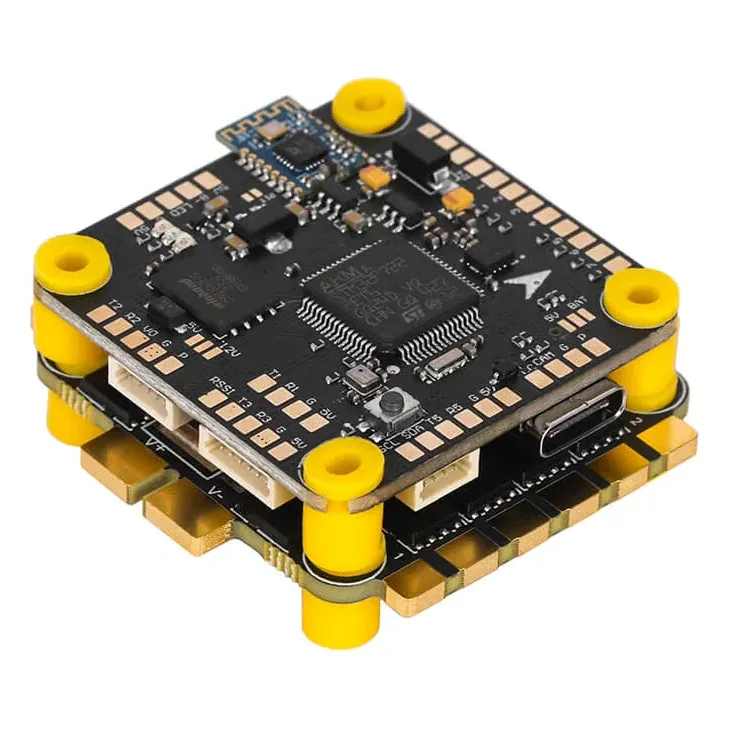

The T-Motor V70A ESC and F7 FC SE stack pairs a 70A 4-in-1 ESC with an F722 flight controller for high-voltage freestyle and long-range builds running 6S to 8S power.
Key features

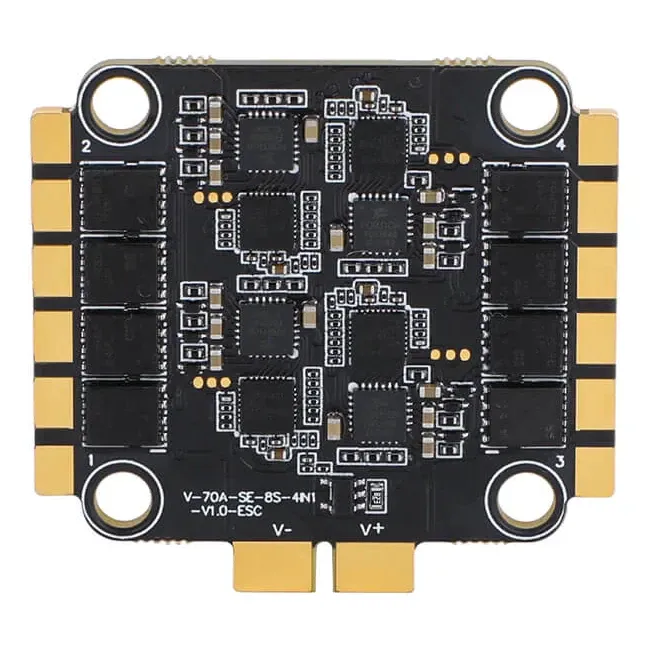

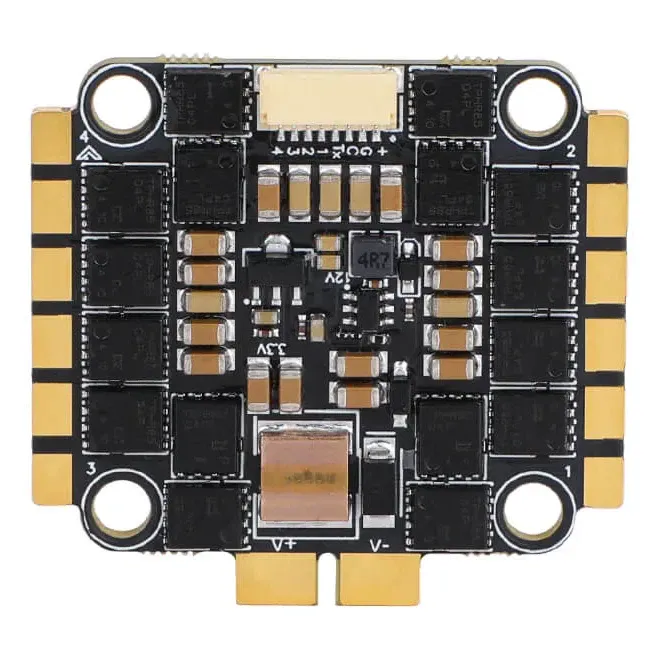

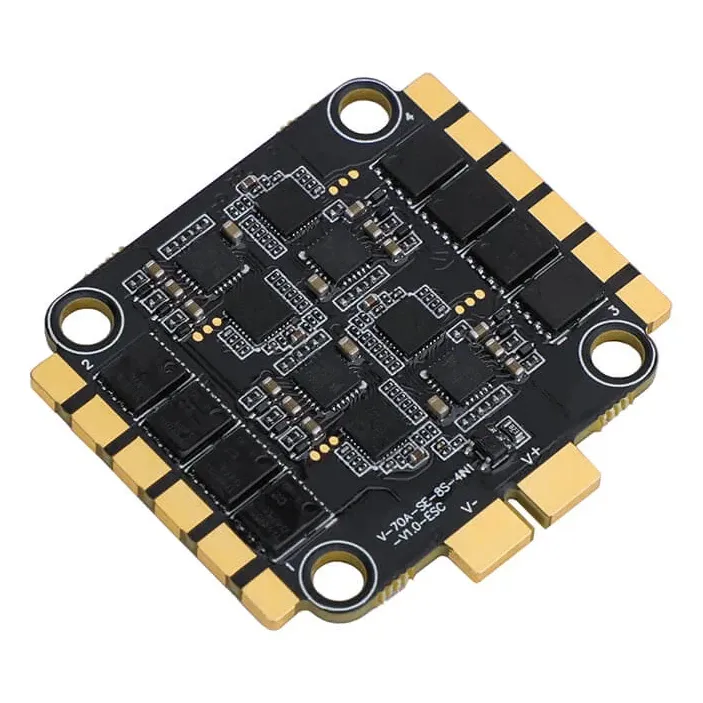

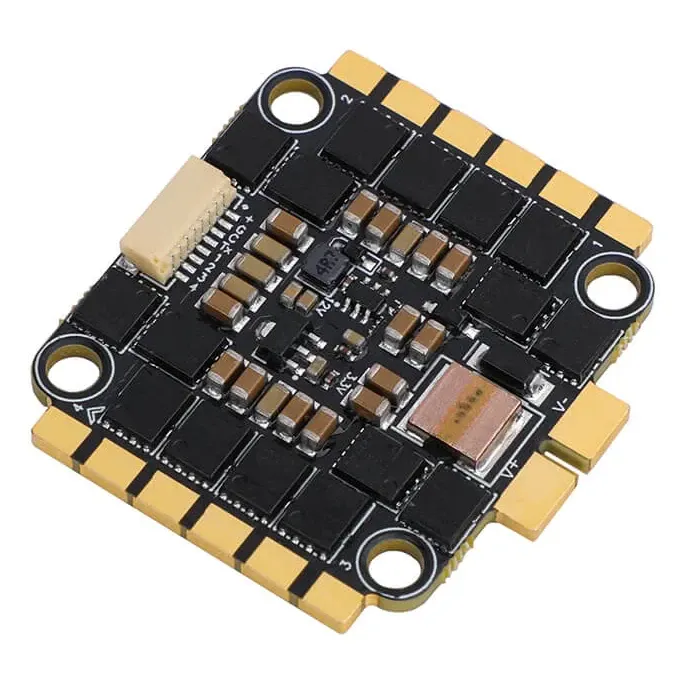

- 70A continuous ESC current (75A peak) on AM32 firmware for reliable high-voltage throttle response

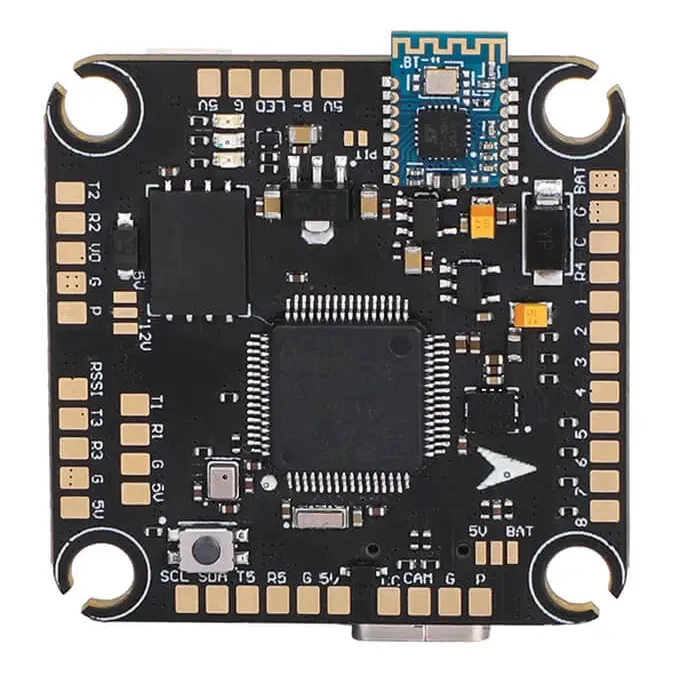

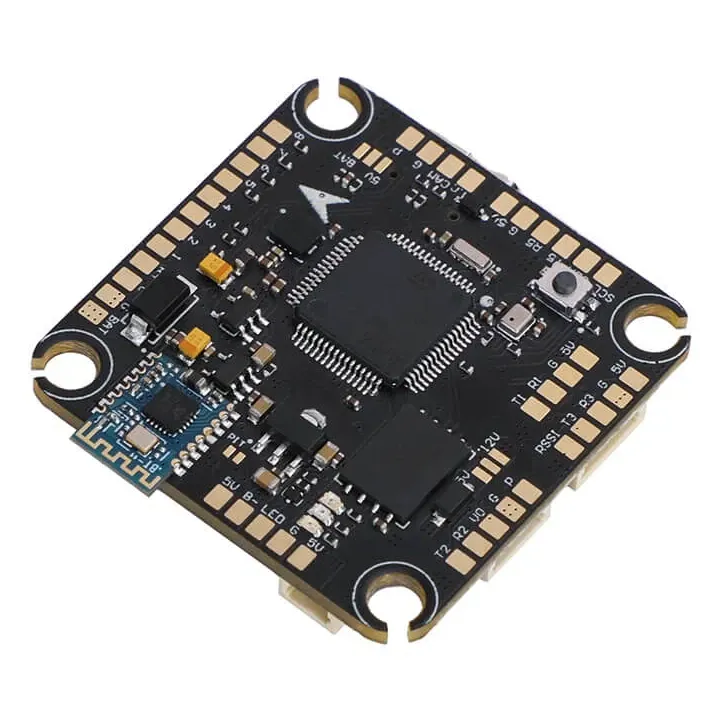

- F722 flight controller with an ICM-42688P gyro running Betaflight
- AT7456E OSD with HD-VTX support and Bluetooth for wireless tuning
- Dual BEC outputs (5V/3A and 12V/3A) for clean peripheral and digital-video power
- 5 hardware UARTs for receiver, GPS and telemetry routing
- Full plug-in FC-to-ESC connection built to the 30.5x30.5mm Betaflight mounting standard
Specifications
- FC Processor: STM32F722
- Gyro: ICM-42688P
- Input Voltage: 6-8S LiPo
- ESC Current: 70A continuous / 75A peak
- ESC MCU: AT32F421
- UARTs: 5
- Blackbox: 128MB onboard
- BEC Output: 5V/3A, 12V/3A
- Mounting Size: 30.5x30.5mm (M4)
- FC dimensions: 38 x 38 x 7 mm, 8 g
- ESC dimensions: 44.4 x 41 x 6 mm, 12.3 g
- Supported Firmware: Betaflight
Best suited to 7-inch to 10-inch long-range quads and heavy-lift cinelifters, where the extra current headroom of 8S power and a 70A ESC keeps large motors running cool under sustained load.
| Mounting Size | 30.5x30.5 |
|---|---|
| FC Processor | F722 |
| Gyro | ICM42688P |
| ESC Current | 70 A |
| Input Voltage | 6–8S |
| Integrated Receiver | No |
| Integrated VTX | No |
| Made in India | No |
| Brand | T-Motor |
| Supported Firmware | Betaflight |
| Barometer | Yes |
| UARTs | 5 |
| ESC Firmware | AM32 |
