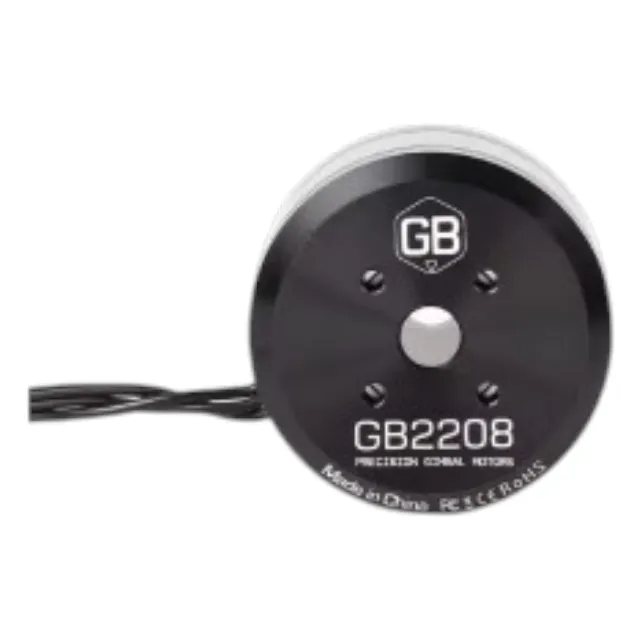

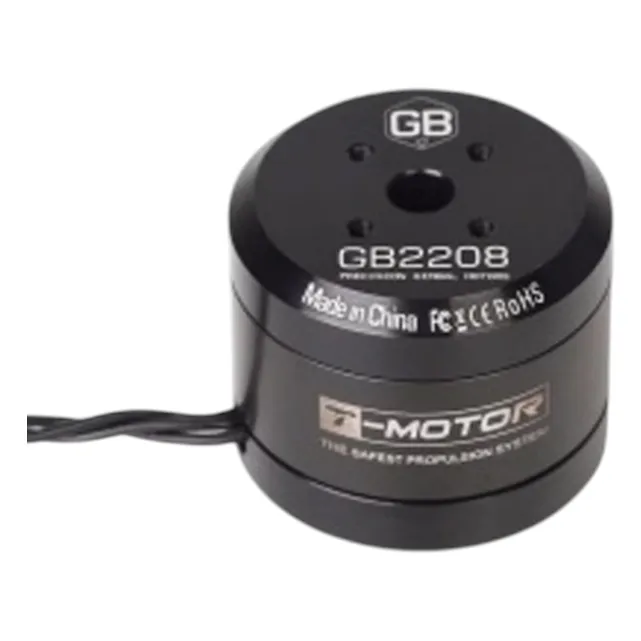

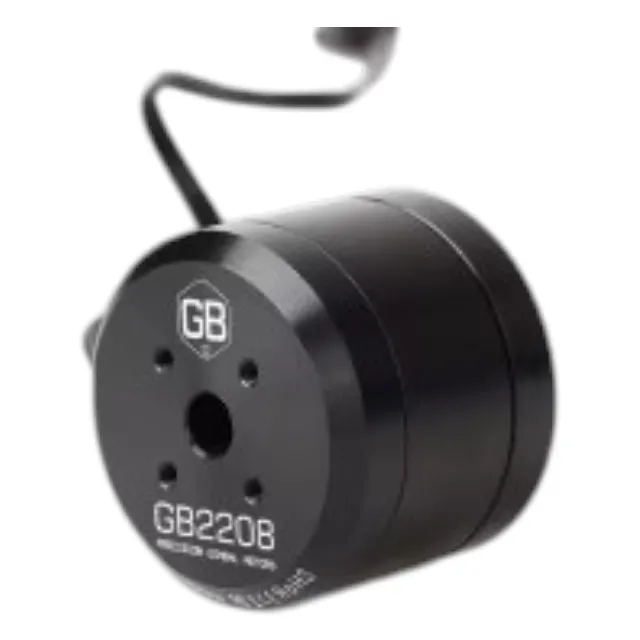

T-Motor GB2208 KV128 Gimbal Motor

The T-Motor GB2208 is a 128KV brushless gimbal motor for stabilising GoPro-class cameras of roughly 100–300 g on multirotor gimbals. It is rated for a 3–4S LiPo supply and is driven by a brushless gimbal controller.

Key features

• Pre-wound for strong holding torque with low cogging, giving smooth, precise stabilisation

• Preloaded bearings for a slop-free, precise mount

• Servo-style connector that plugs straight into gimbal controllers

• Flexible 20 cm lead that does not upset gimbal balance

• 6 mm centre hole

Specifications

• Stator: 2208 (22 mm × 8 mm)

• KV: 128

• Configuration: 12N14P

• Internal resistance: 14.4 Ω

• Rated voltage: 3–4S LiPo

• Torque: 0.07 N·m

• Motor size: Ø27.5 × 23 mm

• Centre hole: 6 mm

• Lead length: 20 cm

• Weight: 39.5 g including cable

• In the box: 1 motor and hardware pack

A 2-axis gimbal needs two motors and a 3-axis gimbal needs three. Keep the camera and its mount within the 100–300 g class this motor is sized for, and balance each axis before powering the controller.
