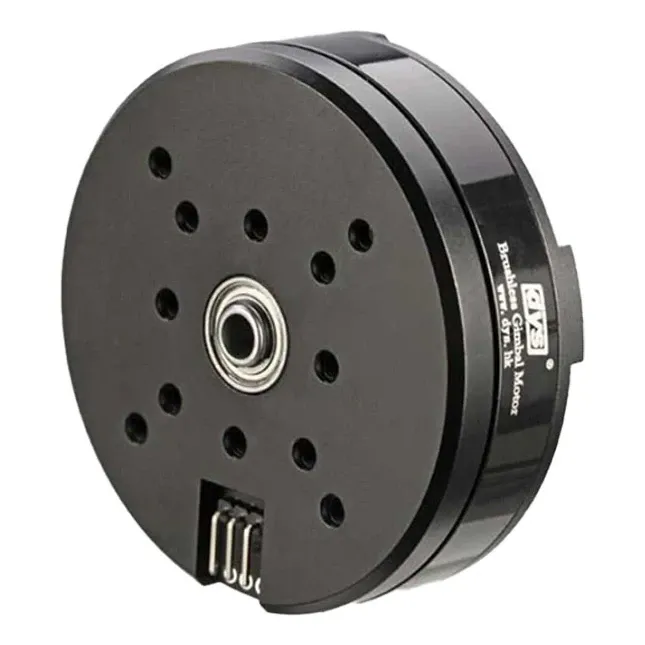

DYS BGM5208-200 Hollow Shaft Brushless Gimbal Motor

The DYS BGM5208-200 is a hollow-shaft brushless gimbal motor for heavier camera stabilisers, rated for DSLR-class cameras. A 52 x 8mm stator with a 200-turn winding gives the smooth, high-torque, low-speed response a gimbal axis needs, while the hollow shaft lets camera and power wiring run through the axis instead of looping around it.

Key features

• Hollow shaft, 7.0mm outer and 5.0mm inner diameter, for clean cable routing through the axis
• 12-slot, 14-pole (12N14P) layout, the standard arrangement for smooth brushless gimbal motion
• 200T winding in 0.27mm wire for the high-turn, low-current drive that gimbal controllers use
• Pairs with brushless gimbal controllers such as SimpleBGC and STorM32 boards
• 63 x 24mm overall and 178.2g, sized for the pitch, roll or yaw axis of a DSLR-class rig

Specifications

• Stator: 52 x 8mm (5208)
• Winding: 200T, 0.27mm wire
• Configuration: 12 slots, 14 poles
• Shaft: Hollow, 7.0mm OD / 5.0mm ID
• Motor size: 63 x 24mm
• Weight: 178.2g
• Camera class: DSLR

Balance the camera precisely on every axis before powering up, then raise controller power only until the motor holds position firmly — a well-balanced rig lets the motor run cool. For lighter mirrorless or action cameras, a smaller-stator gimbal motor is the better match.
