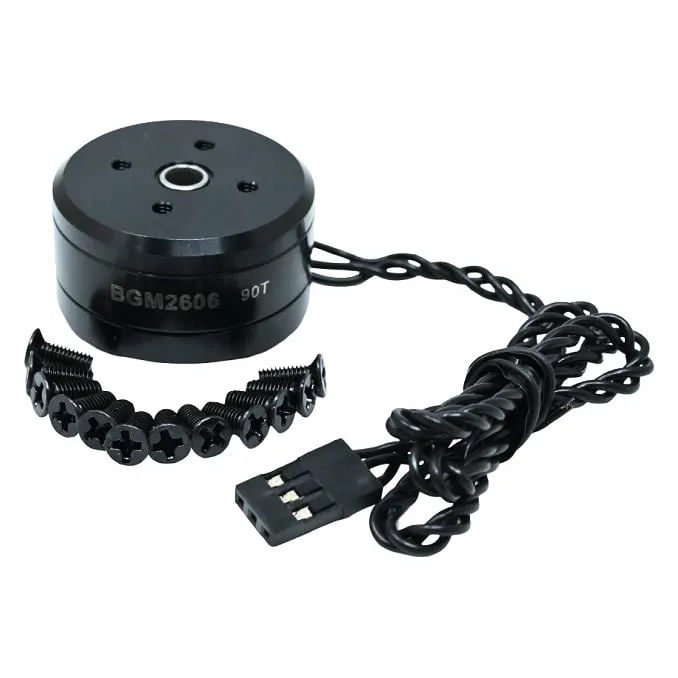

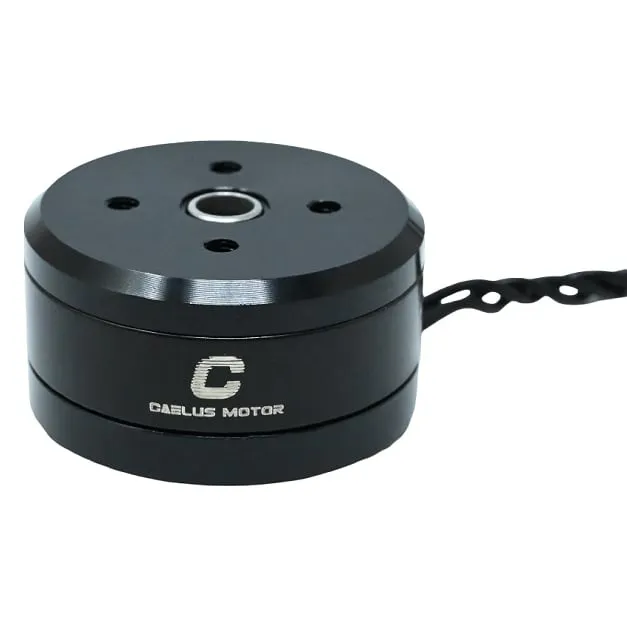

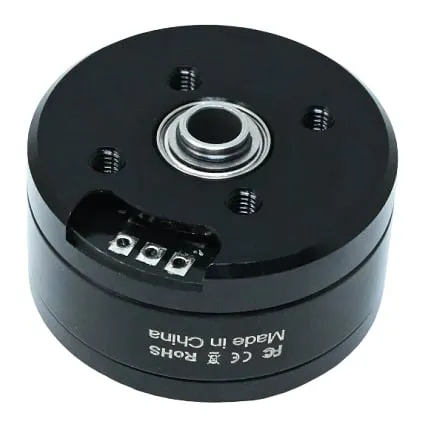

CAELUS BGM2606-90T 90KV Motor
₹3,599Incl. GST
SKU CAELUS-BGM2606-90T-90KV
Stator Size: 2606KV: 90 KVWeight: 40 gBrand: CAELUS
Dispatched within 2–3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The CAELUS BGM2606-90T is a 3-phase brushless gimbal motor built for smooth, precise, low-speed motion. Its high winding resistance and inductance let it run at low current while holding steady torque, which suits camera gimbals, robotic arms and other precision positioning mechanisms rather than propeller drive.
Key features
- High-resistance, high-inductance 90-turn winding for low-current, smooth and quiet operation.
- Hollow 4.05 mm shaft for cable routing and flexible mounting.
- 7075-T6 aluminium bell for a light, durable housing.
- Controlled through an ESC with a PWM range of 900-2100 microseconds.
Specifications
- Motor model: BGM2606-90T
- Type: brushless gimbal motor
- Stator size: 2606
- KV: 90KV
- Winding: 90-turn
- Shaft: hollow, 4.05 mm
- Weight: 40 g
- Operating temperature: 0 to 80 °C
- In the box: motor, cable, fitting accessories
| Stator Size | 2606 |
|---|---|
| Stator Diameter | 26mm |
| Stator Height | 6mm |
| KV | 90 KV |
| Weight | 40 g |
| Brand | CAELUS |
| Made in India | Yes |
