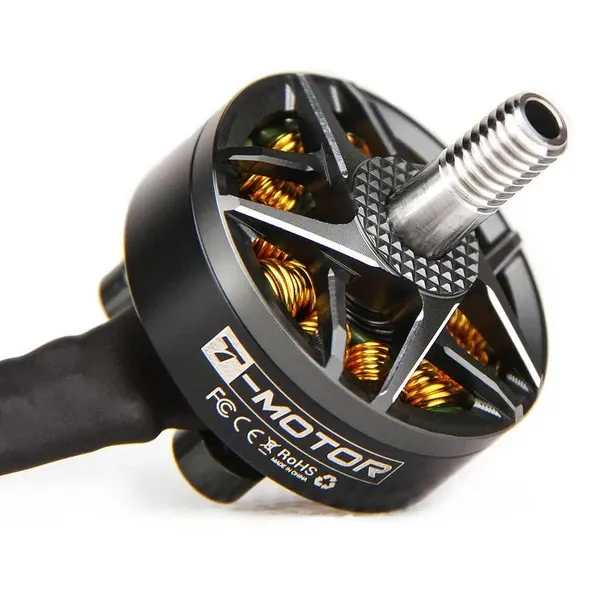

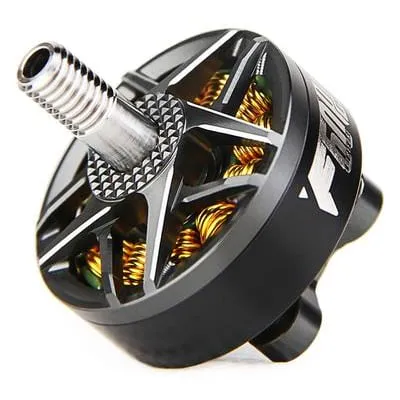

T-Motor F60 Pro V 2207.5 2550KV Brushless Racing Motor

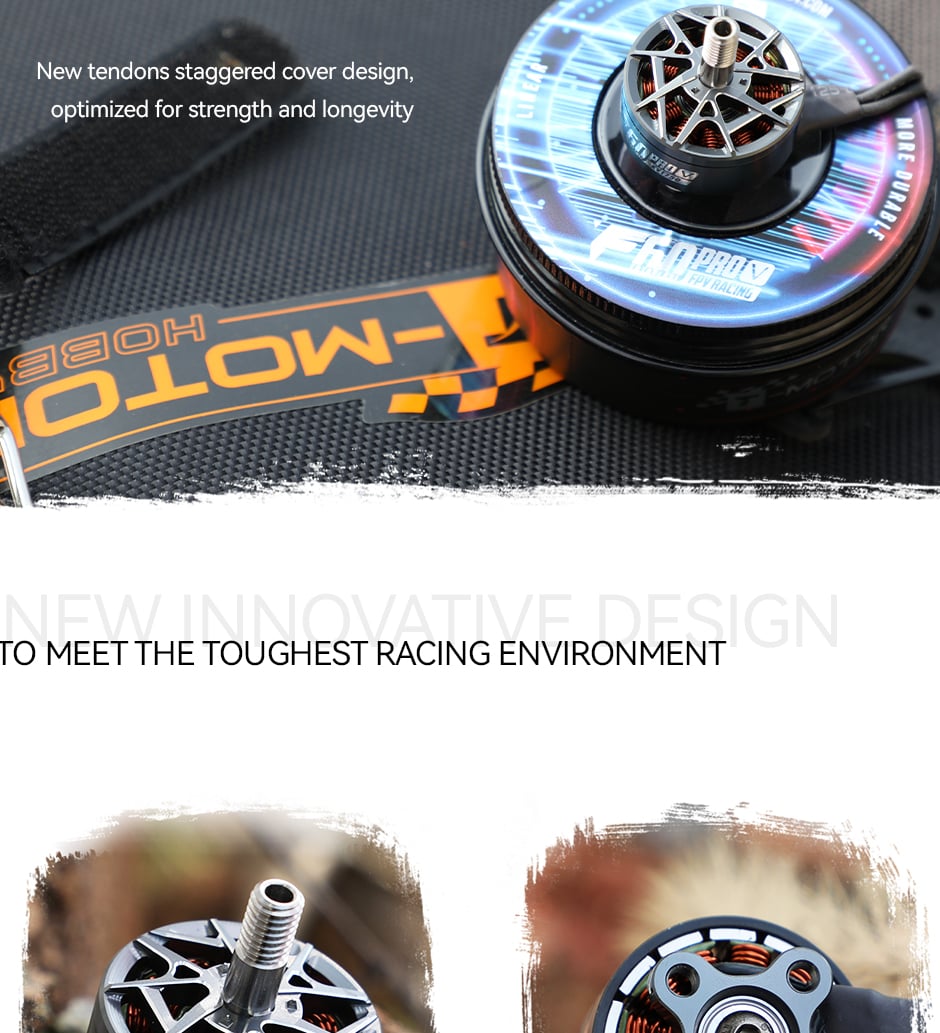

The T-Motor F60 Pro V 2207.5 2550KV is a high-RPM brushless motor built specifically for 5-inch FPV racing and aggressive 4S freestyle quadcopters. The Pro V iteration builds on the F-series architecture with a focus on immediate throttle response, utilising an interlocking bell design and high-temperature winding to survive the heavy thermal loads of competitive track flying.

Key features

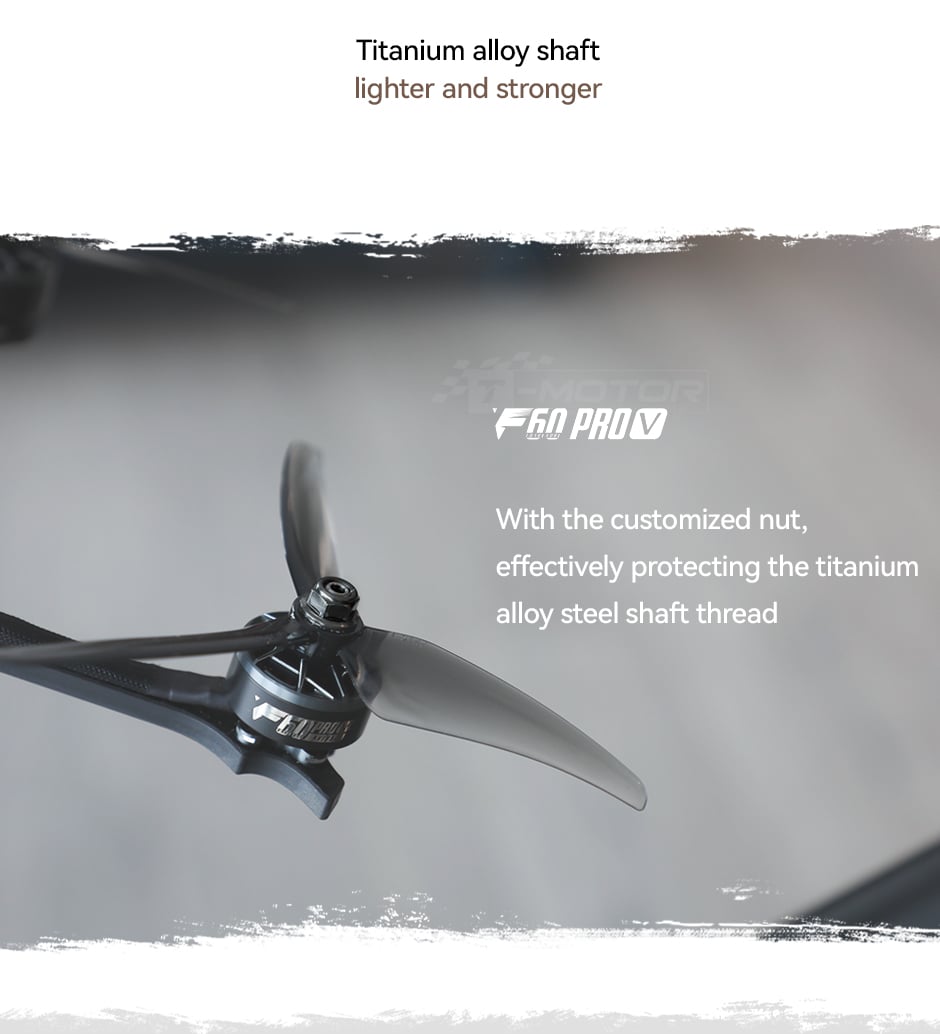

• Constructed with a titanium alloy hollow shaft to shed weight while maintaining high impact resistance during track crashes.

• Wound with high-temperature silver-coated wire to sustain high current draws without thermal degradation.

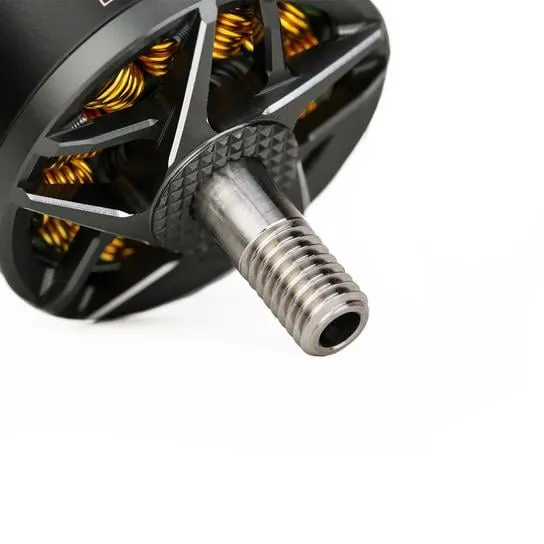

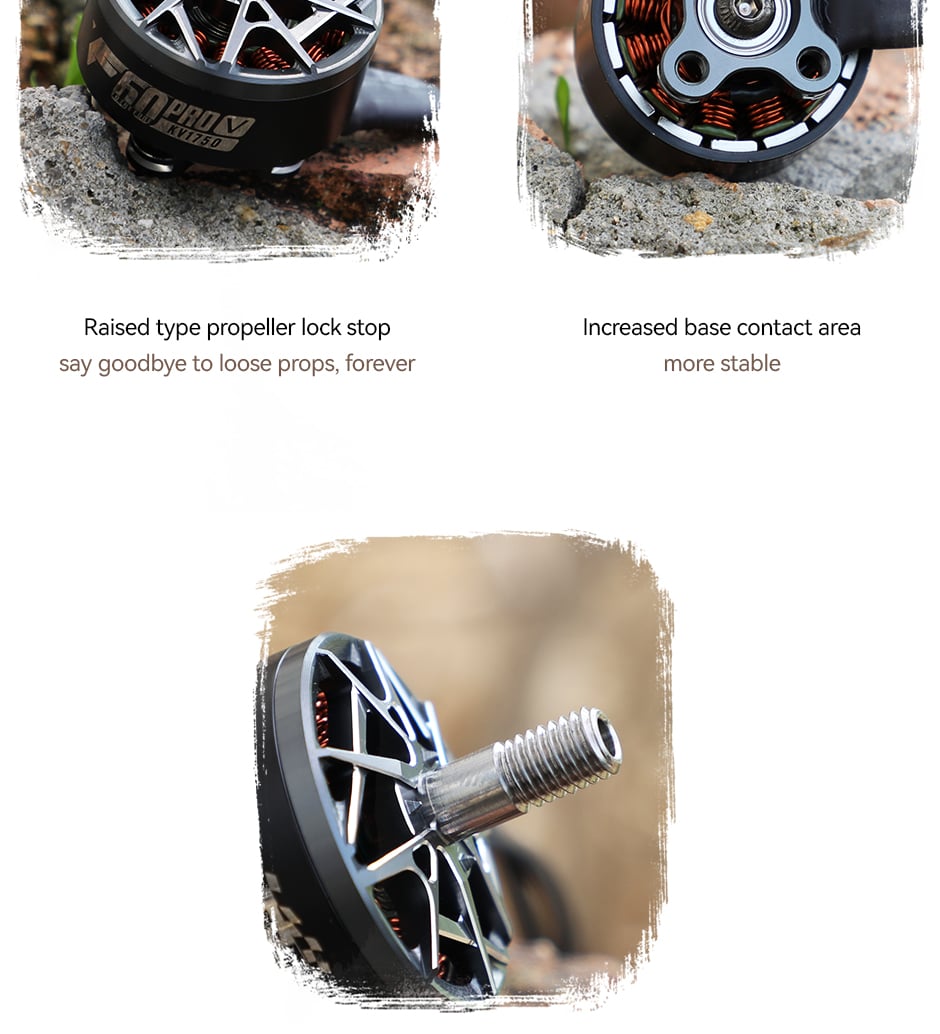

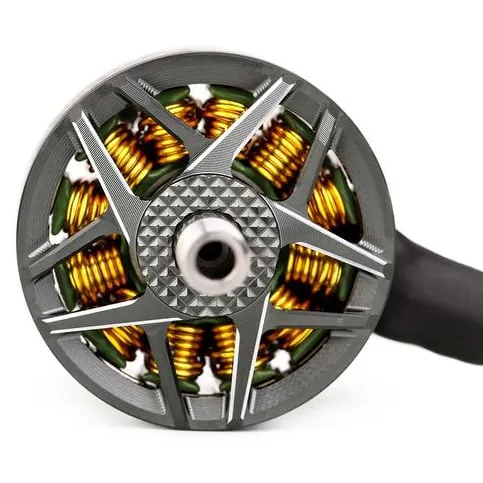

• Machined anti-slip prop mounting surface prevents propeller slippage during rapid RPM changes and hard cornering.

• Fitted with high-precision EZO bearings and N54 arc magnets for smooth torque delivery across the entire throttle band.

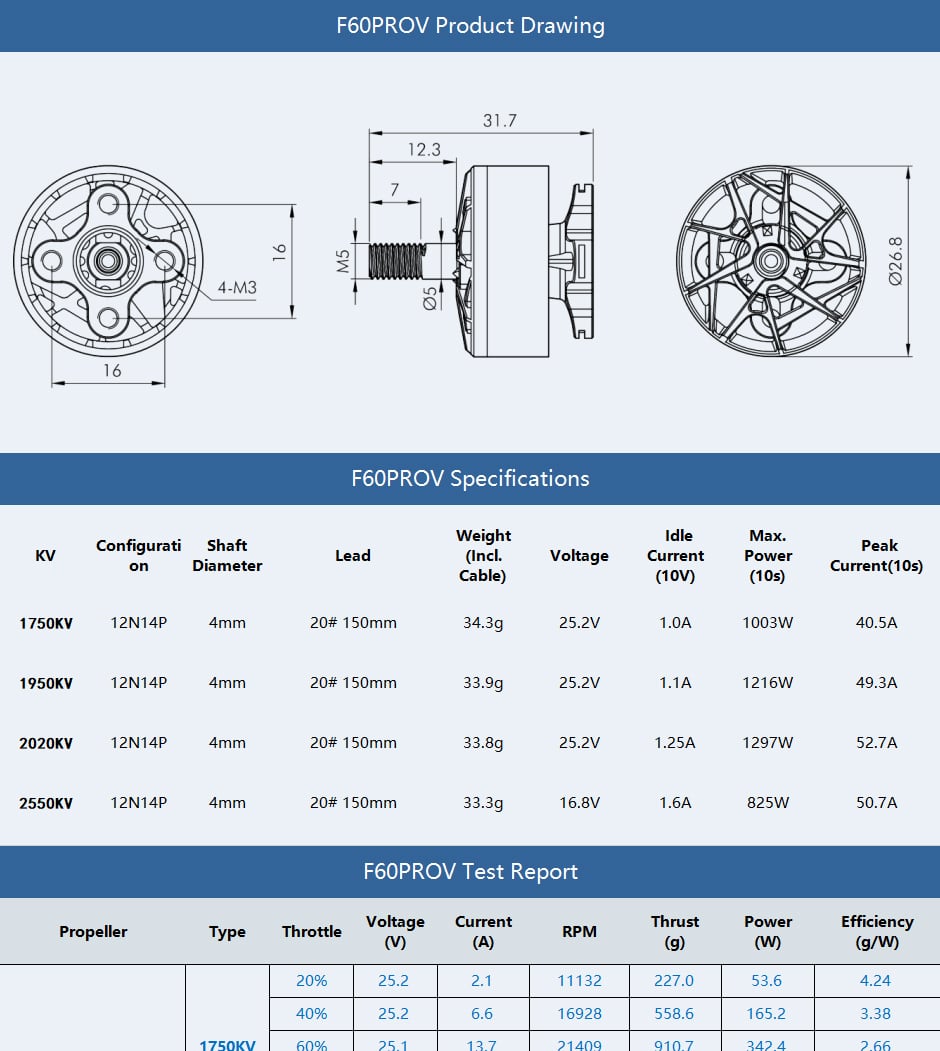

Specifications

• KV: 2550

• Stator size: 2207.5

• Configuration: 12N14P

• Input voltage: 4S LiPo

• Shaft diameter: 5mm

• Mounting pattern: 16x16mm (M3)

• Wire dimensions: 20AWG, 150mm length

• Weight: 34.3g (including cables)

Pair this 2550KV variant with a 50A or higher ESC on a 4S power system to maximise top-end speed and acceleration on a lightweight 5-inch racing rig.
