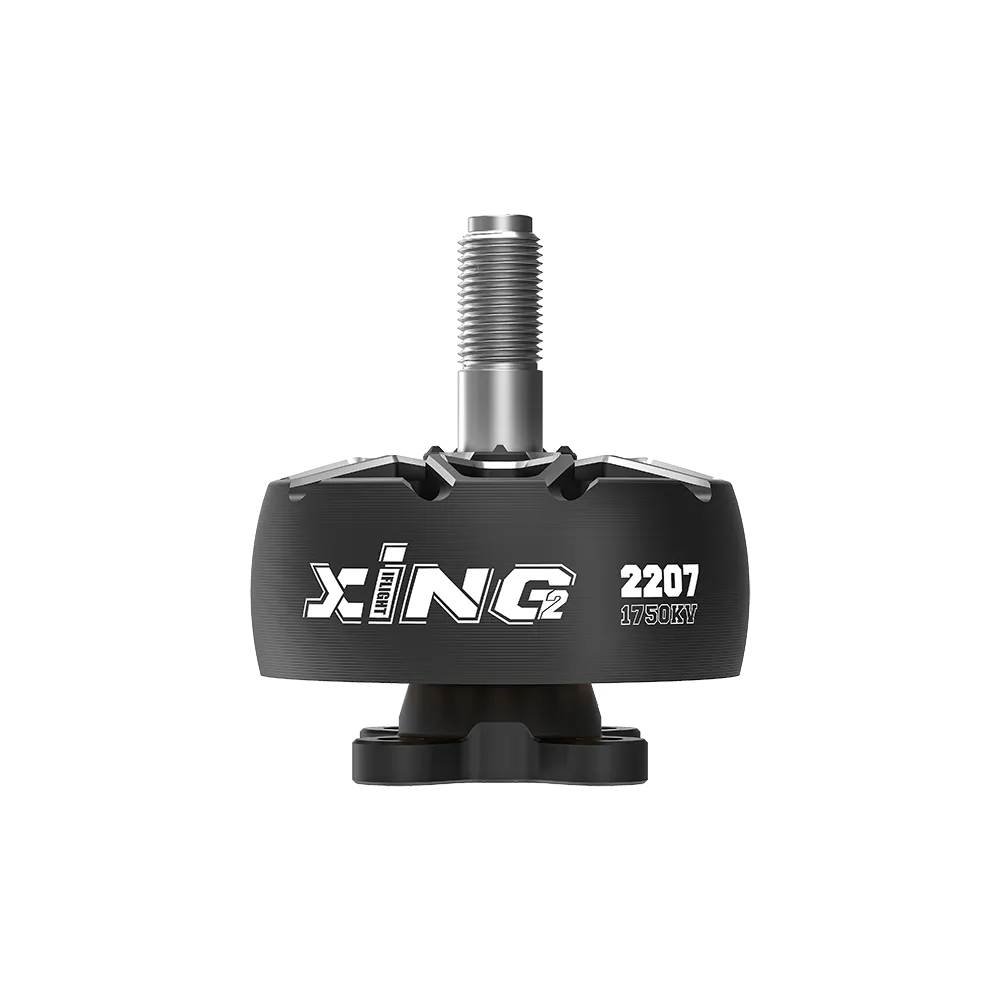

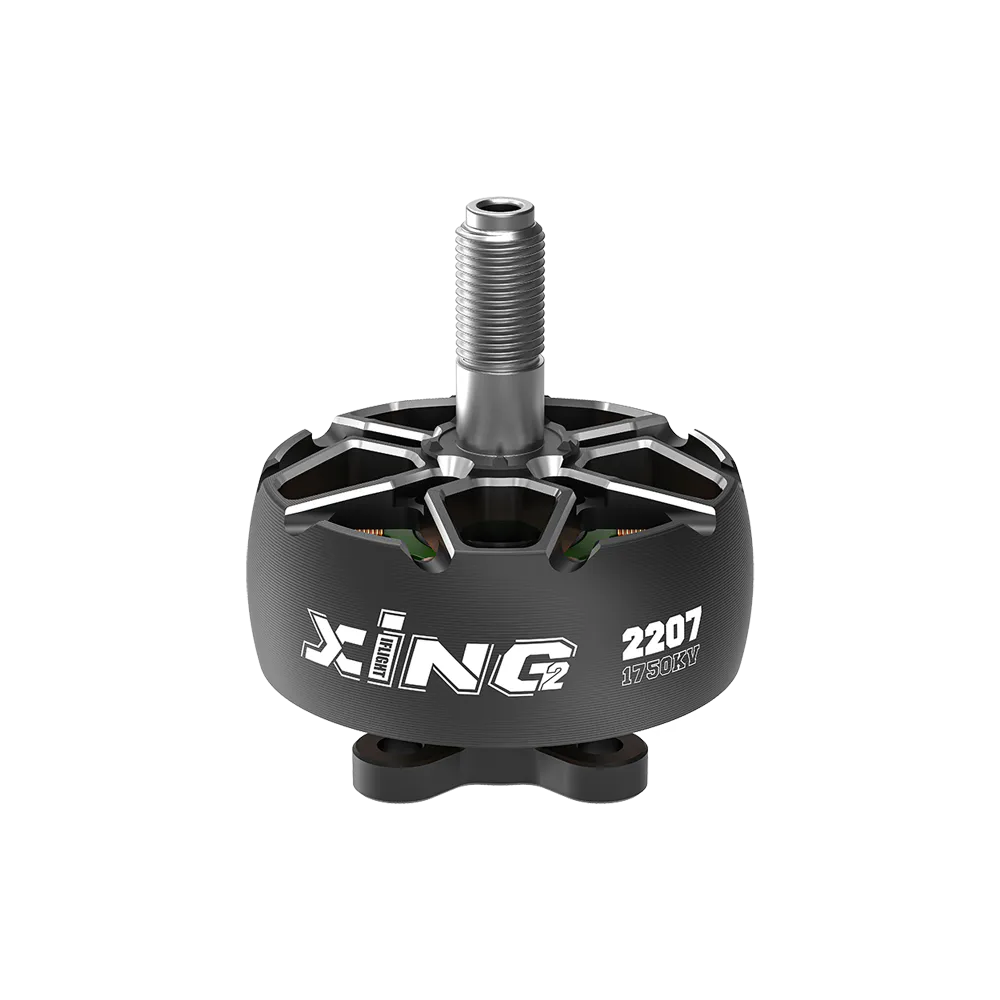

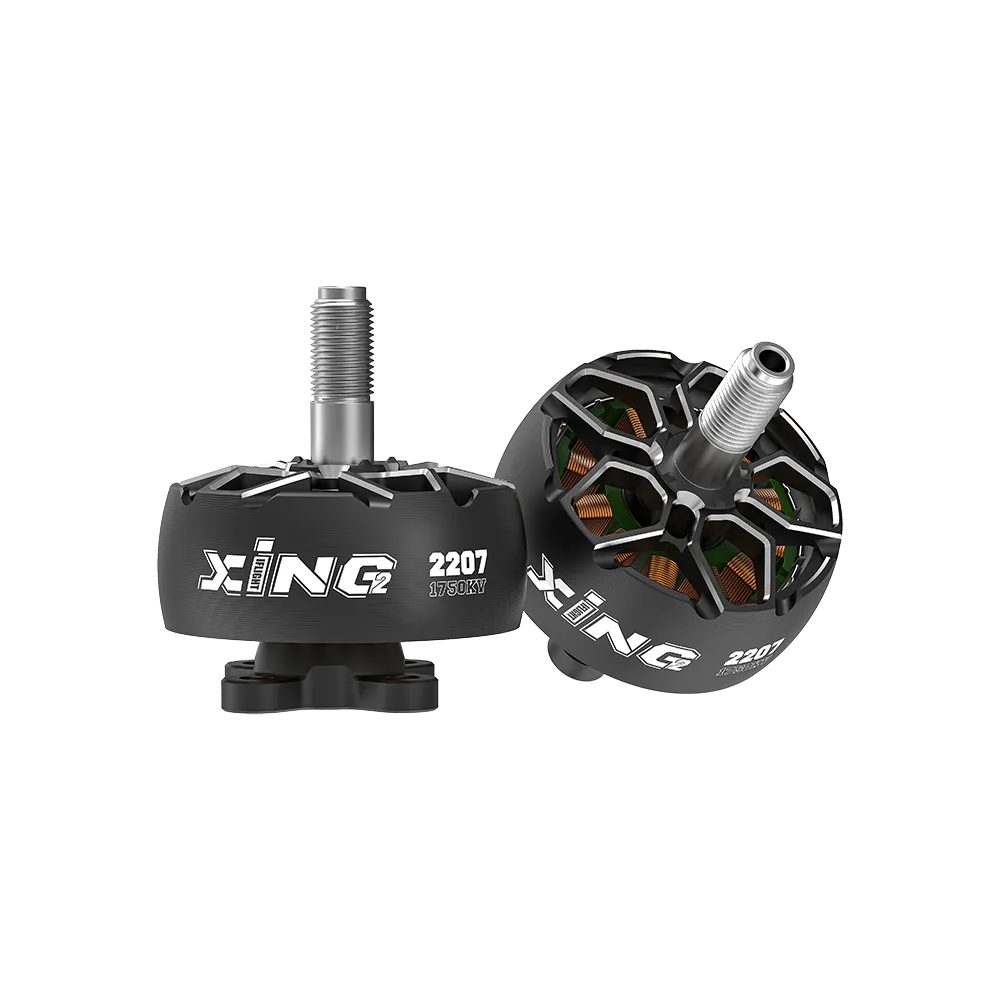

iFlight XING2 2207 4S/6S FPV Motor Unibell (Black)

The iFlight XING2 2207 is a robust unibell motor built for 5-inch freestyle quads, widely flown on pre-built airframes like the Nazgul Evoque F5. Evolving from the original XING series, the XING2 introduces centre-slotted N52H curved magnets that significantly reduce response time by tightening the magnetic gap. Its 7075 aluminium unibell housing and 5mm titanium alloy shaft ensure structural survival in heavy impacts.

Key features

• Crash-resistant 7075 aluminium unibell design with black finish
• Centre-slotted N52H curved magnets for accelerated stator response
• 5mm titanium alloy shaft with a vibration-damping O-ring above the bearing
• Premium Japanese NSK 9x4x4mm bearings

Specifications

• Stator size: 2207
• KV options: 1750KV / 2750KV
• Input voltage: 4S (2750KV) / 6S (1750KV)
• Shaft: 5mm outer (Titanium alloy), M5 prop thread
• Mounting pattern: 16x16mm, M3
• Wire gauge: 20AWG, 160mm length
• Weight: 31.6g (excluding wire)

Select the 1750KV variant for efficient 6S freestyle flights, or the 2750KV option for high-throttle 4S power.
