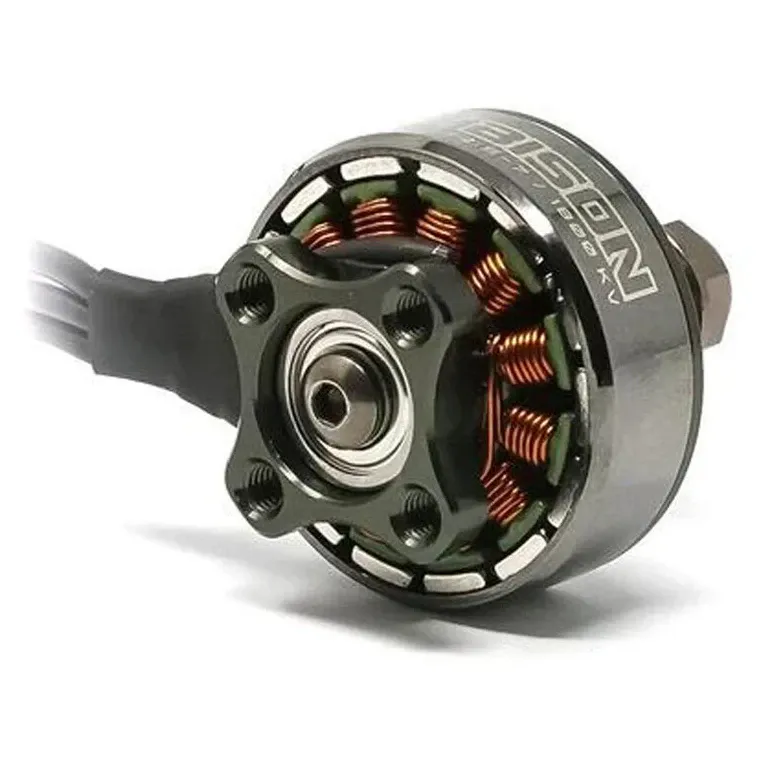

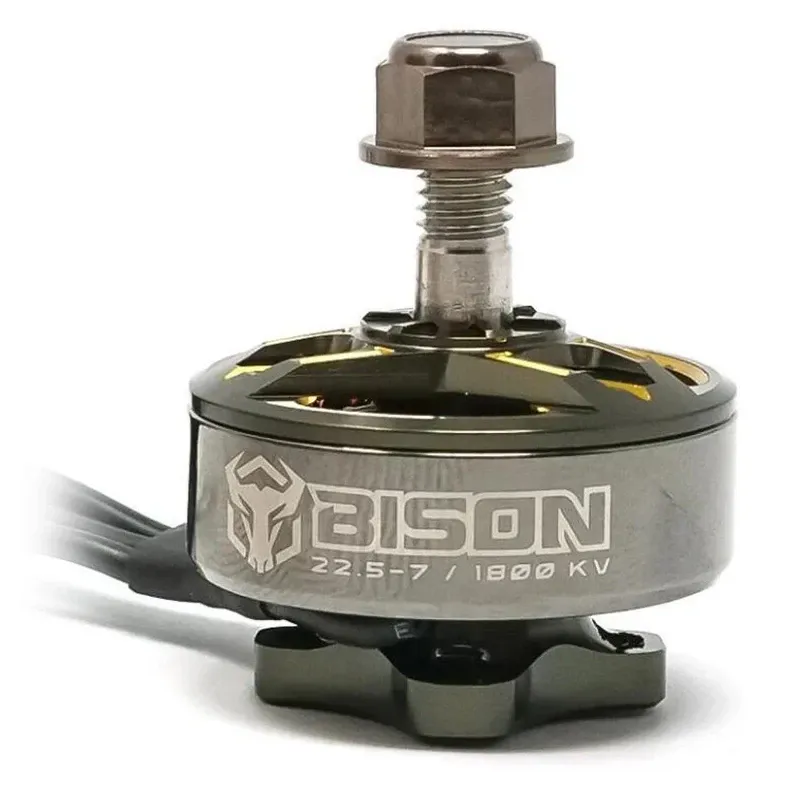

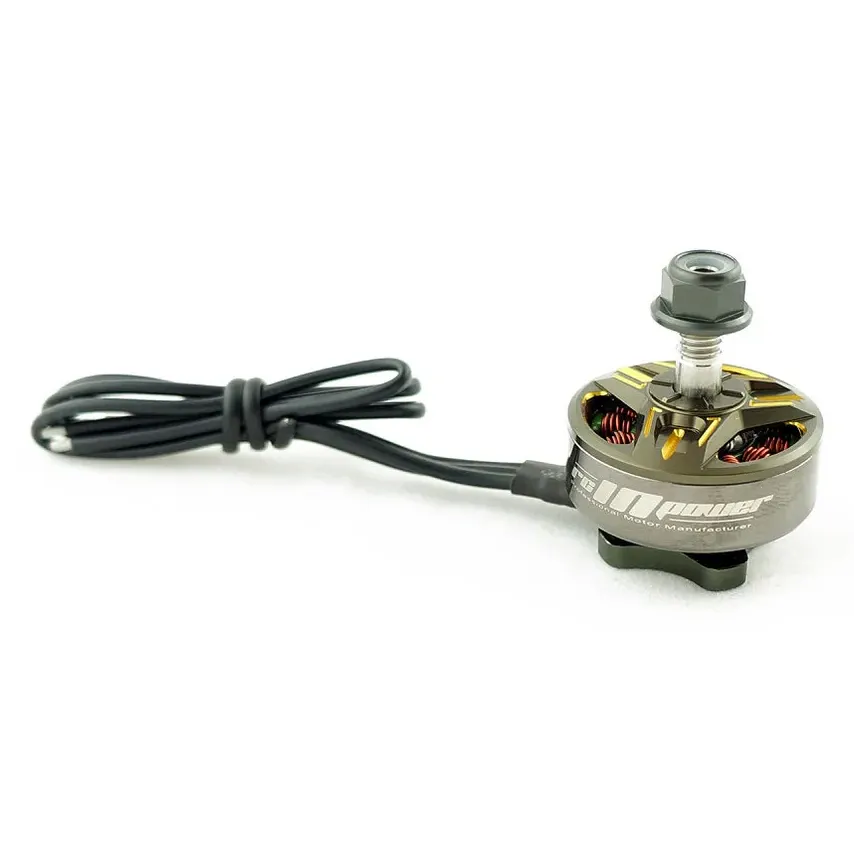

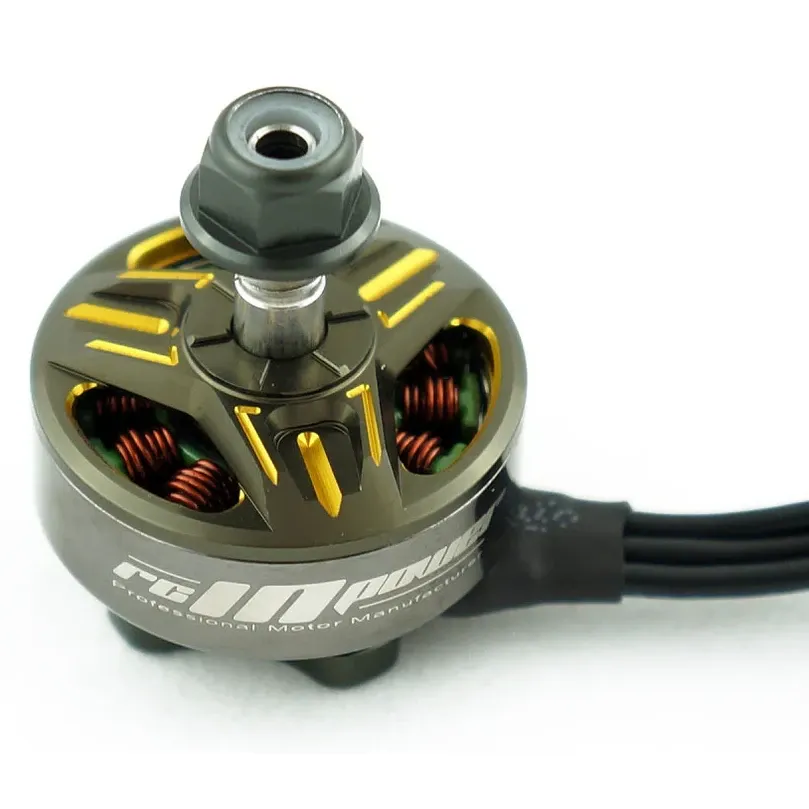

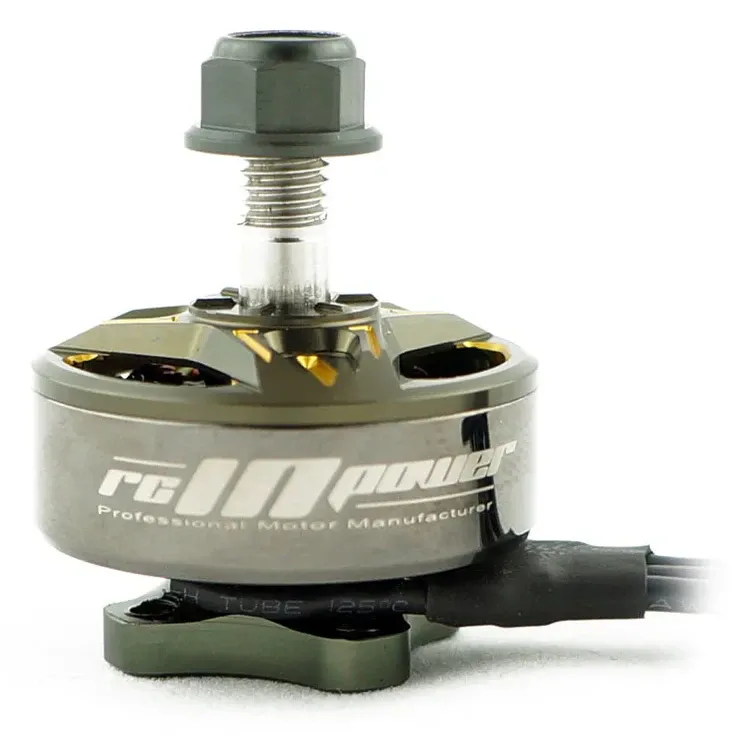

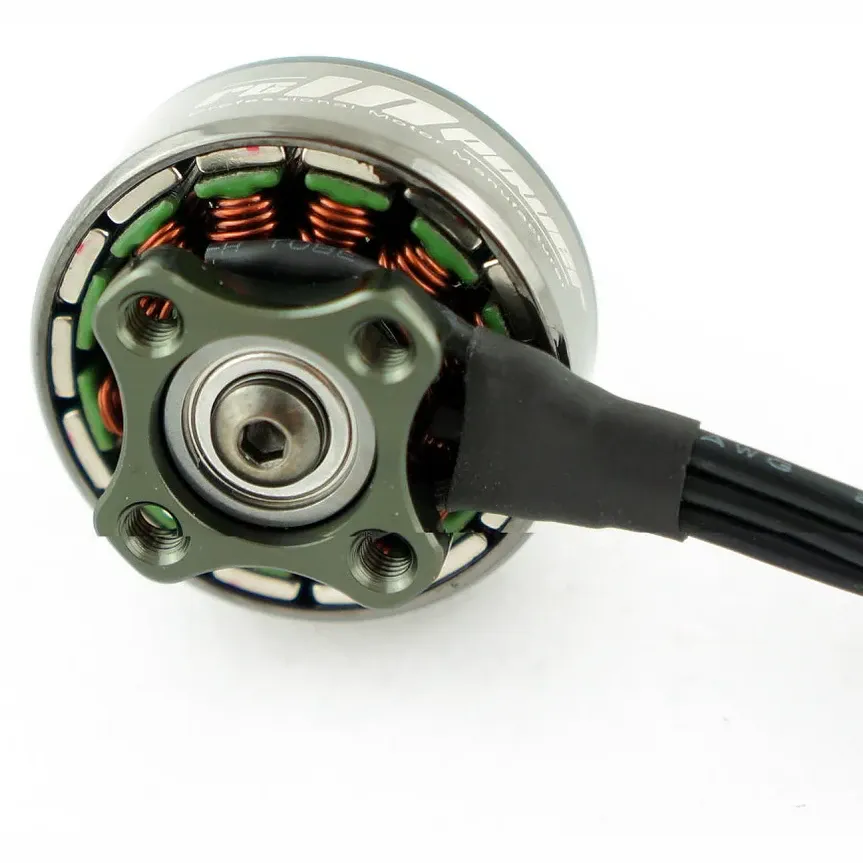

RCINPower Bison 22.5-7 FPV Drone Motor (1800KV)

The RCINPower Bison 22.5-7 1800KV is a high-torque motor engineered for 5-inch and 5.5-inch freestyle and racing FPV drones. Featuring a slightly oversized 22.5x7mm stator, it delivers a broader power band and faster response times than traditional 2207 motors, making it highly capable for aggressive acro maneuvers and heavy 6S builds.

Key features

• Oversized 22.5x7mm stator for increased low-end torque and throttle authority
• 1800KV winding optimized for heavy 6S LiPo power systems
• Standard 16x16mm mounting pattern fits modern 5-inch freestyle frames
• Hollow titanium alloy shaft with a standard M5 propeller thread for durability

Specifications

• KV: 1800
• Configuration: 12N14P
• Input Voltage: 6S LiPo
• Stator Dimensions: 22.5x7 mm
• Propeller Shaft Thread: M5
• Mounting Pattern: 16x16 mm (M3)
• Wire: 20AWG, 160 mm
• Weight: 35 g (including wire)

Pair this motor with a 50A or higher ESC and aggressive-pitch 5-inch propellers to maximize its punch-out performance and resolution on a 6S flight stack.
