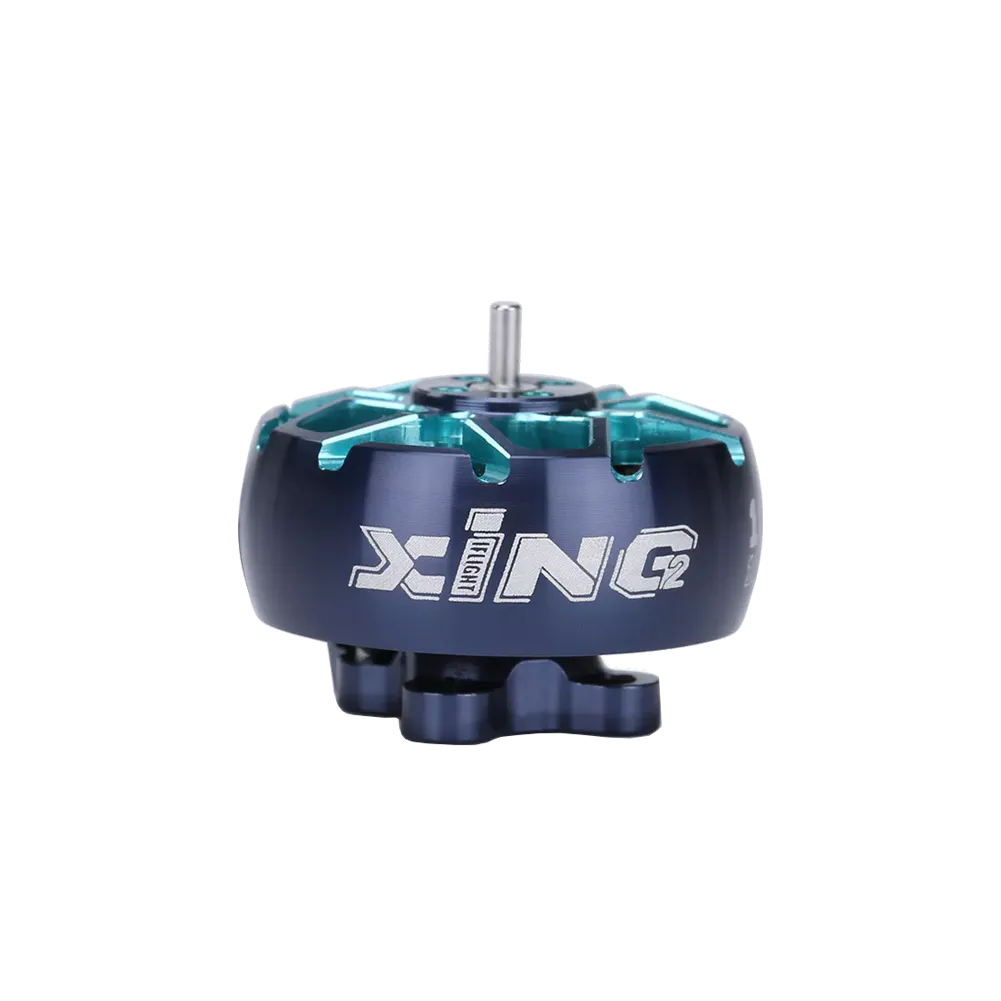

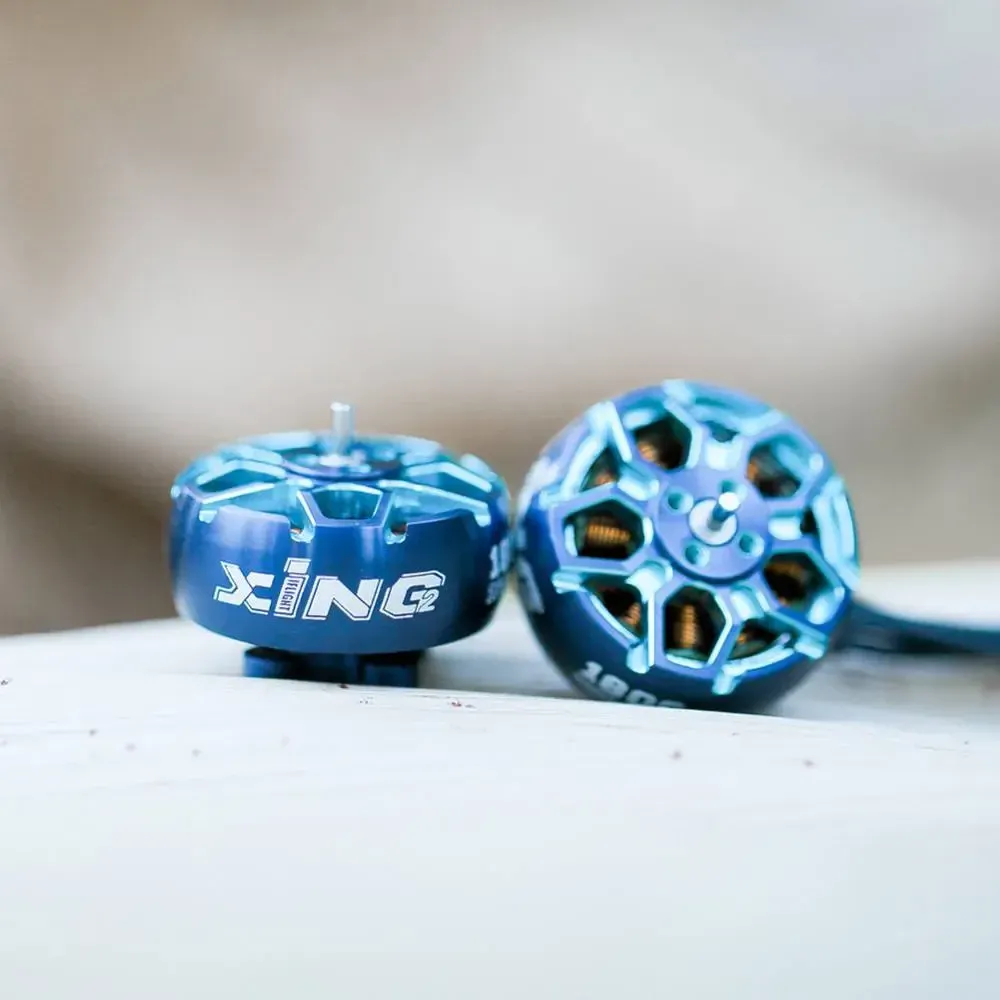

iFlight XING2 1806 FPV Motor
SKU IFL-XING2-1806-2500KV
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The iFlight XING2 1806 2500KV is a micro brushless motor built for lightweight 3-inch and toothpick-class freestyle quads. It carries over the XING2 family's unibell design, giving quick throttle response and strong resistance to prop-strike damage on sub-250g builds.
Key features

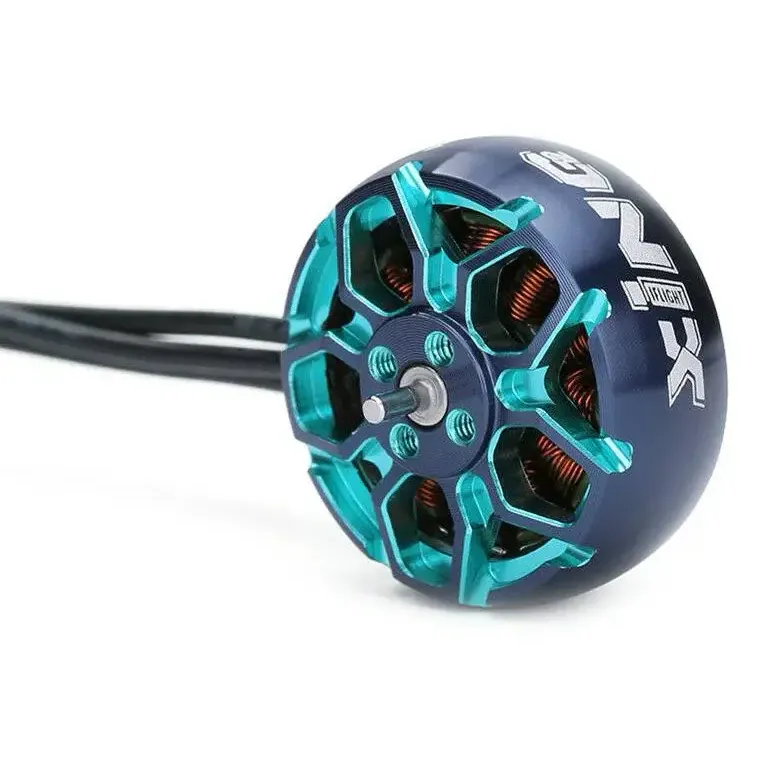

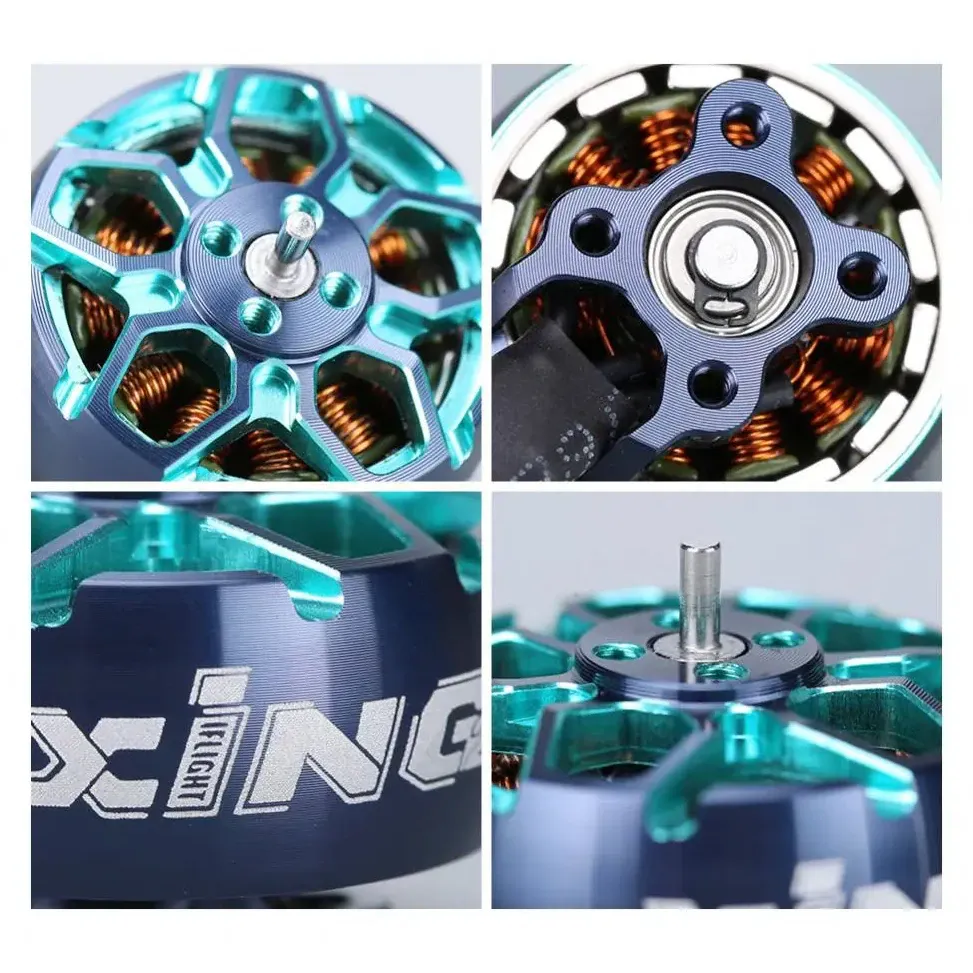

- Crash-resistant 7075 aluminium unibell housing with a tight, precision-joined bell and shaft.
- N52H curved arc magnets and a reduced magnet air gap improve efficiency and throttle response.

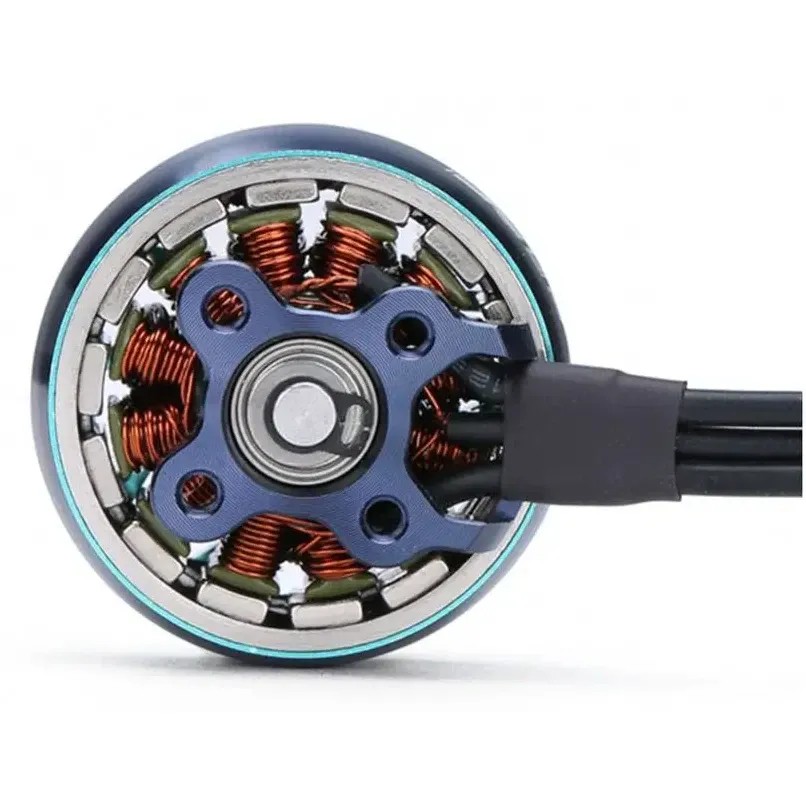

- 1.5mm titanium-alloy shaft with Japanese NSK bearings for durability under repeated impacts.
- Dynamically balanced at the factory, with an O-ring bearing seal to keep out dust and moisture.
Specifications
- Stator size: 1806 (18 x 6 mm)
- KV: 2500KV
- Shaft: 1.5mm titanium alloy, 4 mm protrusion
- Configuration: 12N14P
- Mounting pattern: 12x12mm, 2mm holes
- Dimensions: 25.2 x 16.3 mm
- Peak current: 25.06 A
- Max power: 601 W
- Input voltage: 4-6S LiPo
- Leads: 160 mm
- Weight: 20.2g (including wire)

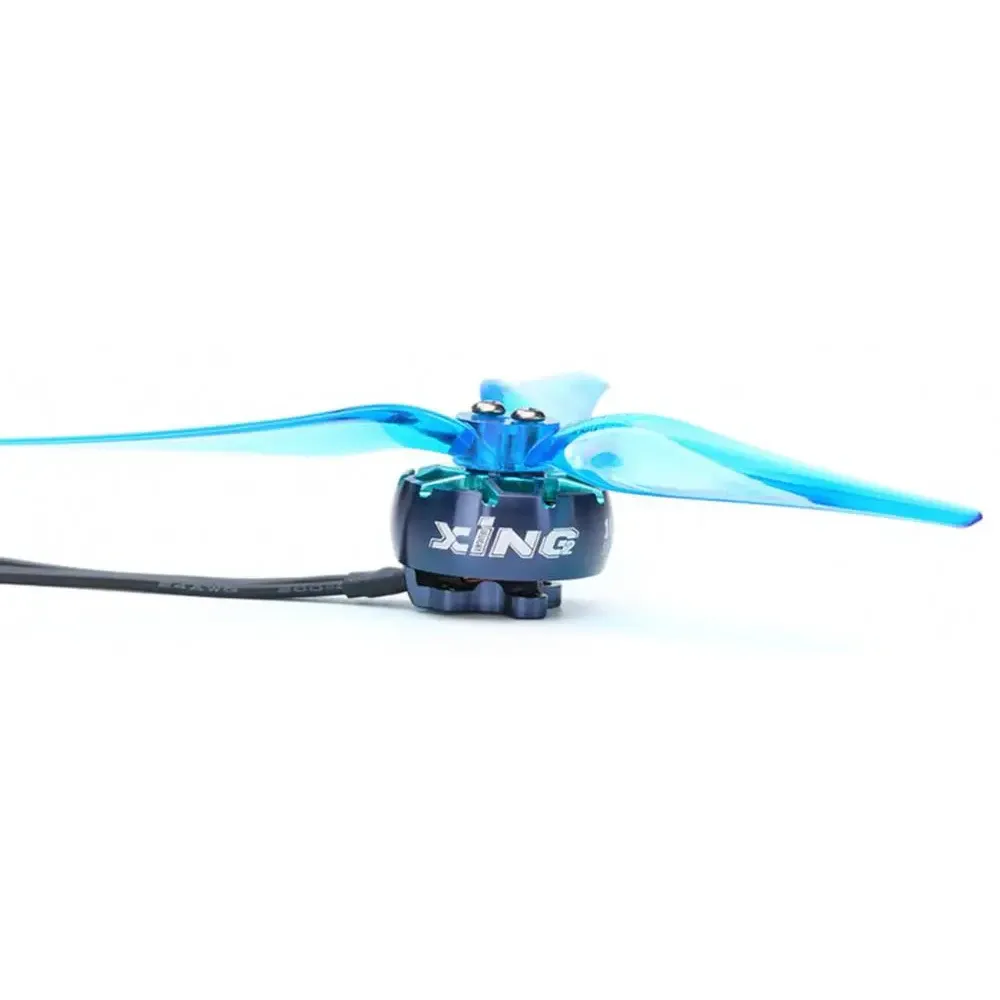

Pair this 2500KV motor with a 4S–6S LiPo and a T-mount 3-inch propeller for a locked-in, agile freestyle feel; the included screw set covers both the motor mount and prop bell.
| Stator Size | 1806 |
|---|---|
| Stator Diameter | 18mm |
| Stator Height | 6mm |
| KV | 2500 KV |
| Prop Mount | 1.5mm |
| Shaft | 1.5mm |
| Motor Mount | 12x12mm |
| Input Voltage | 4–6S |
| Weight | 20.2 g |
| Brand | iFlight |
| Made in India | No |
