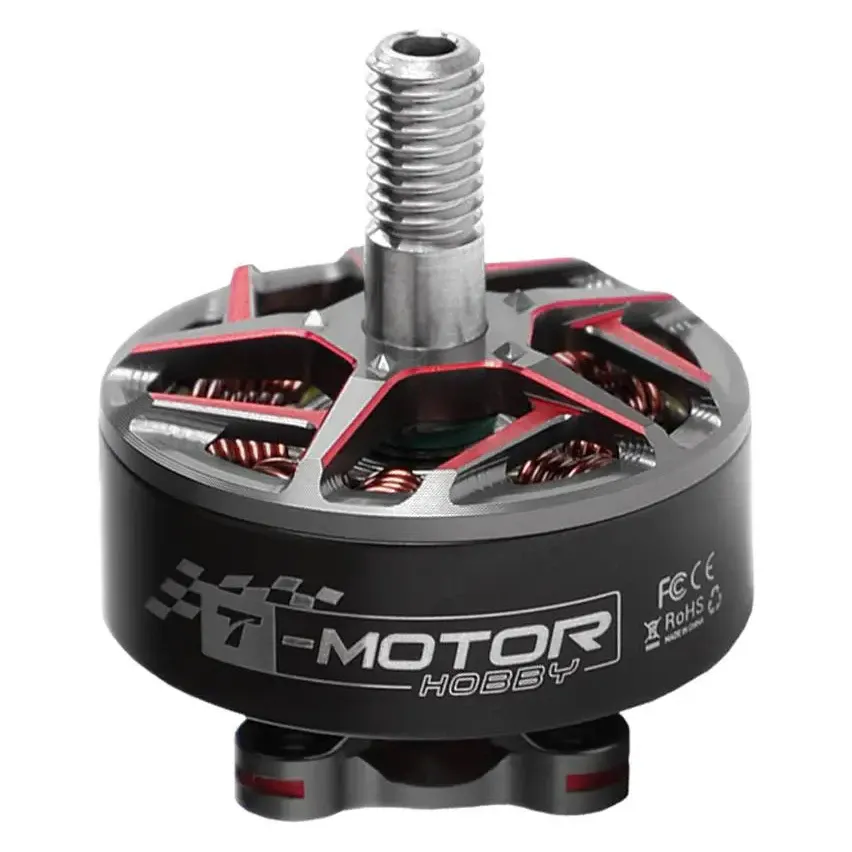

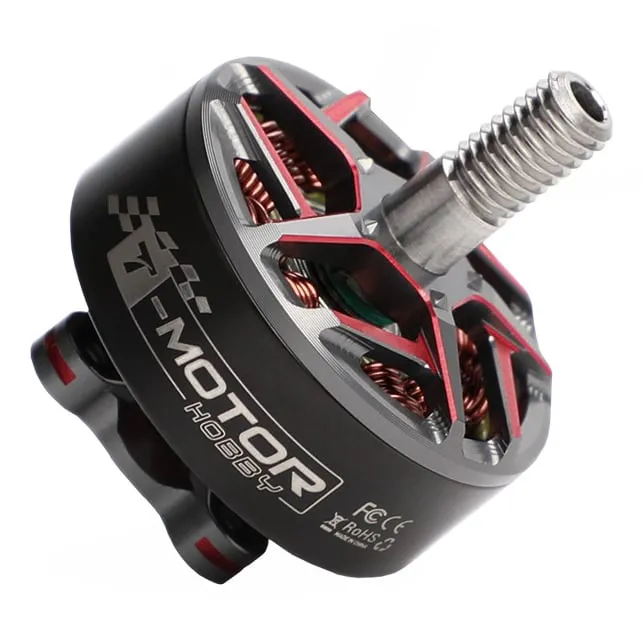

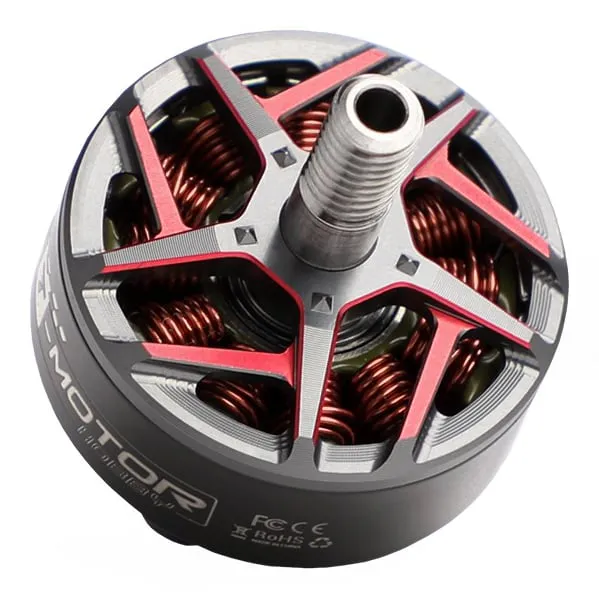

T-Motor F60 PRO V-LV Brushless Motor (1950KV/2020KV)

The T-Motor F60 PRO V-LV is the Light Version of T-Motor's F60 PRO racing motor line, shaving weight from the stator base and rotor for a faster-spinning, quicker-responding 5-inch race motor. It's built for 6S FPV racing and freestyle quads and is available in 1950KV and 2020KV.

Key features

• Hollow stator-base and rotor design cuts weight by 5.7% versus the standard Pro V, for faster throttle response.
• Staggered-rib rotor cover improves cooling under sustained high-RPM loads.
• 1950KV suits controlled, powerful handling; 2020KV pushes higher RPM for pilots chasing outright speed.
• Matched to T-Motor's Mini Racer F7 flight controller, Mini F60A ESC and T5146 propellers for a complete race stack.

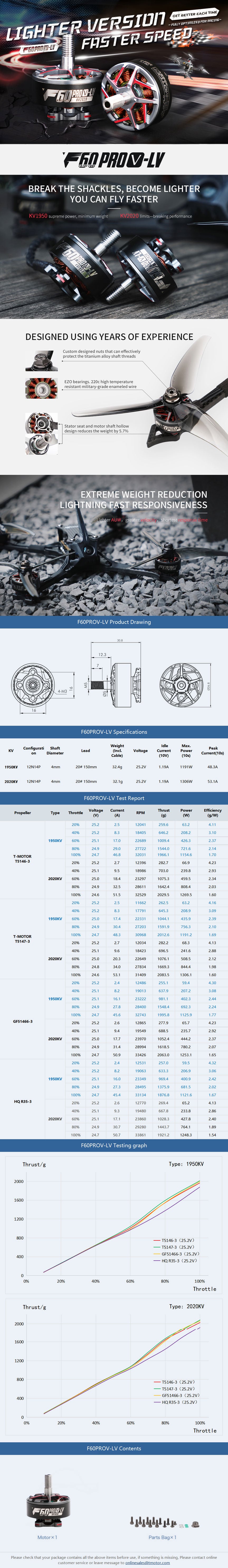

Specifications

• Stator size: 2207.5
• Configuration: 12N14P
• Shaft diameter: 4 mm
• Input voltage: 6S LiPo
• Weight: 32.4 g (1950KV) / 32.1 g (2020KV), including cable
• Lead: 20AWG, 150 mm
• 2020KV ratings: peak current 53.1 A (10 s), max power 1306 W (10 s), idle current 1.19 A at 10 V
• Recommended propeller: 5-inch

Pair with a 5-inch race frame, a 6S pack rated for sustained 45A+ draw, and matched 5 to 5.1-inch race propellers for the fastest acceleration.
