SparkFun GPS-24114 GNSS Dual-Band L1/
₹7,399Incl. GST
SKU SPARKFUN-GPS24114-F10N
Compass Included: NoMade in India: NoBrand: SparkFunRTK Support: No
Dispatched within 2–3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

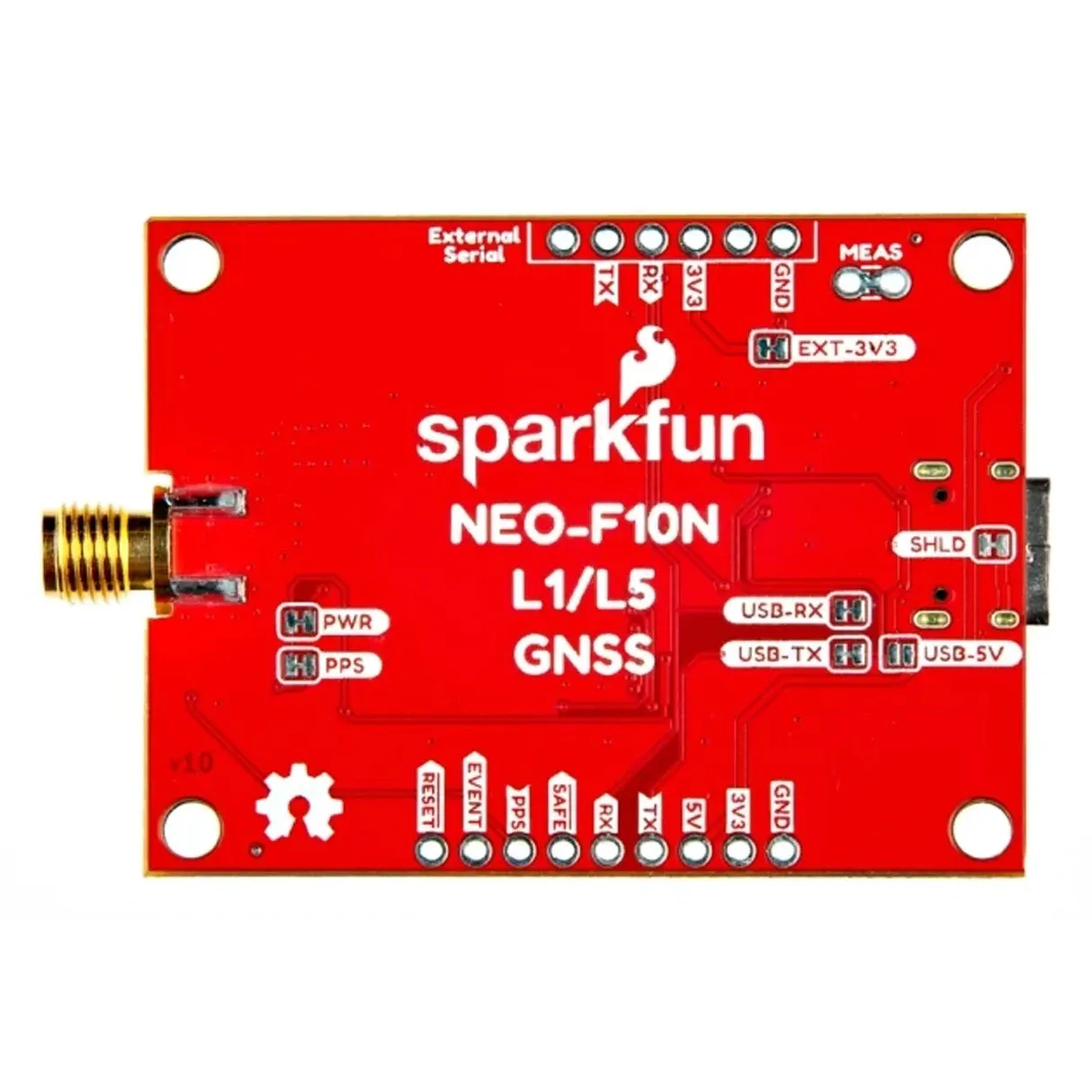

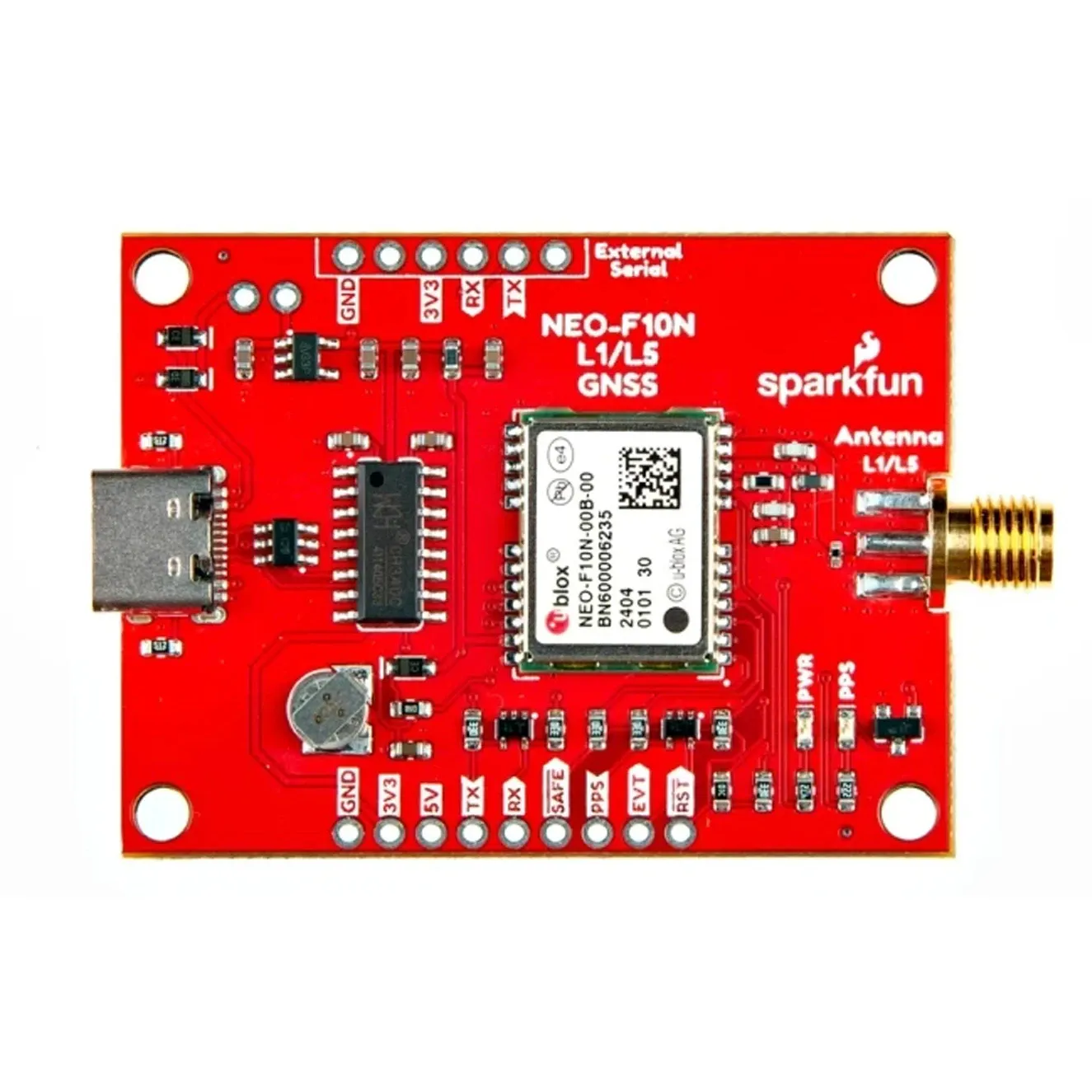

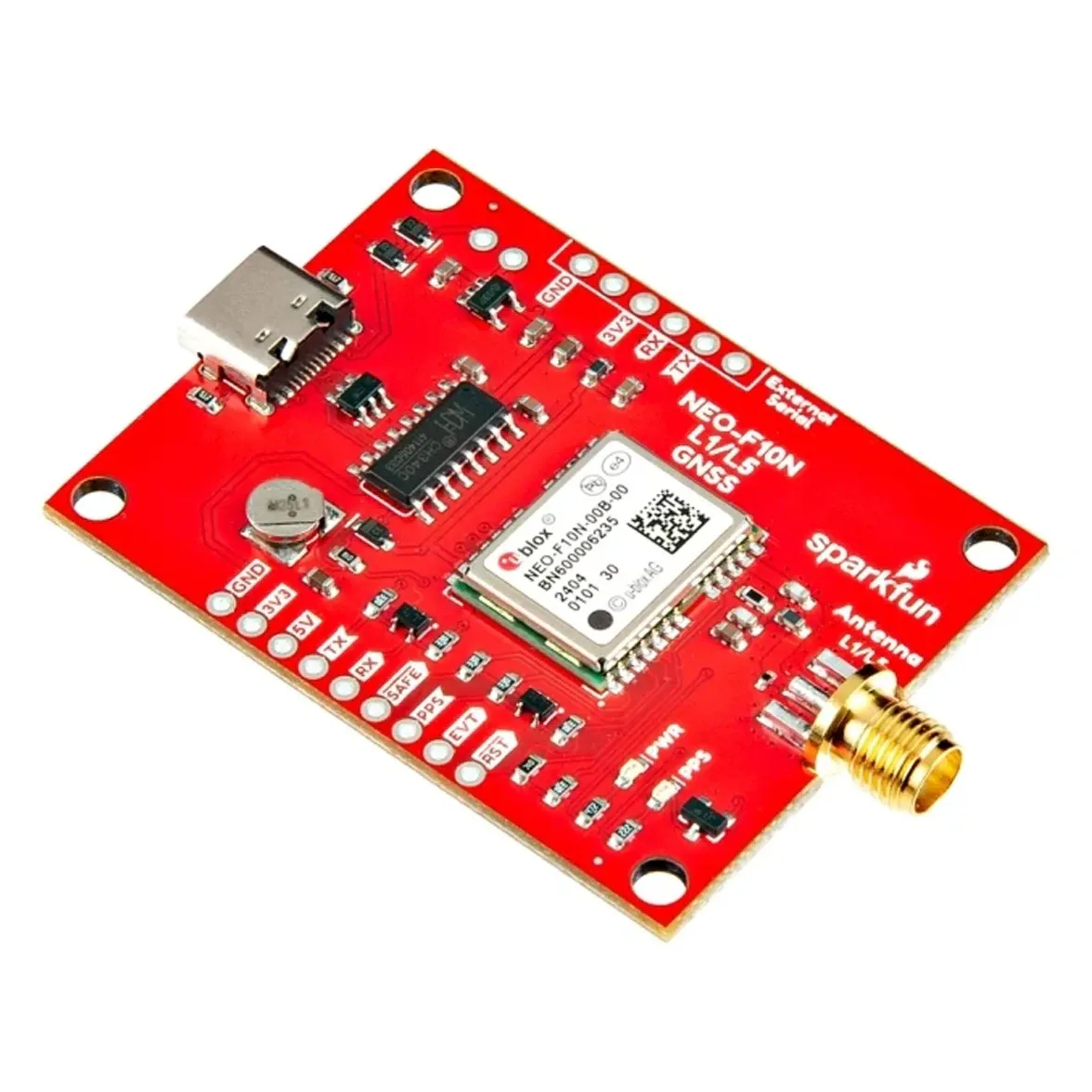

The SparkFun GPS-24114 is a dual-band GNSS breakout built around the u-blox NEO-F10N receiver, giving custom flight controllers and companion computers concurrent GPS, Galileo and BeiDou reception on the L1 and L5 bands.
Key features
- L1/L5 dual-band reception improves positional accuracy to around 1.5 m and helps in built-up areas.
- SMA connector for an external active antenna, plus an onboard CH340C USB-to-serial converter and USB-C for direct configuration.
- Backup battery shortens hot-start times; typical fixes take 28 s cold and 2 s hot.
- Outputs standard NMEA and UBX protocols over UART at up to 20 Hz.
- Compact 50.8 x 38.1 mm board weighing 9.75 g, suited to space-constrained builds.
Specifications
- GNSS chipset: u-blox NEO-F10N
- Bands: L1/L5
- Positional accuracy: 1.5 m
- Weight: 9.75 g
- Board size: 50.8 x 38.1 mm
Wire it to a flight controller or companion computer that supports UART GNSS input and can supply 3.3–5 V.
| Compass Included | No |
|---|---|
| Made in India | No |
| Brand | SparkFun |
| RTK Support | No |
| GNSS Chipset | NEO-F10N |
| Weight | 9.75 g |
| Antenna Connector | SMA |
| Barometer | No |
