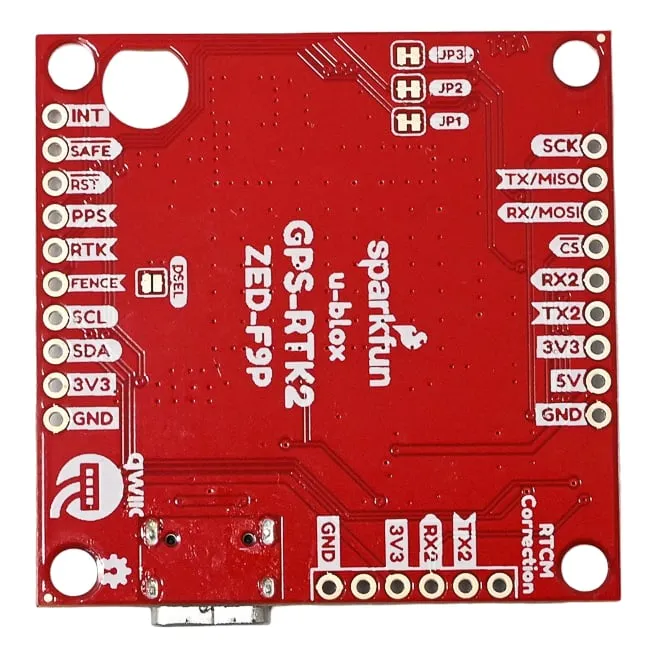

SparkFun GPS-15136 ZED-F9P GPS-RTK2 Board
₹41,199Incl. GST
SKU SPARKFUN-GPS-15136-ZED-F9P
Compass Included: NoMade in India: NoBrand: SparkFunRTK Support: Yes
Dispatched within 2–3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The SparkFun GPS-15136 GPS-RTK2 Board is a u-blox ZED-F9P based GNSS module delivering survey-grade positioning for UAV, rover and robotics projects.
Key features
- Delivers 2.5m accuracy without correction data, tightening to 10mm three-dimensional accuracy once RTK corrections are applied.
- Operates as either a rover receiving corrections or a base station broadcasting RTCM 3.x correction data.
- Tracks GPS, GLONASS, Galileo and BeiDou concurrently across the L1C/A and L2C bands.
- Qwiic I2C connectors plus breadboard-friendly pins, USB-C, dual UART and SPI cover most integration needs without soldering.
- U.FL antenna connector keeps the board compact; an onboard backup battery enables faster warm-start fixes.
Specifications
- GNSS chipset: u-blox ZED-F9P
- Horizontal accuracy: 2.5m standard, 10mm with RTK
- Max navigation rate: 20Hz (RTK)
- Voltage: 5V or 3.3V
- Current draw: 68-130mA
- Dimensions: 43.5 x 43.2mm
- Weight: 6.8g
Pair it with a GNSS antenna, an RTK correction stream (base station or NTRIP) for RTK use, and a host controller over Qwiic, UART or SPI.
| Compass Included | No |
|---|---|
| Made in India | No |
| Brand | SparkFun |
| RTK Support | Yes |
| GNSS Chipset | u-blox F9P |
| Antenna Connector | U.FL |
