MicoAir MA-RTK-AIR-F9P GNSS Module with Compass

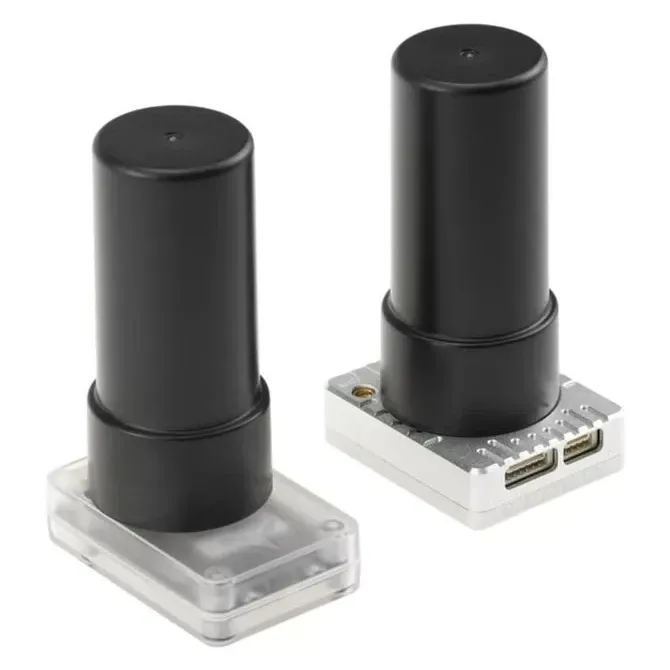

The MicoAir MA-RTK-AIR-F9P is an L1+L2 RTK rover built on the u-blox ZED-F9P with an onboard IST8310 compass. It is for ArduPilot and PX4 survey, mapping and agri drones that need centimetre-level positioning. A quad helix antenna and cables are in the box.

Key features

• Dual-band reception on GPS, BeiDou, GLONASS, Galileo and QZSS

• 1.0 cm + 1 ppm RTK accuracy, 1.5 m standalone

• IST8310 compass on I2C, so a single module handles both position and heading

• ArduPilot and PX4 detect and configure it automatically, like a standard u-blox GPS

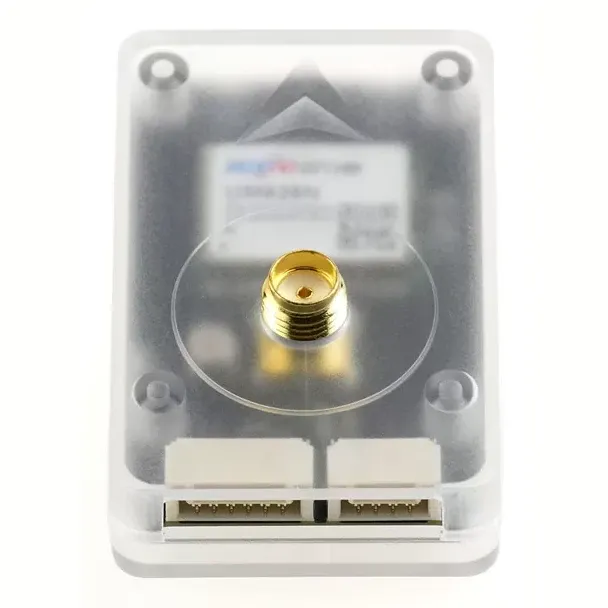

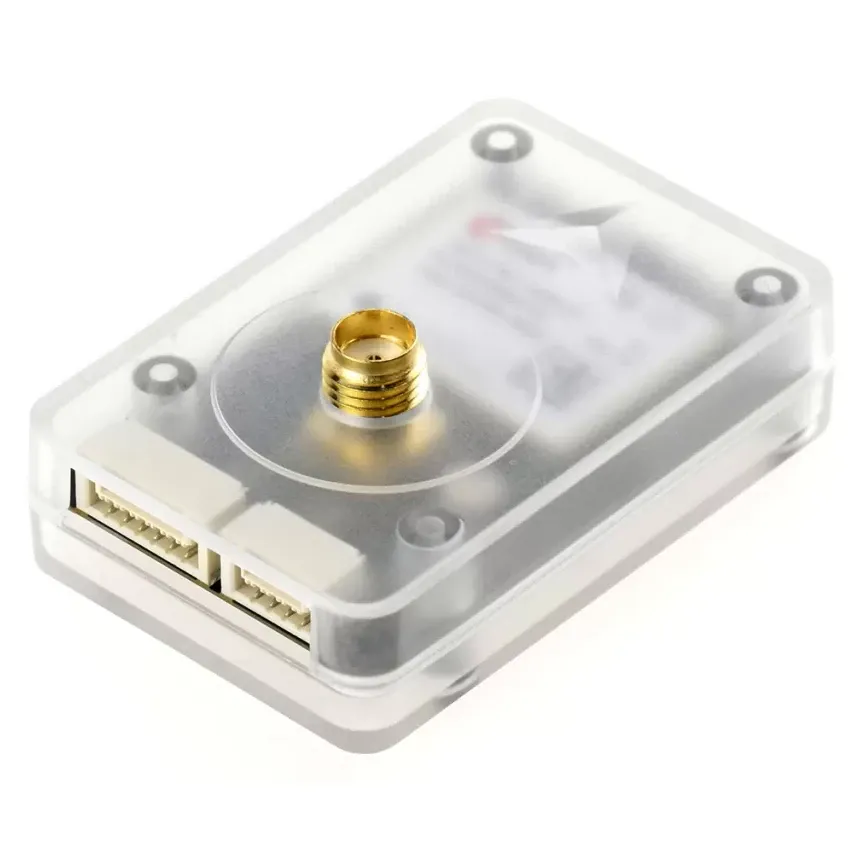

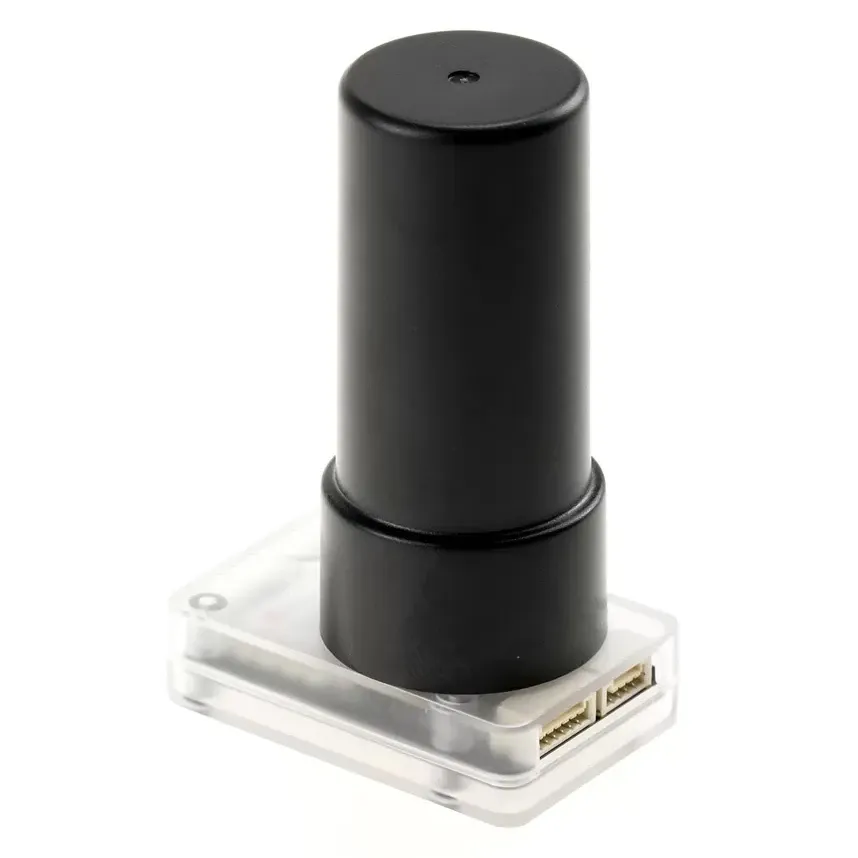

• SMA antenna port and JST-GH data connectors

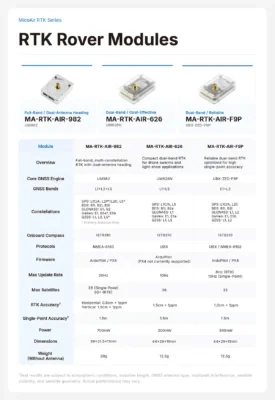

Specifications

• Receiver: u-blox ZED-F9P

• Signals: GPS L1C/A, L2C; BDS B1I, B2I; GLONASS G1, G2; Galileo E1, E5b; QZSS L1, L2

• Compass: IST8310

• Protocol: UBX / NMEA-0183

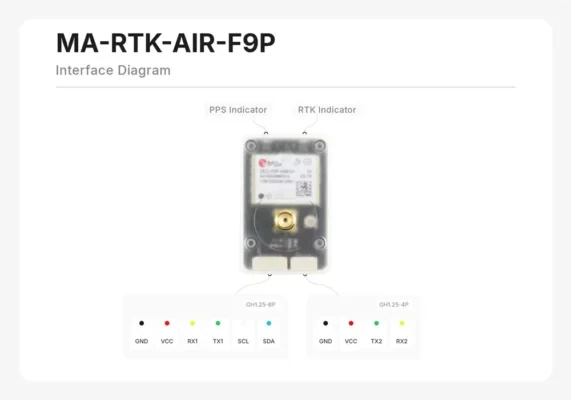

• Interfaces: UART (3.3 V), I2C; GH1.25 6-pin and 4-pin

• Navigation rate: 8 Hz RTK, 10 Hz standalone

• Max satellites used: 32

• Power: 350 mW, 4-5 V

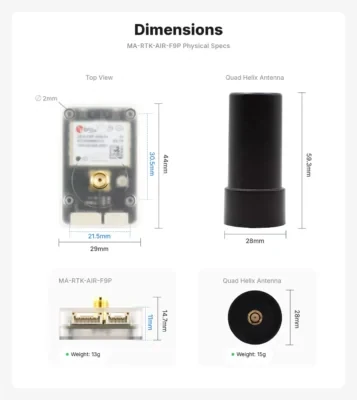

• Size: 44 x 29 x 14.7 mm

• Weight: 13 g without antenna

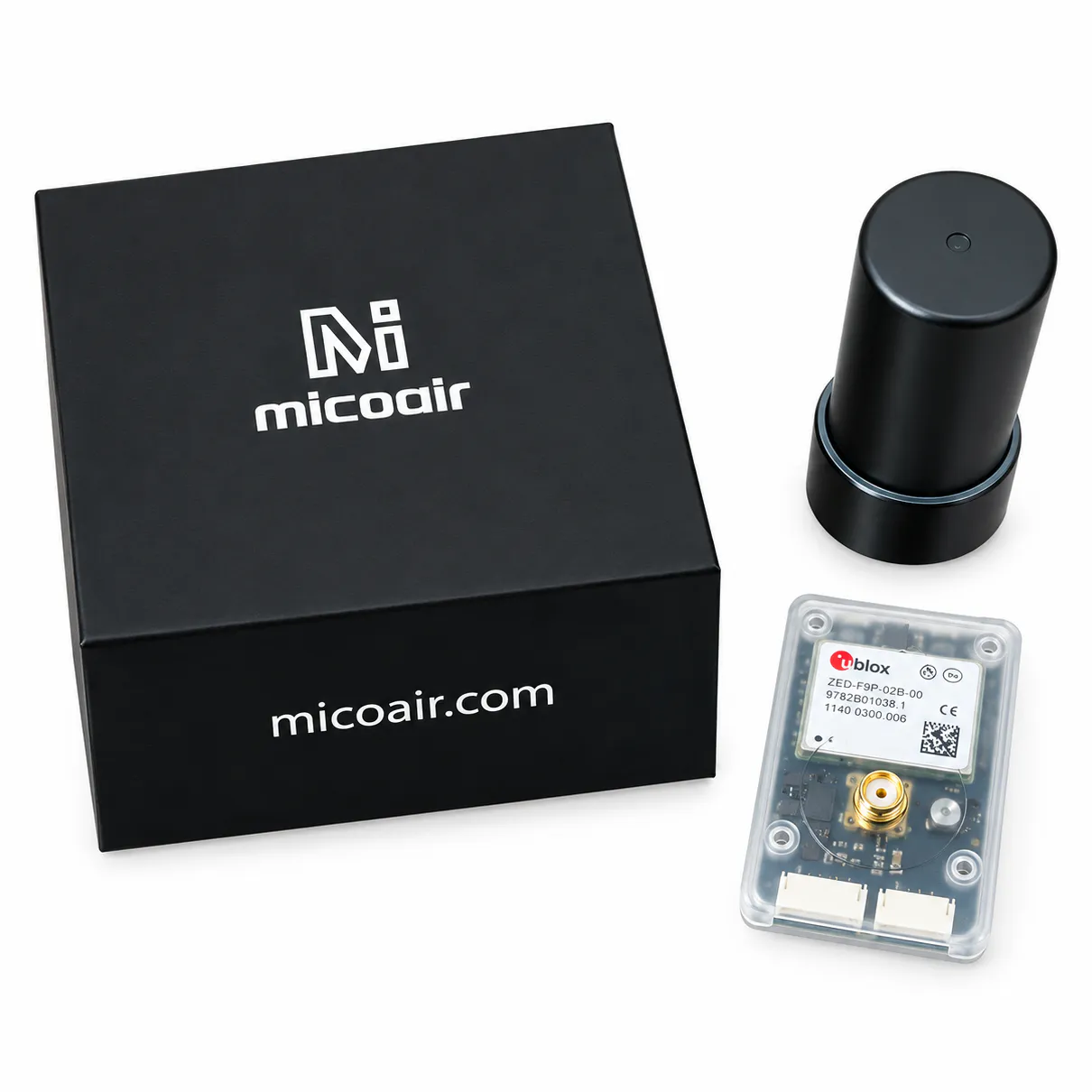

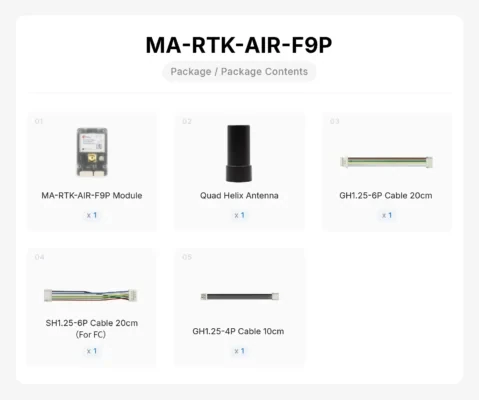

• In the box: module, quad helix antenna, GH1.25 6-pin cable (20 cm), SH 6-pin cable (20 cm), GH1.25 4-pin cable (10 cm)

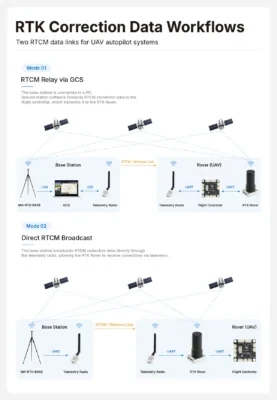

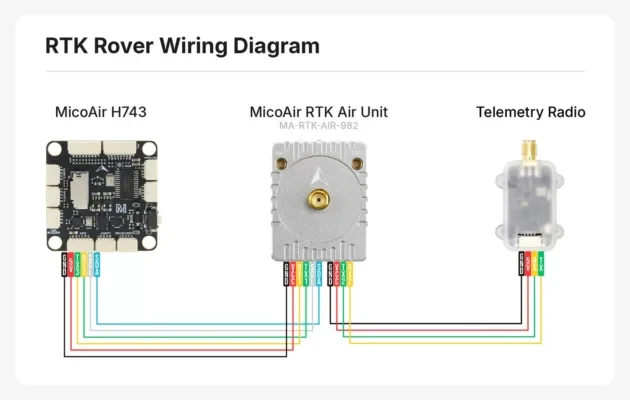

For an RTK fix it needs RTCM corrections from a base station or NTRIP, sent through the ground station and telemetry link.
