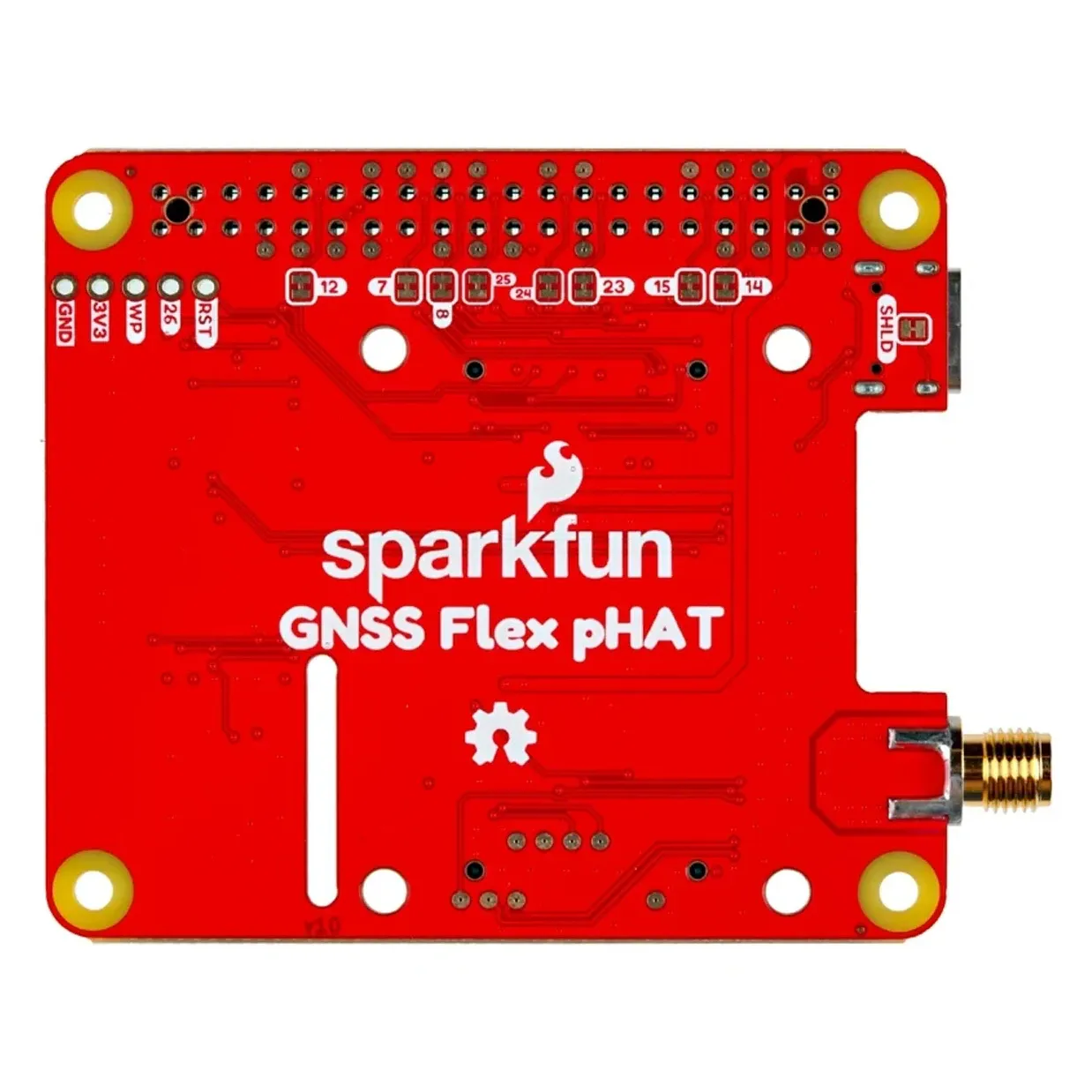

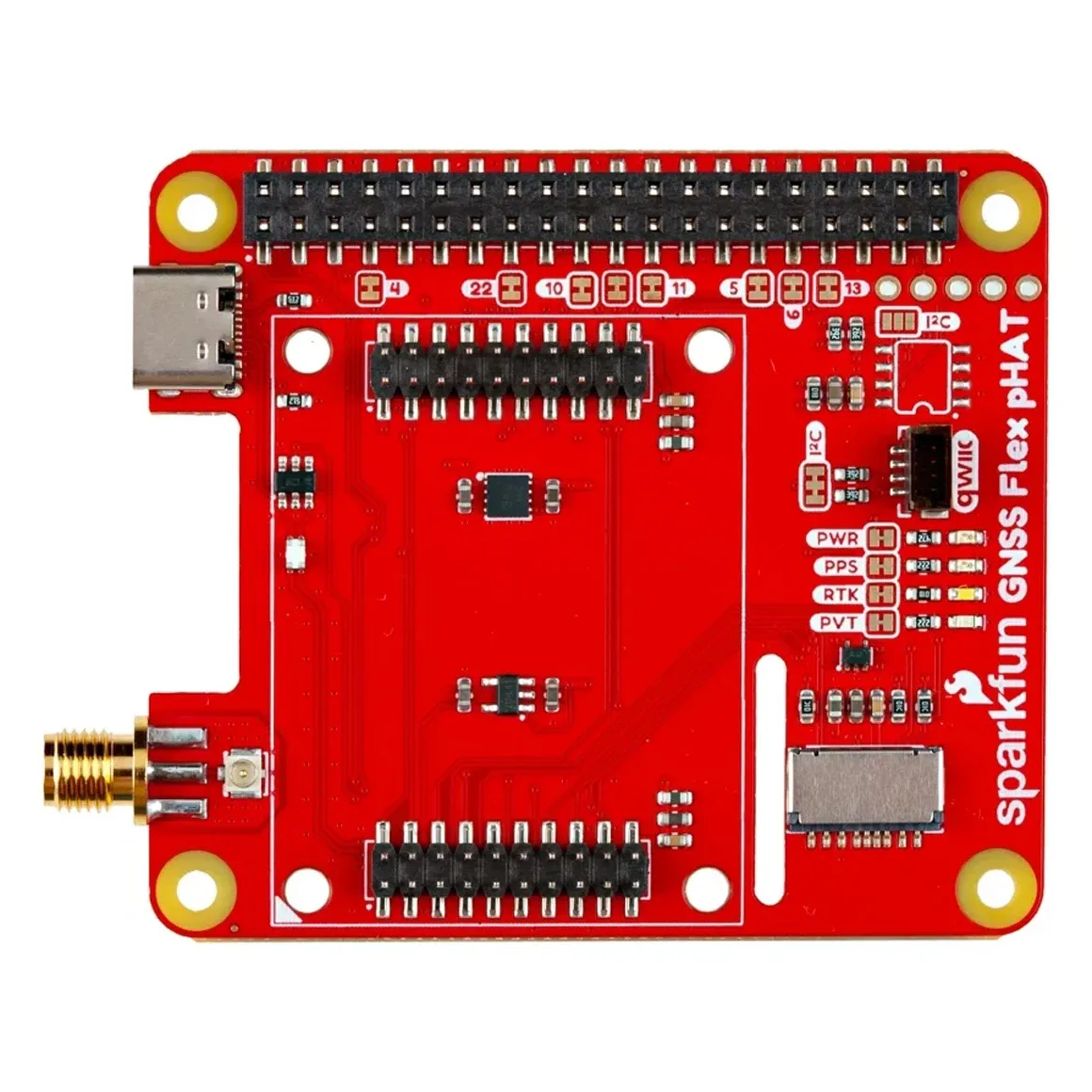

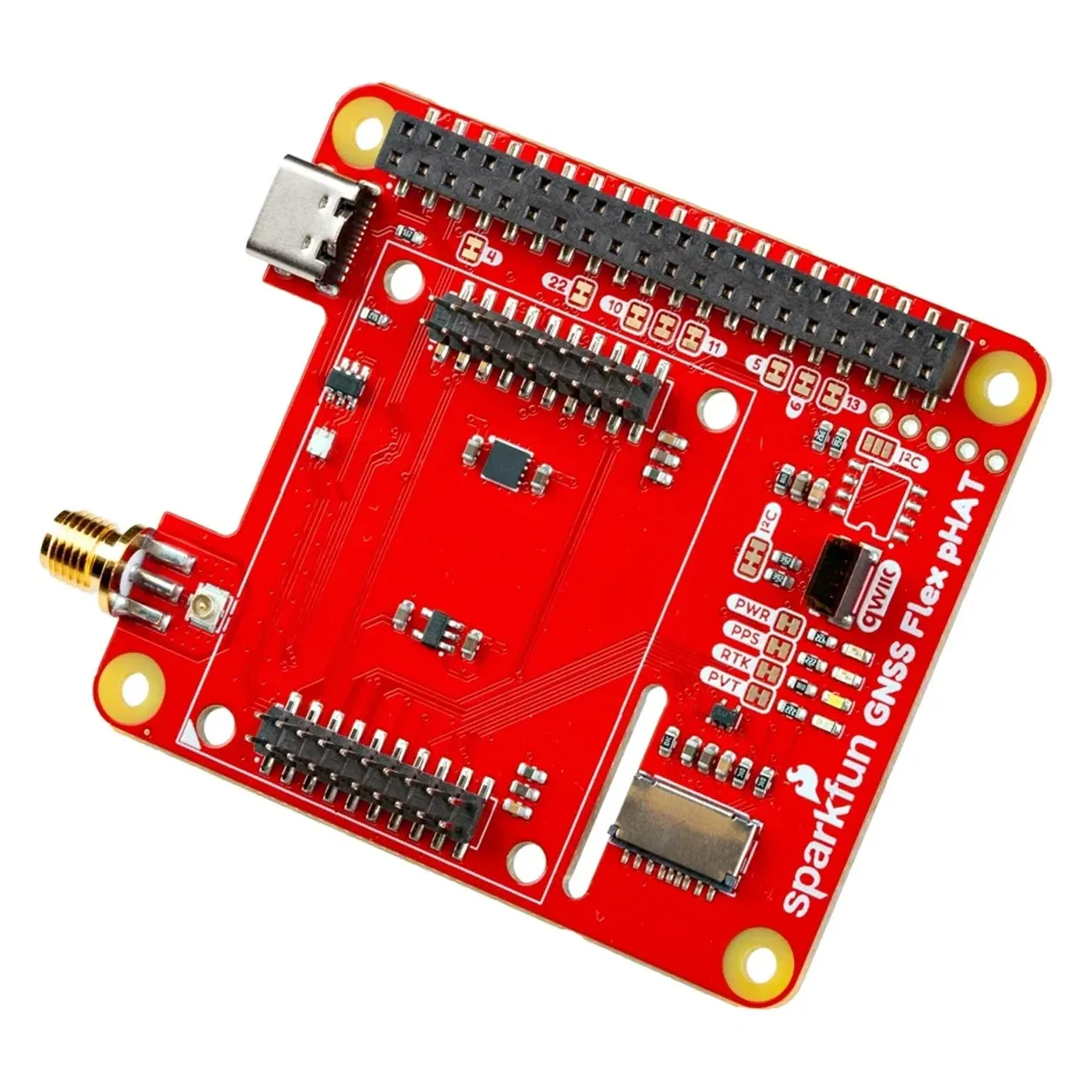

SparkFun GPS-28137 GNSS Flex pHAT for Raspberry Pi
₹4,099Incl. GST
SKU SPARKFUN-GPS-28137
Brand: SparkFunMade in India: No
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The SparkFun GPS-28137 is a GNSS Flex pHAT designed for Raspberry Pi systems. It is a solder-free carrier board for SparkPNT GNSS Flex modules (the GNSS module itself is not included), giving companion-computer drones, robotics projects and embedded Raspberry Pi applications a board-level way to add positioning.
Key features
- Carries a SparkPNT GNSS Flex module on two 2x20-pin headers in Raspberry Pi pHAT format.
- Designed to interface with Raspberry Pi companion computers.
- Suitable for drone projects that use a Raspberry Pi as an onboard computer.
- Its pHAT format supports neater mechanical and electrical integration with compatible Raspberry Pi systems.
- Useful for development, navigation experiments and embedded positioning applications.
Specifications
- SBC interface: 40-pin Raspberry Pi header
- GNSS module interface: two 2x20-pin, 2 mm-pitch headers
- Communication: USB-C, up to 4 x UART, I2C, PPS
- Antenna: U.FL and SMA bridge connectors
- Extras: microSD socket, Qwiic connector, 24 configurable jumpers
- Dimensions: 65 x 56 x 8 mm
- Weight: 5 g
- In the box: GNSS Flex pHAT only
Check the Raspberry Pi model, operating-system support and available mounting space before adding this pHAT to a companion-computer build.
| Brand | SparkFun |
|---|---|
| Made in India | No |
