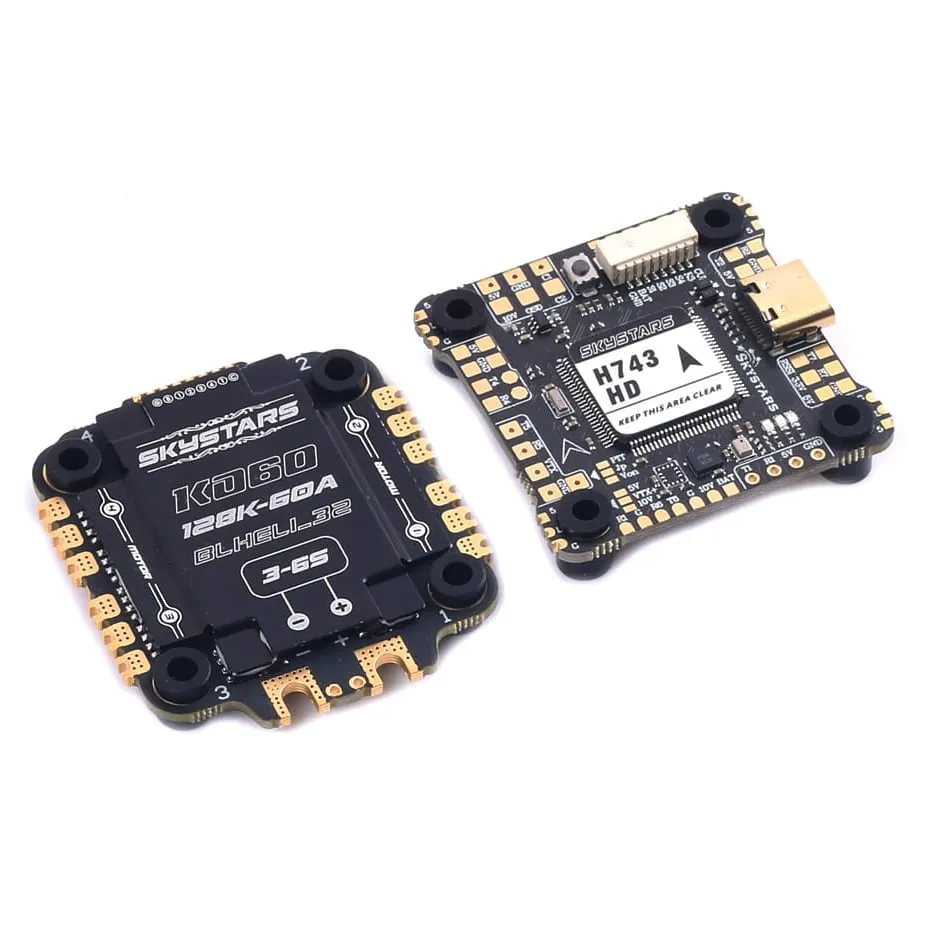

Skystars H7 HD KO60 128K BLHeli_32 Stack 30x30 Single Gyro

The Skystars H7 HD + KO60 stack combines an H7 flight controller with a 60A ESC for freestyle and HD recording builds. Its 30x30 mounting layout suits builders choosing a matching frame and wiring arrangement.

Key features

• KO60 ESC: rated at 60 A for builds that need high-current motor control.

• 128K BLHeli_32: the ESC carries the stated 128K BLHeli_32 designation for electronic speed control.

• Single-gyro FC: uses a single gyro sensor layout for builders who specifically require a single-gyro board.

• HD build focus: suited to freestyle setups that include HD recording equipment.

Specifications

• FC processor: H7 (STM32H743, 480MHz)

• Gyro: BMI270 (single)

• Barometer: BMP280

• OSD: AT7456E

• Blackbox: 16MB

• PWM outputs: 8

• Camera inputs: 2, switchable

• VTX power: 10V/Vbat filtered output with on/off switch

• ESC current: 60 A continuous, 65 A peak (5 s)

• ESC input: 3-6S LiPo

• ESC firmware: BLHeli_32

• ESC telemetry: voltage, current and RPM; onboard current sensor

• ESC BEC: none

• Mounting size: 30.5 x 30.5 mm

• FC size and weight: 39.5 x 39.5 x 7.8 mm, 10.1 g

• ESC weight: 12 g

Before installation, confirm that your frame uses the 30x30 mounting pattern and that the connected motors, battery and wiring match the ESC's electrical requirements.
