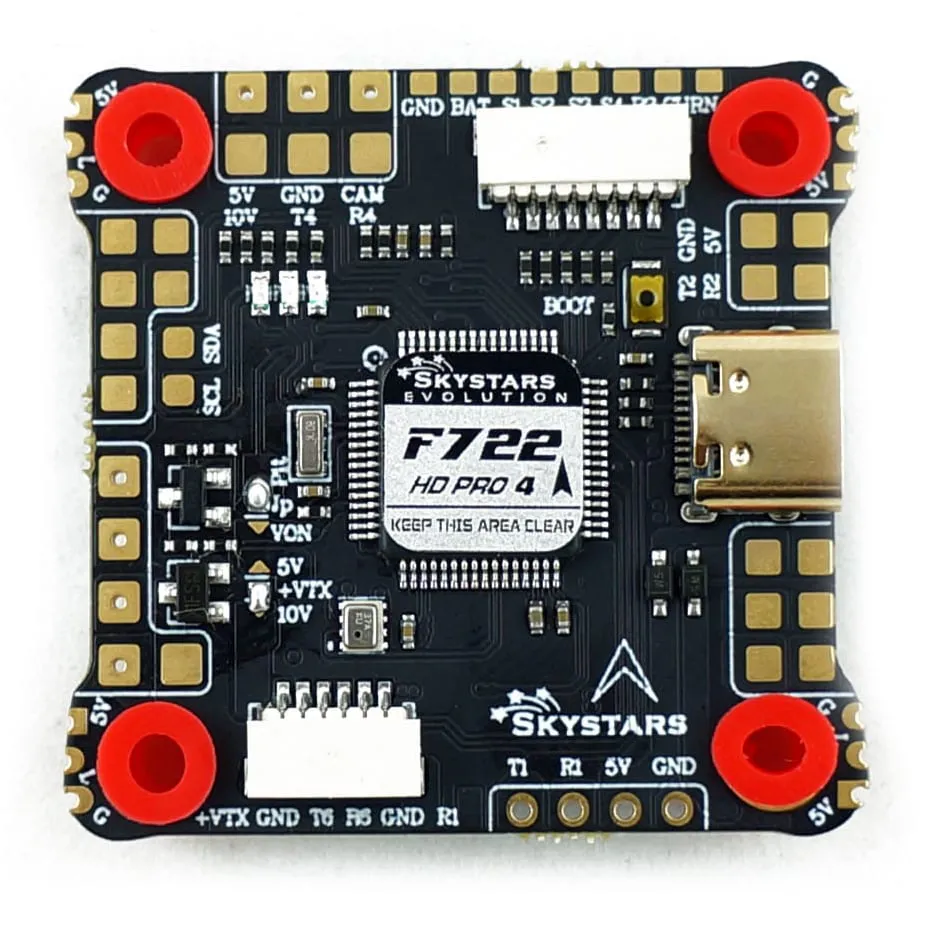

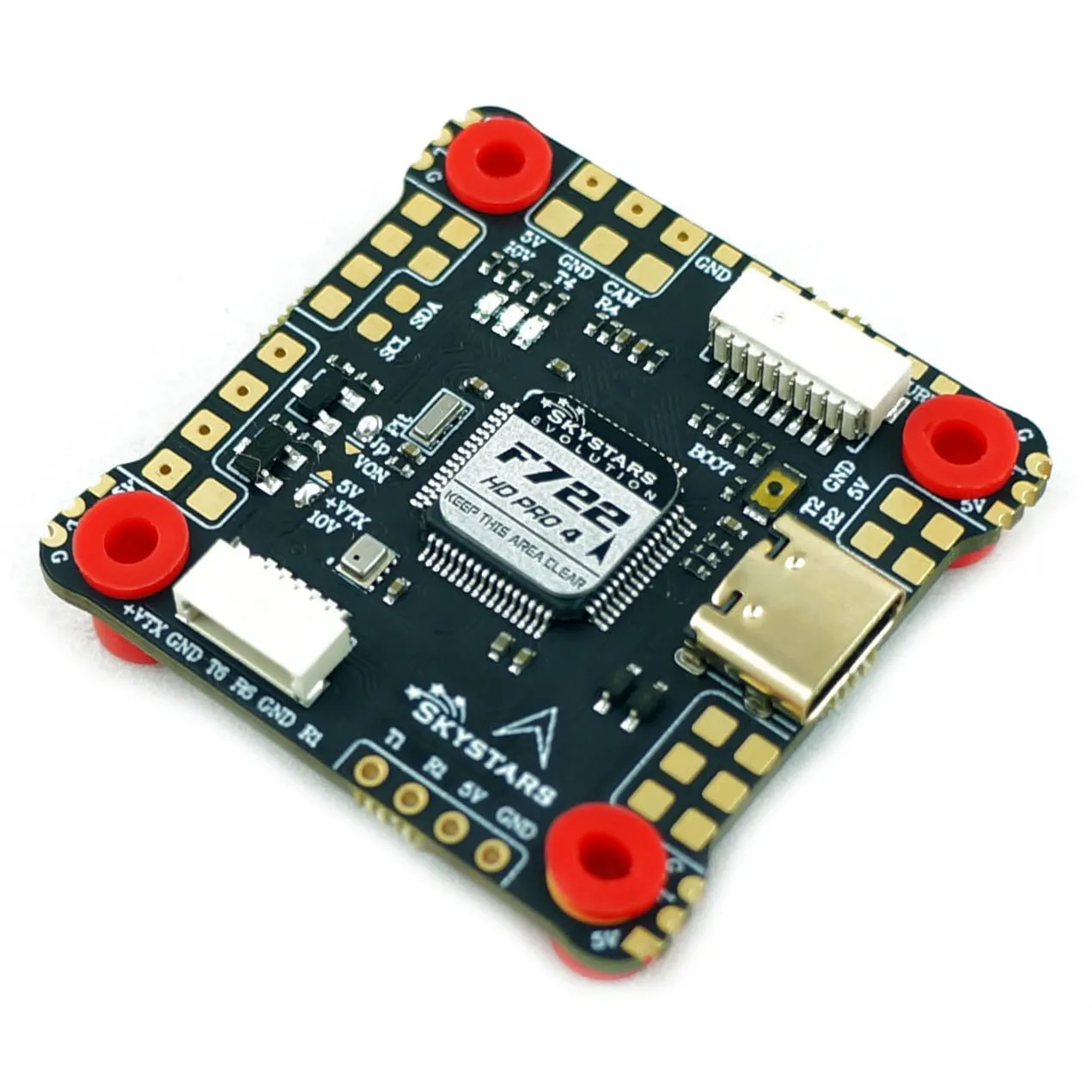

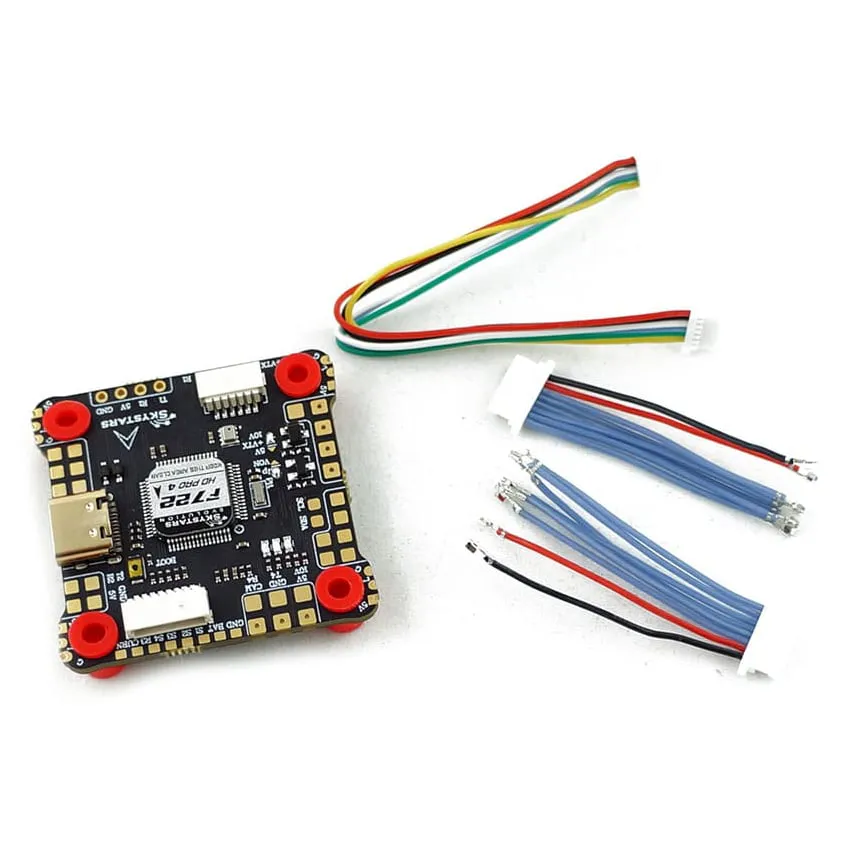

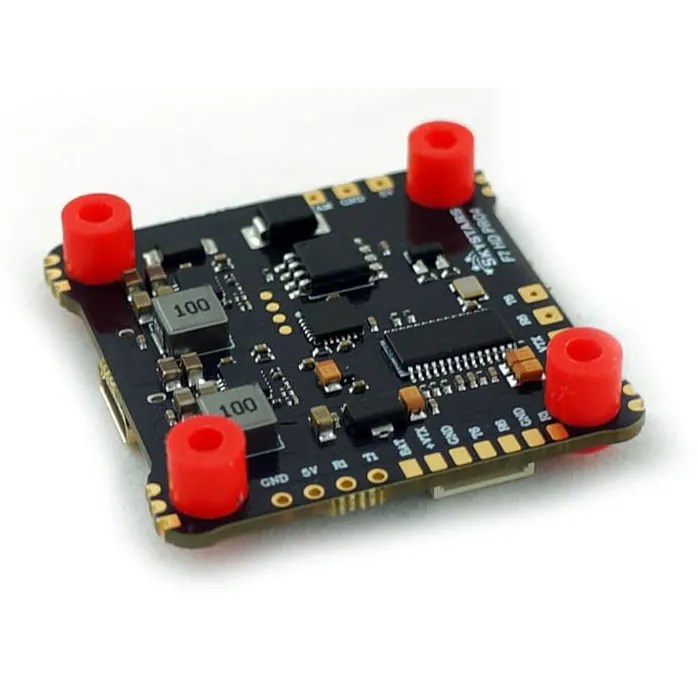

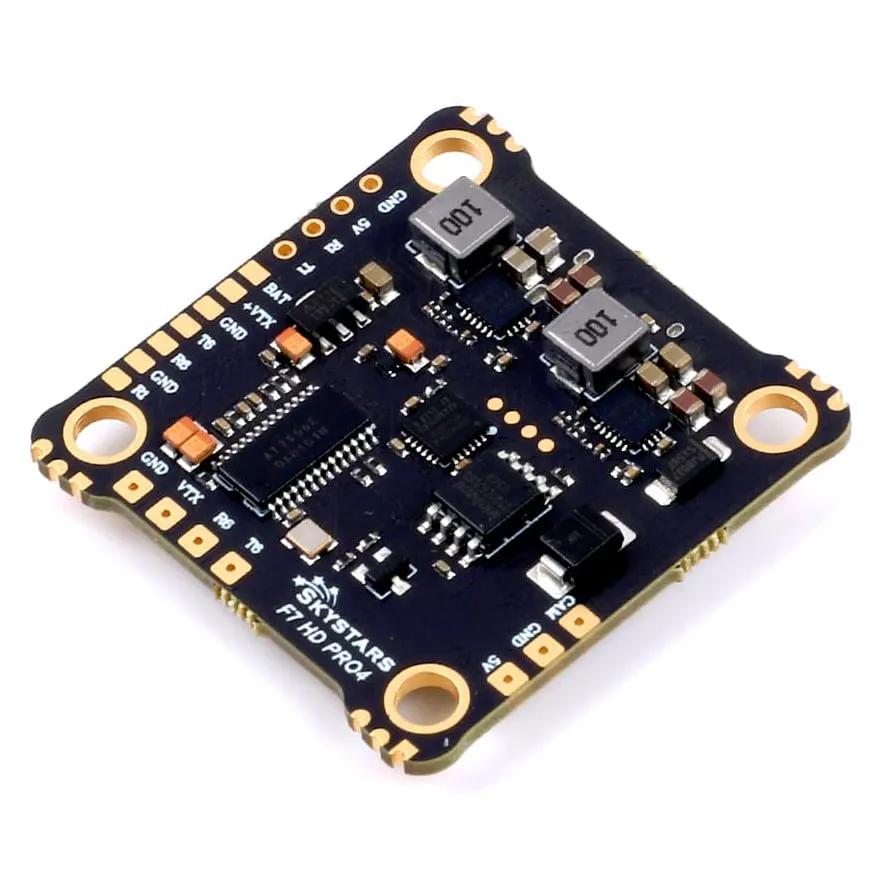

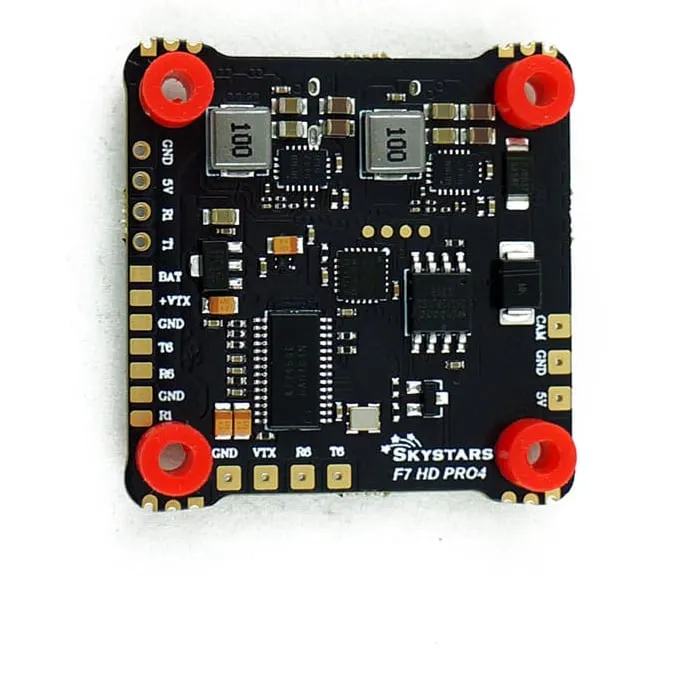

Skystars F722 HD Pro4 Flight Controller

The Skystars F722 HD Pro4 is a high-performance 30.5x30.5mm flight controller tailored for modern 5-inch freestyle and cinematic digital builds. Driven by a fast STM32F722 processor and the highly sought-after MPU6000 gyro, this board delivers exceptionally low-noise flight data for effortless tuning and locked-in handling right out of the box.

Key features

• Dedicated plug-and-play connector for digital HD video transmitters (DJI O3, Walksnail, HDZero), eliminating messy soldering and speeding up your build.
• Dual high-capacity BECs (5V/3A and 10V/3A) ensure stable, clean power for demanding HD VTX units, receivers, and GPS modules.
• Six full hardware UARTs provide ample connectivity for RC links, telemetry, and auxiliary sensors.
• Integrated 16MB Blackbox flash memory allows for comprehensive flight logging and precise PID analysis.
• Spacious, intuitive pad layout with heavy-duty copper tracks for straightforward wiring and quick field repairs.

Specifications

• Processor: STM32F722RET6
• Gyro: MPU6000
• Mounting: 30.5x30.5 mm (4 mm hole diameter with 3 mm grommets)
• Input Voltage: 3-6S LiPo
• BEC Outputs: 5V/3A, 10V/3A
• UARTs: 6
• Blackbox: 16MB Flash
• Supported firmware: Betaflight, INAV

Built for standard 30-size stacks, this flight controller provides a rock-solid foundation for any full-sized freestyle or heavy-lift cinelifter requiring abundant processing headroom and robust power management.
