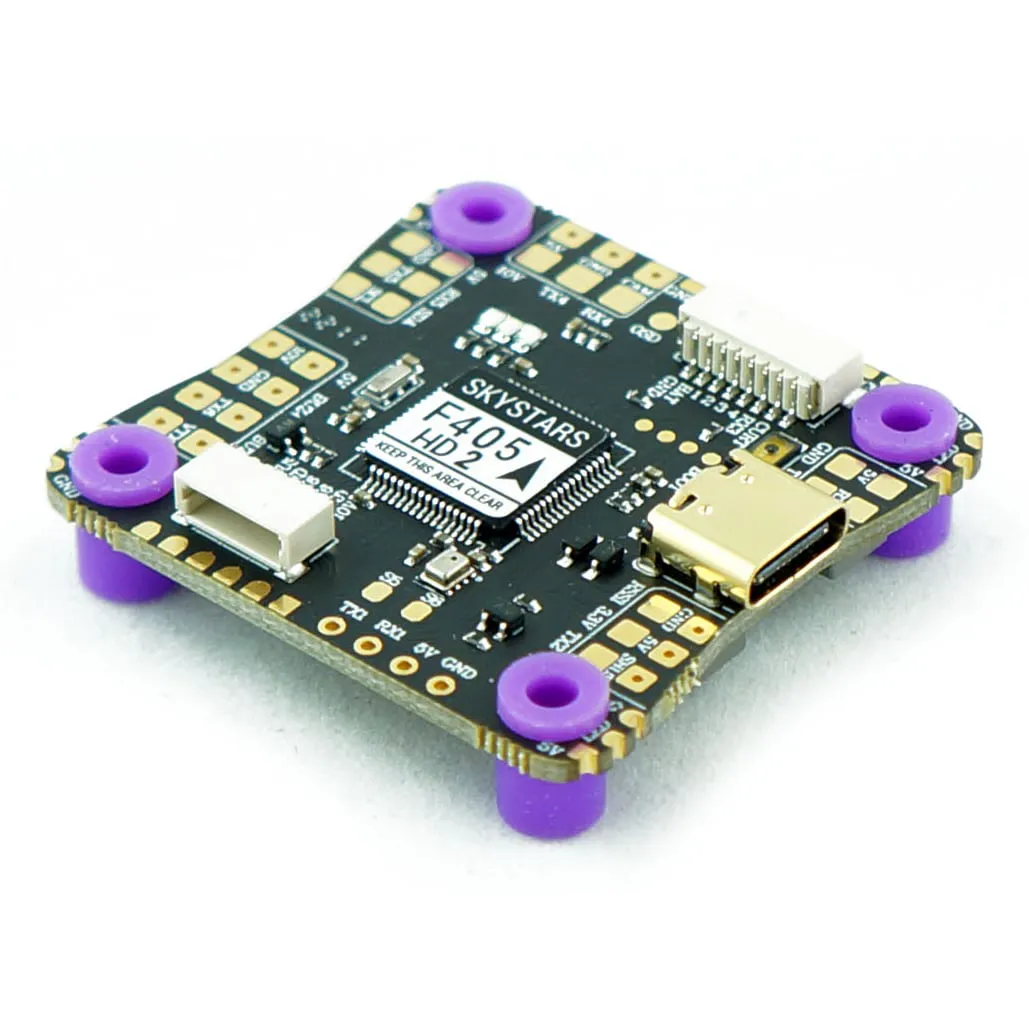

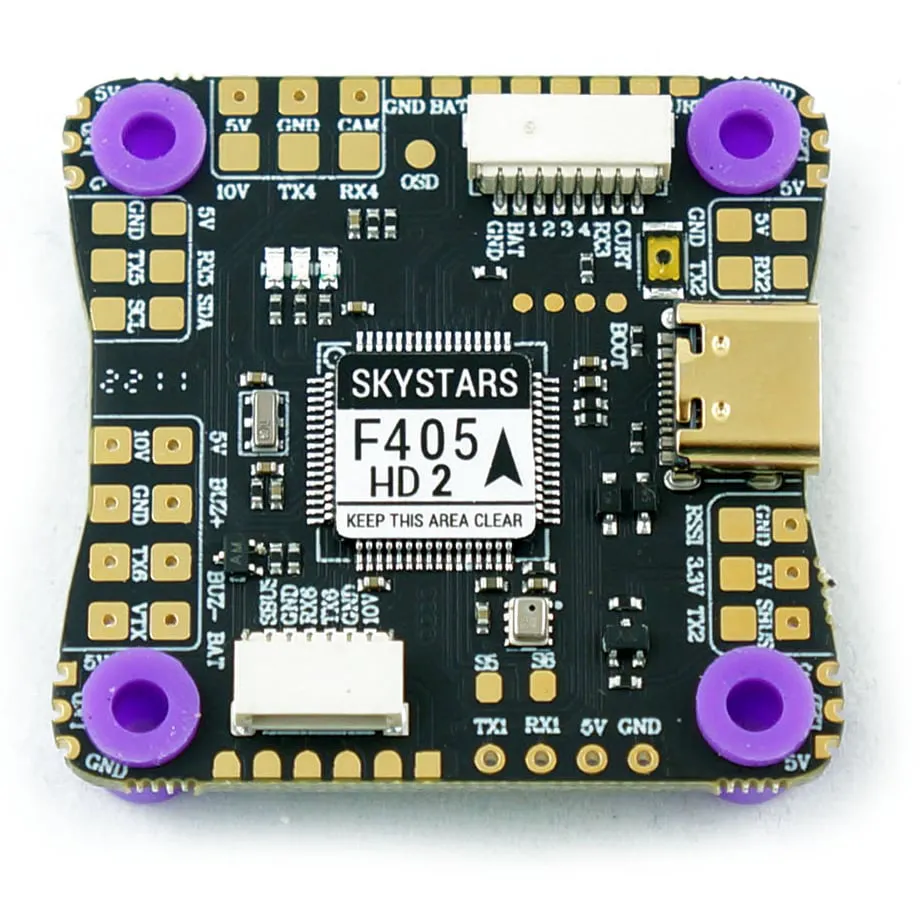

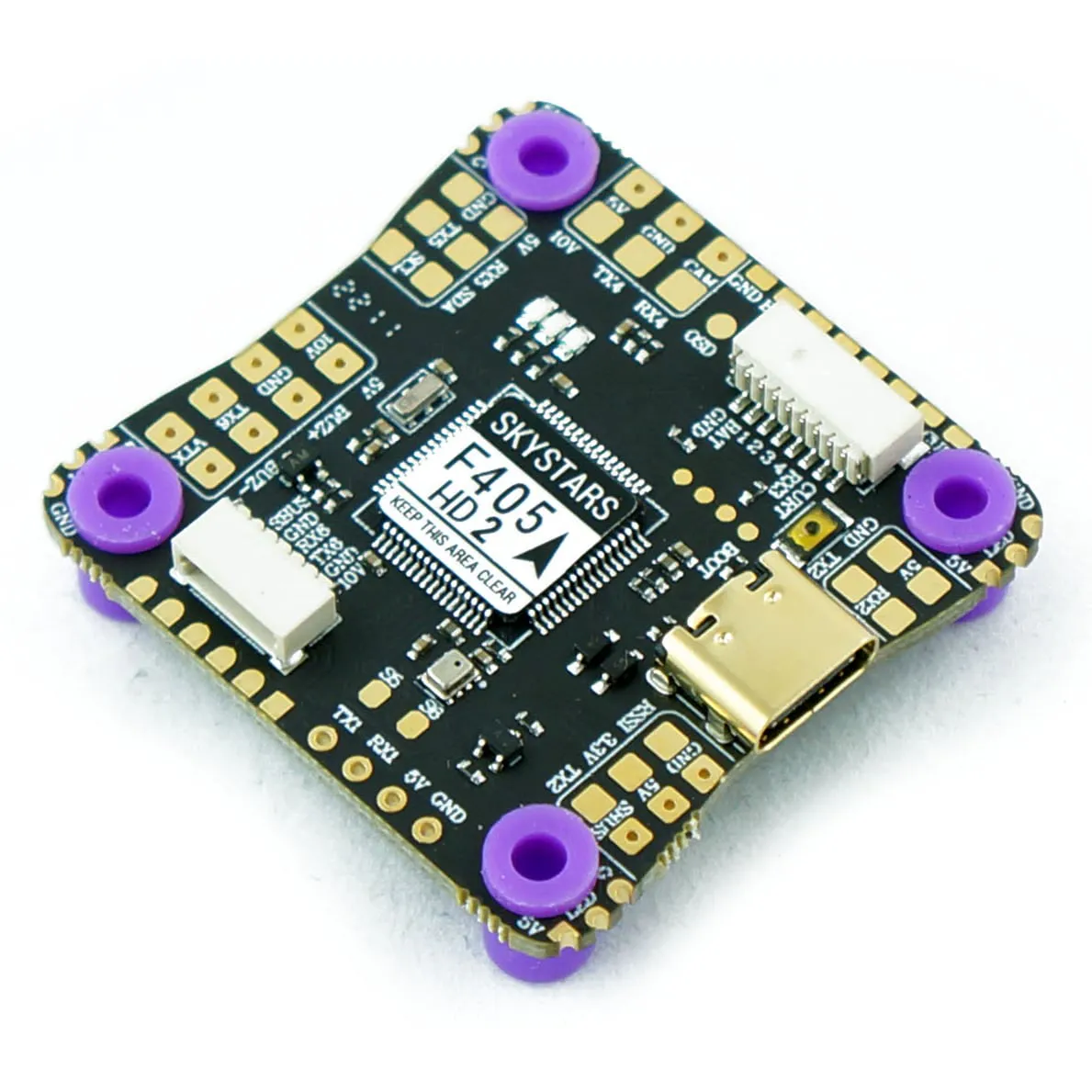

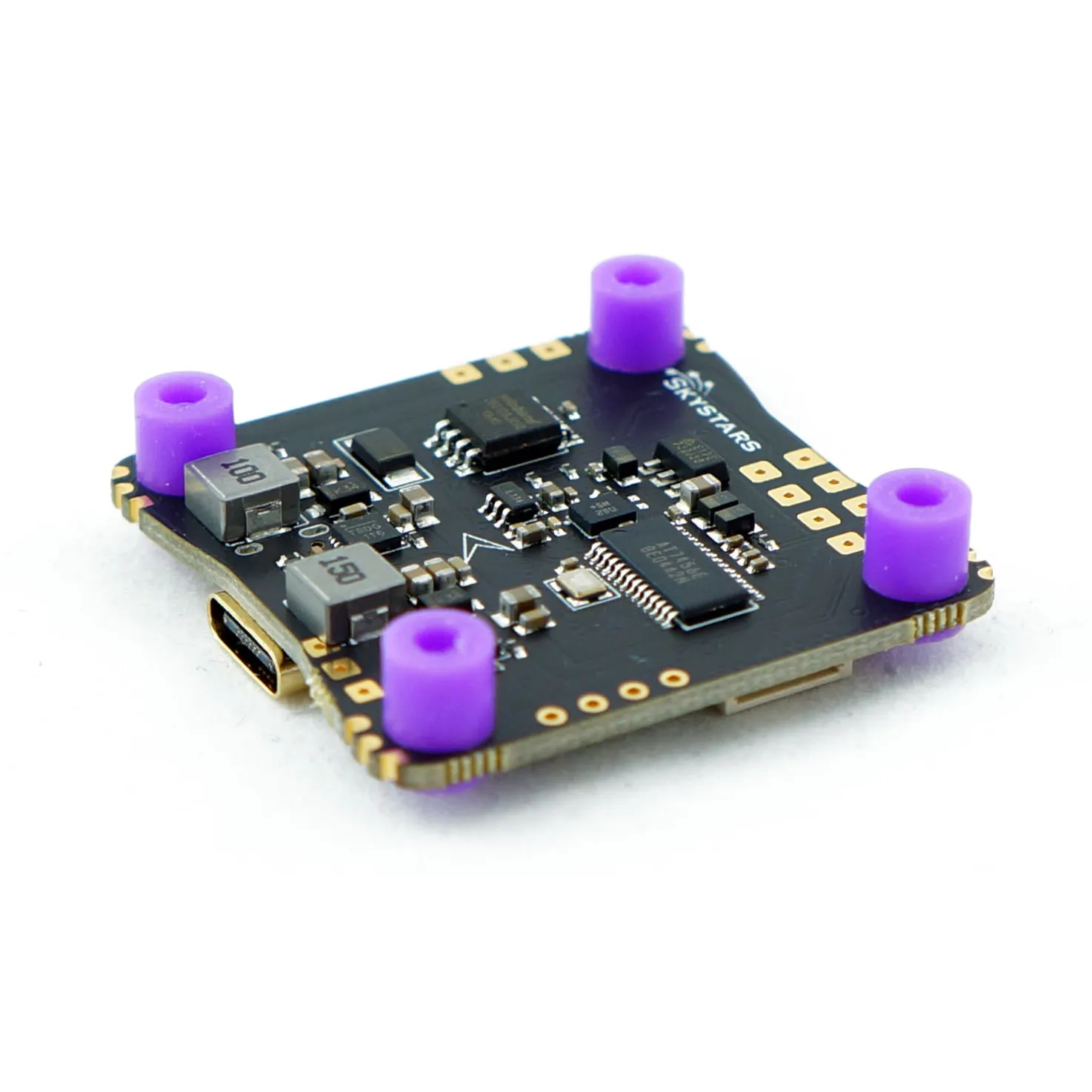

Skystars F405 HD 2 Flight Controller
SKU SS-F405-HD2-FC
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Skystars F405 HD 2 is a robust 30.5x30.5mm flight controller engineered for 5-inch freestyle and racing builds. Built around the STM32F405 processor, it simplifies digital FPV setups with a dedicated plug-and-play connector and clean power delivery for HD video transmitters like the DJI O3, Walksnail Avatar, or Caddx Vista.
Key features
- Dedicated onboard connector and 10V BEC for seamless digital HD VTX integration
- Integrated barometer for accurate altitude tracking and GPS rescue modes
- Six full hardware UARTs to accommodate receivers, GPS modules, and telemetry peripherals
- Includes a 16MB blackbox flash memory chip for detailed flight tuning and diagnostics
Specifications
- Processor: STM32F405
- Input voltage: 3-6S LiPo
- BEC output: 5V/3A, 10V/3A
- UARTs: 6
- Blackbox: 16MB Flash

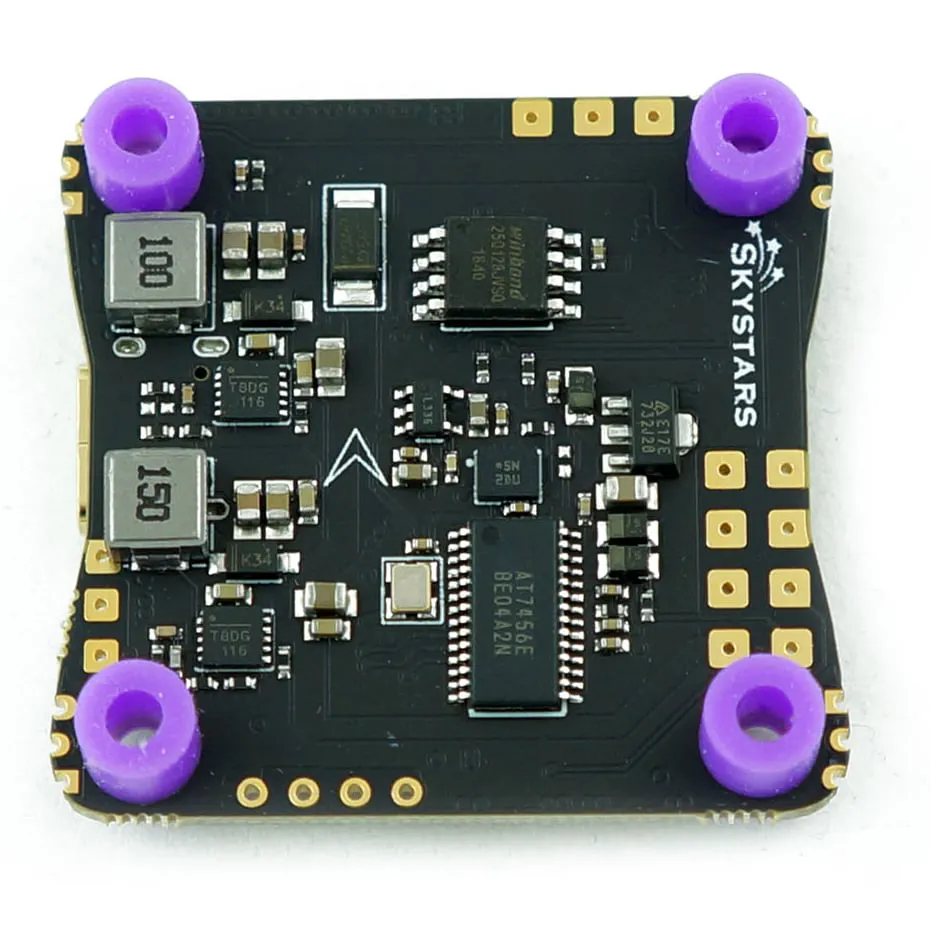

- OSD: AT7456E
- Mounting pattern: 30.5x30.5mm
- Supported firmware: Betaflight, INAV
With its comprehensive hardware layout and dual high-output BECs, this flight controller provides a stable, uncluttered foundation for power-hungry digital FPV drones.
| Integrated Receiver | No |
|---|---|
| Mounting Size | 30.5x30.5 |
| Integrated VTX | No |
| FC Processor | F405 |
| Gyro | ICM42688P |
| Input Voltage | 3–6S |
| Made in India | No |
| Brand | Skystars |
| Supported Firmware | Betaflight, INAV |
| Barometer | Yes |
| UARTs | 6 |
