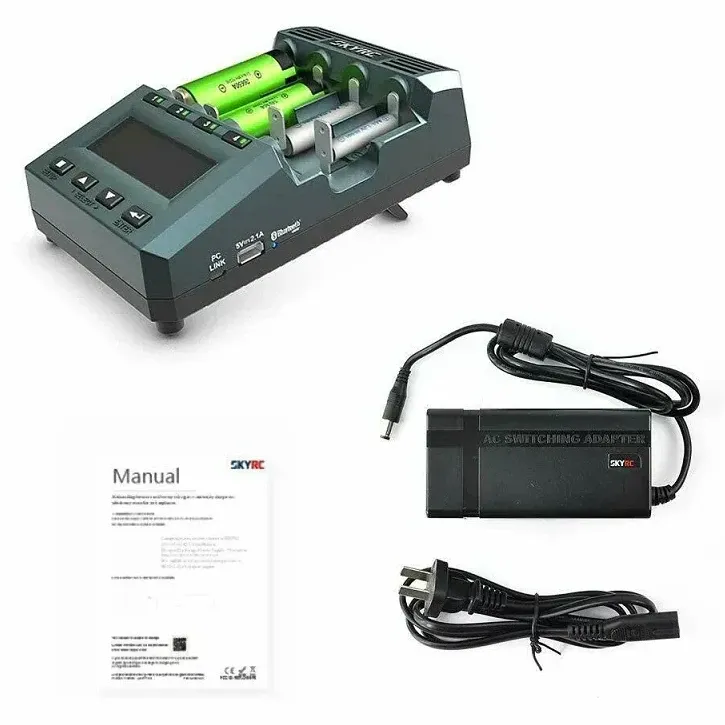

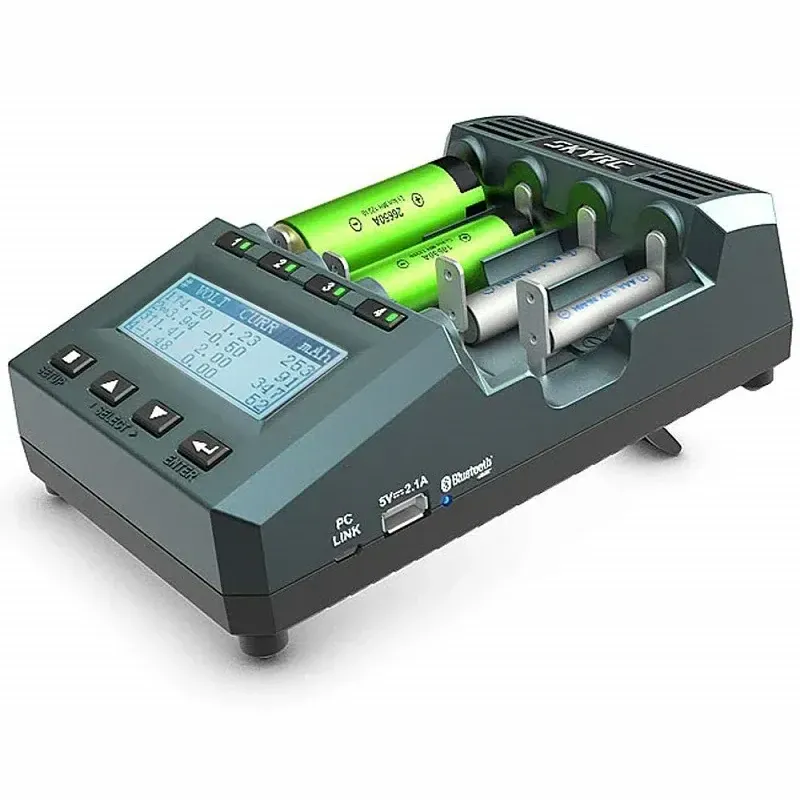

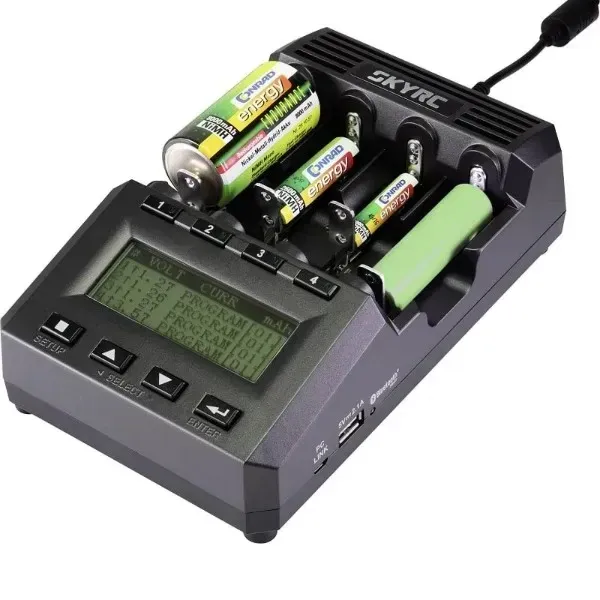

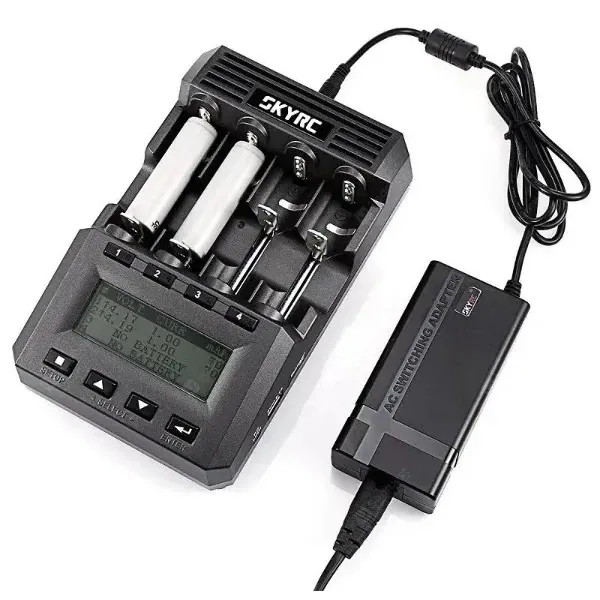

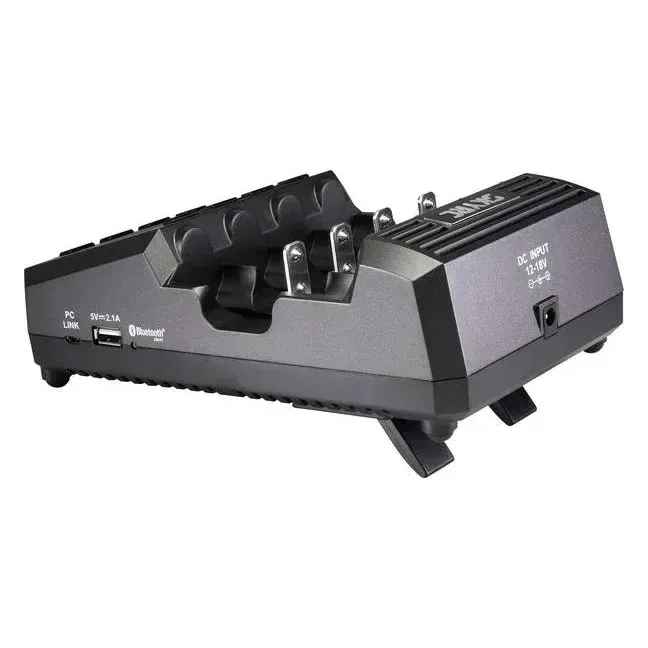

SkyRC MC3000 Multi-Chemistry Battery Charger & Analyzer

The SkyRC MC3000 is a four-bay charger and analyser for cylindrical cells such as 18650, AA and AAA, covering Li-ion, LiFePO4, NiMH, NiCd, NiZn and Eneloop chemistries. It suits builders who make their own Li-ion packs and need to test, match and cycle individual cells, as well as anyone charging radio and gadget batteries.

Key features

• Four independent bays, up to 3 A charge per bay and 50 W in total.
• Analyser functions: capacity test, refresh, cycle count, break-in and internal resistance measurement.
• Discharge up to 2 A per slot on lithium cells, 15 W in total.
• Bluetooth app and PC control, with 30 user-defined profiles.
• Measures with plus or minus 2 mV voltage and 2 mA current accuracy, shown on a 128 x 64 LCD.
• USB output (5 V, 2.1 A) to charge a phone or other device.

Specifications

• Input: 11-18 V DC, 4 A
• Charge power: 50 W max
• Discharge power: 15 W max
• Charge current: up to 3 A per slot
• Chemistries: Li-ion, Li-ion 4.35 V, LiFePO4, NiMH, NiCd, NiZn, Eneloop
• Battery capacity range: 100-50000mAh
• Dimensions: 200 x 124 x 69 mm
• Weight: 600 g (without DC adaptor)

It charges single cells, not finished multi-cell packs. Protected 21700 cells are not supported, so check the cell length before using one.
