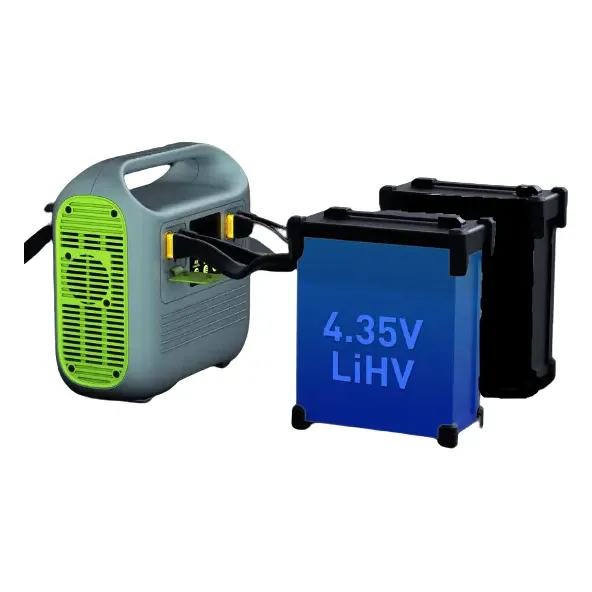

SkyRC PC3000H 3000W 60A 12/14S LiPo/LiHV 4-Channel Drone Charger

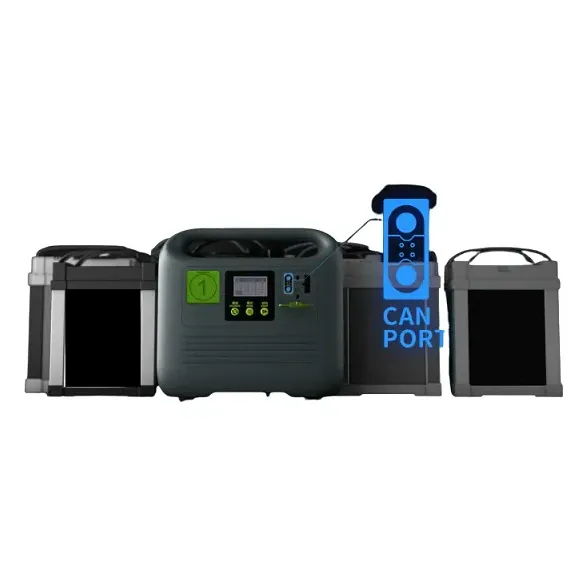

The SkyRC PC3000H is a four-channel AC charger for 12S and 14S agricultural and industrial drone batteries. It handles smart batteries, ordinary lithium packs and LiHV packs, recognises compatible smart batteries instantly over its built-in CAN bus and starts charging automatically. With up to 3000W of output on 220V mains, one unit charges four packs at once between sorties.

Key features

• Four modes: Fast Charge, Standard Charge, Charge and Storage
• Up to 60A fast charge on a single channel; standard charge up to 30A and slow charge up to 20A per channel, each capped at 60A in total
• LiPo charged to 4.2V per cell and LiHV to 4.35V per cell
• Screen shows charge time, battery percentage and every cell's voltage in real time
• Pre-charge stage for deeply discharged packs; conformal-coated electronics and a convection air duct with a dust-filtering ventilator for field use

Specifications

• Input: AC 220V (3000W output) or AC 120V (1200W output)
• Channels: 4
• Batteries: 12S/14S LiPo (4.2V/cell), 12S/14S LiHV (4.35V/cell)
• Fast charge current: 60A max, single channel
• Standard charge current: 30A per channel, 60A total
• Slow charge current: 20A per channel, 60A total
• Storage discharge: 50W main port, 80W balance port
• Housing: flame-retardant PC+ABS
• Dimensions: 294 × 139 × 282 mm
• Weight: 6 kg
• Operating temperature: 0–40°C

Output drops to 1200W on a 120V supply, so for full-speed charging run it from 220V mains or a generator rated for the load.
