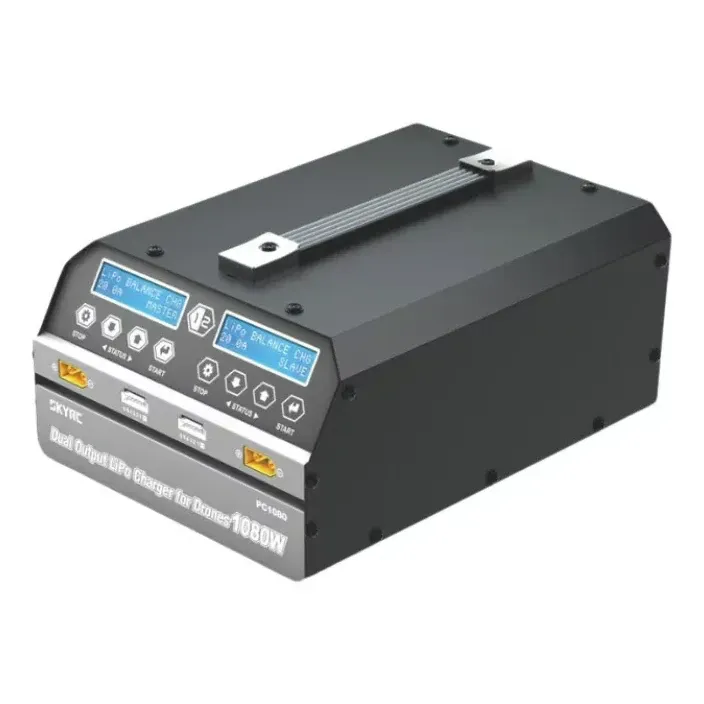

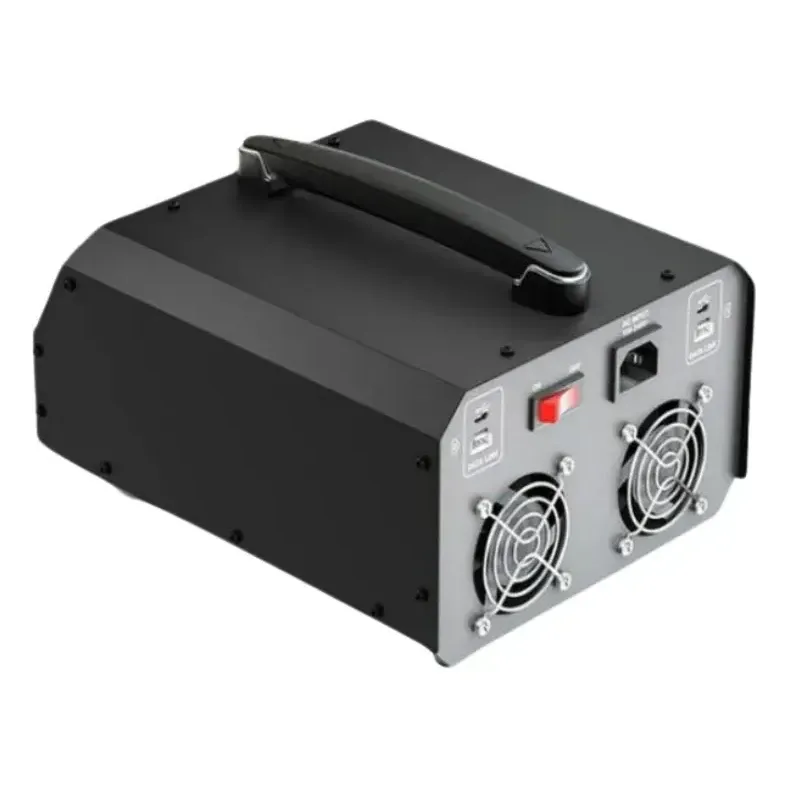

SkyRC PC1080 Dual Channel 1080W 6S LiPo Charger

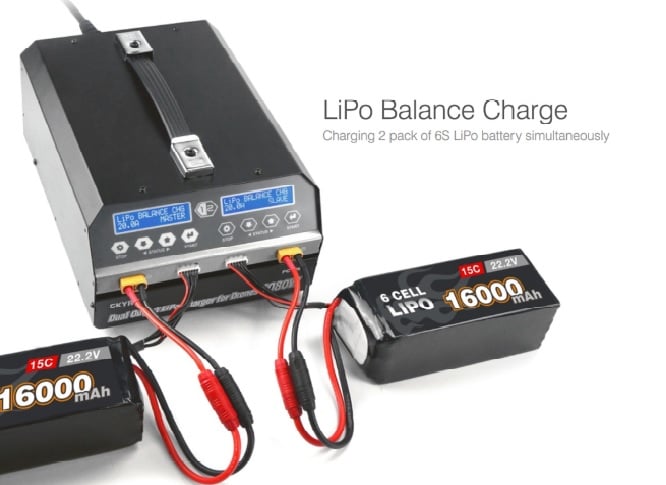

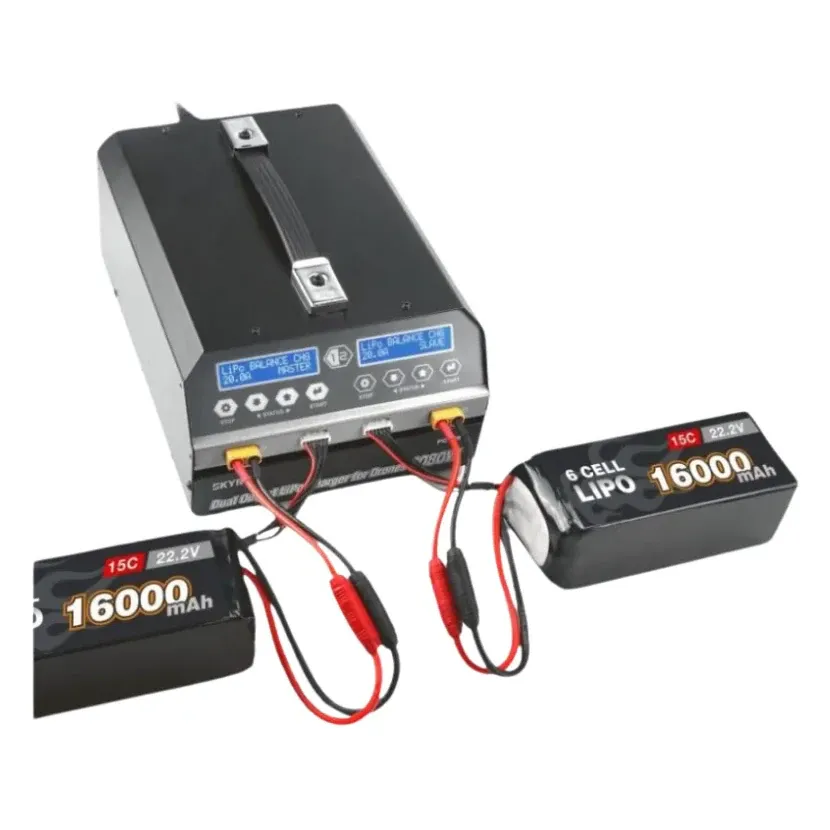

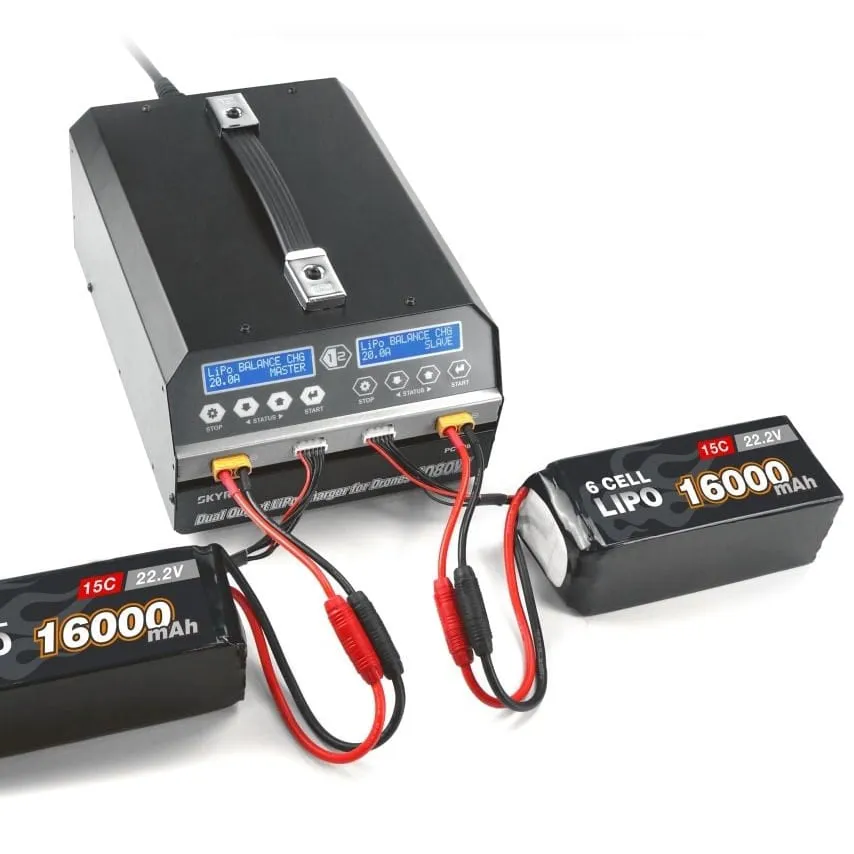

The SkyRC PC1080 is a high-power, dual-channel AC charger dedicated to 6S LiPo and LiHV packs. It is built for industrial and agricultural drone fleets where large batteries need fast turnaround in the field. It balance-charges two 6S packs at once, one per channel, at up to 20A each.

Key features

• 1080W total output, 540W per channel, with 1-20A charge current on each

• LiHV mode alongside standard LiPo; balance charge, charge and storage modes

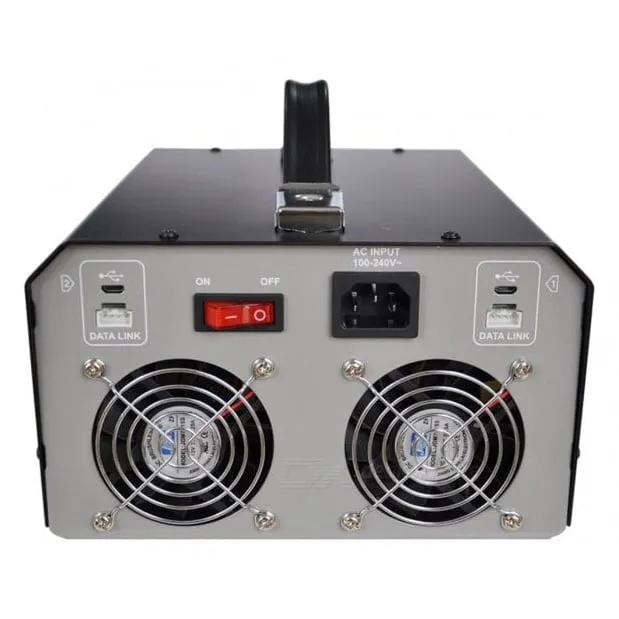

• Active PFC with 93% efficiency, and a switched-mode supply that accepts 100-240V mains worldwide

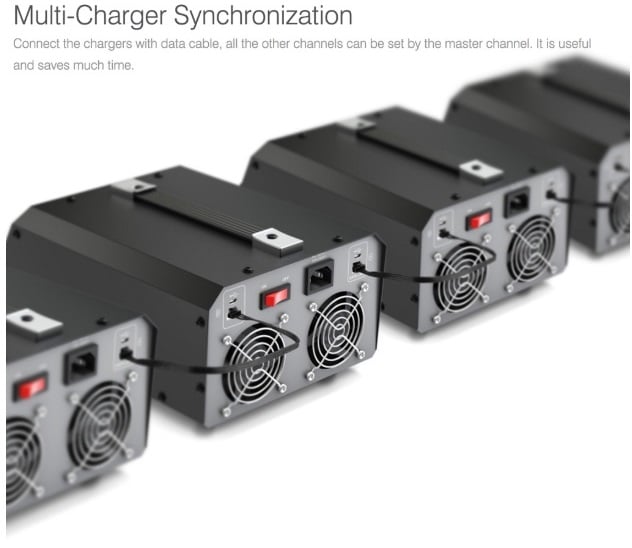

• Master-slave synchronisation to run more than one charger on the same battery, plus sequential charging of up to 12 packs with SkyRC G630 hubs

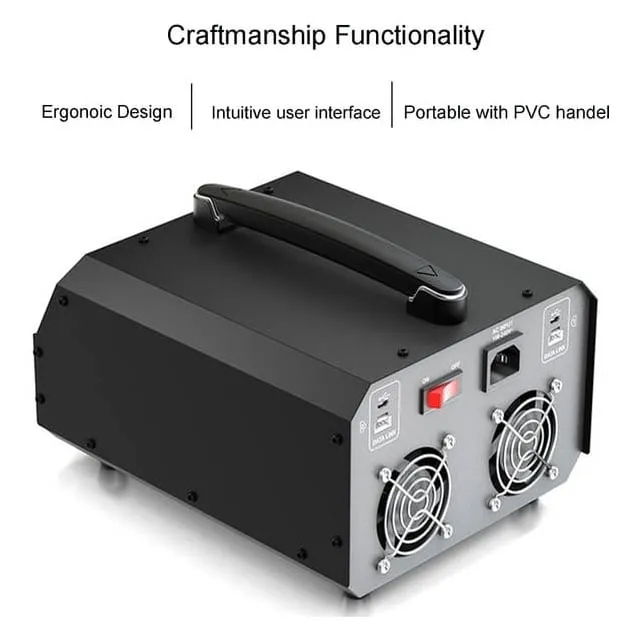

• Conformal-coated electronics and dual ball-bearing cooling fans for dusty, humid field conditions

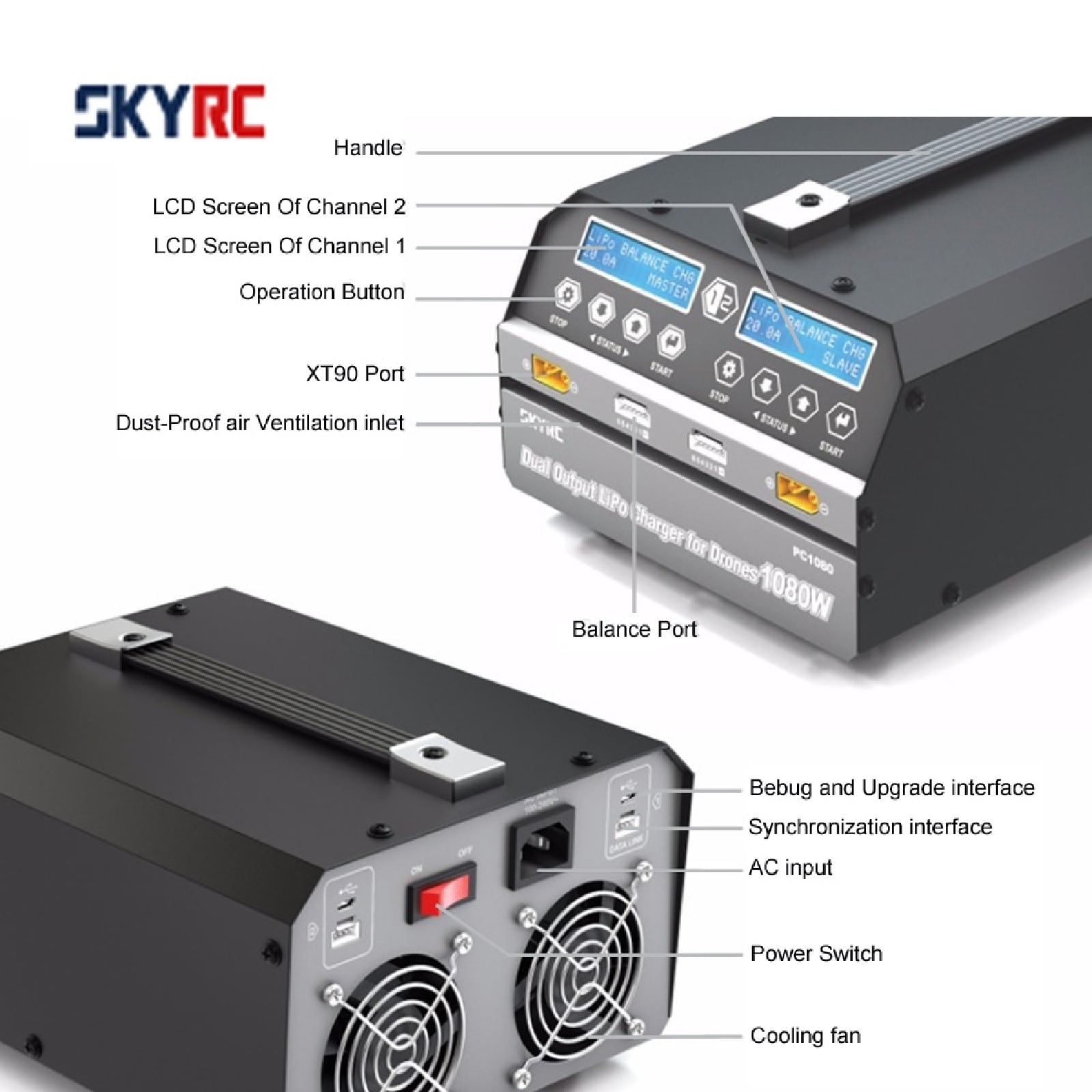

• Battery voltage meter and internal resistance meter on a 2 x 16 LCD

Specifications

• Input: 100-240V AC

• Output power: 1080W (540W x 2)

• Charge current: 1.0-20.0A x 2

• Discharge power: 100W (50W x 2)

• Balance current: 1.2A

• Battery types: LiPo / LiHV

• Cell count: 6S

• Dimensions: 272 x 202 x 118.6mm

• Weight: 4.88kg

This charger takes 6S packs only. Single 12S or 14S agricultural packs need a charger rated for that cell count. A 22,000mAh 6S pack at 20A charges in a little over an hour per channel.
