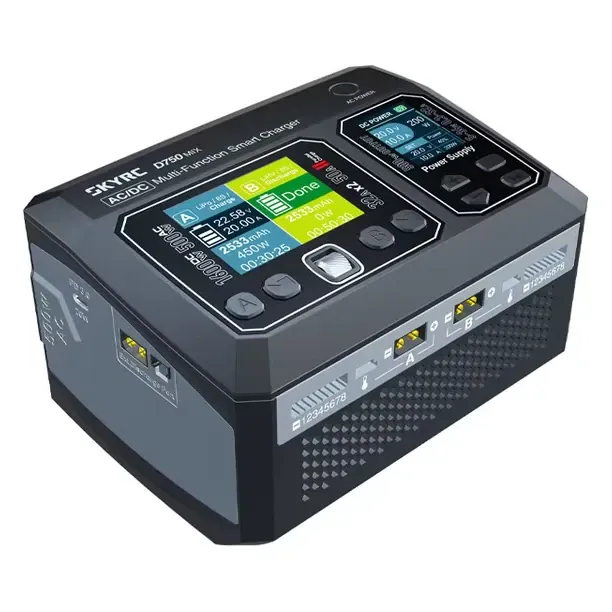

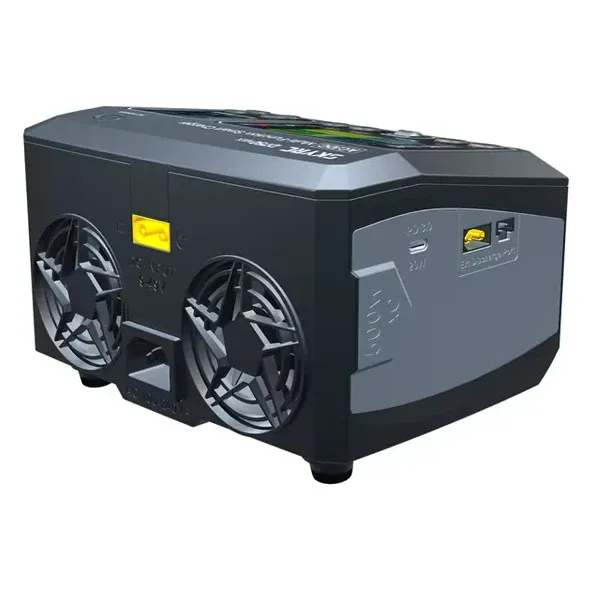

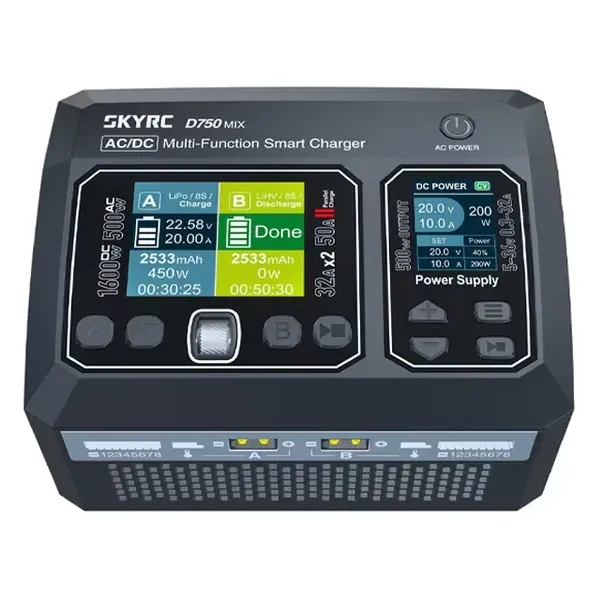

SkyRC D750 MIX Dual Channel AC/DC Charger with Bluetooth

The SkyRC D750 MIX is a dual-channel AC/DC charger with Bluetooth control, built to charge and power a wide range of RC battery chemistries at high current for FPV freestyle, racing and cinelifter packs.

Key features

• Dual-input AC/DC design: up to 500W total on AC, or up to 1600W total across both channels on DC input (1100W on a single channel).
• Charges LiPo, LiFe, Li-ion, LiHV, Pb, NiMH and NiCd packs, up to 8S (29.6V) LiPo.
• Delivers up to 32A per port, with dual-port parallel charging at up to 50A combined.
• Independent displays for the two charging channels plus Bluetooth app control for monitoring cell voltages and charge curves from a phone.
• Reverse discharge between channels A and B transfers unused energy from one pack to another at up to 1100W.

Specifications

• AC input power: 500 W total
• DC input power: 1100 W (single channel) / 1600 W (multi-channel)
• Max current: 32 A per port, 50 A parallel
• Cell support: 1–8S LiPo/LiFe/Li-ion/LiHV
• DC input voltage: 9–49 V
• AC input voltage: 100–240 V
• Discharge power: 45 W main, 20 W balance
• Reverse discharge (A→B): up to 1100 W
• DC power supply mode: adjustable 5-36 V, up to 32 A
• Case size: 180 x 136 x 112 mm
• Weight: 1626 g
• In the box: charger, power cord, instruction manual

A built-in USB-C PD 3.0 port (up to 20W) also keeps a phone or tablet topped up at the bench or field without a separate power adaptor.
